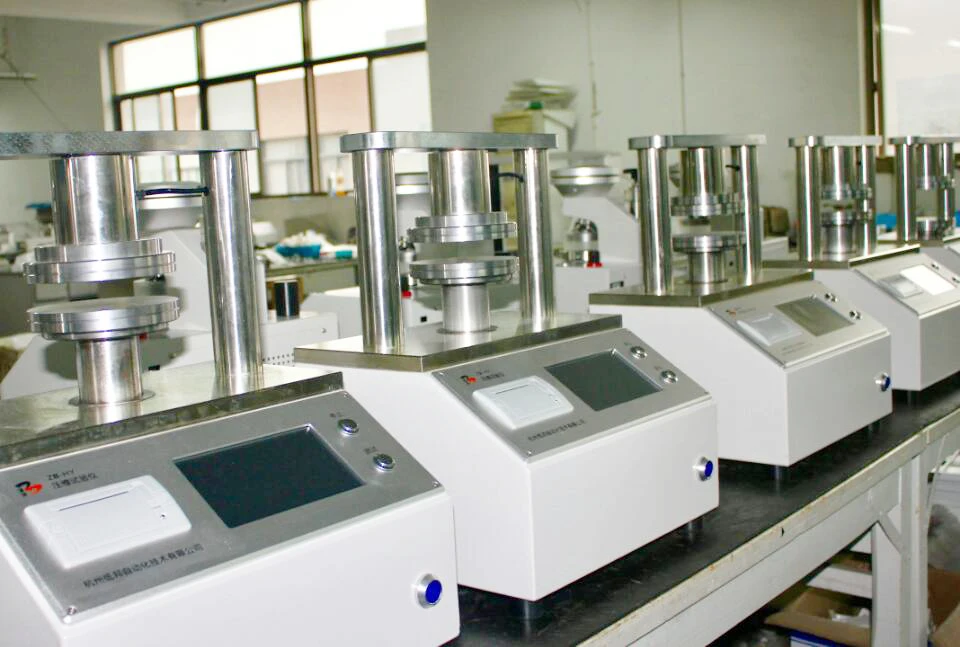

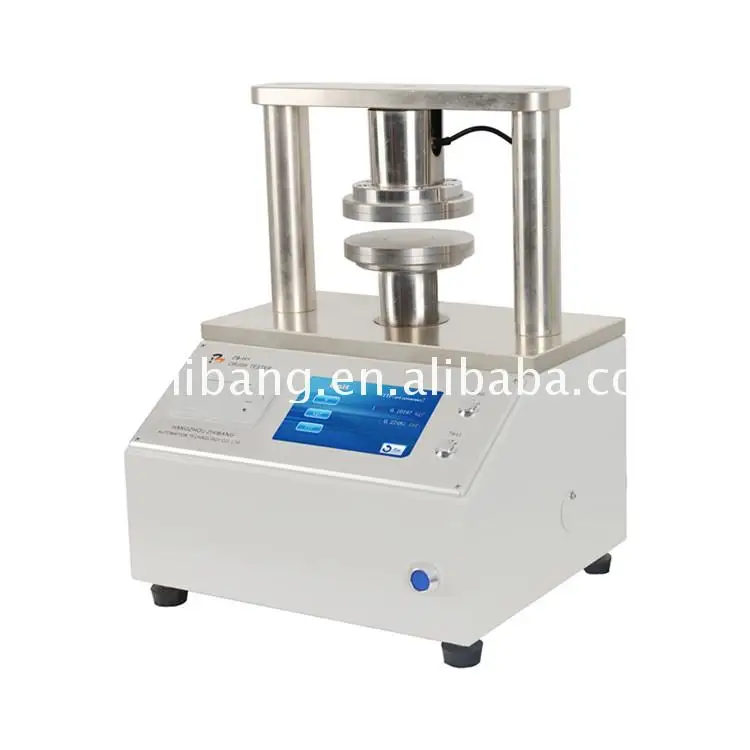

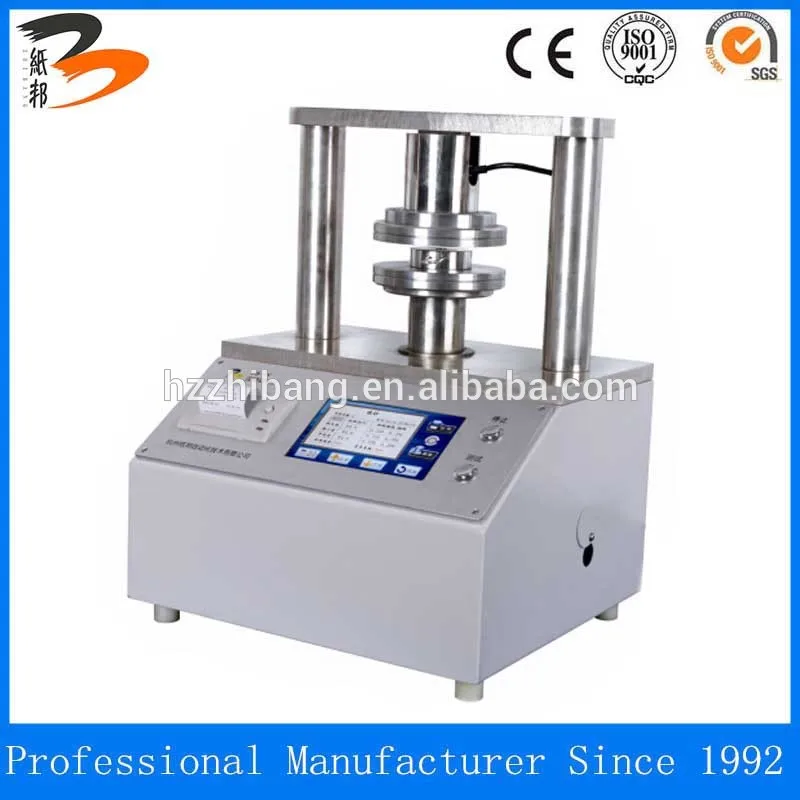

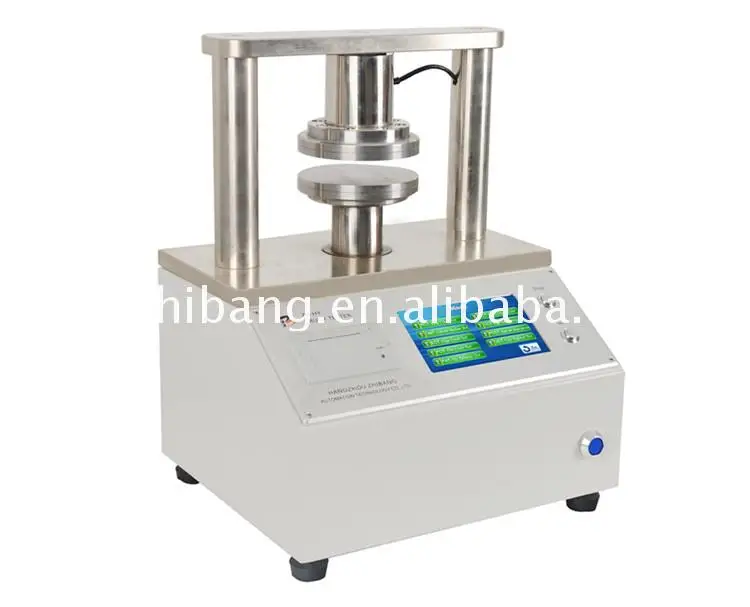

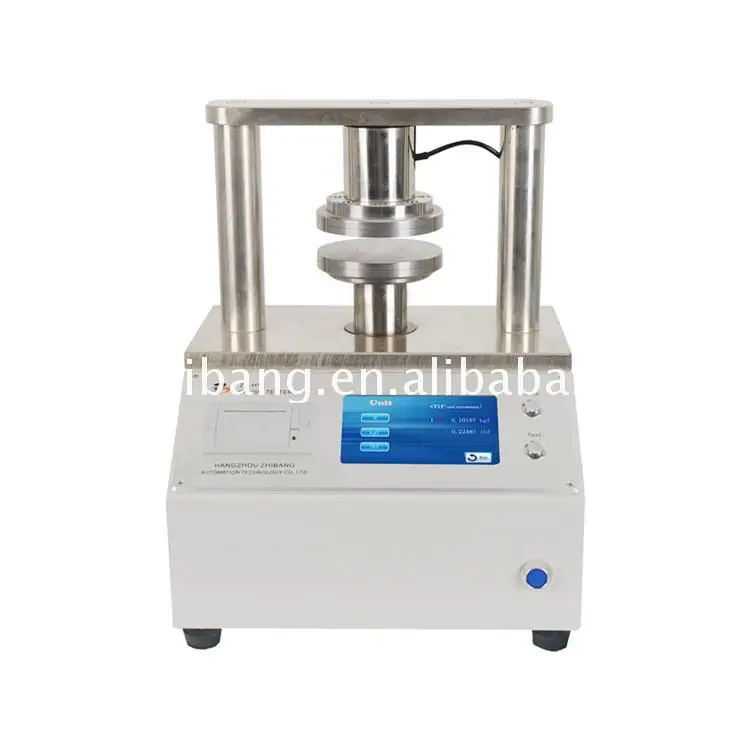

best selling products auto ring crush tester crushing testing equipment

It is improved on the basis of the ordinary compressing tester,can test the RCT,ECT,PAT,FCT,CCT and CMT .It is a high-precision compression tester.The instrument adopts the mechanical and electrical integration structure,  uses the modern mechanical design and computer processing technology, Instruments use the fixed platen,which make it has high precision and powerful data processing capabilities Besides the data can be directly obtained and can automatically reset.Equipped with the following accessories can test other things

(1) With the Compression plate and compression special sampler, can test the RCT

(2)With the adhesive sampler and auxiliary guide can have Edge Crush Test(ECT)

(3)With the peel tester frame to test the peel strength (PAT)

(4)Equipped with flat compression sampler to test the strength of flat compression (FCT)

(5)With groove and auxiliary appliance to test CCT and CMT

Standards

ISO 12192  ISO 12192  ISO 7263  ISO 3035  ISO 12048  GB/T 2679.8  GB/T 6546  GB/T 6548  GB/T 2679.6  GB/T 2679.6  GB/T 4857.3  GB/T 4857.4

Main Characters

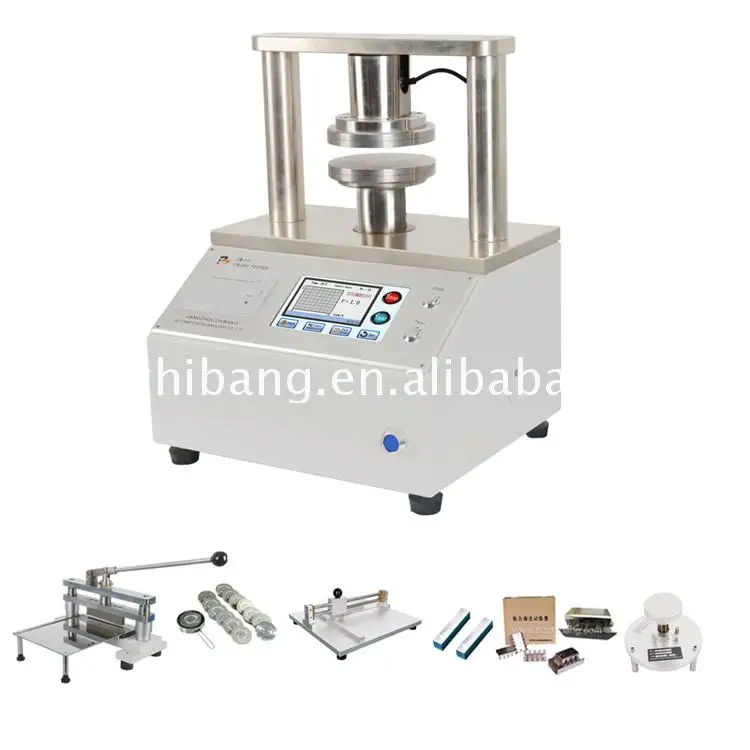

1.Instrument function host ,the user can order separately according to actual conditions corresponding accessories, to achieve a variety of base paper and corrugated board strength test

2.Statistical processing with test data can be printed out

3.Mechatronics design, compact structure, nice appearance, easy maintenance

Technical parameters

Power:AC220V±10%   50HZ

Measuring range:(5~3000)N

Resolution:0.1N

Indication error:±1%
Speed:(12.5 ±0.5)mm/min

Clamp parallelism:<0.05mm

Max clamp distance :78mm

Size and Weight

Dimension:450*400*500mm

Net weight:75kg
