Renault Clio/Laguna/Megane 1.4/1.6 16V Engine Timing Locking Garage Tool

Product Overview

Description

 Renault Clio,Laguna,Megane 1.4/1.6 16V Engine Timing Locking Garage Tool







Product Detail











Description:

This kit is used for enabling the correct engine timing on Renault K4J, K4M &  F4P, F4R engines when changing the timing belt.

The camshaft pulley setting tool holds two pulleys in place whilst changing the can belt. Bolted to the centre of the cans using the existing bolts.For use on Clio,Laguna,Megane 1.4/1.6 16v.

All neatly set out in an easy accessible blow moulded case.Made by professionals for professionals.

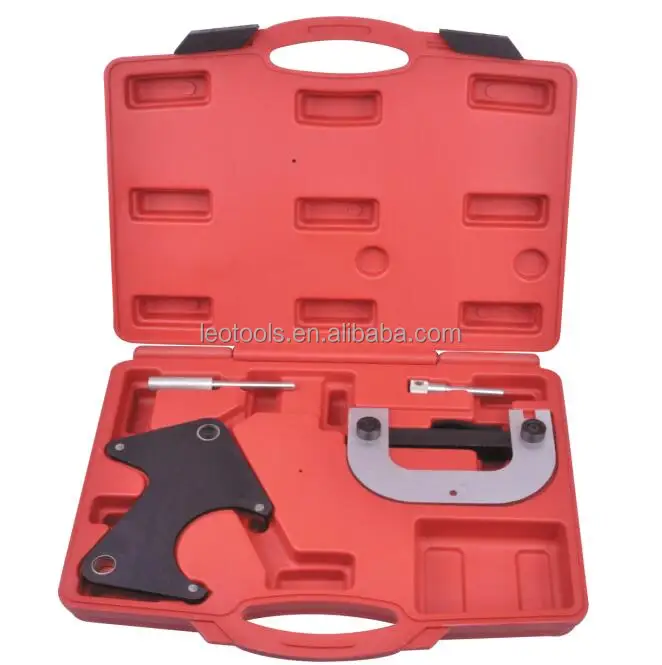

Contents:

Crankshaft locking pin

8mm TDC timing pin

Camshaft setting tool

Camshaft pulley alignment tool

Engine:

1.4,1.6,1.8,2.0 16V, camshaft V-belt pulley locking tool

Engine code:

K4J 712/713/730/732/750, K4M 700/701/720/724/748/760/761/764, F4P     720/722/760/770/771,

F4R 700/701/730/740/741/744/770/771/776/780/784/786/787

Application:

Renault Megane, Clio, Clio Sport, Scenic, Laguna (98-08);Espace, Clio Sport (98-04); Megane II., Scenic II., Gran Scenic II., Laguna II.     (02-09), Megane II. (02-05), Laguna II. (01-05)

Dacia Logan 1.6

Specifications:

Highly polished steel

Hardened and tempered for maximum durability

Blackened finish

Supplied in blow moulded case.



Packing details:

QTY(SET)	G.W.(KGS)	N.W.(KGS)	MEAS(CM)
4	13	12	40*34*33
