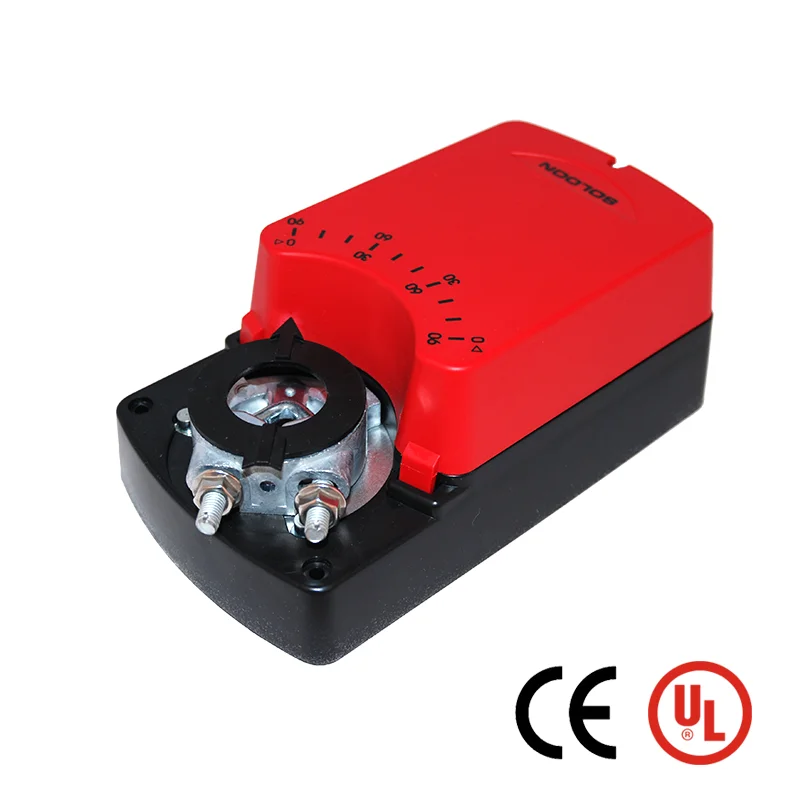

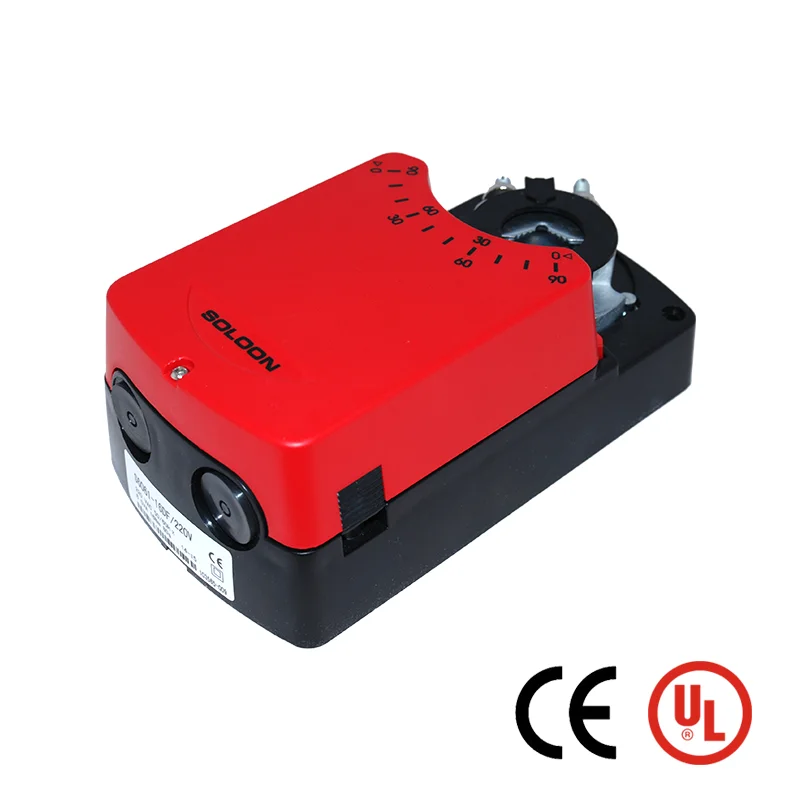

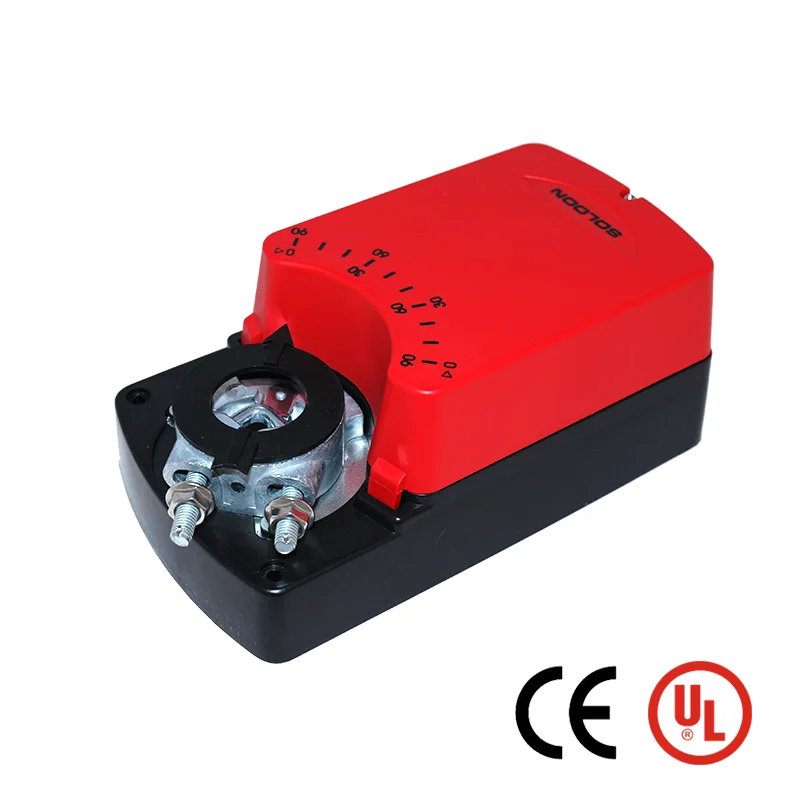

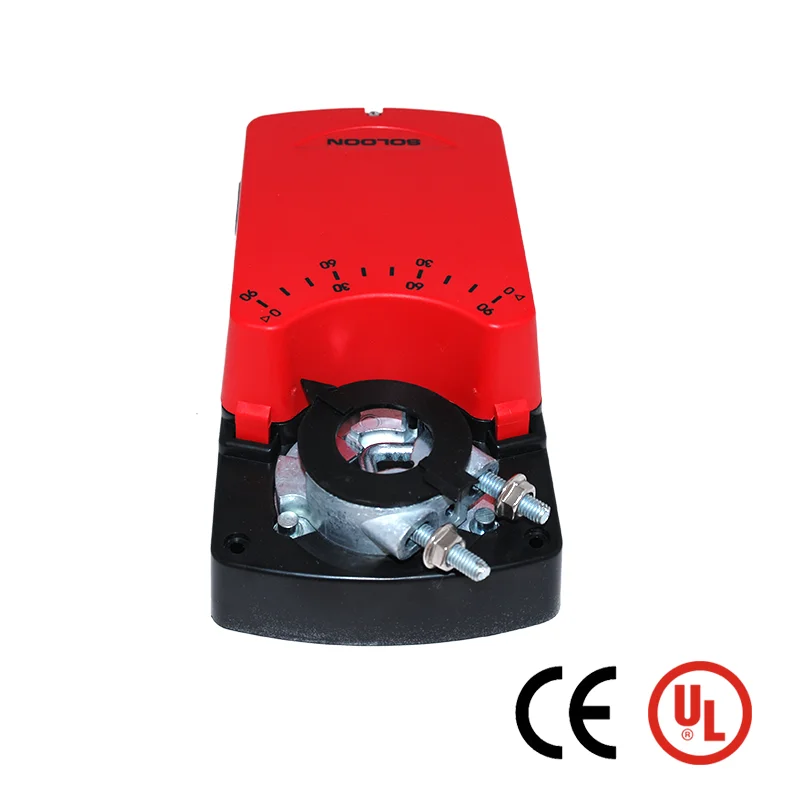

08NM CE listed 24V Modulating Type motorized damper actuator for HVAC System
- Category: >>>
- Supplier: Soloon Controls (Beijing) Co. Ltd.
Share on (60672174309):
Product Overview
Description
Product Description
Technical Specification
| Item | S6061-08AN(F)/24V |
| Torque | 8Nm |
| Damper Area | 2m2 |
| Running Time | 30-40S |
| Power Supply | AC/DC24V 50/60Hz |
| Operating Power Consumption | 4.0W |
| Control Signal | 0(4)…20mA 0(2)…10V |
| Weight | 1.1 Kg |
| Angle of Rotation | 0~90°(Max 93º) |
Auxiliary Switch Rating | 3(1.5)Amp 250V |
Life Cycle | >70000 cycles |
Noise Level | Max 45dB |
IP Protection | IP54 |
Temperature | -20~+50℃ |
Humidity | 5~95%RH |
Storage Temperature | -40~+70℃ |
| Certificate | CE & UL |
Wiring Diagram:

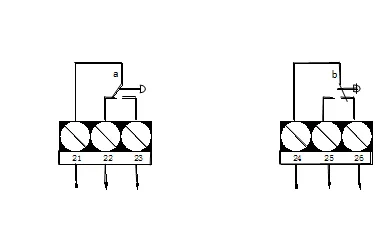

Auxiliary switch:

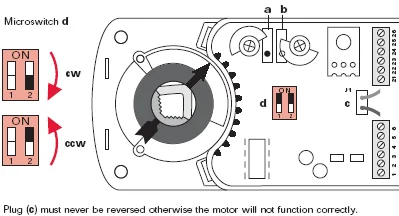

Direction of Rotation:
Auxiliary switch adjustment:
Angle-of-rotation limiting : Releasing the adapter:
Outline Size:
