Станок для резки гранита с ЧПУ

Product Overview

Description

Welcome to Our Show

Features:

1.The degree of automation is high. The electrical system adopts the CNC technician; the mian running adports the stable, good quality and strong servo motor. The running of the wheel adopts the stepping motor.

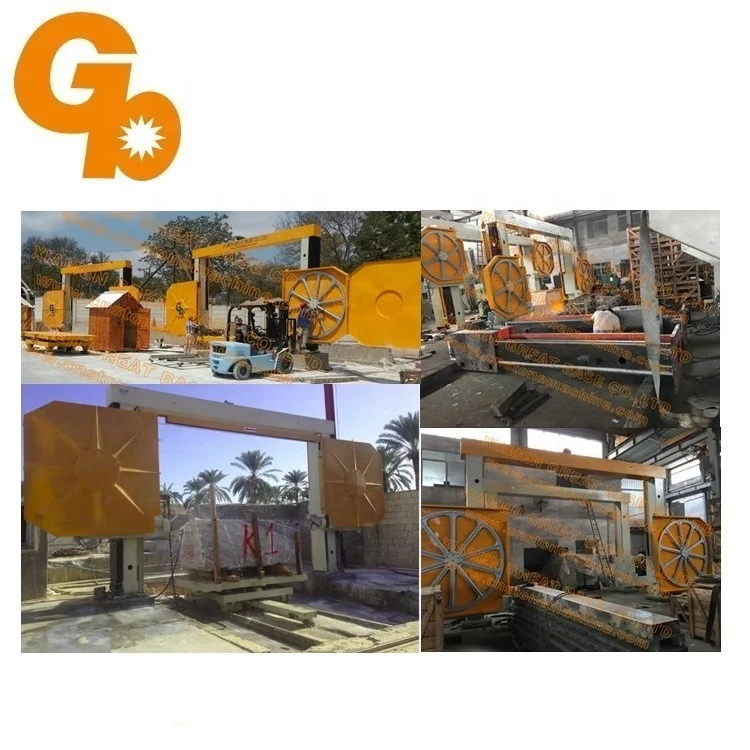

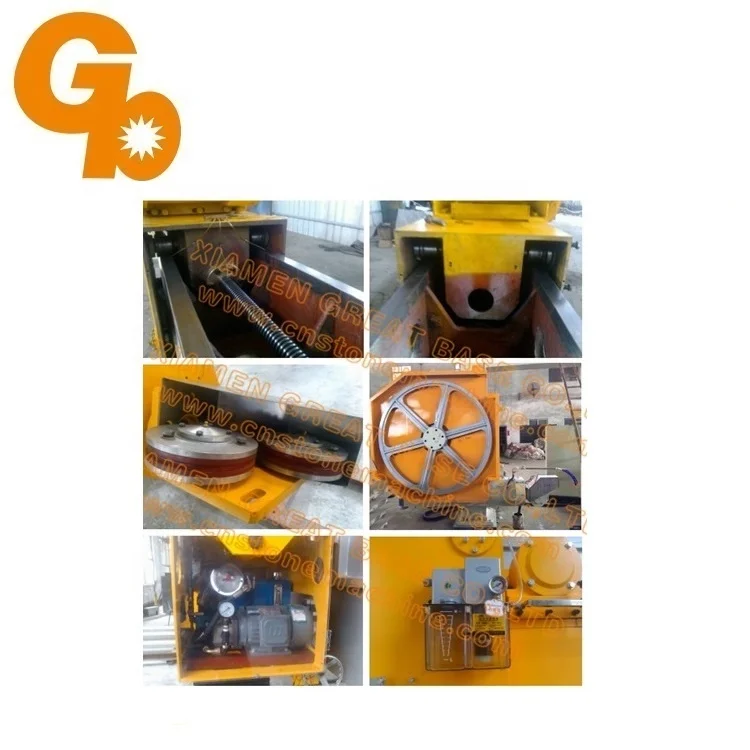

2. The structure is reasonable, the running is stable. The main frame is gantry type. And because the up/down of the two flywheels adopt the roller type structure, the up/down action is light and flexible, stable. The wire wheel is through balance adjustment so its work is more stable. The up/down is controlled by separate stepping motors, so it is easy for adjustment and easy to keep in the same height.

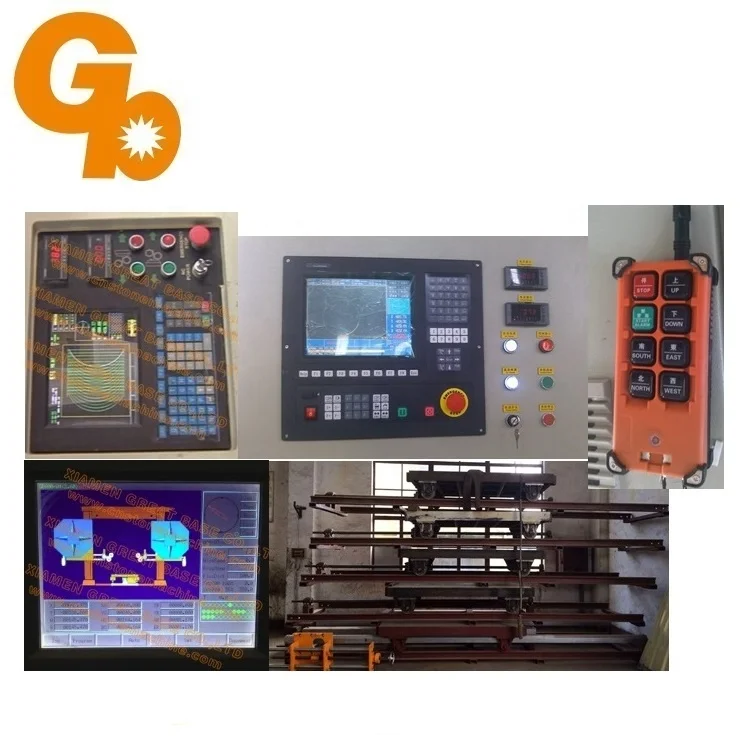

3. The operation is easy. It adopts the man-machine menu which is easy for reading and monitoring. Design the shape on the computer and then copy it to this system. It will change it into the procedure directly.

4. The tension of the wire adopts hydraulic system. This hydraulic system is designed with the hydraulic accumulator and discharge pressure switch which can make sure the stable pressure and is easy for maintance.

5. It is major in profiling processing of the granite and marble, can cutting different sizes of arc slab, solid columns and hollow columns and large-scale stone line, letter etc.

Technical Data

Name	Unit	GBSJ-1500	GBSJ-1800	GBSJ-2200
Saw diameter	mm	Φ8-Φ10	Φ8-Φ10	Φ8-Φ10
Saw gross length	mm	17300	19300	21500
Line speed	m/s	0-35	0-35	0-35
Lifting travel of cutter	mm	1600	1900	2200
Max process size	mm	3500X2000X1500	3600X2000X1800	3600X2000X2100
Production efficiency	m2/h	1-2 (marble) 0.5-1 (granite)	1-2 (marble) 0.5-1 (granite)	1-2 (marble) 0.5-1 (granite)
Full size	mm	8200X6000X3800	8800X6800X4800	9800X7000X5200
Gross power	kw	19.38	19.38	24.03
Gross weight	kg	7000	9000	12000
Worktable whether revolve		no	no	yes

Any interest, please feel free to contact with me!
