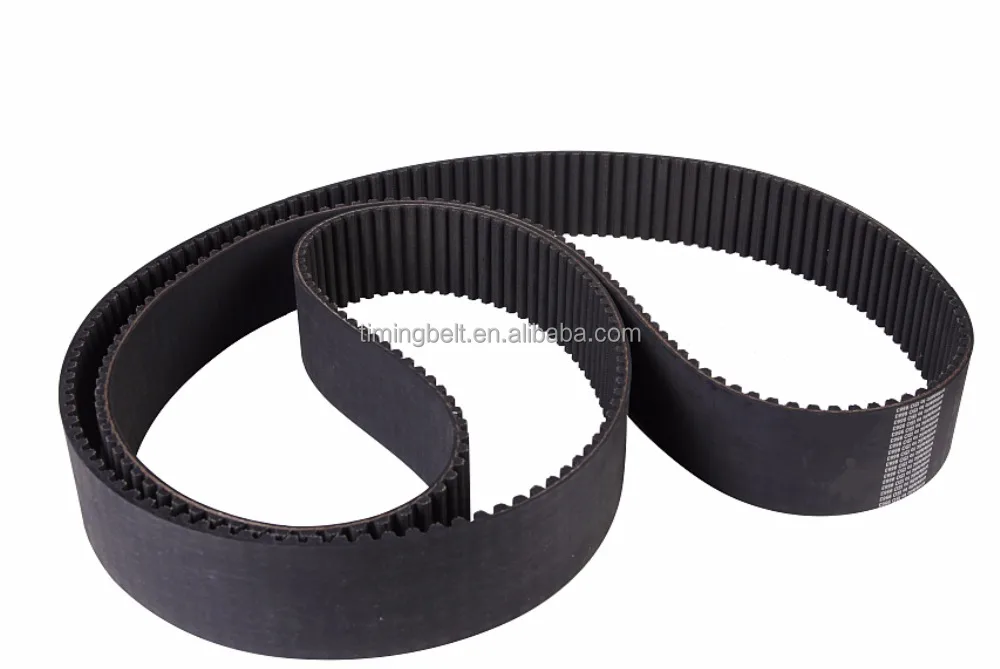

T Teeth RUBBER TIMING BELT FOR TOYOTA HIGH TORQUE DRIVE
- Category: >>>
- Supplier: Ningbo Fulong Synchronous Belt Co. Ltd.
Share on (60672409514):
Product Overview
Description
Product Description
Industrial synchronous belt
Product Description
| TYPE | SUPPLY CHARACTERISTIC |
| MXL XXL XL L H XH XXHT2.5 T5 T10 T20 AT5 AT10 AT20 HTD:2M 3M 5M 8M 14M 20M STS:S2M S3M S4.5M S5M S8M S14M RPP:RP2M RP3M RP5M RP8M RP14M | 1.Company leading products, more than 4000 moulds are available. 2.Cutting or provide sleeve according to customer's requirement. 3.Anti-static,heat-resistant,low temperature resistance ect. 4. Normal product no minimum order quantity requirements. |
Tooth Profile & Size
Trapezoidal Tooth Profile
| Type | Pitch Pb(mm) | Tooth height ht(mm) | Belt thickness hs(mm) | Angle β° | Details |
| MXL | 2.032 | 0.51 | 1.14 | 40 | Details |
| XXL | 3.175 | 0.76 | 1.52 | 50 | Details |
| XL | 5.080 | 1.27 | 2.30 | 50 | Details |
| L | 9.525 | 1.91 | 3.60 | 40 | Details |
| H | 12.70 | 2.29 | 4.30 | 40 | Details |
| XH | 22.225 | 6.35 | 11.20 | 40 | Details |
| XXH | 31.750 | 9.53 | 15.70 | 40 | Details |
Curvilinear Tooth Profile
|
| Pitch Pb(mm) | Tooth height ht(mm) | Belt thickness hs(mm) | Details | ||
HTD | 2M | 2 | 0.75 | 1.36 | Details | ||
| 3M | 3 | 1.17 | 2.40 | Details | |||
| 5M | 5 | 2.06 | 3.80 | Details | |||
| 8M | 8 | 3.36 | 6.00 | Details | |||
| 14M | 14 | 6.02 | 10.00 | Details | |||
| 20M | 20 | 8.40 | 13.20 | Details | |||
STPD/STS | S2M | 2 | 0.76 | 1.36 | Details | ||
| S3M | 3 | 1.14 | 2.20 | Details | |||
| S4.5M | 4.5 | 1.71 | 2.81 | Details | |||
| S5M | 5 | 1.91 | 3.40 | Details | |||
| S8M | 8 | 3.05 | 5.30 | Details | |||
| S14M | 14 | 5.30 | 10.20 | Details | |||
RPP/HPPD | 2M | 2 | 0.76 | 1.36 | Details | ||
| 3M | 3 | 1.15 | 1.90 | Details | |||
| 5M | 5 | 1.95 | 3.50 | Details | |||
| 8M | 8 | 3.20 | 5.50 | Details | |||
| 14M | 14 | 6.00 | 10.00 | Details |
Packaging & Shipping
| Packaging Details: | carton |
|---|---|
| Delivery Detail: | 15-35 days |
Our Services
1) We can print the designated trade mark on the products according to the effective accrediting of the client.
2)"The timing belt project innovation center" of our company can specially design and manufacture rubber timing belt with all kinds of special specifications.
3) To meet the demands of the customer, we will offer door-do-door services to measure and analyze, in order to do good skill consultation for equipment matching and to design the timing belt and Pulley.
We can also produce other belts according to the customer's detail type, width, tooth and quantity.
Company Information
Founded in 1984, FULONG covers 45,000 square meters with over 350 staff. As a national high-tech enterprise now, we passed ISO9001, TS16949. With national lab and municipal innovation center, we set over ten national and trading standards. What’s more, annual output is more than 10 million pieces of belts and 600 thousand pieces of pulleys. Matched belts and pulleys make sure the life-span of products longer.

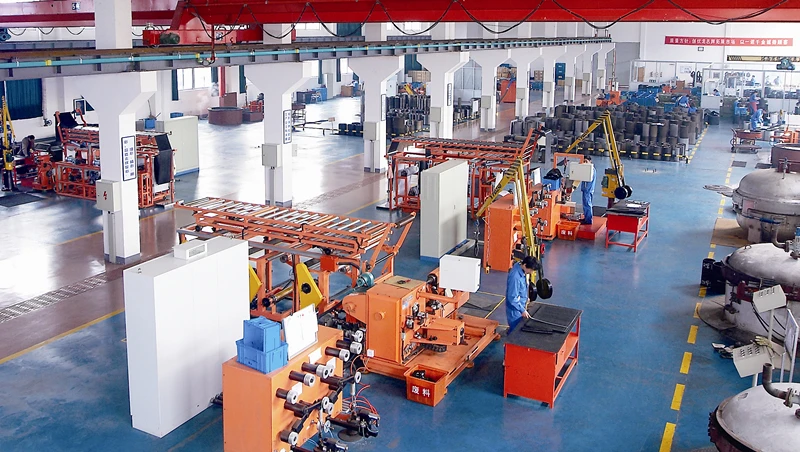

The workplace
