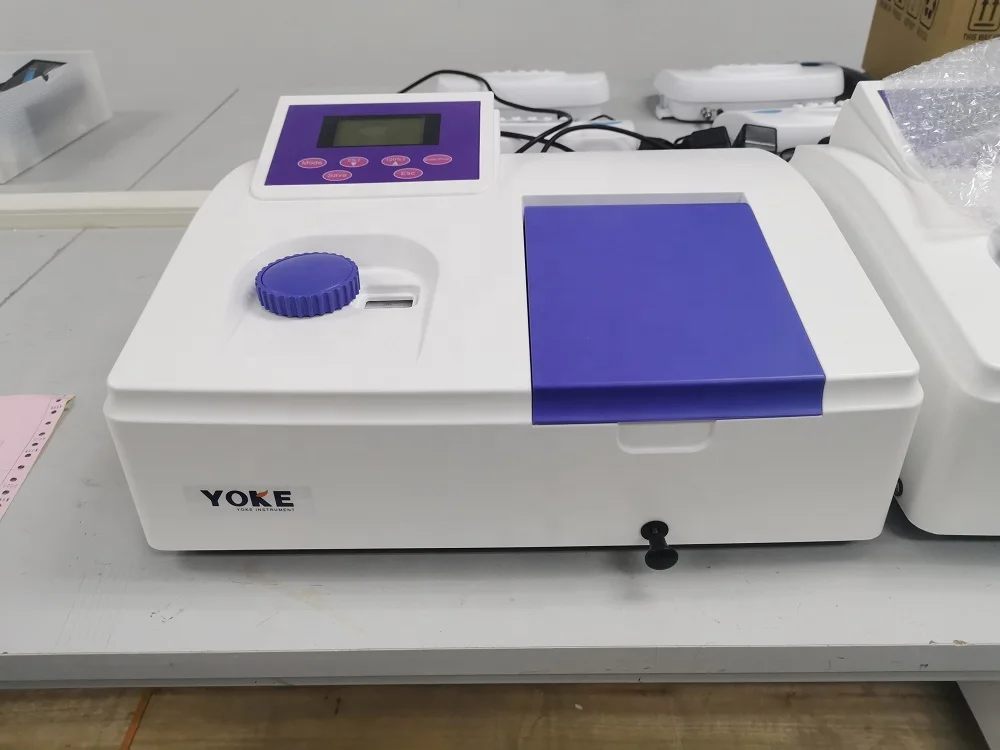

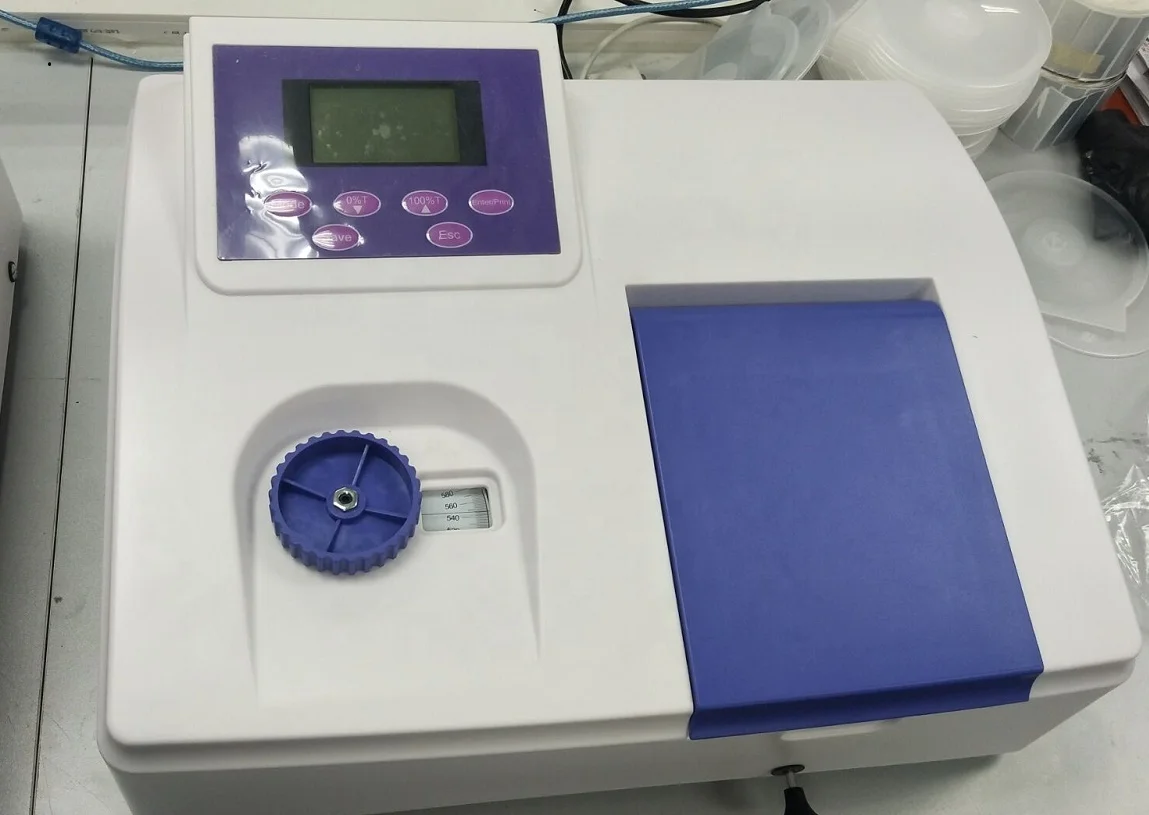

China Laboratory 4nm Single Beam Visible Spectrophotometer V1200
- Category: >>>
- Supplier: Shanghai Yoke Instrument Co. Ltd.
Share on (60672545263):
Product Overview
Description
Product Description
Details Images
Features:
1. 70* 40mm blue-lit LCD can display T, A, C, K, B.
2. Can make test of Quantitative and Kinetics with professional PC software.
3. Adjust automatically 0%A and 100%T.
4. Store 50 groups of measuring data and 10 groups of K & B value.
5. Large sample chamber can accommodate 5-100 mm cuvettes of all kinds.
6. Automatic control of the switching of deuterium and tungsten lamp, manual wavelength setting.
7. PC software is optional.
Application:
Discipline for physics, chemistry, medicine, biology, pharmacology, geology and other scientific research, is one of the most important quality control instruments which is widely used in chemical, pharmaceutical, biological and chemical, metallurgy, light industry, materials, environmental protection, medical tests and analysis of industry and other industries, is an essential equipment in routine laboratory.
Equipment Installation
1. After unpacking, carefully check the packing list whether the things inside are complete and intact;
2. Ensure the working environment meets the above requirements, environmental temperature is 10 ~ 35 ℃, relative humidity is less than 85%, operating voltage (220 ± 22) V / (50 ± 1) HZ,
3. Place the instrument on a level platform, the instrument should avoid direct sunlight, be away from electromagnetic emitting devices and high-power electrical devices, there can not be dust, corrosive gas and vibration;
4. There must not be any obstacles to the flow of air around the instrument;
5. Use the company supplied power cord and make sure electrical outlets have intact ground wire;
6. Turn on the instrument power supply. it can be used normally after 30 minutes warm-up time.
2. Ensure the working environment meets the above requirements, environmental temperature is 10 ~ 35 ℃, relative humidity is less than 85%, operating voltage (220 ± 22) V / (50 ± 1) HZ,
3. Place the instrument on a level platform, the instrument should avoid direct sunlight, be away from electromagnetic emitting devices and high-power electrical devices, there can not be dust, corrosive gas and vibration;
4. There must not be any obstacles to the flow of air around the instrument;
5. Use the company supplied power cord and make sure electrical outlets have intact ground wire;
6. Turn on the instrument power supply. it can be used normally after 30 minutes warm-up time.
Specification
Model | V1200 | UV1200 | UV1200Pro | ||
Optical System | Single Beam, Grating 1200 lines/mm | Single Beam, Grating 1200 lines/mm | |||
Wavelength Range | 320-1100 nm | 190-1100 nm | |||
Spectral Bandwidth | 4 nm | 2 nm | |||
Wavelength Accuracy | 2nm | ||||
Wavelength Repeatability | 1nm | ||||
Photometric Accuracy | 0.5%T | ||||
Photometric Repeatability | 0.2%T | ||||
Stray light | 0.15%T @500nm | ||||
Stability | 0.002 A@500nm | ||||
Wavelength Setting | Manual | ||||
Work Mode | T, A, C | ||||
Display | 70 * 40mm blue-lit LCD | ||||
Light Source | Tungsten lamp | Deuterium &Tungsten lamp | |||
Detector | Silicon Photodiode | ||||
Cuvette Holder | 10mm manual 4-cell holder | ||||
Output | RS232 | ||||
Power | AC 220V/50Hz; AC 110V/60Hz | ||||
Shipping Size | 520*450*320mm | ||||
Gross Weight | 10kg | ||||
Standard Accessaries | 10mm glass cuvette x 4, 10mm quartz cuvette x 2 (UV) , Power cord, User's Manual | ||||
Set to desired wavelength with the Wavelength Knob
10mm manual 4-cell holder
RS232,and your company name can be shown on the nameplate
User's Manual
PC Software is optional,If buy software,we can send computer wire.
10mm glass cuvette x 4, 10mm quartz cuvette x 2 (UV)
Thermal Printer is optional
Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certifications
CE
CE
ISO9001
