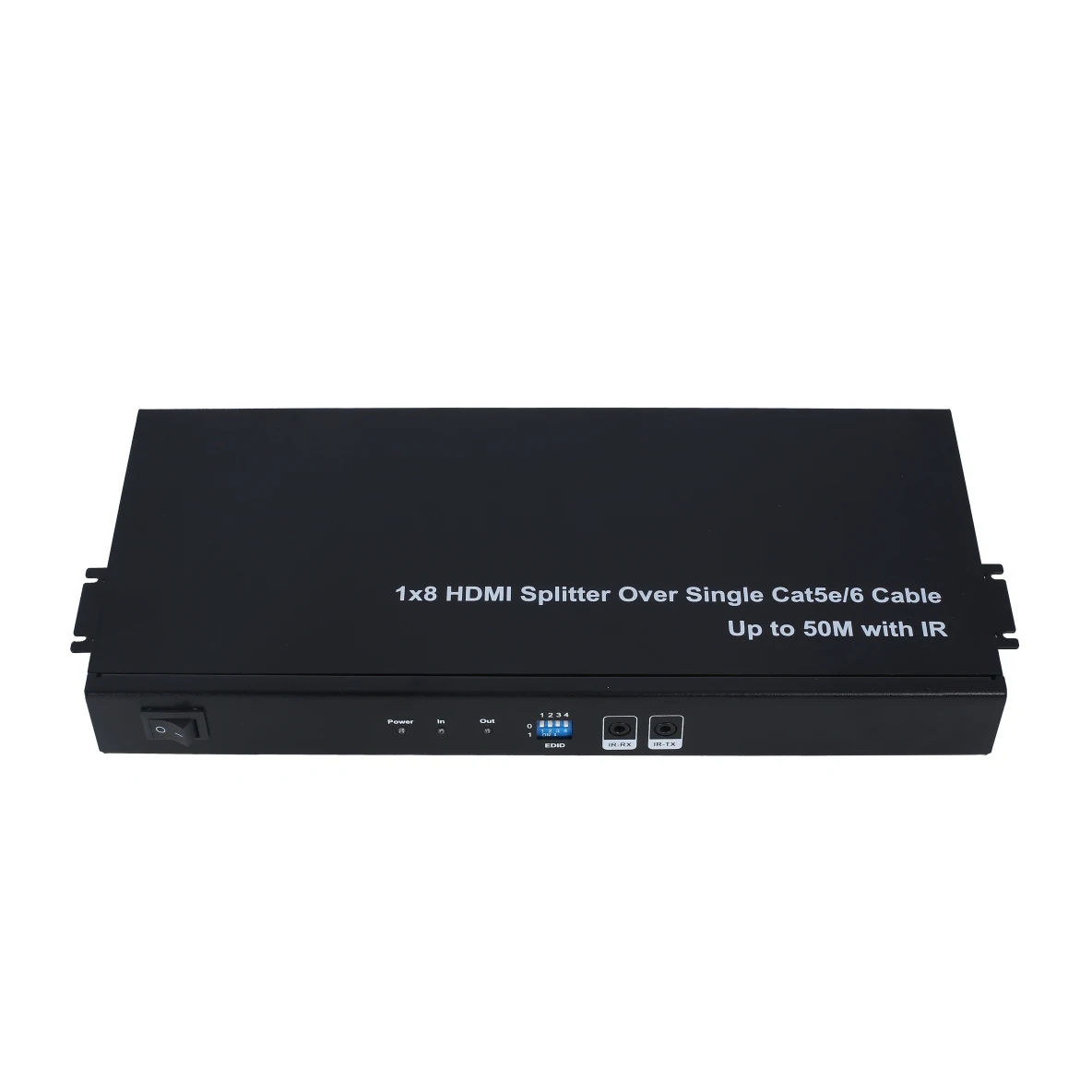

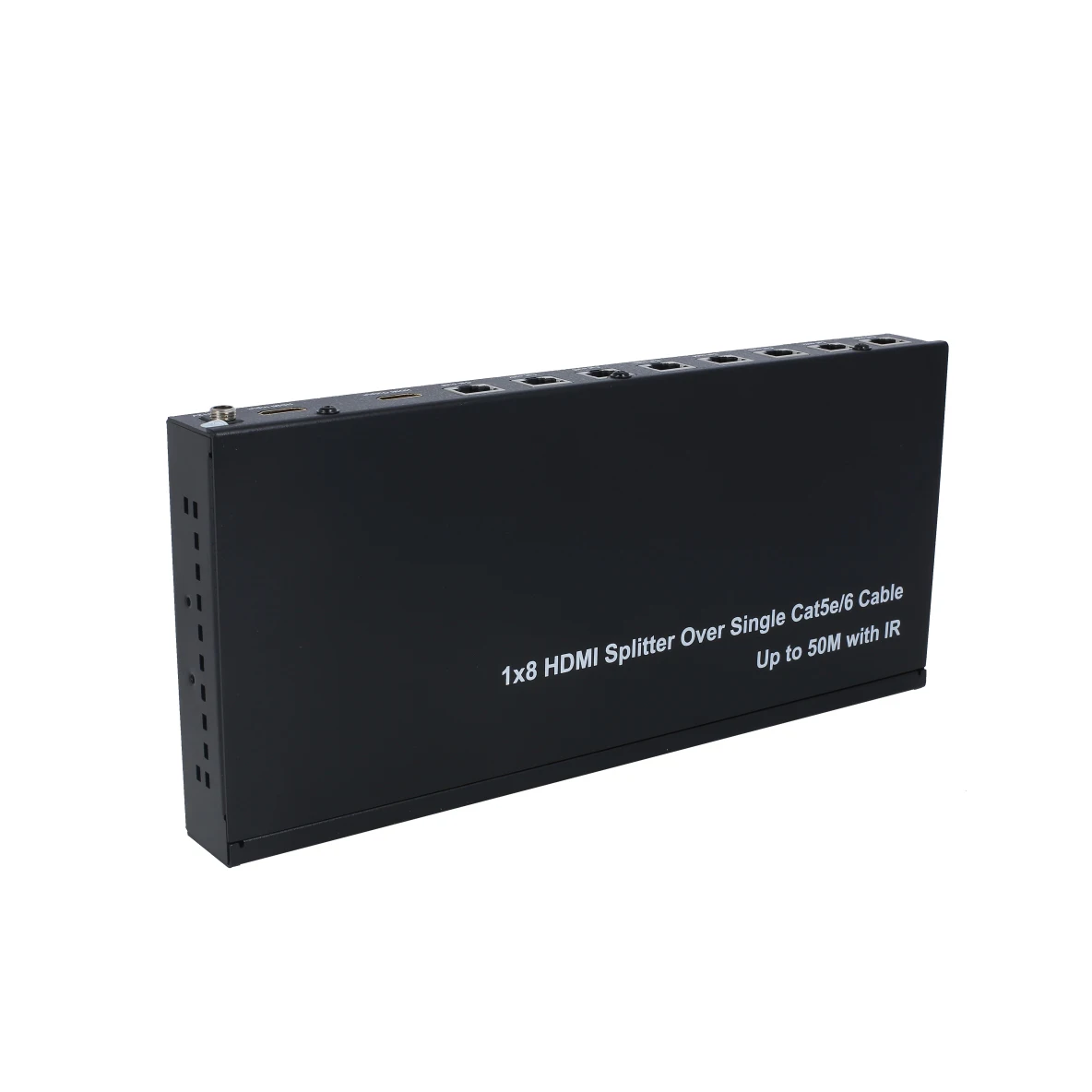

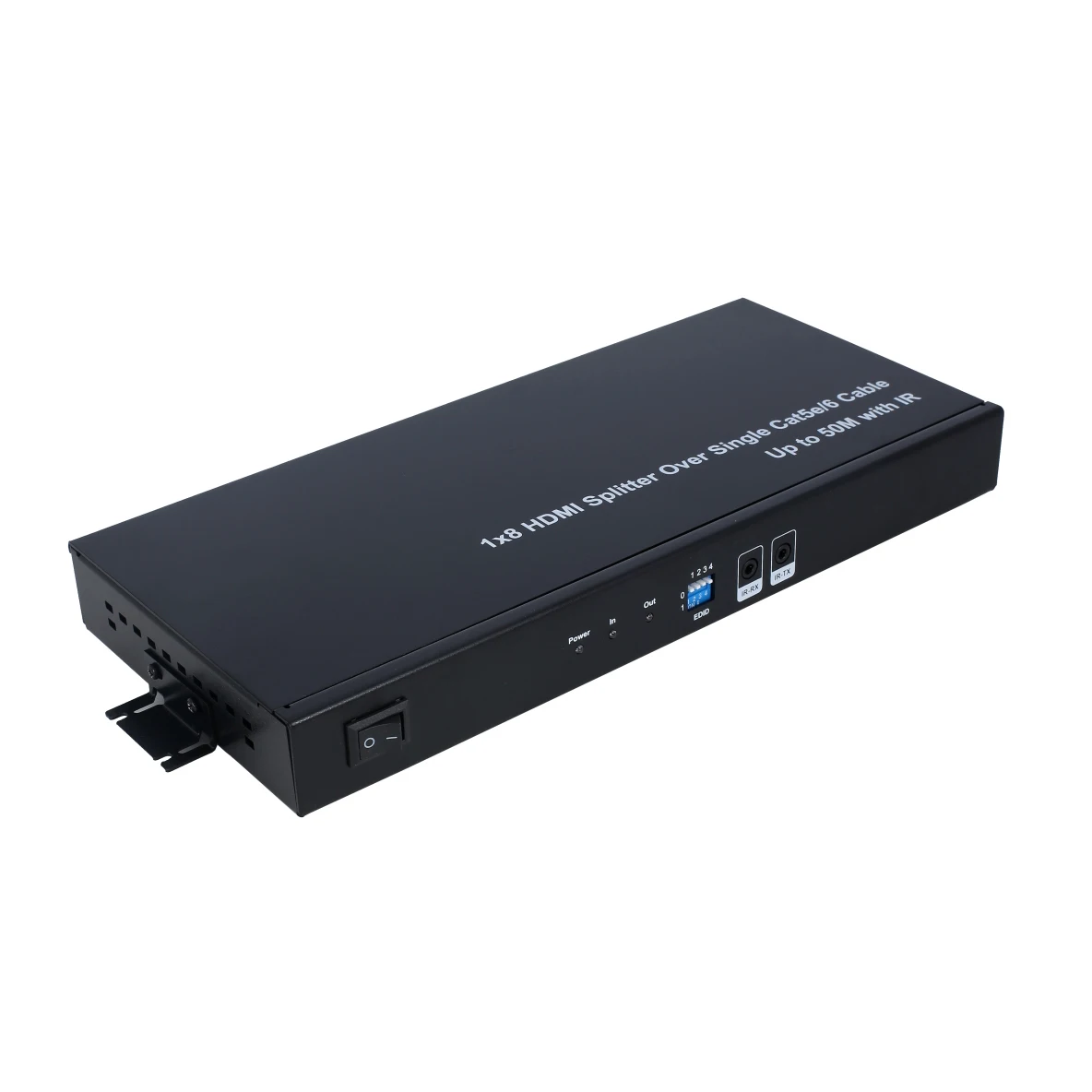

SX SPE108 1080P HDMI 1X8 HDMI to UPT with RJ45 Repeater output Splitter Extender Via 50m Cat5/6/7
- Category: >>>
- Supplier: Shenzhen Shunxun Electronics Co. Ltd.
Share on (60672568391):
Product Overview
Description
1x8 HDMI Splitter Over Single Cat5e/6 Cable
Up to 50M with IR
Up to 50M with IR
Features
* Distribute 1 HDMI signal to 8identical UTP outputs synchronously,
with 1xlooping HDMI output.
* Transmit over 50m single Cat5e/6 cable.
* Can be cascaded for 4 layers.
* With wide-band Bi-Direction IR control (38 ~ 56 kHz).
(IR extension from Sender to Receiver or from Receiver to Sender)
* Support Full HD 1080p, VESA resolution: 1920x1200.
* Supports Dolby TrueHD, DTS-HD Master Audio.
* Support 3D.
with 1xlooping HDMI output.
* Transmit over 50m single Cat5e/6 cable.
* Can be cascaded for 4 layers.
* With wide-band Bi-Direction IR control (38 ~ 56 kHz).
(IR extension from Sender to Receiver or from Receiver to Sender)
* Support Full HD 1080p, VESA resolution: 1920x1200.
* Supports Dolby TrueHD, DTS-HD Master Audio.
* Support 3D.
Specification
Operating Temperature Range | -5 to +35℃(+23 to +95℉) |
Operating Humidity Range | 5 to 90%RH (No Condensation) |
Video Amplifier Bandwidth | 140MHz |
Input Video Signal | 0.5-1.0 Volts P-P |
Input DDC Signal | 5 volts p-p(TTL) |
Data transfer speed rate | 6.75Gbps(Maximum) |
Input port | 1xHDMI |
Output ports | 8xCat5e/6, 1xHDMI |
Video Format Supported | DTV/HDTV: 720P/1080i/1080P VESA resolution:1920x1200① 3D video support |
Vertical Frequency range | 60Hz |
Support Audio Format | DTS-HD Master Audio, Dolby True HD, multi-channel 5.1, stereo etc ② |
Transmission Distance | 1080P 8-bit 50m Over single cat5e or cat6 cable/24AWG/Solid③ |
Power consumption | 22W(Max) |
Dimension (L×W×H) | L297.4xW135.2xH33.7mm |
Net Weight | 1242.8g |

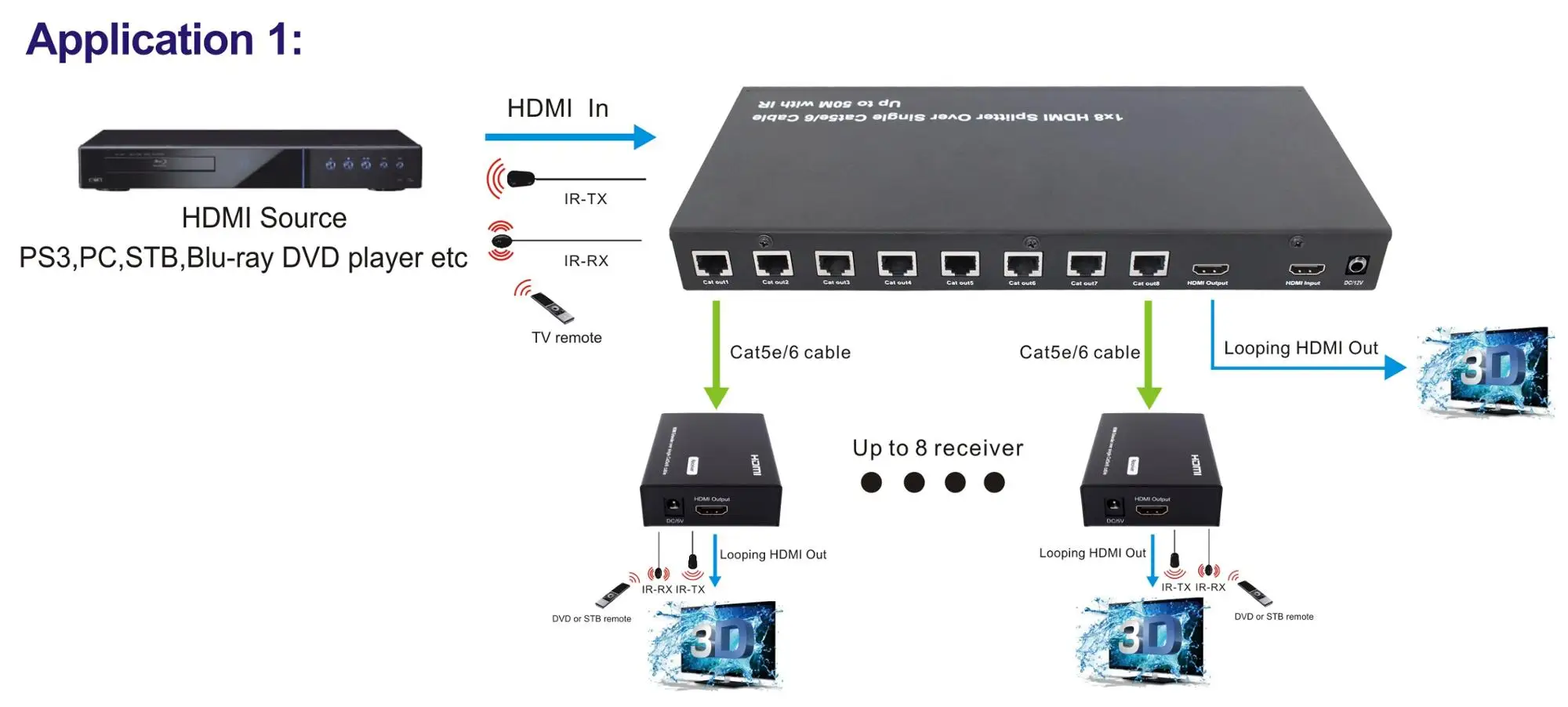

Wiring Diagram
Certifications
Packing & Delivery
Package Contents
* 1 x HDMI Splitter
* 1 x 12V DC Adapter
* 1 x User Manual
* 1 x HDMI Splitter
* 1 x 12V DC Adapter
* 1 x User Manual
