12V 24V Hydraulic Powerpack For Tipper Trailer

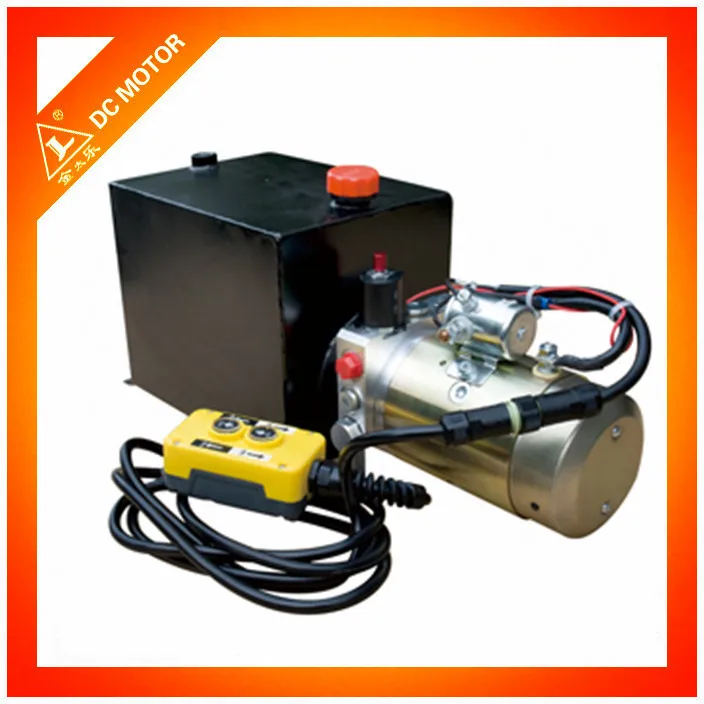

 Details of this hydraulic power unit 12V 24v :

Equipped with a high pressure gear pump,a DC motor, a multifunctional manifold, valves and a tank,ect.This power unit has a power up gravity down circuit. Start the motor to lift the machine and the lowering movement is activated by the solenoid valve with the lowering speed controlled by the pressure compensated flow control valve. Products of this series are widely used in the industry of logistic devices such as automotive, garden machinery, ect.

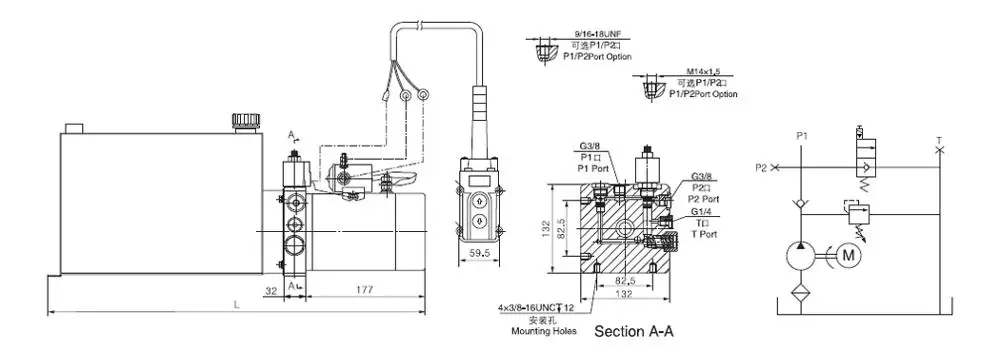

Model Specifications of hydraulic power unit 24v :



Model	Motor Volt	Motor power	Rated Speed	Displacement	System pressure	Tank Capacity	L(mm)
JL-F2.1E1W2/WUCAD/RC	12VDC	1.5KW	2500RPM	2.1mL/r	20MPa	12L	559
JL-F2.5H1W2/WUCAD/RC				2.5mL/r		20L	791
JL-F2.5E2A2/WUCBD/RC	24VDC	2.0KW				12L	559
JL-F2.7G2A2/WUABD/RC				2.7mL/r	18MPa	16L	676

Remark:
1. Please get in contact us for the different pump displacement, motor power or tank capacity.
2. The manual override function is available on request.

Special notes


1.The duty of this power unit is S3, i.e., 30 seconds on and 270 seconds off.
2.Clean all the hydraulic parts concerned before mounting the power unit.
3.Viscosity of the hydraulic oil shoud be 15~68 cst,which should also be clean and free of impurities.N46 hydraulic oil is recommended.
4.The power unit should be mounted horizontally.
5.Check the oil level in the tank after the first star of the power unit.
6.Oil changing is required after the initial 100 operation hours, afterwards once every 3000 hours.







Other hot hydraulic power unit packs , for specifications of each hydraulic power unit, you can click each power unit photo:





If you need other kinds of hydraulic power units pack, we can supply cusotmization service, you just need to tell me the following items :

Cutomization of hydraulic power unit  is avalable:



For customization of power unit hydraulic , please tell me the following specifications:



Voltage



Motor power



single action or double action



with or without pressure holding



Single oil cylinder or multiple oil cylinder



gear pump displacement mL/r



flow rate L/min



Pressure( Mpa)



oil tank capacity



vertical or horizontal



square or round



voltage of  solenoid valve



Then we can make hydraulic power units according to your need, minimum quantity of hydraulic power unit  is 1 PIECE.  Welcome to send inquiry to our hydraulic power pack unit.



Our Hydraulic Power Units Packs are mainly used for forklift lifting ,  tailgate lifting , and flying wing, the three kinds account for 80%. The rest of the hydraulic power units are used for snow truck, golf course excavator, boarding bridge, sanitation truck, slag car cover system, medical bed. Welcome you send inquiry to us, we will offer the hydraulic power pack unit catalog for your reference.

High quality hydraulic power pack unit DC , Jinle Brand have been in this hydraulic power unit  line for 21 years. Welcome to our factory to visit !

1,Sample service of hydraulic power unit : samples can provide preferential.

2,customized services of hydraulic power pack unit : a variety of hydraulic power unit packs  can be customized according to customer demand.

3, aftermarket service of hydraulic power pack units : according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
