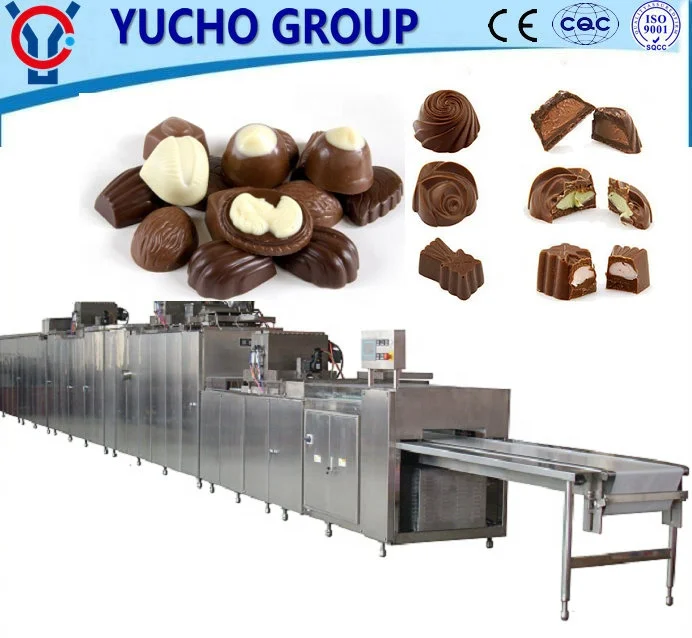

Automatic Chocolate Moulding Depositor Maker Machine Production Line
Product Description
YUCHO GROUP 20 YEARS EXPERIENCE TO OFFER EXCELLENT QUALITY MACHINE WITH FLEXIBLE PROJECT SOLUTION SUITABLE FOR YOUR REQUEST
Product Detail
Name
Cheaper and Europe Technology Chocolate Depositor Making Forming Machine
Motor
Servo Motor
Usage
CHOCOLATE
Material
All Stainless Steel 304
Function

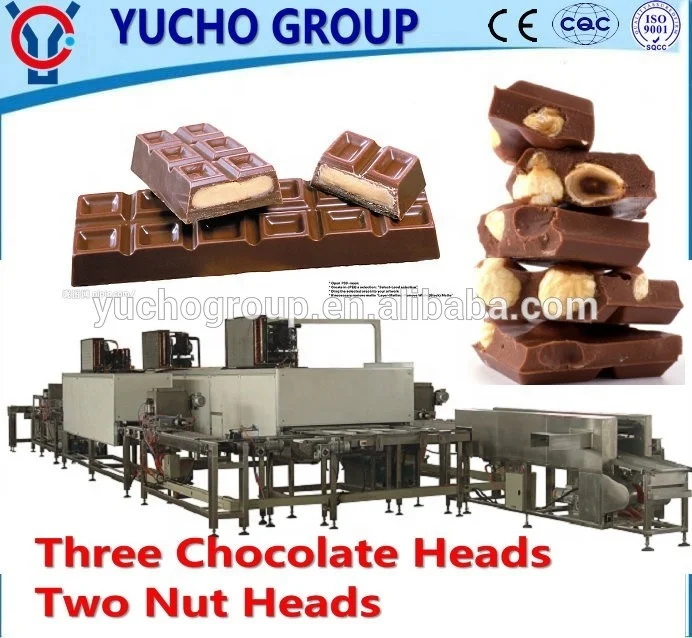

Can make three depositor with two nut center filled
Type
single/double color/center filled
Product Keywords
Cooling Tunnel For Chocolate
Product Application
Semi auto or Full Automatic Europe Technology Chocolate Depositor Making Forming Machine Product Application
Chocolate Depositing Machine is the dedicated equipment for depositing/molding chocolate at a rationed amount. This chocolate depositing machine series can be used to produce single flavor, two flavors, triple flavors, pastes central filling, nuts central filling and other kinds of chocolates according to different configurations of the machines. This series has two major machine types: semi-automatic and fully automatic and its configurations can be customized according to production needs.
SPECIFICATION FOR
Europe Technology Chocolate Making Forming Machine Line
Model
YC-Q150
YC-Q175
YC-Q510
YC-Q330(3+2)
YC-Q510(3+2)
Capacity(Piece of Mould/min)
6-15
6-15
6-15
6-15
6-15
Whole Machine Power (kW)
9
23
25
28
61
Number of Mould (Piece)
200
280
330
380
410
Mould Size (mm)
275×175×30
330×200×30
510×200×30
330×200×30
510×200×30
Machine Weight (kg)
500
4500
5000
5300
7000
Outside Dimension (mm)
4000×520×1500
16000×1000×1800
16000×1200×1800
18000×1200×1900
19000*1300*2500
YC Chocolate Machine
Enrrope Technology, Grundfos circulation pump with hot water, • PLC Touch screen, SS 304 for all parts, • Refrigeration system: Copland
Main Features
Cheaper and Europe Technology Chocolate Depositor Making Forming Machine
1) Simple structure in linear type ,easy in installation and maintation. 2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts. 3) All parts are stainless steel. 4) can produce different color center filled chocolate 5) Cheaper and Europe technology
Shanghai Yucho Industrial Co., Ltd. belonging to Yucho Group Limited, for a long time Yucho Group introduce foreign advanced technology, engaged in investing various types of potential food machinery factory, now we have designed and developed the most advanced sets of food machinery used to produce candy, chocolate, cake, bread, biscuit and packing machine that have excellent characteristics such as centralized functions, simple operation and full automatic with high quality, most of products get CE certification.
