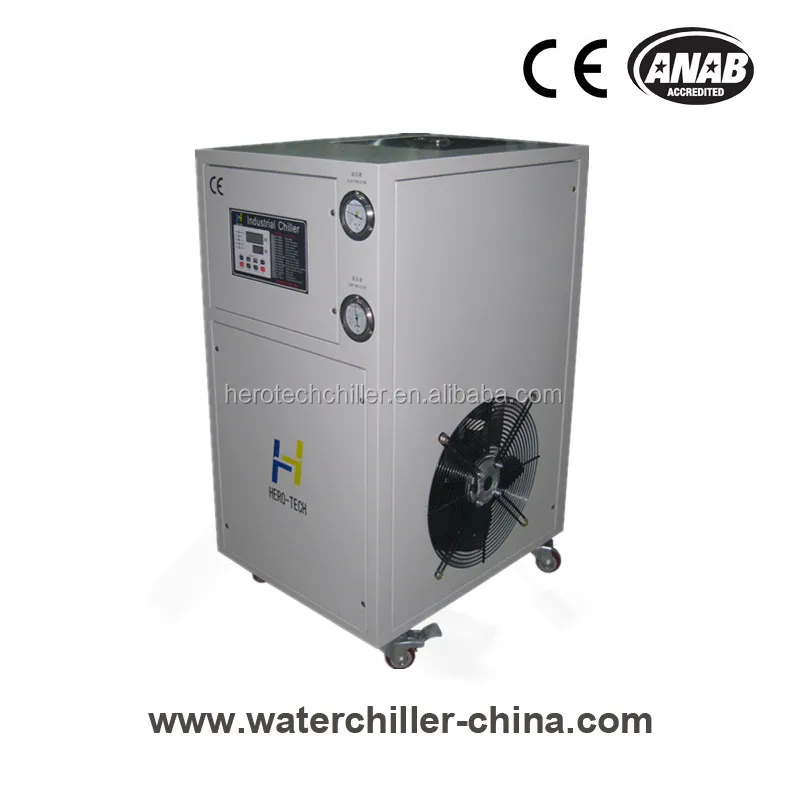

0.5hp 2kw Portable Mini Chiller for Laboratory or MRI Cooling Tank with Copper Coil Finned Coil low Noise Axil Fan 2 Years R470C
- Category: >>>
- Supplier: Shenzhen Hero-Tech Refrigeration Equipment Co. Ltd.
Share on (60672683337):
Product Overview
Description
Product Description
HTI-A series industrial chiller is mainly applied in Plastic & Rubber industry; It can accurately control the molding temperature and shorten the molding cycle, increase the product quality and improve the production efficiency.They are also widely used in Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food &Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor testing, Water jet, Vacuum coating,Construction and Military.

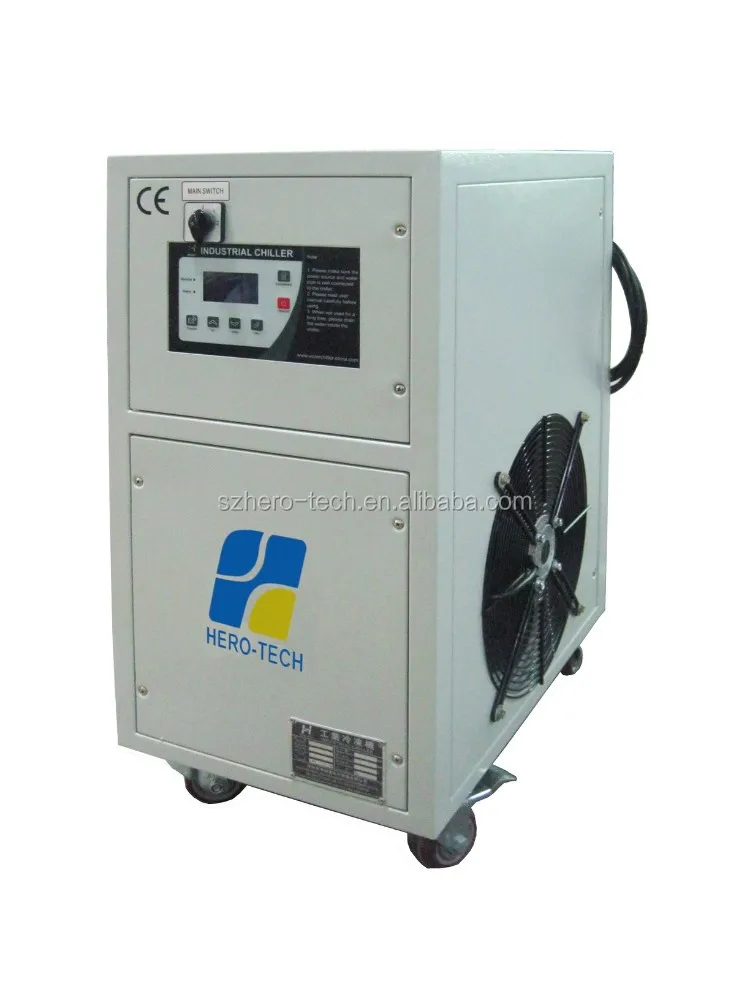

Air cooled industrial chiller
Technical Specifications
Model | HTI-1/2A | ||
Ambient temperature | 35C | ||
Nominal Cooling Capacity@15C | Kcal/h | 2072 | |
KW | 2.41 | ||
Nominal Cooling Capacity@12C | Kcal/h | 1634 | |
KW | 1.9 | ||
Nominal Cooling Capacity@7C | Kcal/h | 1075 | |
KW | 1.25 | ||
Temperature Set range |
| 7C to 35C | |
Max Power Consumption | KW | 0.915 | |
Power Source |
| 1PH~220V/50HZ | |
Refrigerant | Type |
| R407C |
Control |
| Capillary | |
Compressor | Type |
| Hermetic Rotary |
Power | KW | 0.45 | |
Condenser | Type |
| finned copper tube + low noise axial fan |
Fan Motor | KW | 0.095 | |
Air Volume | m3/h | 750 | |
Evaporator | Type |
| SS tank with SS coil |
Coolant Flow | LPM | 10 | |
Inlet and Outlet | Inch | 1/2 | |
Pump | Power | KW | 0.37 |
Head | m | 15 | |
Unit Protection Modules | Motor Overload, High&Low Pressure, Chilled Water Over Temperature,anti-freezing | ||

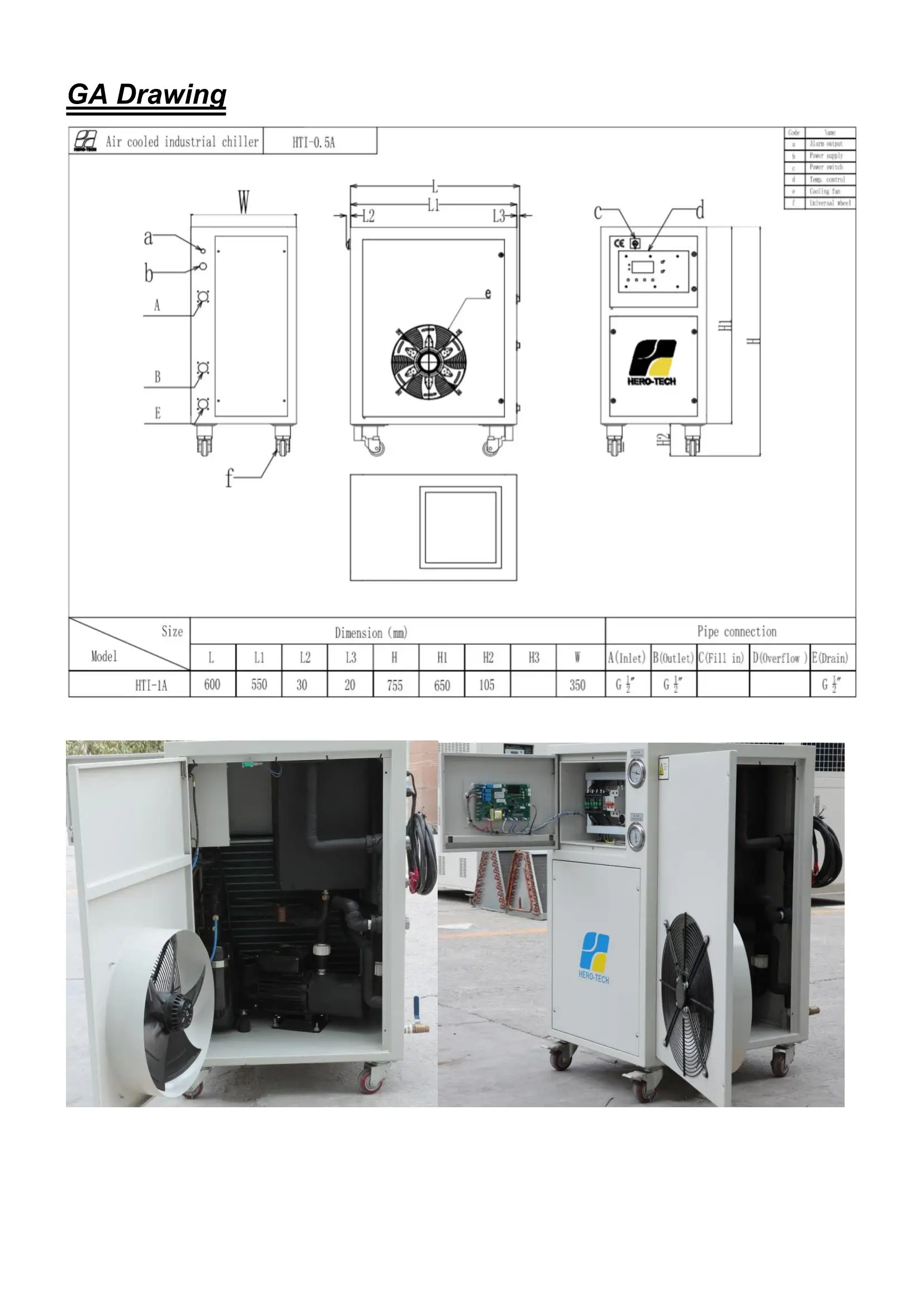

Dimension | Length | mm | 550 |
Width | mm | 350 | |
Height | mm | 755 | |
Weight | KG | 45 | |
NOTE: The specifications based on the following design conditions:
l Condensing temperature 45C
l Cooling air inlet/outlet temperature: 30℃/38℃
l Chiller should be used under 35C ambient temperature
We reserve the right to modify the specifications without further notice.
Design Features
Adopted world famous brand compressors and high efficiency condenser and evaporator, ensure high cooling efficiency, low energy consumption, low noise and long service life;
adopted aluminum fin/copper tube type condenser, easy for cleaning and installation;
5C to 35C optional temperature range;
R22 charged, CFC free type R407C, R410A for option, high cooling efficiency;
Over sized evaporator and condenser ensure the chiller unit running under 45C high ambient temperature;
Microcomputer control system offering accurate temperature stability within ±1℃;
Low noise and big volume air blower;
Standard equipped Iron pump, stainless steel or high lift pump for option;
Multi-protection devices ensure the chiller unit running safely;
The innovative evaporator-in-tank configuration ensures a steady water temperature offered, as the evaporator also cools the tank itself, reduces ambient heat gain, and increases the efficiency.
