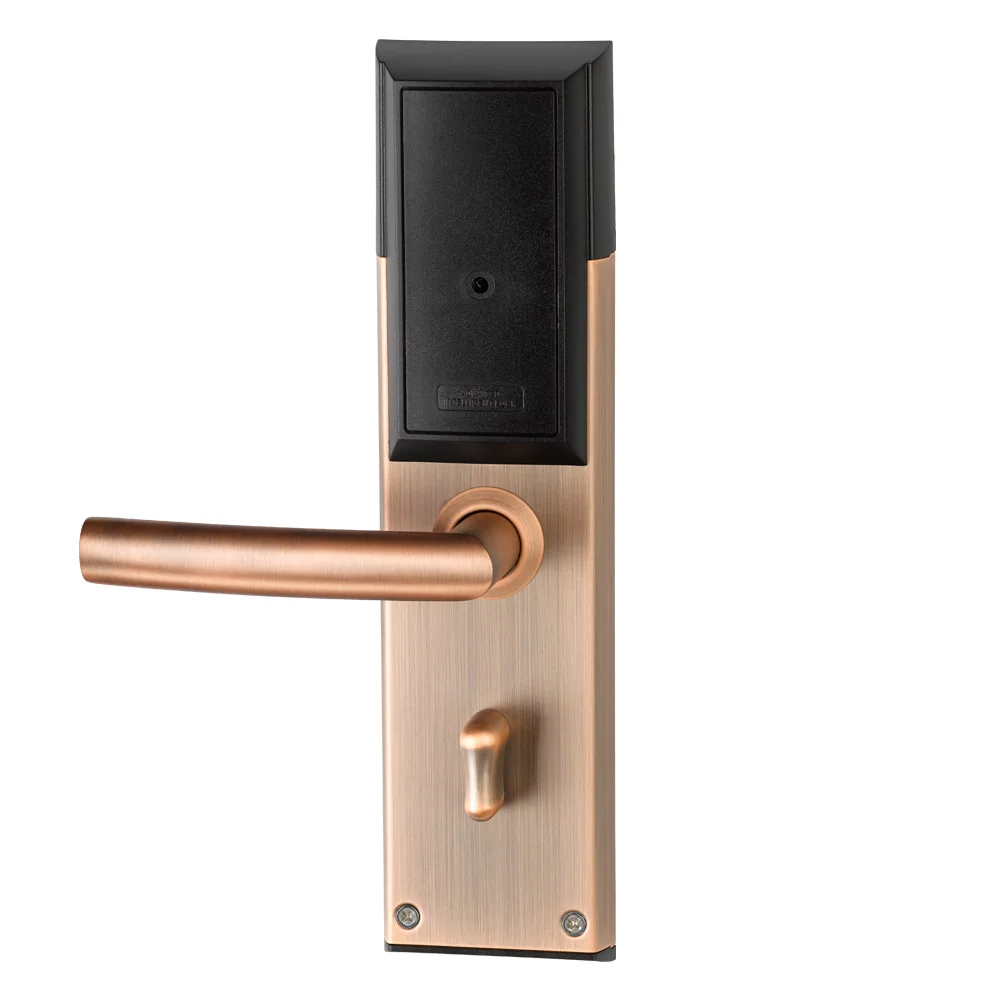

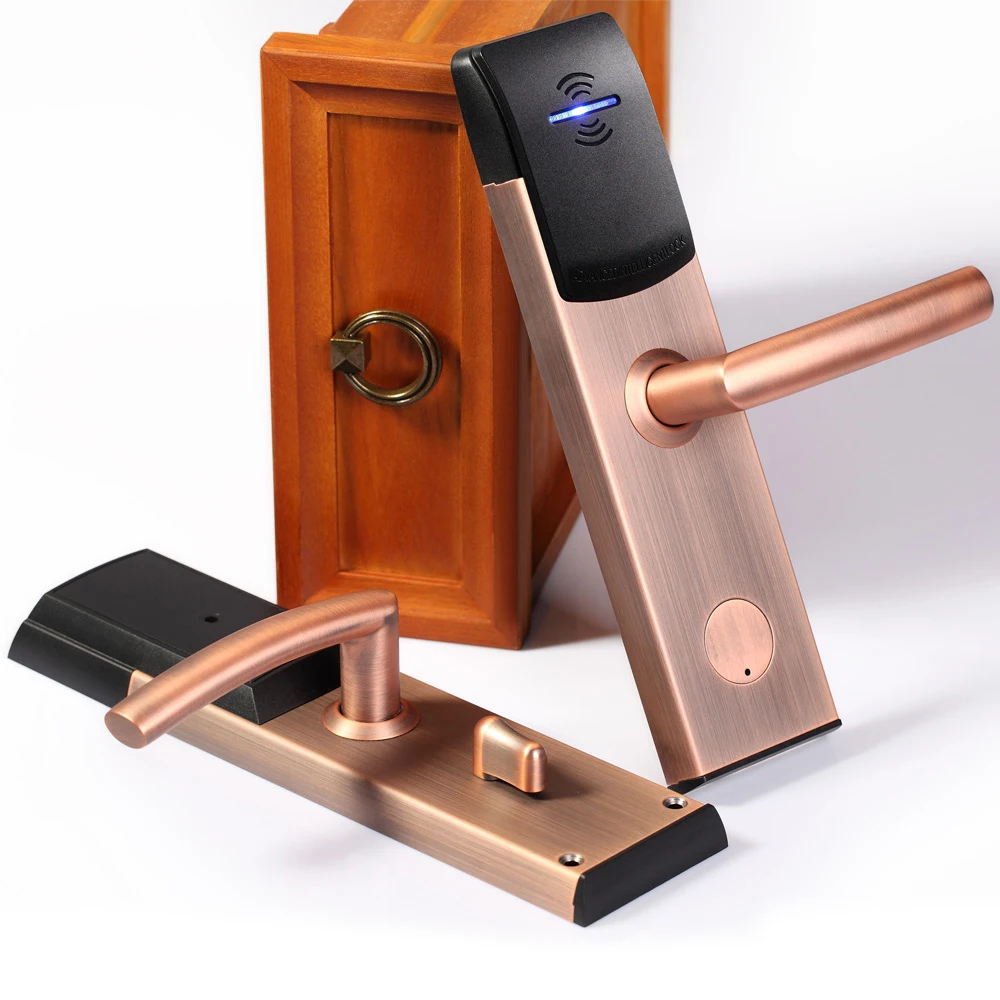

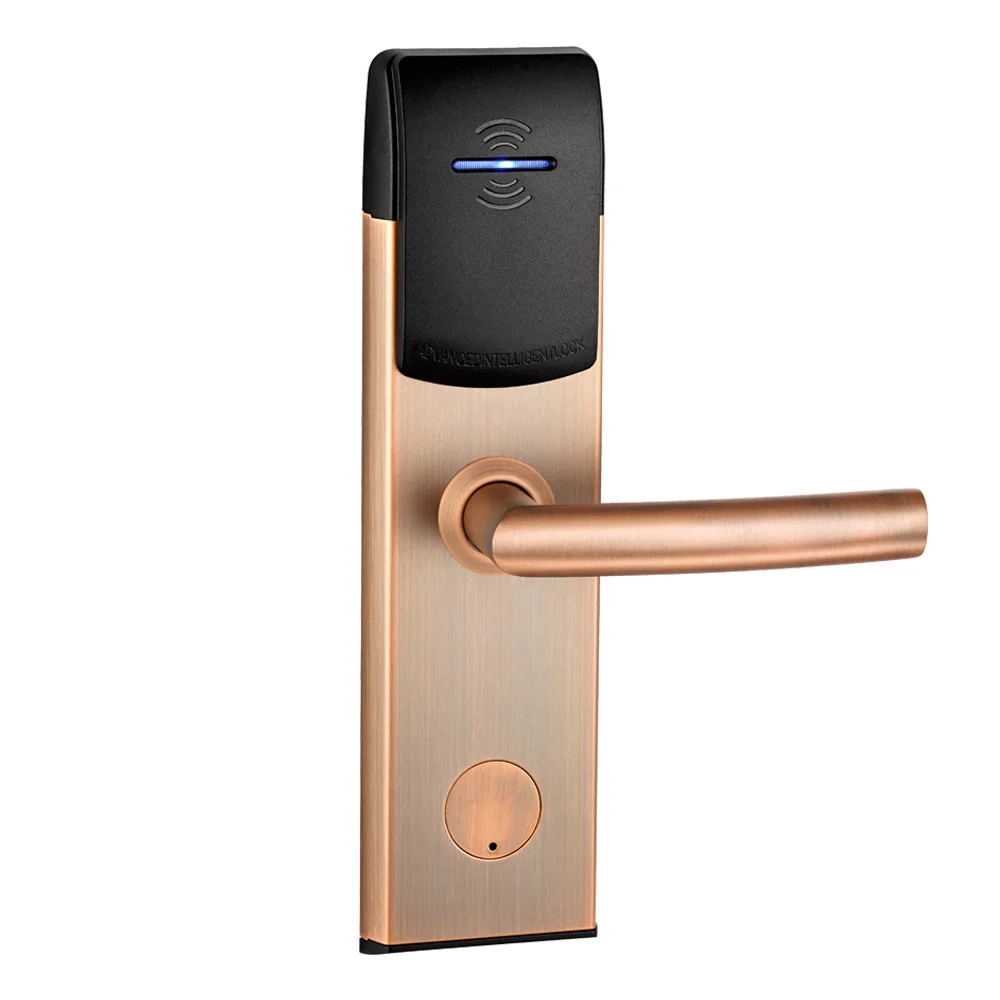

Keyless Electric Hotel RFID Smart Card Door Lock with Free software

Product Overview

Description

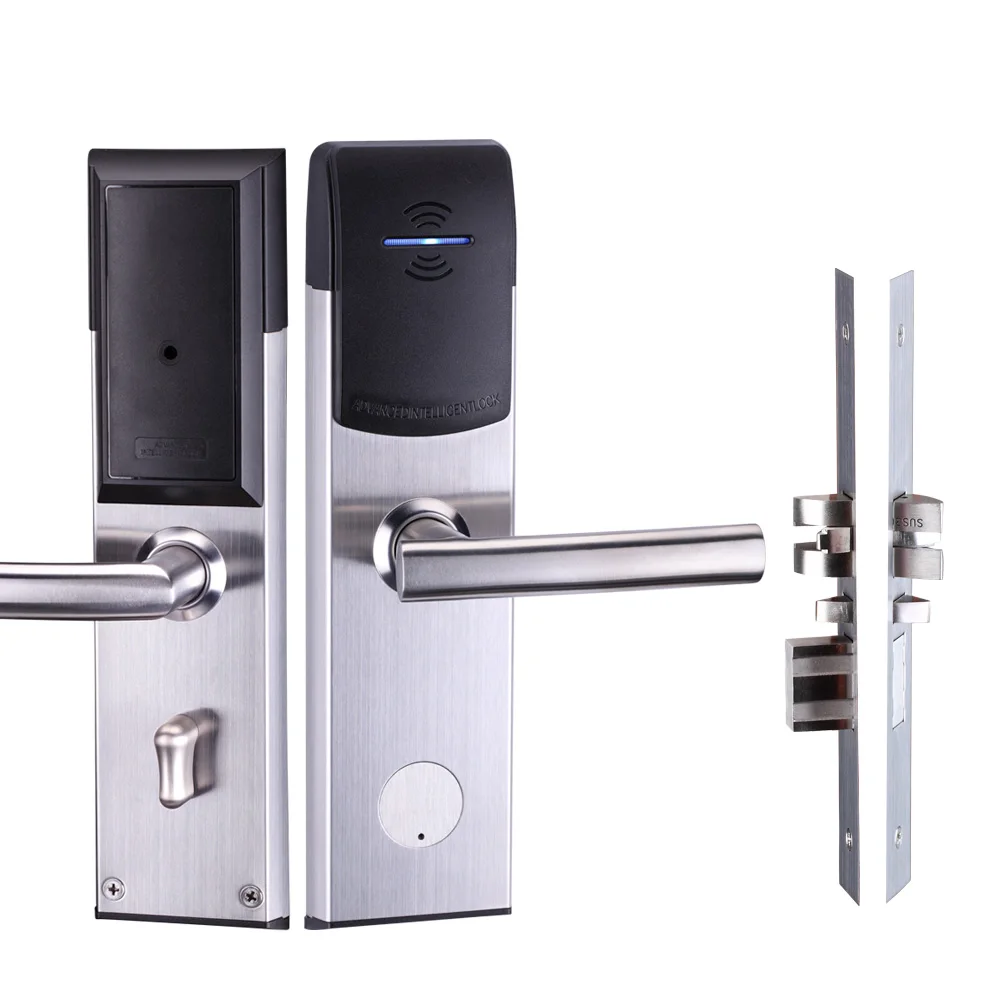

304 Stainless Steel Keyless Electronic Door Lock Hotel Card Key Lock System

RFID Hotel Card Reader Door Lock with key and card





Technical Specification:



Model No	H700
Certificates	CE,FCC certificated
Material	Pure 304# stainless steel

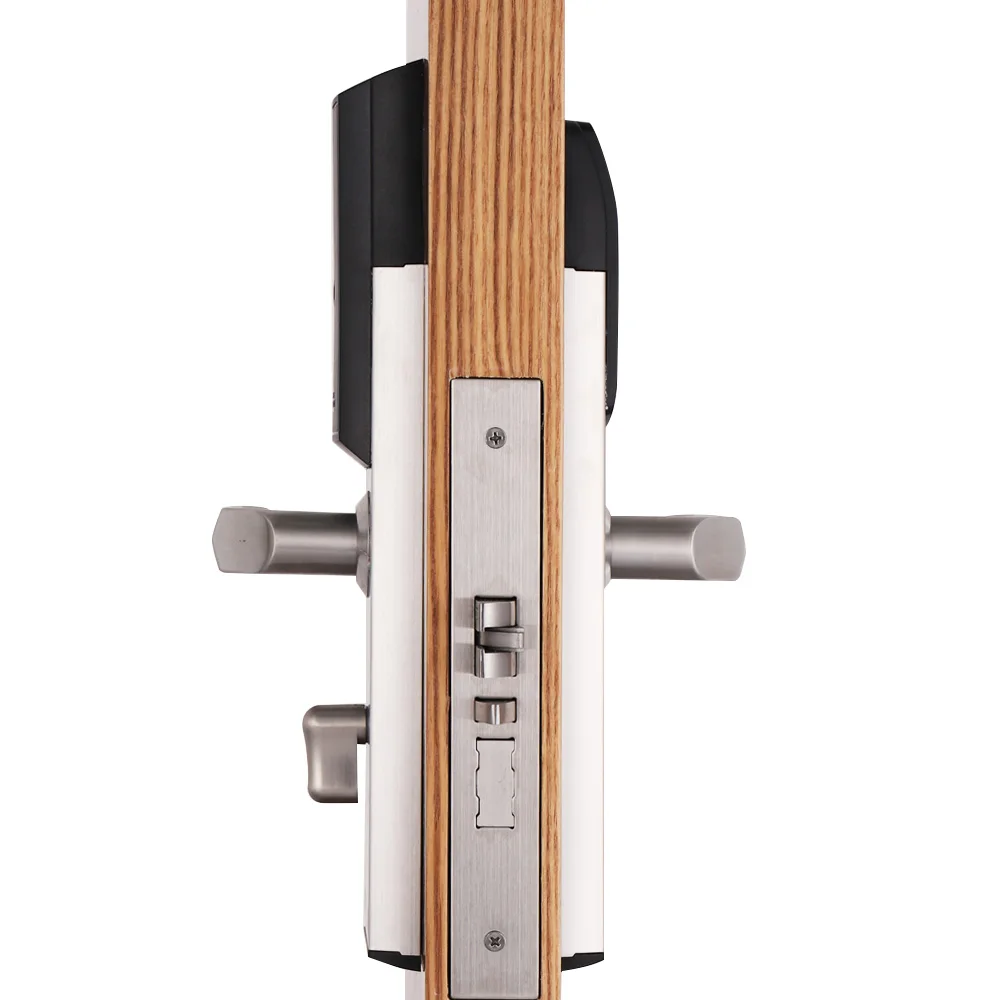

Mortise	ANSI 70mm backset standard Mortise,
Latch and deadbolt material	304# die casting stainless steel material
Motor life test	500,000 times
Keycard type	M1 card 1K S50 Philip chip, ISO 14443A standard
Power supply	4*AAA alkaline batteries (DC6V)
Static current	25uA
Dynamic current	<150mA
Working Temperature	-20-45 degree
Battery life in normal open	150 times
Low batteries alarm	When battery is lower than 4.8V, there is di-di beep, then you can still open 150 times
Audit Trial	990 latest records include the mechanical key
Available door thickness	40-65mm

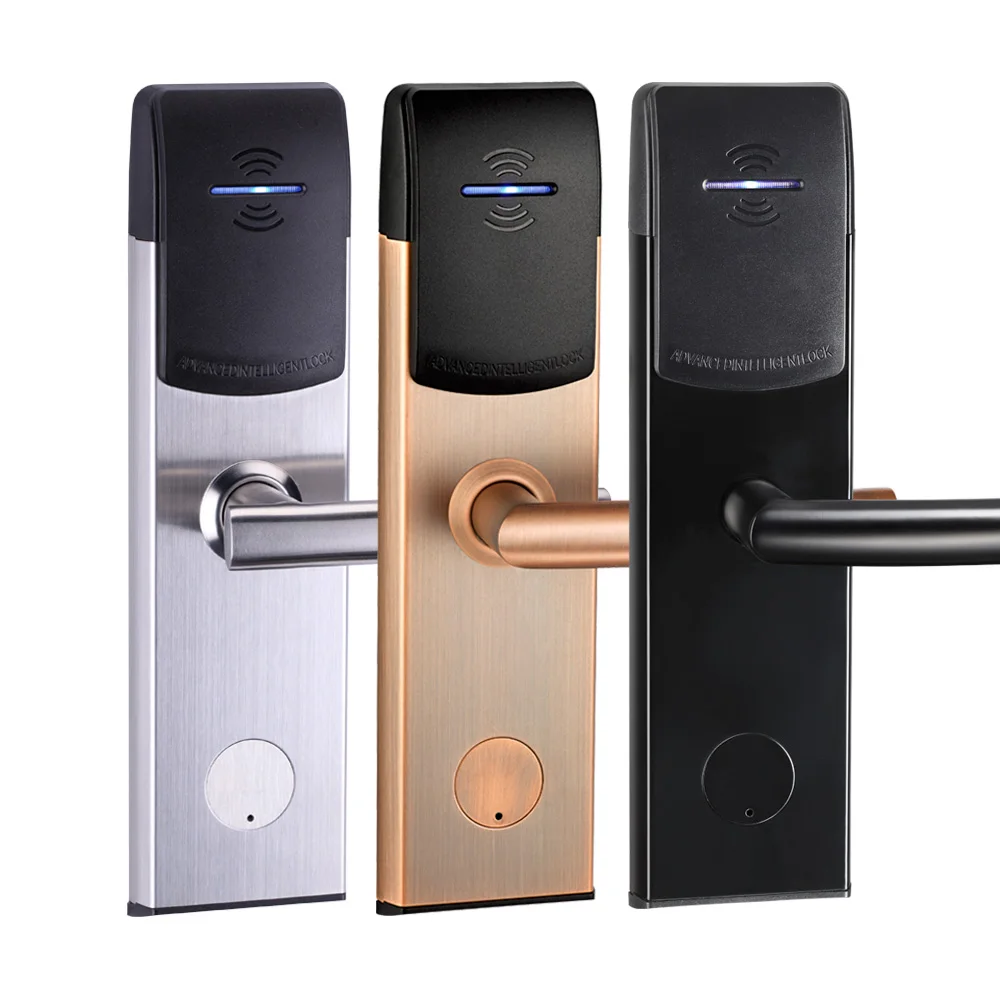

Color option	Satin stainless steel/Gold/Black
Suggest Usage	Wooden door





 PRODUCT DETAILS



1.Pure 304 stainless steel panel and handles, color enjoys 10 years warranty

   Import PC material for the reader.

   Die casting 304# mortise latch and deadbolt

2. Back up mechanical key to ensure security,  brass+ ABS

3. Proximity RF technology, fast and stable

4. Low batteries alarm

5. Free to change to different handles.















4. Dimension and European Mortise

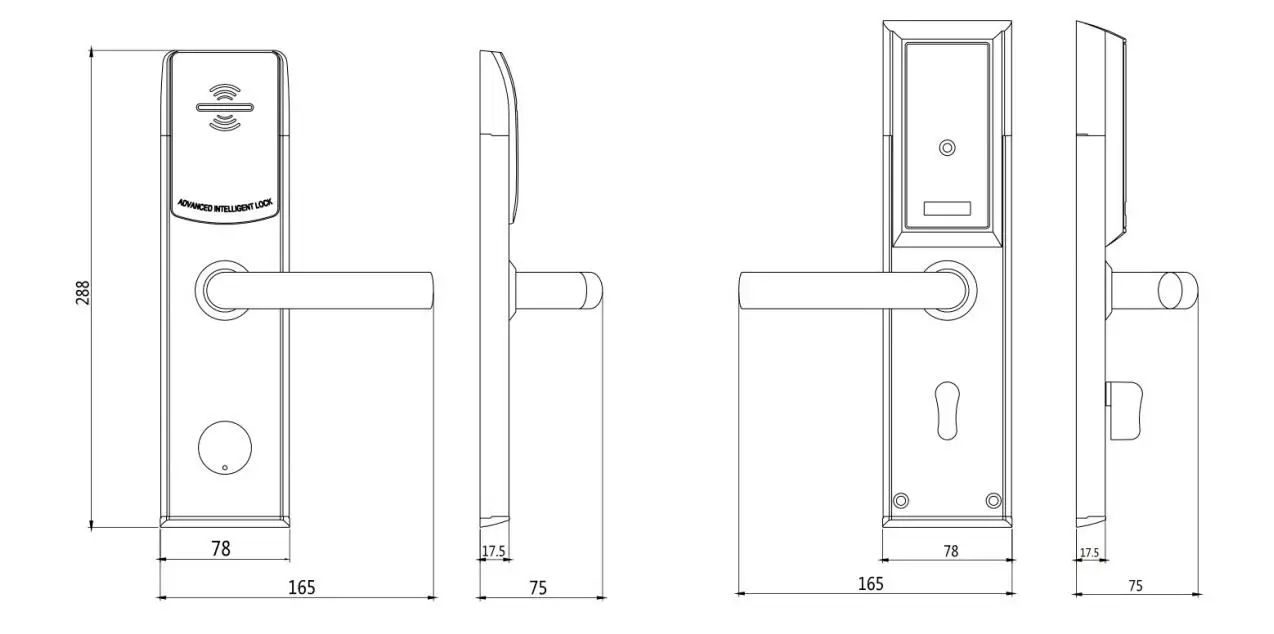

External Reader dimension: L 288mm*W78mm*H17.5mm

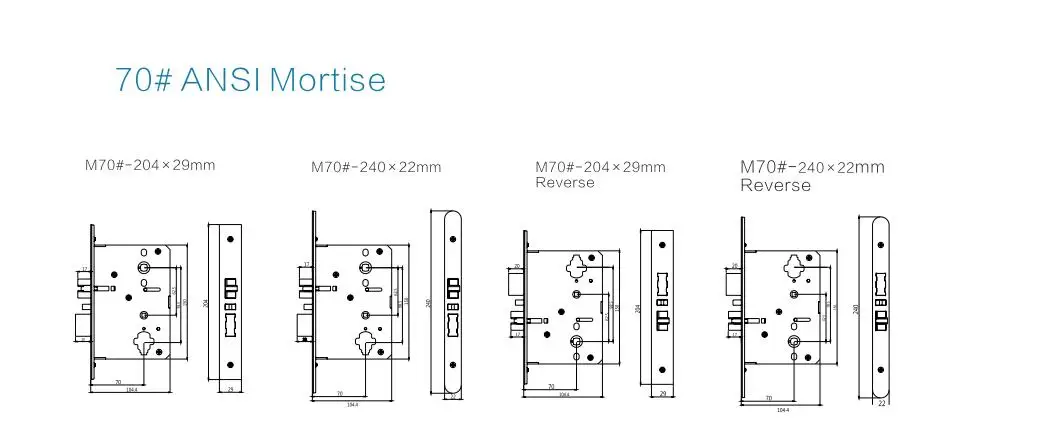

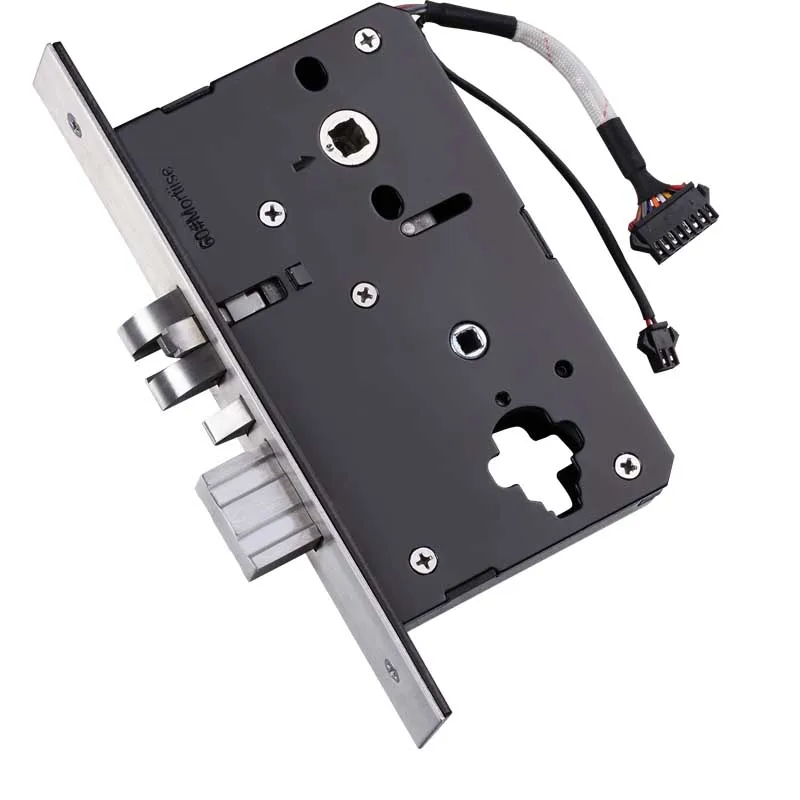

About our mortise:

• With standard  70mm backset ANSI mortise.


• Inside part are with blue zinc treatment to reach the environmental protection requirement.


• Mircoswitch inside the mortise is with over 1000,000 times life test.


• Latch and deadbolt are with 304 stainless steel material, durable and reliable.


• Flat spring for the mortise is with imported piano wire with 500,000 times life test.


• Spring part is with special steel and heat treatment with over 1000,000 times test.


• High quality motor with 500,000 time life test, ensure long year use.


• Patent structure design with simple change for left and right direction.


•

4. Strong Advance Hotel management software, which can interface with most of the PMS system, Fidelio, Opera system.

    which bring a big conveniences for hotel owner and projector.

    Support operation system: WINDOWS XP/WINDOWS 7/ WINDOWS 8/ WINDOWS10





5. One-stop intergrated Hotel lock system service.



• Comupter memory: 500GB above, hard disk suggest 2G above, USB port required.


• Software: Window system, Windows 7/8/10


• Data base:  Window access/ Microsoft SQL Server 2008 above


• Encoder: Read and write card and software registration


• Door Lock: Installed on each room.


• LCD Handset: Configure room No, Adjust time, Audit trial records etc.


• RFID Cards: unlock the door


• Printer: as request from the site.

About Card encoder:

Working voltage	DC5V
Related current	500MA
Working Humidity	10%-90%
Working Temperature	-20degree-55degree
reading speed	<1s
Detect Type	auto check
port	Universal USB port, no need extra driver
system	support one card system intergration.



About LCD HANDSET



Function:

One station solution, no need special room setting card.

Fast and correct time adjustment.

Special system checking for hardware and firmware.

Easy to check card information.

Convenient to check Audit trial records.

Support check-out function.



Working Voltage	DC3V
Static current	<10uA
Working current	<100mA
Storage humidity	RH5%-95%
Working Temperature	-25 degree ~70 degree
sizes	177.6*85*30mm



About the card:

Adopt Philip chip M1 card 1K S50 Cards, stable with good performances.

Can be customized if order more than 200pcs.



About the package:

Singel gross weight	2.8 kg/pc
Standard package	Foam packingOne lock one box
Carton sizes	485*390*410mm
Quantity of package	6 pcs/ carton







Our factory:



Tediton always concentrate the quality and provide the continuous service and keep the cost of customers and business partner in this area at the minimum level with infracture  created by the latest technology  products and high-effciency security and access control products.



We focus on every details during R& D, Manufacturing and sales. and aim to produce high quality products  and provide to our customers. To process and grow up the intelligent Lock industry,

We insist the brand and quality as our pursue!
