SINOROCK China hollow high tension self drilling foundation bolt for concrete formwork
- Category: >>>
- Supplier: Luoyang Sinorock Engineering Material Co. Ltd.
Share on (60673057020):
Product Overview
Description
Product Description
SINOROCK China ischebeck titan hollow high tension self drilling foundation bolt for concrete formwork
Sinorock® Self Drilling Anchor Bolts are a bolting solution for unstable ground conditions such as sand, gravel, silt, and clay, and in soft to medium fractured rock formations.
For projects facing such ground conditions, self-drilling anchors should be considered as the main productivity solution. Self-Drilling Anchors from Sinorock® Anchoring are designed for optimized installation, tailored to the project’s needs.

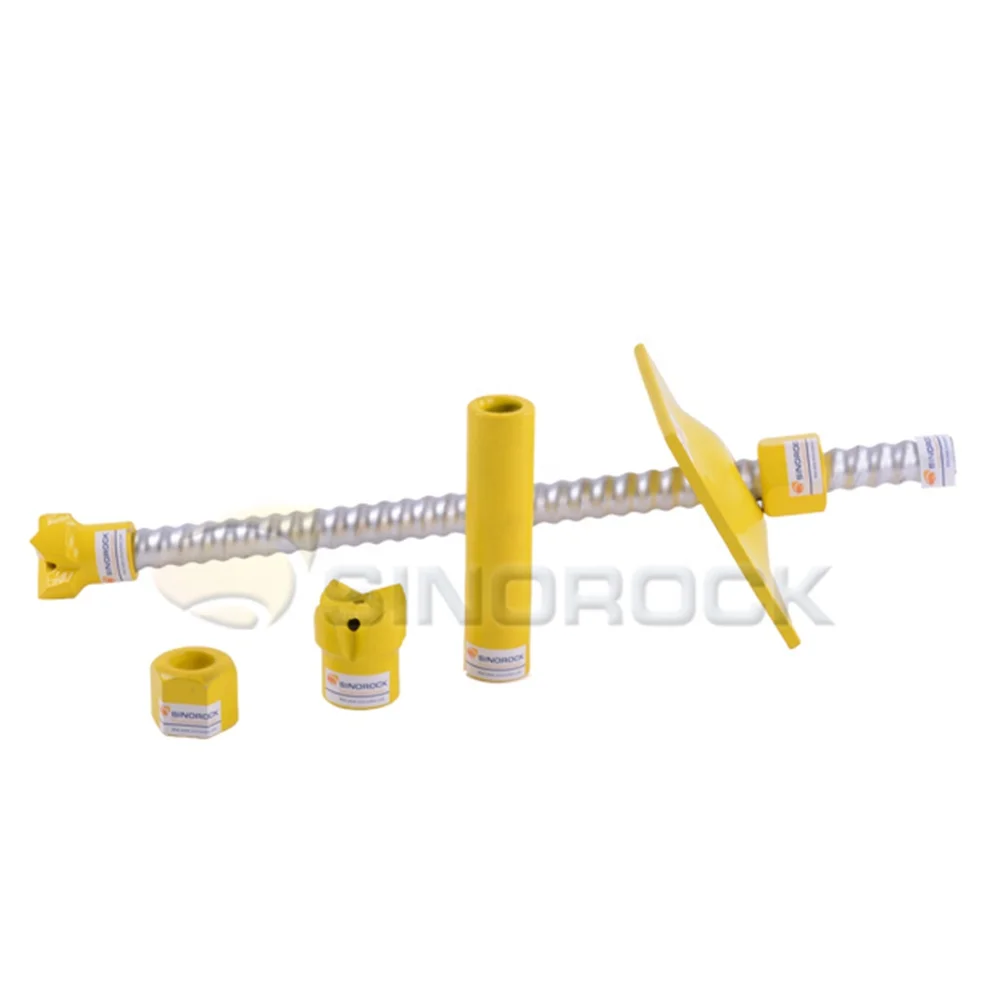

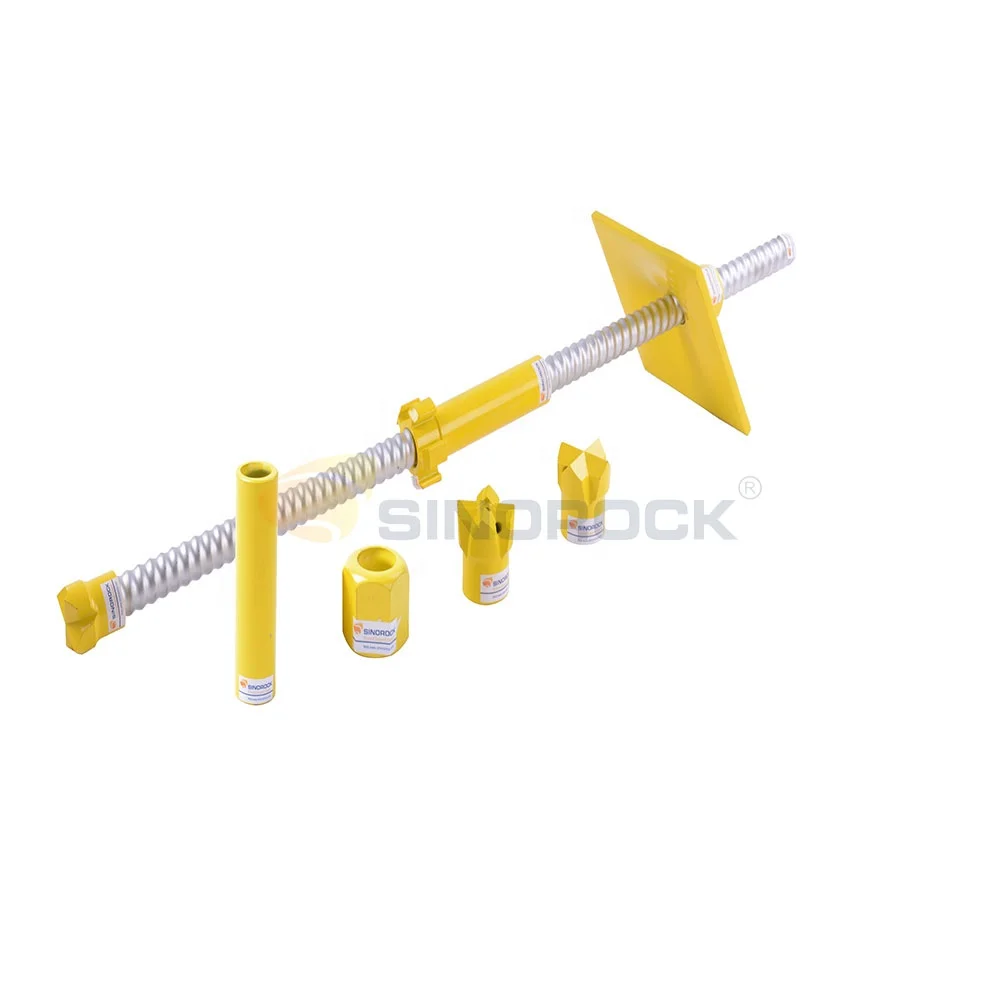

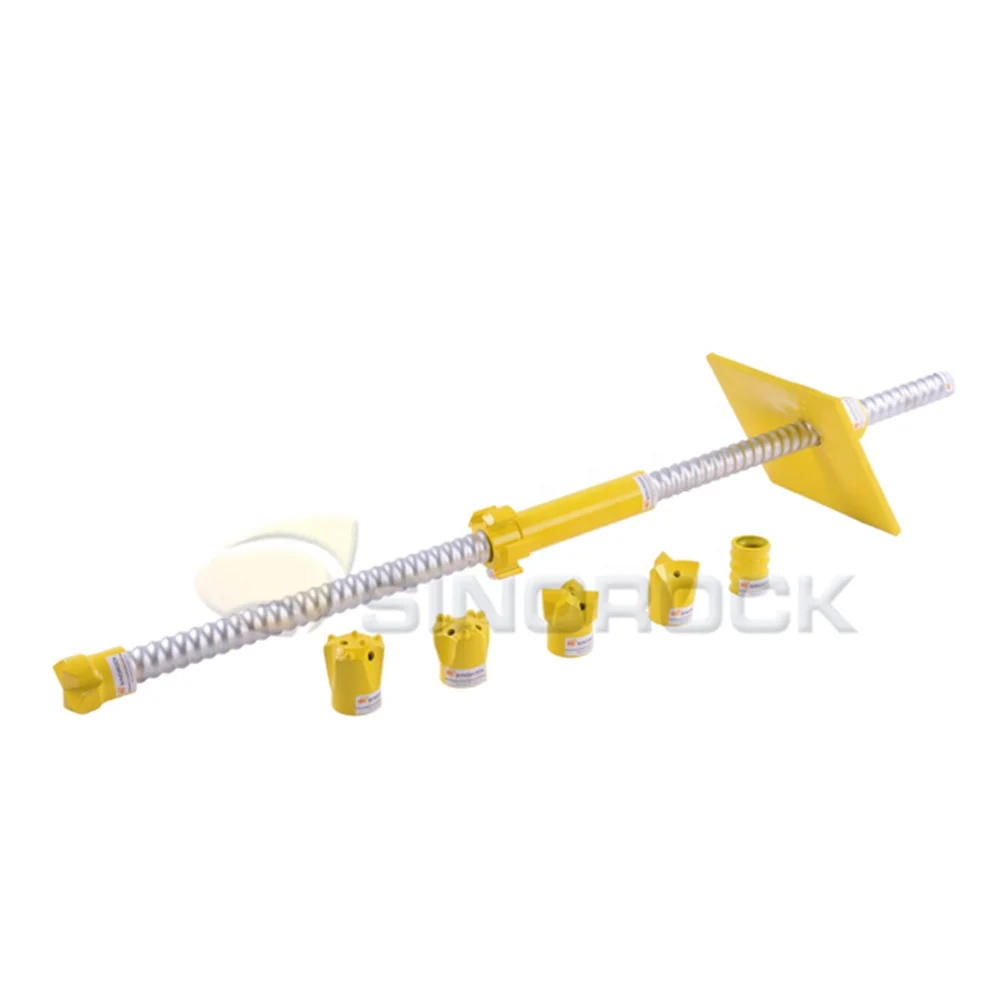

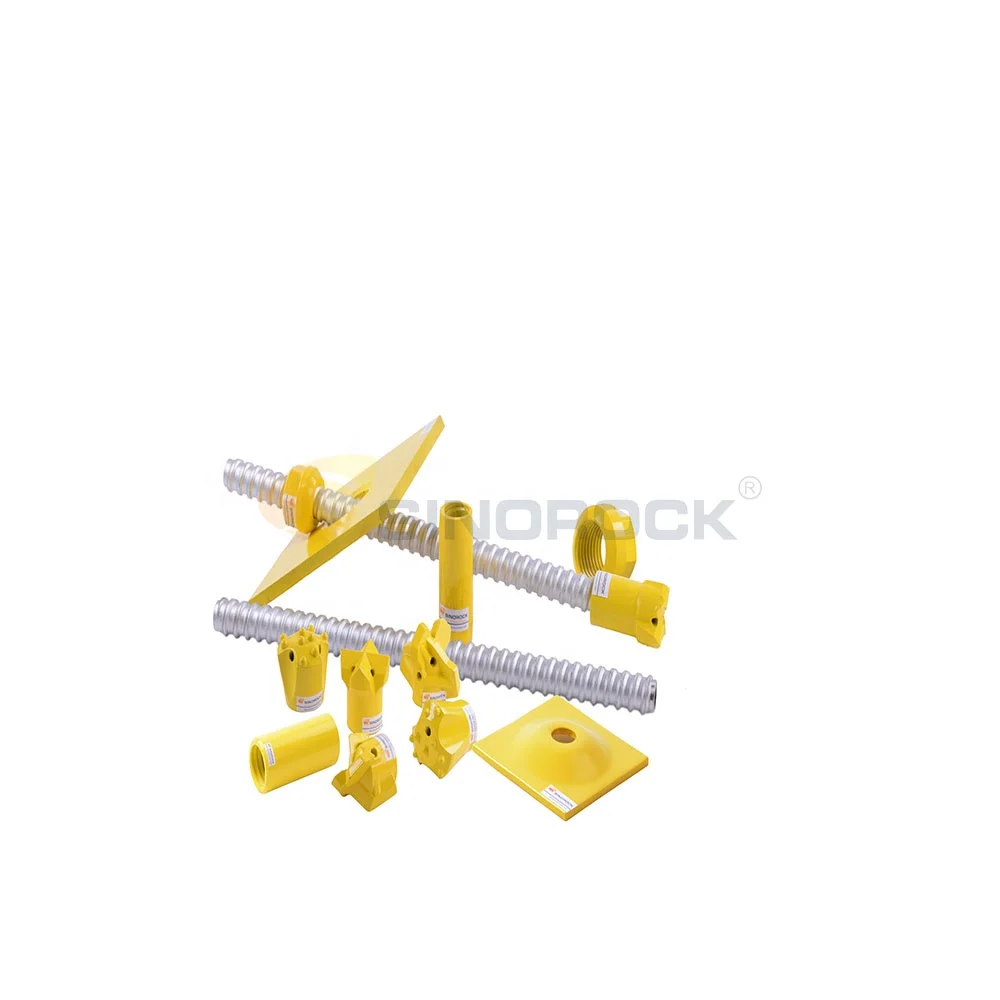

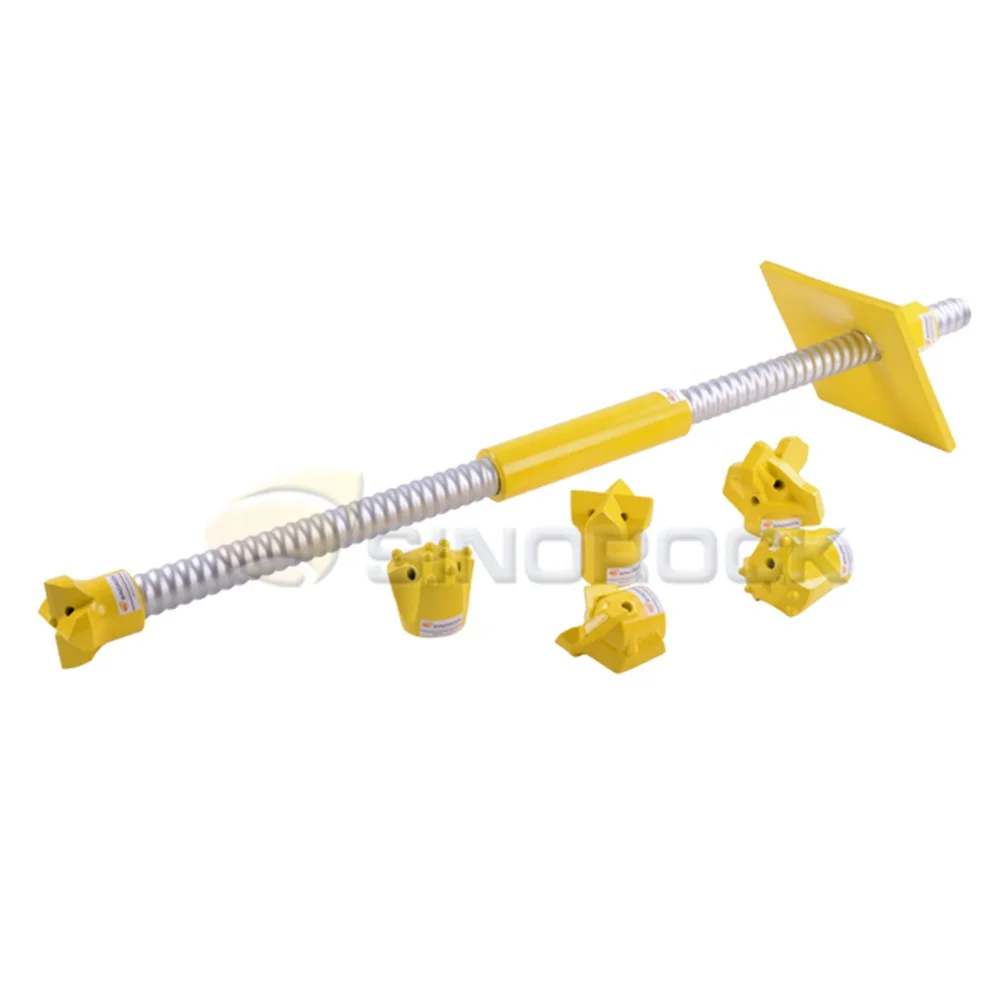

Sinorock® self-drilling anchor bolt is composed of a hollow anchor bolt, anchor nut, anchor plate, anchor coupler, drill bit, and centralizer. By drilling a hole in collapsing soil or loose rock, with an efficient hollow bar and a drill bit, and after the drilling operation injecting grout into the hollow bar and surrounding cavity, Sinorock® self-drilling anchors are a top productivity solution.
Sinorock® self-drilling anchor bolt is composed of a hollow anchor bolt, anchor nut, anchor plate, anchor coupler, drill bit, and centralizer. By drilling a hole in collapsing soil or loose rock, with an efficient hollow bar and a drill bit, and after the drilling operation injecting grout into the hollow bar and surrounding cavity, Sinorock® self-drilling anchors are a top productivity solution.
Specification
R-Thread Hollow anchor Bar | ||||||||
Size | Outer Dia.(mm) | Ultimate Lad(kN) | Yield Load(kN) | Weight(kg/m) | ||||
SER25N | 25 | 200 | 150 | 2.35 | ||||
SSR32L | 32 | 210 | 160 | 2.83 | ||||
SSR32N | 32 | 280 | 230 | 3.50 | ||||
SSR32S | 32 | 360 | 280 | 4.00 | ||||
SER32L | 32 | 210 | 160 | 2.60 | ||||
SER32N | 32 | 280 | 230 | 2.95 | ||||
SER32S | 32 | 360 | 280 | 3.50 | ||||
SER32S1 | 32 | 405 | 320 | 4.00 | ||||
SCR32L1 | 32 | 250 | 190 | 2.60 | ||||
SCR32N | 32 | 280 | 230 | 2.83 | ||||
SSR38N | 38 | 500 | 400 | 5.50 | ||||
SER38N | 38 | 500 | 400 | 4.95 | ||||
SER38S | 38 | 500 | 450 | 5.90 | ||||
SSR51L | 51 | 580 | 450 | 6.75 | ||||
SSR51N | 51 | 800 | 630 | 9.00 | ||||
SER51L | 51 | 550 | 450 | 6.20 | ||||
SER51L1 | 51 | 660 | 540 | 6.75 | ||||
SER51N | 51 | 800 | 630 | 8.20 | ||||
SER51S | 51 | 925 | 740 | 9.25 | ||||
Application
Sinorock® self-drilling anchor system is mainly used in slope stabilization, tunneling pre-support, foundations with micro piles, its also widely used in the railway system, metro project, etc. It can be installed in sites with weak rocks, loose soil, weathered layer, sand with stone layer and so difficult to create a hole in complex formations. The unconsolidated ground condition favor Sinorock® self-drilling anchor bolt technique for fast and simple method of installation compared to the traditional method.
Company Profile
Luoyang Sinorock® Engineering Material Co., Ltd is a professional self-drilling anchor bolt manufacturer of rock drilling tools with ISO 9001:2008 certification and CE certification. Sinorock® is an experienced exporter of rock drilling tools in China. A full range of products are available including self-drilling anchor bolt, expansion shell anchor bolt, friction anchor bolt, fiberglass bolt, and related accessories. The products are designed and produced according to the international standard strictly.
Sinorock® self-drilling anchor bolt is our core product which includes the R-thread system ( R25, R32, R38, R51, R63)and T-thread system(T30, T40, T52, T73, T76, 103, T111, T127, T130, T150, and T200). We have professional product research and development team which makes customized service available.
Sinorock® has two production bases. More than 100 sets of equipment, including over 10 automatic lines of the hollow bar, are developed by ourselves independently and they are in the leading level of China.
Sinorock® is committed to delivering customers innovative solutions designed to improve safety, productivity, and efficiency. This commitment is backed by continuous investment in research and a highly respected and renowned technical team working alongside customers to drive improvement and innovation.
Sinorock® self-drilling anchor bolt is our core product which includes the R-thread system ( R25, R32, R38, R51, R63)and T-thread system(T30, T40, T52, T73, T76, 103, T111, T127, T130, T150, and T200). We have professional product research and development team which makes customized service available.
Sinorock® has two production bases. More than 100 sets of equipment, including over 10 automatic lines of the hollow bar, are developed by ourselves independently and they are in the leading level of China.
Sinorock® is committed to delivering customers innovative solutions designed to improve safety, productivity, and efficiency. This commitment is backed by continuous investment in research and a highly respected and renowned technical team working alongside customers to drive improvement and innovation.
rill bars and rod
OUR CERTIFICATION
ISO
CE
SGS
Exhibition
A PERFECT QUALITY CONTROL PROCESS
hollow threaded rodhollow threaded
Incoming inspection
baranchor rods in soil stabilizationhollow
Process quality control
anchor bar soil nailing slope stability
Finished product inspection
Packing & Delivery
