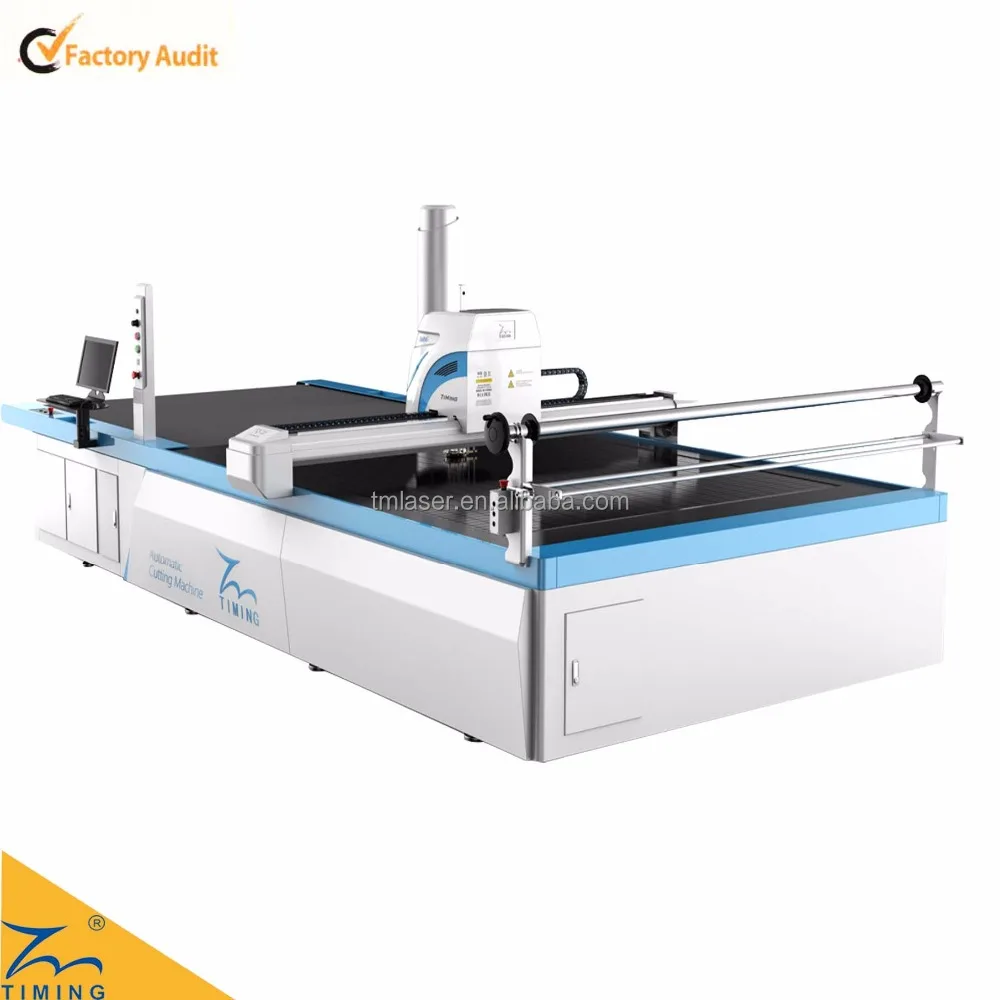

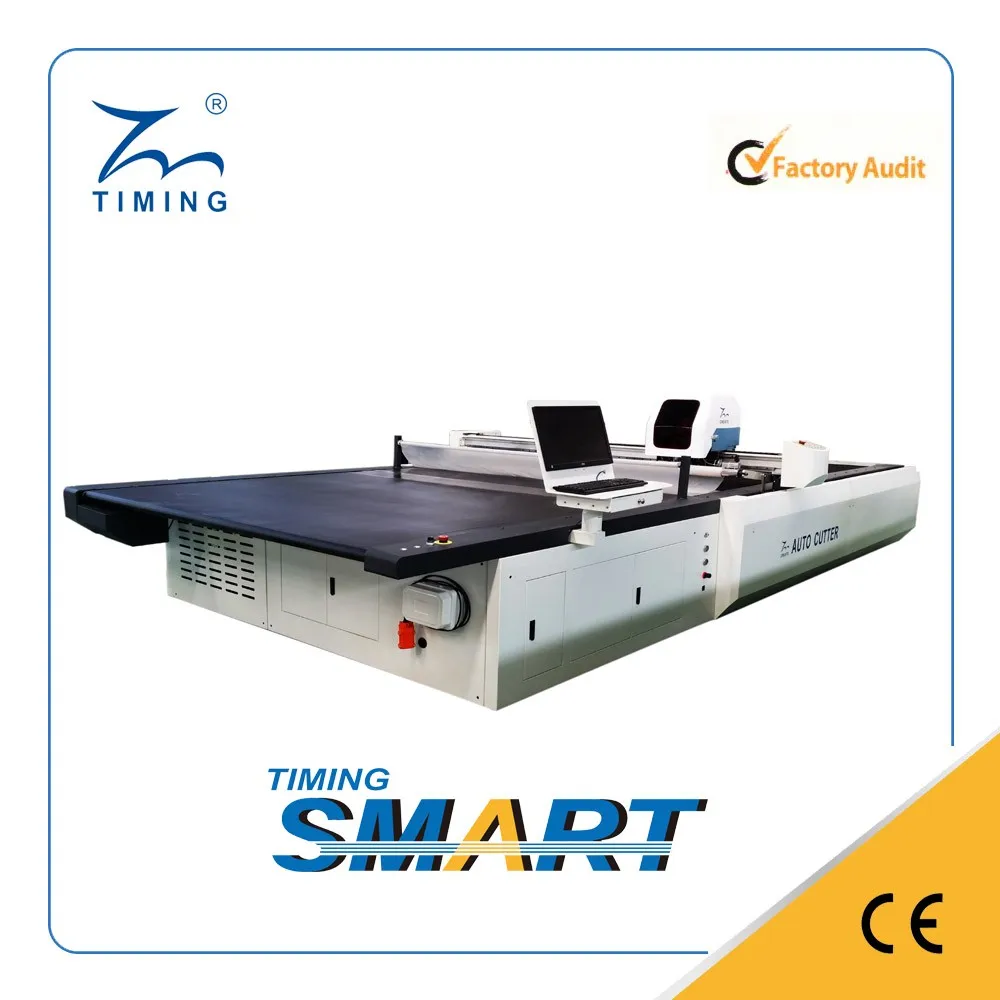

TMCC5 2225 Automatic Fabric Cutter High Quality CNC Cutting Machine
TMCC5-2225 Automatic Fabric Cutter High Quality CNC Cutting Machine
TMCC5-2225 Automatic Fabric Cutter High Quality CNC Cutting Machine
TMCC5-2225 Automatic Fabric Cutter High Quality CNC Cutting Machine
TMCC5-2225 Automatic Fabric Cutter High Quality CNC Cutting Machine
TMCC5-2225 Automatic Fabric Cutter High Quality CNC Cutting Machine
TMCC5-2225 Automatic Fabric Cutter High Quality CNC Cutting Machine

TMCC5 2225 Automatic Fabric Cutter High Quality CNC Cutting Machine

Share on (60673074688):


Price:RUB 4,217,141.50

Quantity:


Product Overview

Description

Product Description

Video of company introduce : https://youtu.be/aTDfuGt2P6A

-----Wuhan Tianming Photoelectric Technology Co., Ltd.


Application

Cutter markets suitable for widely industly ,for instance : leisure fashional suits,children's garments,suits,knitting casual/

leisure suits,underware,swimsuit,corsage,seat cushion,massage chair,yacht/houseboat seat,shoes,cat,cold protective

clothing,golf bag,handbag,home textiles,cow-bag,sleeping bag,tent, apparel,automotive, and furniture and soft fabric as

well as other industries.

Type
TMCC-1725/M
TMCC-2025/M
TMCC-2225/M
Cutting area
1700*2500
2000*2500
2500*2500
Weight
2100KG
2200KG
2400KG
Size(length,width,height)
5760*2610*1500
5760*2910*1500
5760*3100*1500
Cutting speed:
0-50000mm/min
Cutting style:
 straight knife up-down
Cutting accuracy:
≤±1mm
Cutting thickness:
(after vacuum suction)
max50/70/90mm
(according to the cloth)
Deceleration system
Planetary Gear
Max speed of blade working
4000rpm/min
Power supplier:
AC380V/50HZ
Softerware:
automatic cutting system copyright
SPECIFICATIONS FOR MOTORS


 MOTORS
X AXIS
1000
Watt
Y AXIS
750
Watt
Z AXIS
400
Watt

 MOTORS
T AXIS
200
Watt
Conveyor
750
Watt
Pick up
400
Watt

  Vacuum
Power
18.5
Watt
frequency
7
Level
Average consumption
12KW - 18KW
KW

             MEN SUIT MATERIAL


      FASHION WARE MATERIAL

         CAR CUSHION MATERIAL


Main Features

1) Computer design, automatic typesetting, save original materials.

2) Computer controlled and automatic cutting, save the human resource, mass production.

3)Support many kinds of formats, direct open general dress design format, typesetting software.

4)High cutting accuracy, self-design of automatic sharpen cutter, high quality of cutter makes life longer.

5) No need print out, save the typesetting, with high repeated utilization, plate marking management is convenient.

5)Easy to change the spare part, and lower cost;

6)Nice automation, easy to operate.

Video of fabric cutting machine link as below:

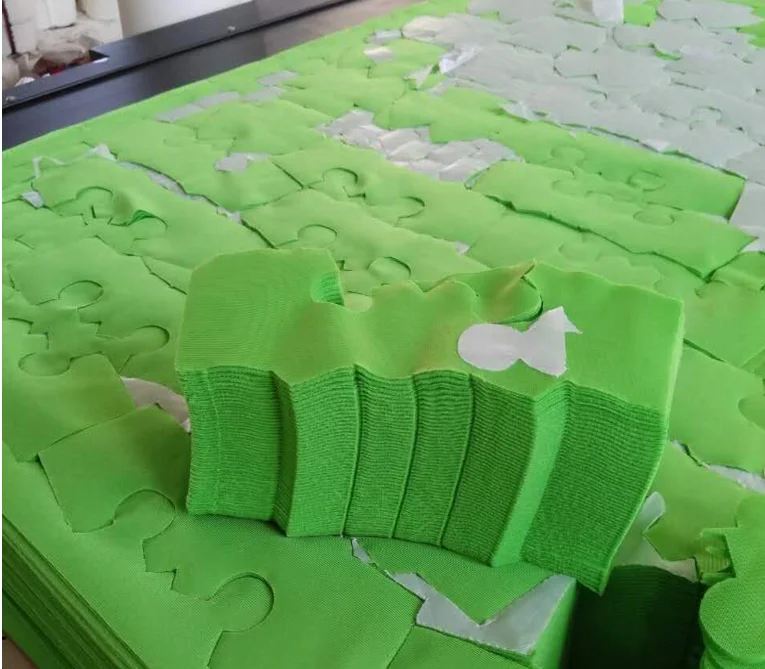

1, TMCC 2025 ,Garment mesh fabric material ,190 Layers,after-absorption 6cm
    https://youtu.be/NppLdAcVykw
2,MCC- 2025 ,black knit material,150 Layers(Max 190 layers),after-absorption 8.5cm(Max 9cm)
   https://youtu.be/anKgT0YZrhQ
   https://youtu.be/t02-d6CeDQc
3,Mainly for baby's cloth material ---Cotton jersey,cutting 60 layers ,after-absorption reach to 7CM
  https://youtu.be/3O1EqKtKXB4

Certifications
Detailed Images

Machine Parts

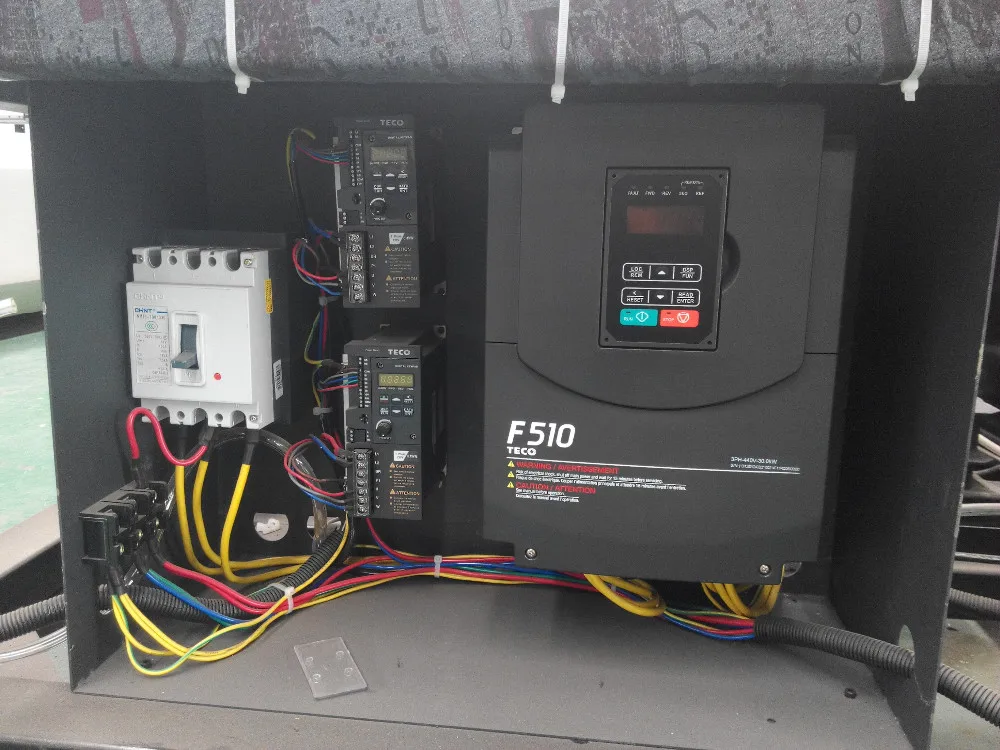

Name: Vacuum Drive
Original: JAPAN OR TAIWAN

Machine Parts

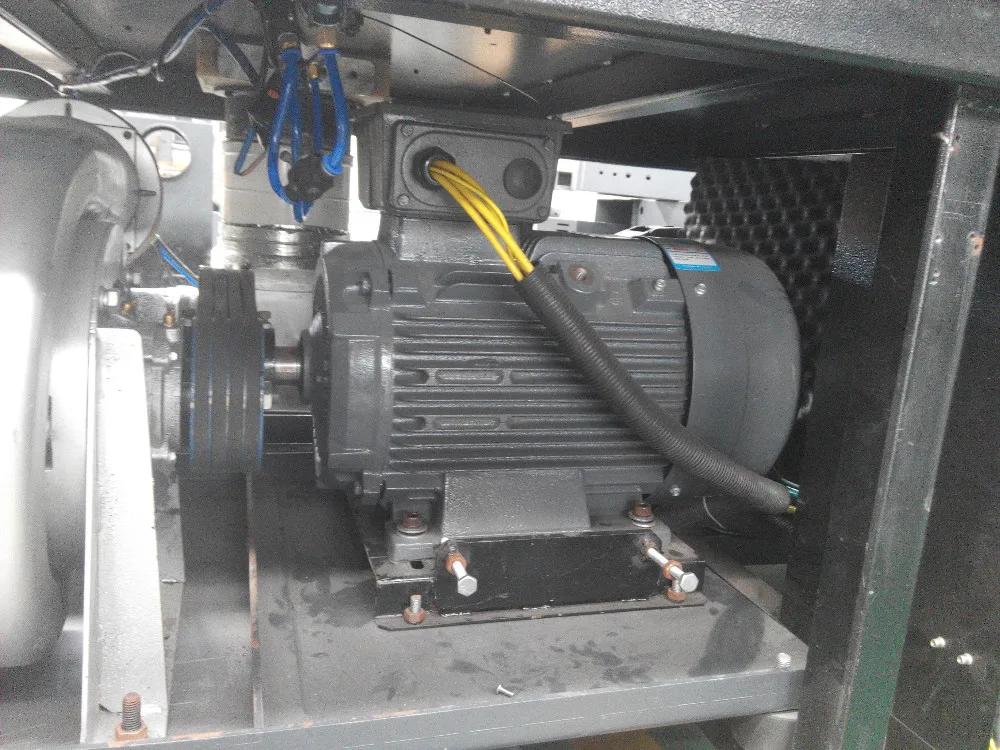

Name: Vacuum motor
Original: TAIWAN

Machine Parts

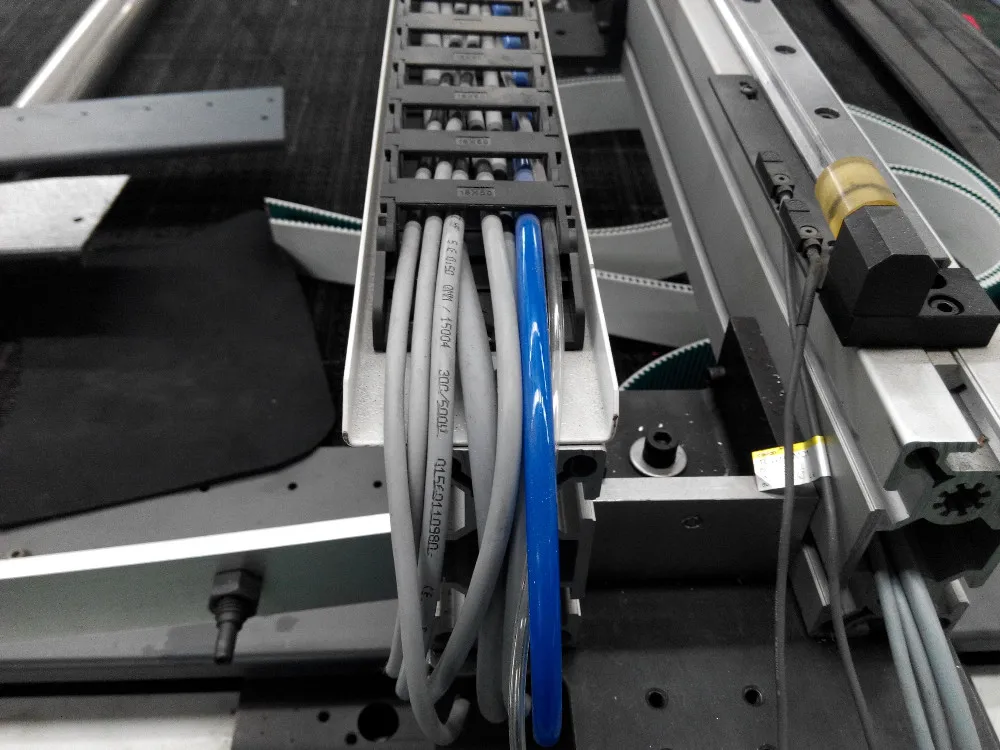

Name: cables
Original: Germany

Machine parts

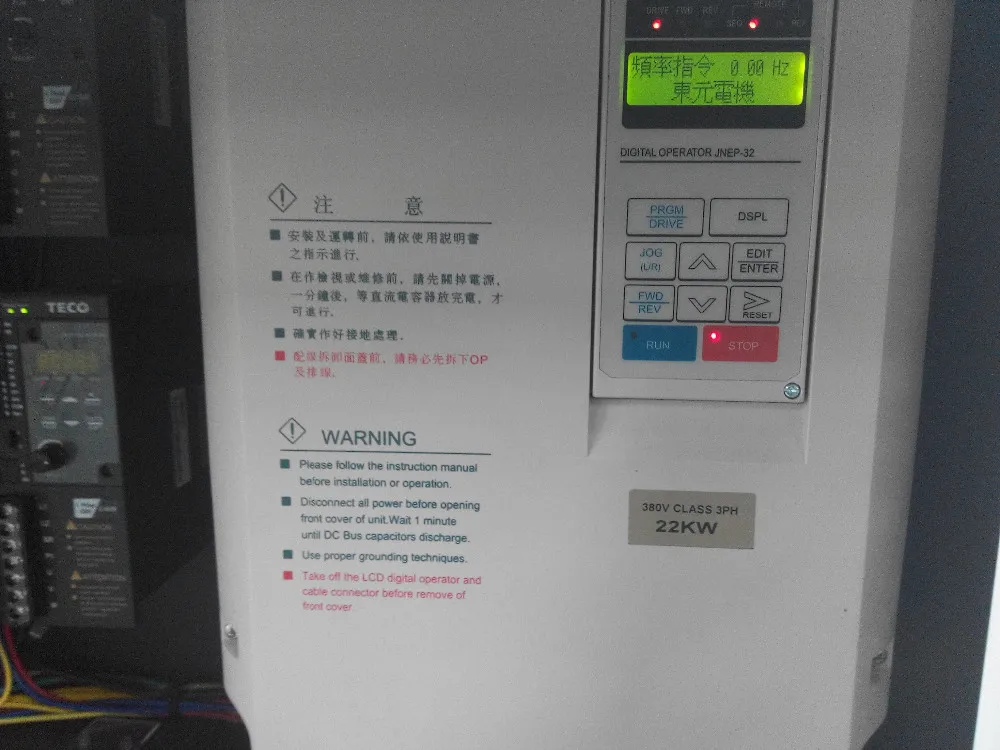

Name: Inverter
Original: JAPAN OR TAIWAN

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
20' FR
Weight
2.4 T



Packaging Details
The standard package is plywood packages
Plywood #1:
Dimension:3380*2950*1800mm  (Length*Width*Height)
Gross weight:1600KG

Plywood #2:
Dimension:2800*2600*1300mm(Length*Width*Height)
Gross weight:800KG
We will use tarpaulin to protect the packing for waterproof purpose.
