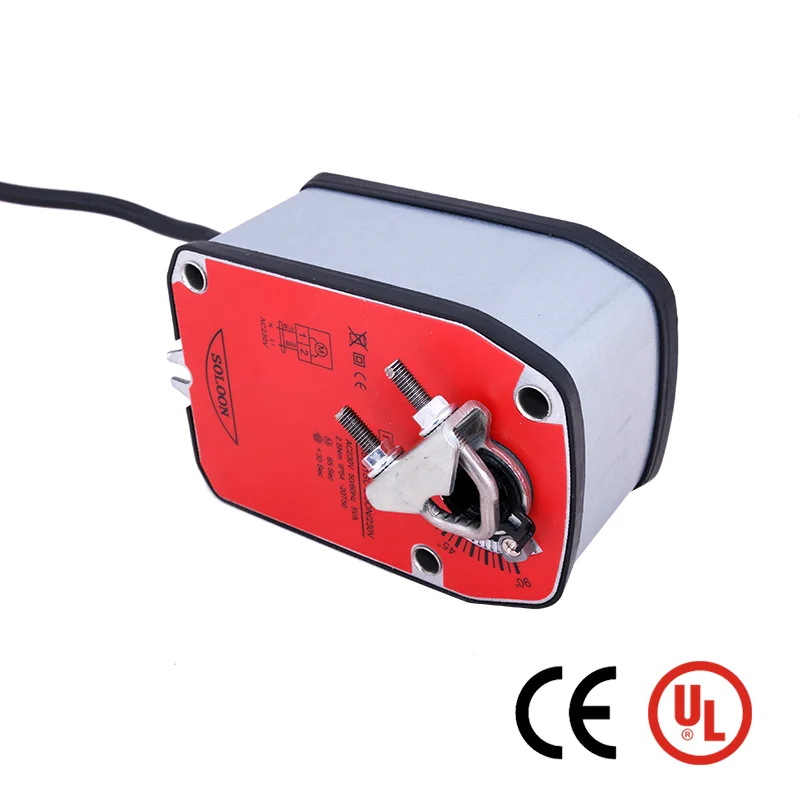

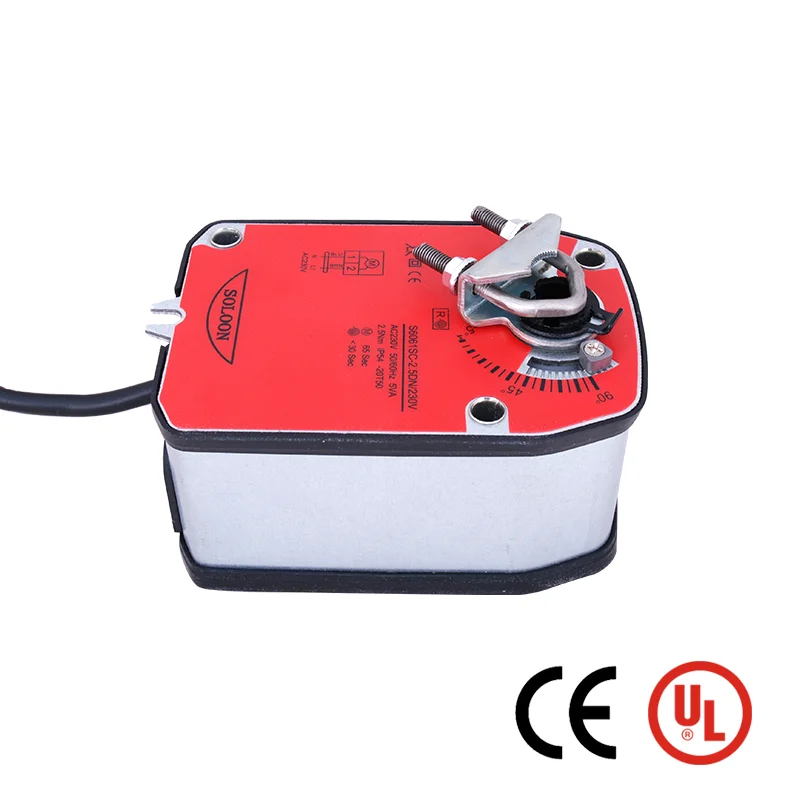

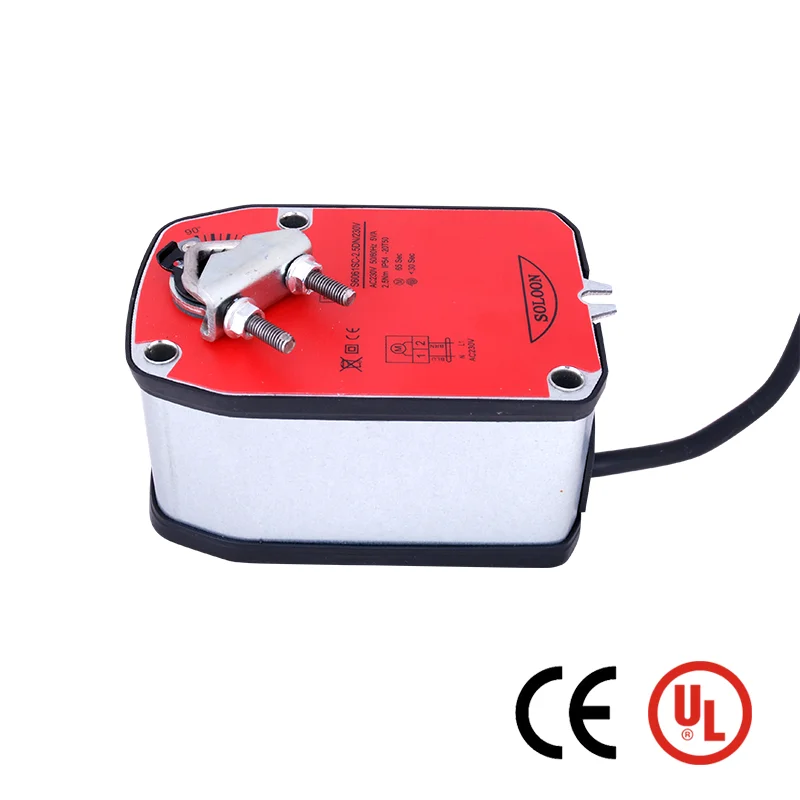

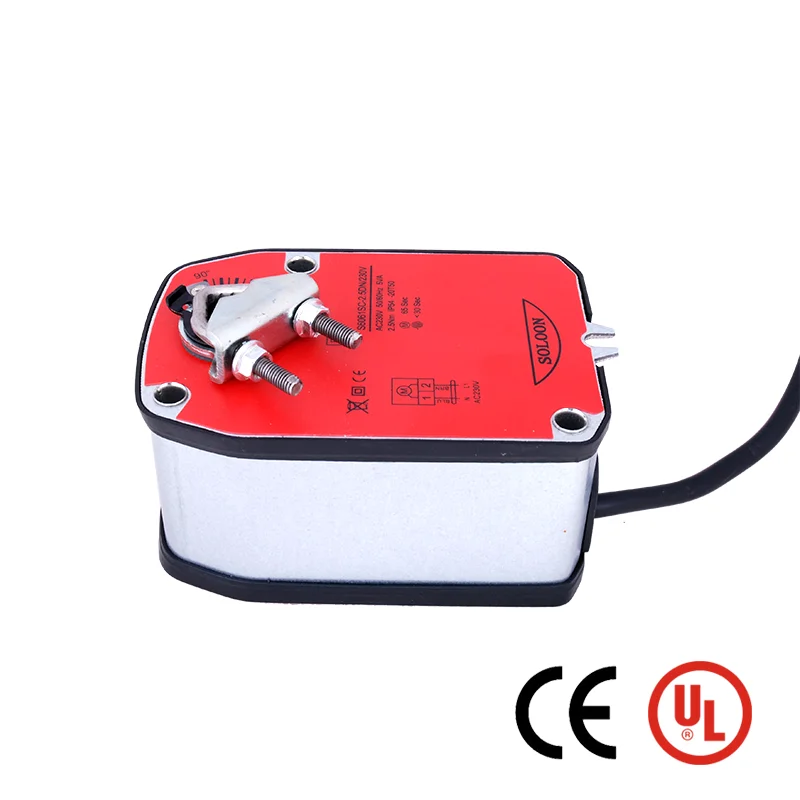

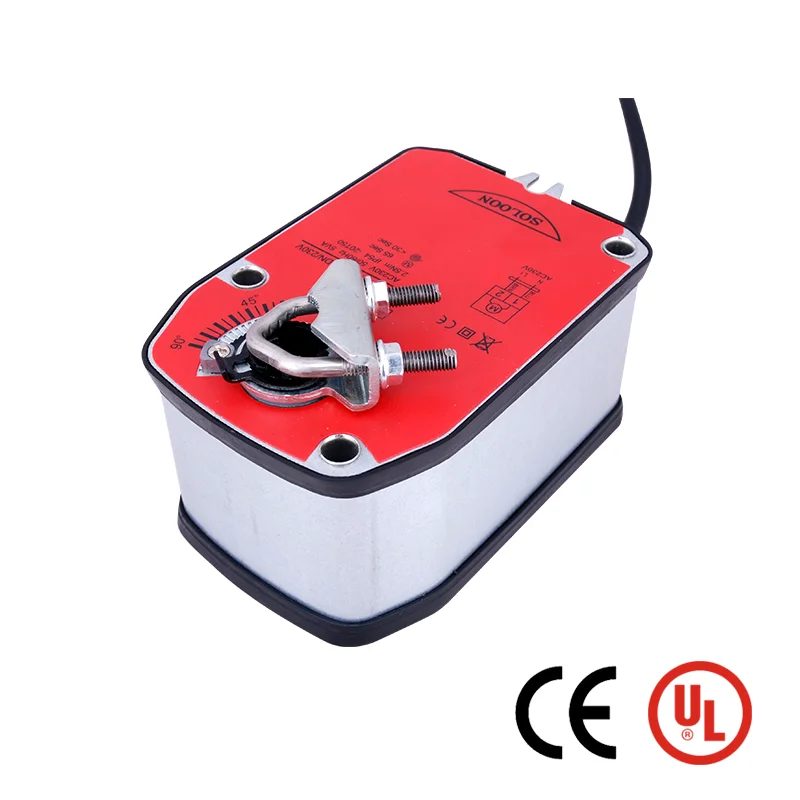

HVAC System 2.5NM ON/OFF Type Fire Smoke Damper Actuator
- Category: >>>
- Supplier: Soloon Controls (Beijing) Co. Ltd.
Share on (60673114852):
Product Overview
Description
Product Description
Technical Specification:
| Item | S6061SF-2.5DF(S)/24V | S6061SF-2.5DF(S)/230V |
| Torque | 2.5NM | |
| Damper Area | 0.5m2 | |
| Running Time | Motor 60~70s;Spring return 20S | |
| Power Supply | 24VAC/DC 50/60Hz | AC90~250V 50/60Hz |
| Operating Power Consumption | 2.5W | |
| Wire Size | 10VA | |
| Connection cable | 1m cable 2*0.75 m2 Auxiliary switch (F):1m cable 6*0.5 m2 | |
| Weight | 1.2kg | |
| Control Signal | On/off | |
| Angle of Rotation | 0~90°(max 93º) | |
Auxiliary Switch Rating | 3(1.5)Amp 250V | |
Life Cycle | >70000 | |
Noise Level | 50dB(A) and 62dB(A) | |
Electric level | Ⅲ | Ⅱ |
IP Protection | IP54 | |
Temperature | -20~+50℃ | |
Humidity | 5~95%RH | |
Storage Temperature | -40~+70℃ | |
| Certificate | CE & UL | |
Wiring diagram: Auxiliary switch:
Outline Size:

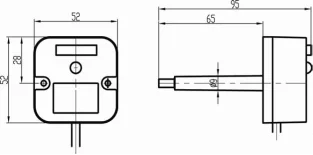

72℃ thermal sensor
