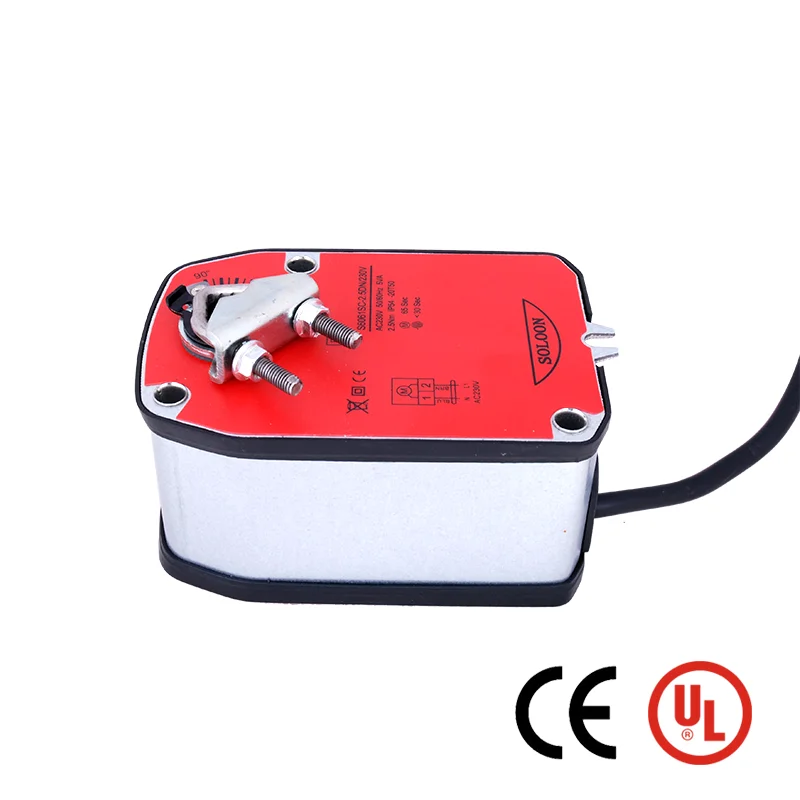

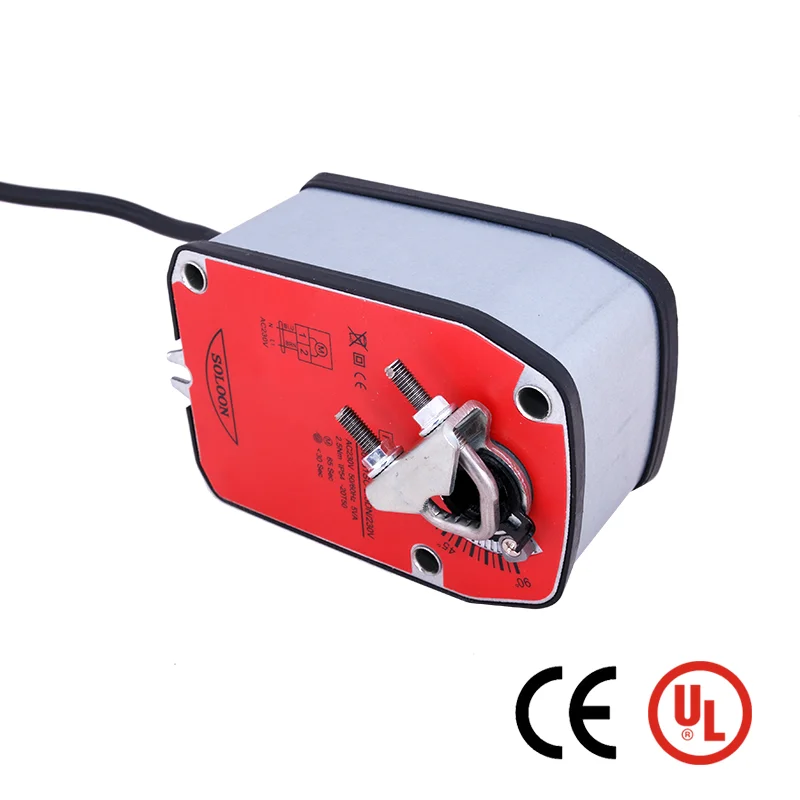

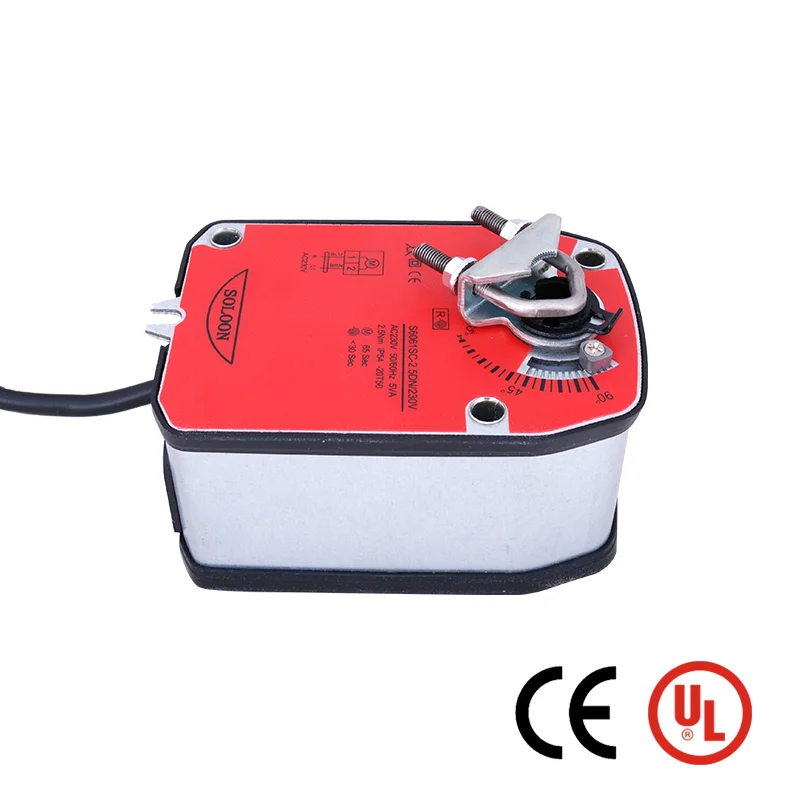

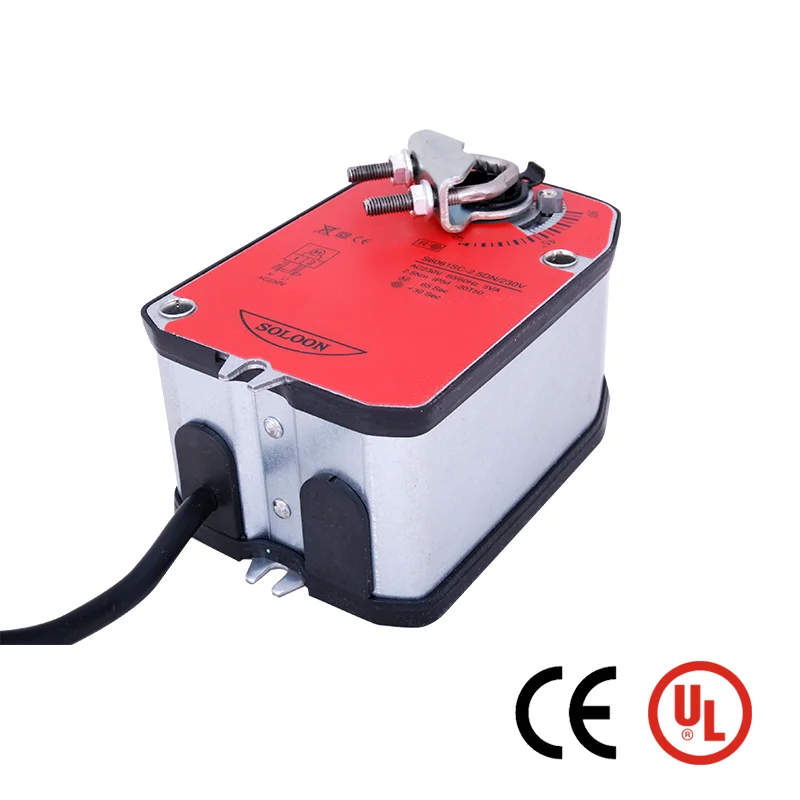

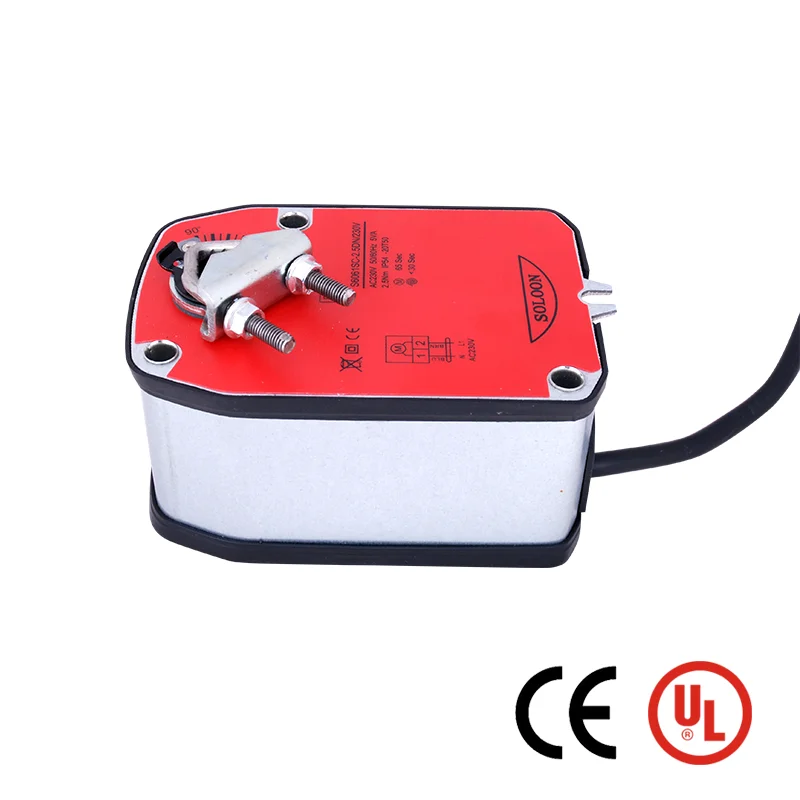

HVAC Systems 2.5 NM ON/OFF Spring Return Damper Actuator
- Category: >>>
- Supplier: Soloon Controls (Beijing) Co. Ltd.
Share on (60673122887):
Product Overview
Description
Product Description
Technical Specification
| Item | S6061SC-2.5DN(F)/24V | S6061SC-2.5DN(F)/230V |
| Torque | 2.5NM | |
| Damper Area | 0.5m2 | |
| Running Time | Motor 60~70S;spring return 25~30S | |
| Power Supply | 24VAC/DC 50/60Hz |
230VAC 50/60Hz |
| Operating Power Consumption |
2.5W | |
| Wire Size | 10VA | |
| Control Signal | On/off | |
| Angle of Rotation | 5~85º(Per step 5º) | |
| Rotate Direction | 0~90°(Max 93º) | |
Connection Cable | 1m cable 6*0.5 m2 or 3*0.5 m2 Auxiliary switch (F):1m cable 6*0.5 m2 or 3*0.5 m2
| |
Life Cycle | >70000 | |
Noise Level | 50dB(A) and 62dB(A) | |
Electric level | Ⅲ | Ⅱ |
IP Protection | IP54 | |
Temperature | -20~+50℃ | |
Humidity | 5~95%RH | |
Storage Temperature | -40~+70℃
| |
| Certificate | CE & UL | |
Wiring diagram: Auxiliary switch:
Outline Size:
