deep cycle 12v 100ah lifepo4/lithium iron polymer batteries for solar/car/rv/marine

Share on (60673143736):


Price:

Quantity:


Product Overview

Description


Product Introduction

SHENZHNE LITHPOWER Technology Co.,Ltd is an experienced and professional battery manufacturer, provides a vertical supply chain from LiFePO4 single cells, battery packs to Battery modules with matched BMS as well Chargers as a completely turn-key power solution.

Product Details Show

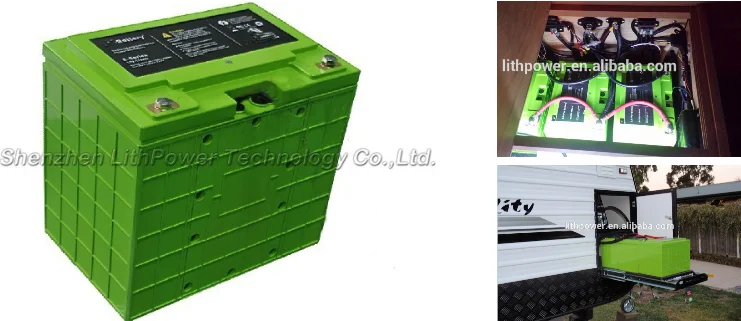

12V Lithium Iron Phosphate Battery(LiFePO4) Modules

12V High power LiFePO4 Battery Module with compact designed Green housing, built-in BMS and LED indicator as a key-turn and plug-and-play battery solution todirect drop in Replacement on typical lead-acid(AGM/GEL) battery applications.

Our BMS is installed in the front side panel that can be opened via the screws.
in this way, we can easily check and replace the BMS and without to damage the whole box.

Applications

Application:

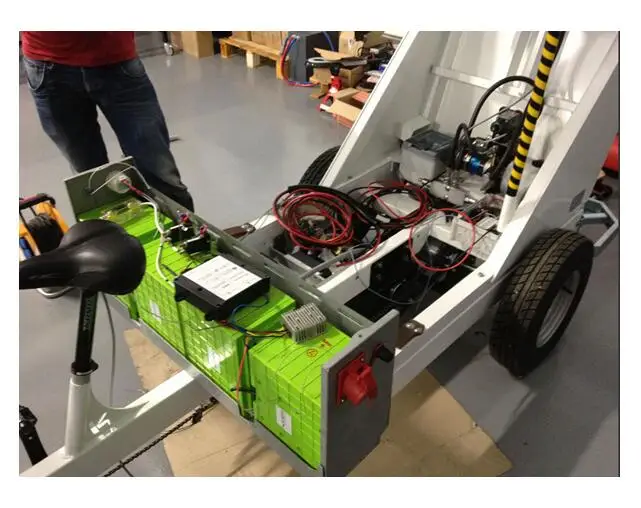

♣ Electric propelling applications: engine starting battery; Slow Speed Car; intellectual robots; electric bicycle/motorcycle/scooter; golf trolley/carts/ sightseeing car; power tools.

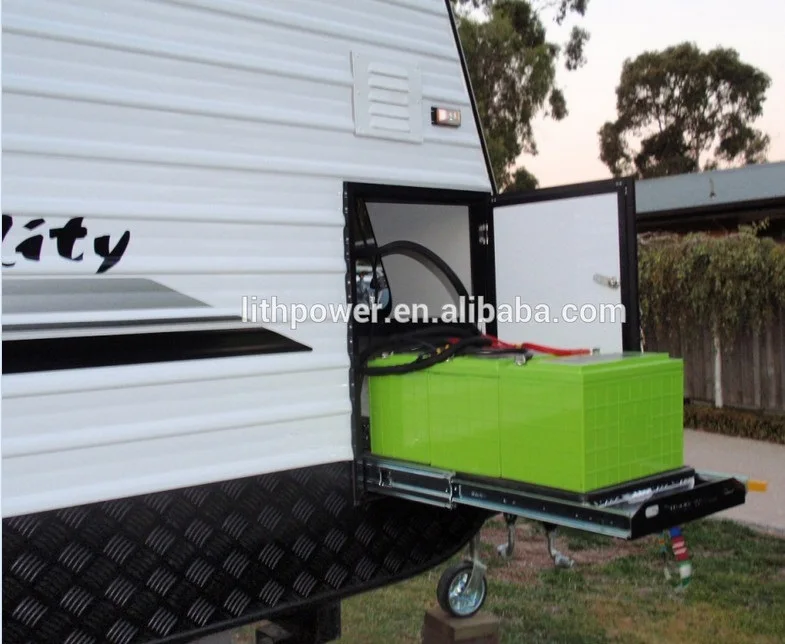

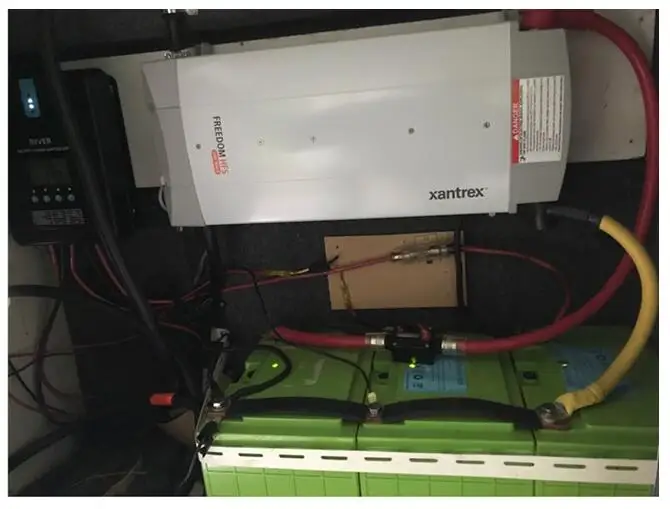

♣ Energy storage: solar and wind power system; city on/off grid; community and family, RV Caravan, Marine yachts.
♣ Back-up system and UPS: telecom base, CATV-system, computer server center, medical instrument,military equipment.
♣ Other applications: security and electronics; mobile POS, mining light/torch/LED light/emergency light
.

Product Processing
Main Products

We can customized one single 12v/24v/48V/72v 100ah/200ah/300ah lithium module, with compact designed Metal Boxesbuilt-in BMS, and if necessary, we also can build a LCD display and a switch to turn off/on the power, like below:

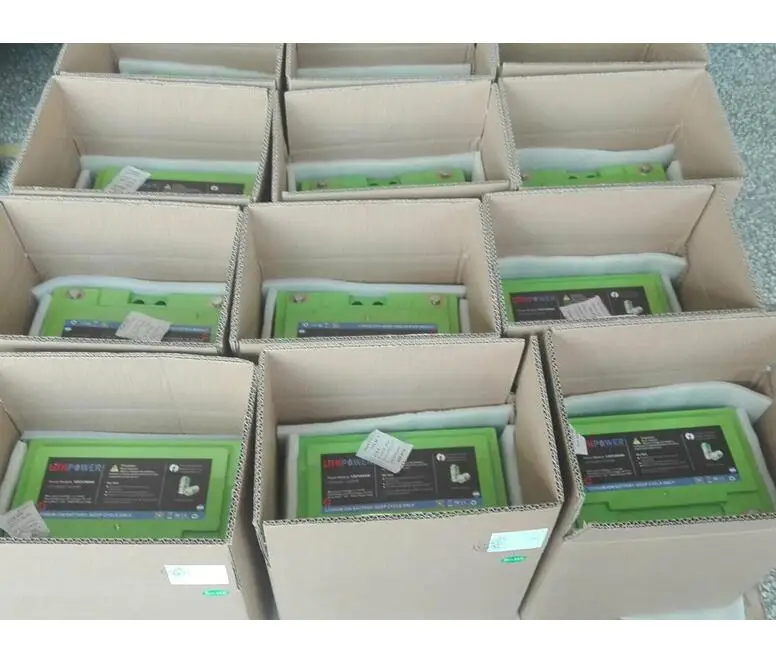

Product Packing
Product Parameters

LITHPOWER offers different 12V lifepo4 battery packs, 12V40AH lifepo4 with two carrying handles for portable solar power. 12V60AH and 12V120AH lifepo4 module with LED and SMbus, and 12V80AH and 12.8V100AH lifepo4 battery packs with hard case and built-in BMS.Our standard 12V40Ah, 60AH for fishing boat marine  and 120AH LiFePO4 battery module with internal BMS and LED to directly drop-in replacement on SLA battery for solar RV.

\t
Model
\t
LP-4S400E
\t
LP-4S600E
\t
LP-4S 120E
\t
Normal Voltage
\t
12.8V
\t
12.8V
\t
12.8V
\t
Normal Capacity
\t
40AH
\t
60AH
\t
120AH
\t
Charge-Cut-off Voltage
\t
14.6V
\t
14.6V
\t
14.6V
\t
Charge Current
\t
5-8A
\t
8-10A
\t
20-40A
\t
Constant Discharger
\t
30A
\t
40-60A
\t
80-100A
\t
Battery Housing
\t
Hard/Plastic case with
\t
Hard/Plastic case with
\t
Hard/Plastic case with
\t
LED
\t
N/A
\t
LED indicator/SMbus
\t
LED indicator/SMbus
\t
Lifecycle
\t
2000 cycles
\t
2000 cycles
\t
2000 cycles
\t
Weight
\t
4KG
\t
6KG
\t
15KG
\t
Size
\t
196*135*176mm
\t
131*197*182mm
\t
260*172*225mm
\t
Certification
\t
CE/MSDS and UN 38.3
\t
CE/MSDS and UN 38.3
\t
CE/MSDS and UN 38.3
