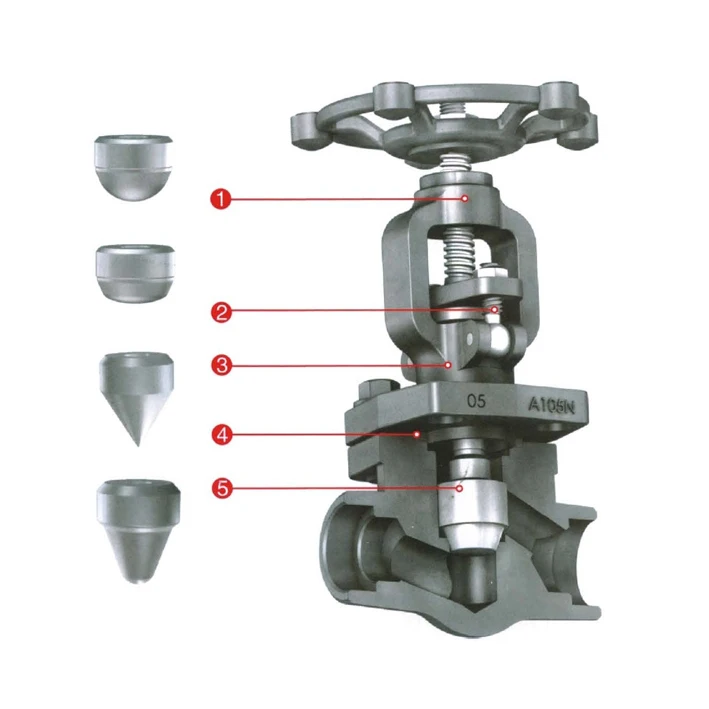

ANSI B 16.10 A105 Class 800 SW End Forged Globe Valve with price

Product Overview

Description

SPECIFICATIONS FOR FORGED VALVES
Pressure rating and size:	CL150 to CL1500
	DN8 to DN50
	1/4"~2"
Material:	Body : A105N,LF2,F11+HF,F304(L),F316(L),
	Disc  : 304,F304(L),F316(L),
	Stem : 410,304,304(L),316(L)
	Bonnet : A105N,LF2,F11+HF,F304(L),F316(L)
Operated type	Handwheel,Electronic
Structure:	Rising stem,os&y
Flange connection:	EN1092 PN16, PN25, PN40:ANSI B16.5:JB79
Butt-weld ends:	ASME B16.25:JB/T12224
Socke-weld ends:	ASME B16.11:JB/T1751
Screwed ends(NPT)	ANSI/ASME B1.20.1:JB/T7306
Medium:	W.O.G
Temperature:	-20 to 425°C
