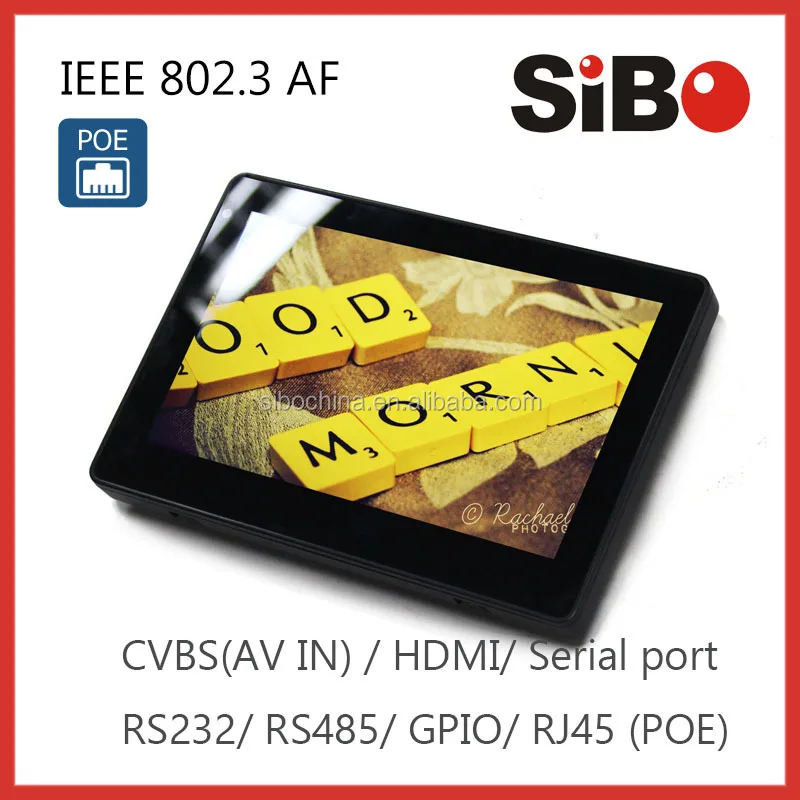

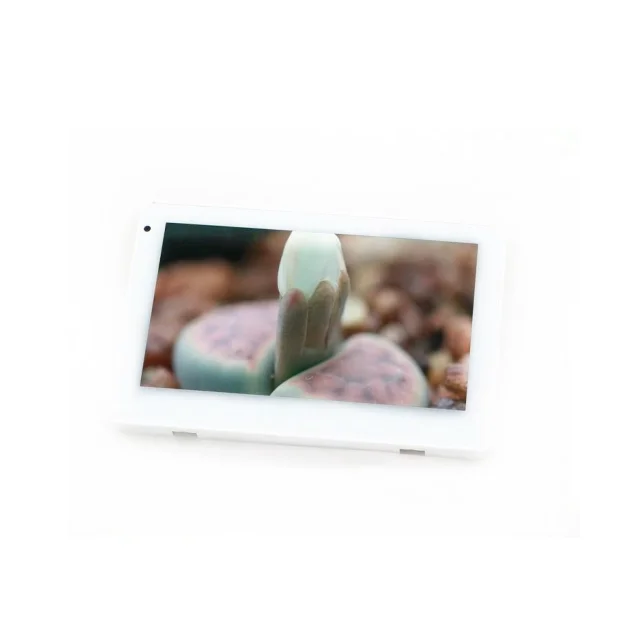

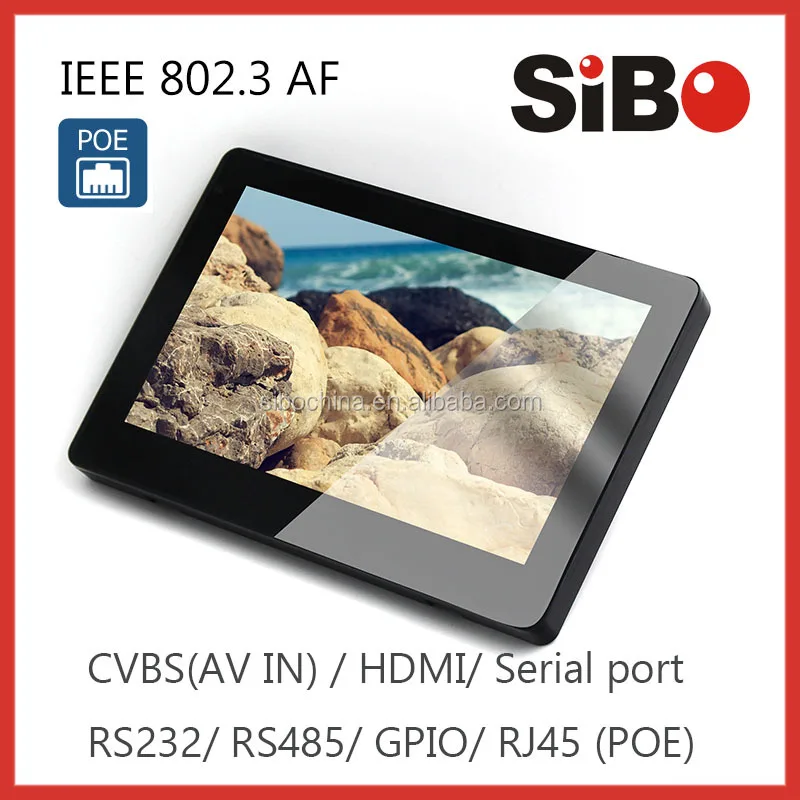

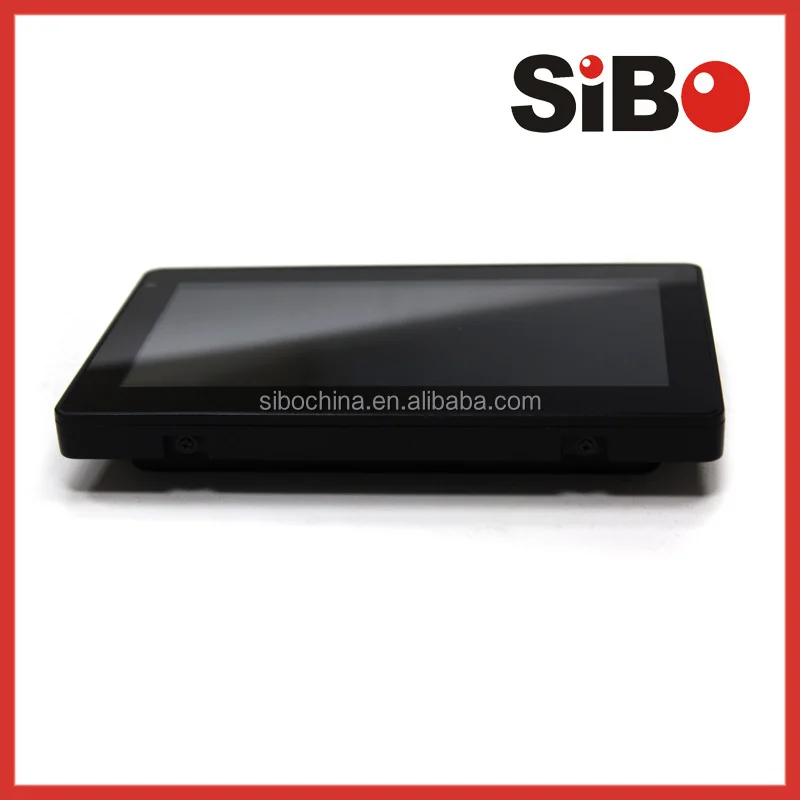

7 inch Recessed Wall Mounted Android Touch screen Tablet

Product Overview

Description

7 inch Recessed Wall Mounted Android Touch screen Tablet



Key Features:

Power over Ethernet

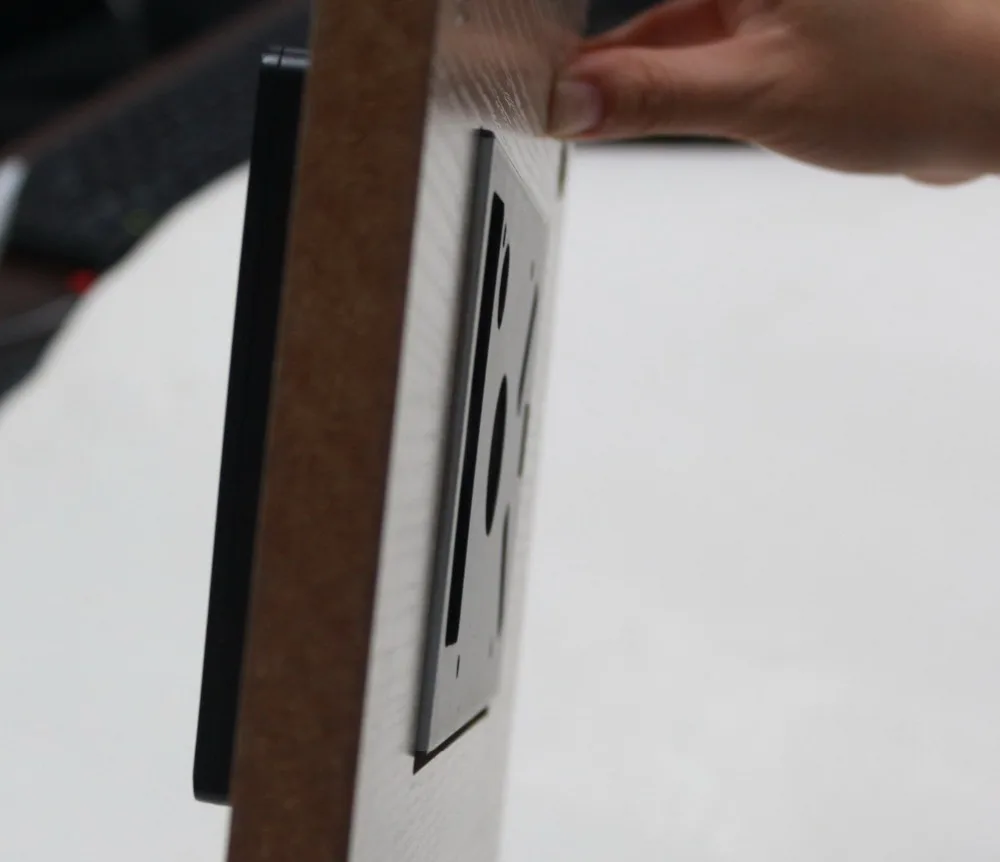

Inwall flush mount/Onwall surface mount/Desktop mount/Glass wall mount

GPIO input/output

Three color led light on the top

Temperature&humidity sensor

Compact design, without any buttons



Q896S Tablet Back Side:

1.HD OUT

2.Removed,only available in earlier version

3.DC IN (9-36V)

4.RJ45(support Power over Ethernet POE)

5.USB2.0((USB Host/USB Slave,can support two USB 2.0 port Max)

6.UART, IO , 3W AMP out

7.Slots for Mounting

8.Screw for Mounting





Power over Ethernet(PoE):

Using Rj45, one cablet could provide power and transmit data.

IEEE802.3af, 48V

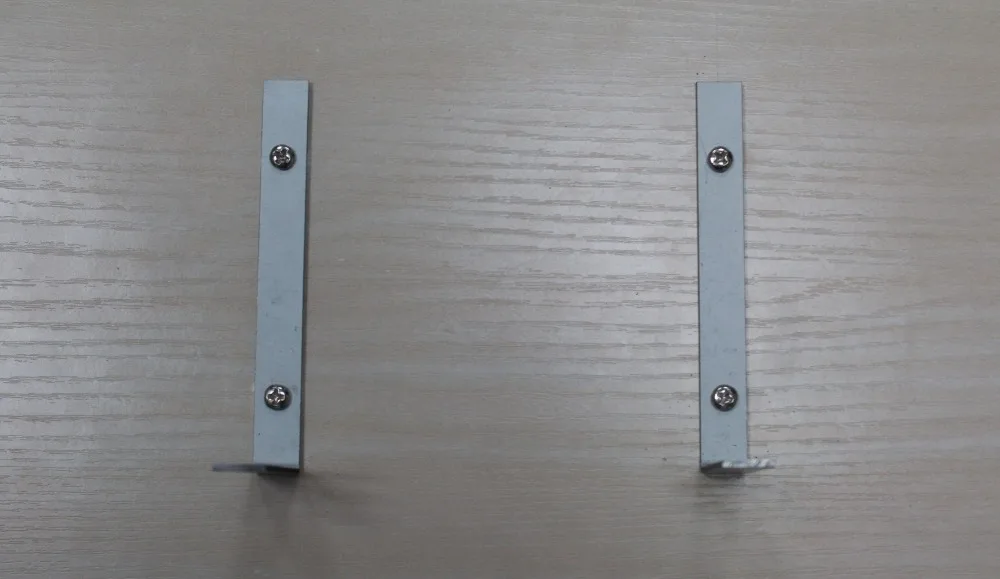

Onwall Metal Clips(L shape)

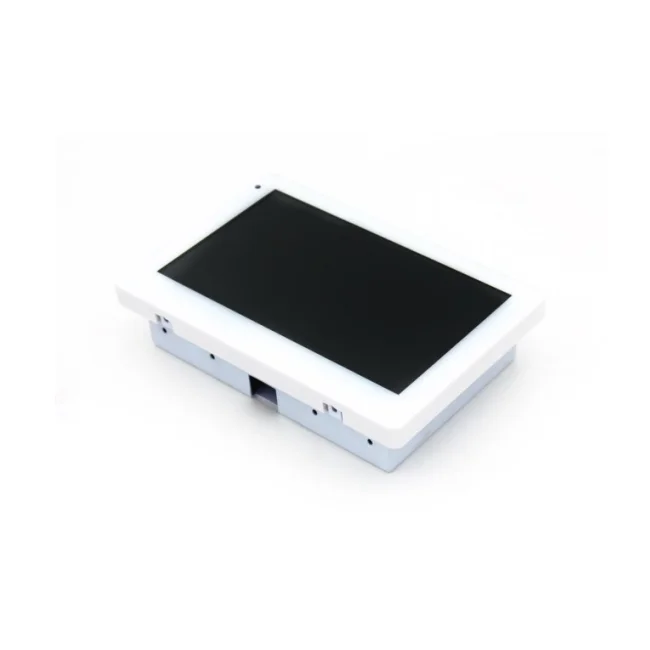

Inwall flush mount Bracket





Model Number		Q896S
Hardware Specs	Processor	Allwinner A83T processor
	CPU	Octa-Core ARM Cortex A7 CPU, 1.2Ghz
	Display	7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
	RAM	2GB
	Nand Flash	8GB
Software Feature	System	Google Android 4.4.4
	Video	H.264 2160p video decoding,  Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc. H.264 High Profile 1080p@30fps or 720@60fps encoding 3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
	Audio	Two Speakers 2 X 1 Watt  (Integrated 3W Amplifier For External Speakers)
	Language	Support multi-languages
Interfaces	Back	HD Out
		DC IN Power Terminal (9V-36V)
		Ethernet Interface(RJ45)
		USB Socket HOST Mode By Default, Optional: Jumper Cap For Device Mode
		Optional:RS232,RS485
Network	WIFI+BLUETOOTH	WIFI (802.11b/g/n), Bluetooth V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
	LAN Port	Ethernet RJ45
Power Supply	DC IN	DC 9V - 36V
Boot Up	Auto Boot	Auto Boot Up When Power Supplies





Package:

Devices are packed by air column bag, 10 devices in one carton box

Carton Size:28*27.8*31.5cm

Gross Carton Weight: 12 kg



Shipping:

Sample lead time: 5-7 working days

Order>100 pcs: 20-25 working days

Sample shipped by express (DHL, TNT, UPS)
