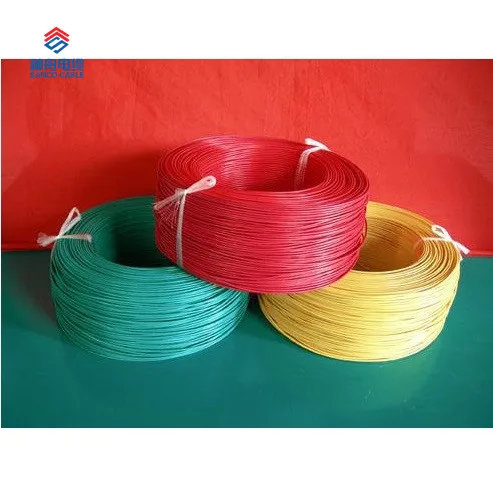

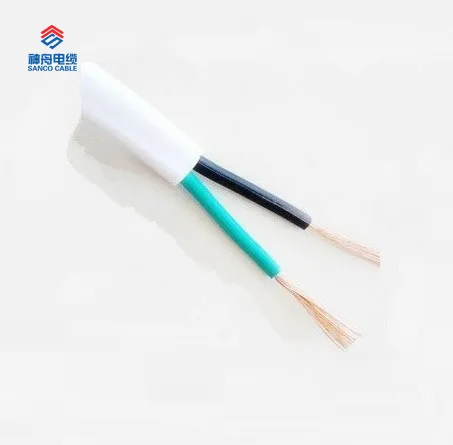

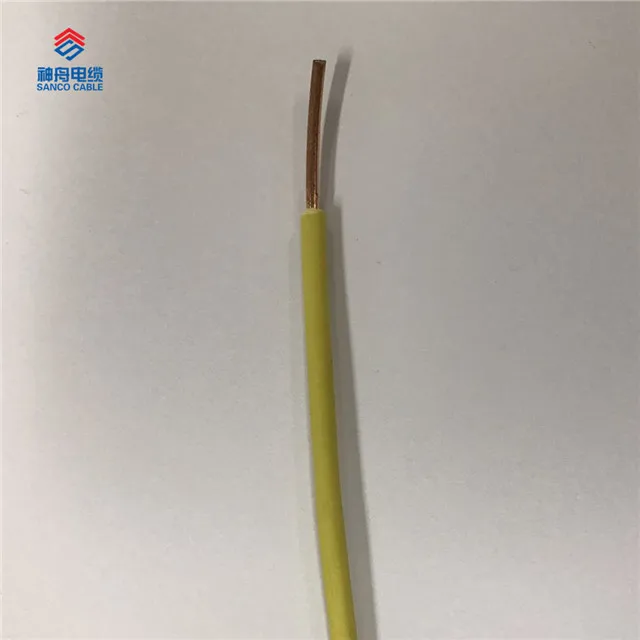

450/750V Pvc Insulated Copper Cable And Wires 12 Gauge Electrical Wire
- Category: >>>
- Supplier: Xiangtan Shenzhou Special Cable Co. Ltd.
Share on (60673269555):
Product Overview
Description
450/750V Pvc Insulated Copper Cable And Wires 12 Gauge Electrical Wire
Application
The cable is used as connection cable or wire of rated voltage 450/750V or lower for power plants ,fixed wiring and flexible connection for electrical appliances.
Type and name
| Type and name | ||
| Type | name | Executive standard |
| 60227IEC01(BV) | cable with hard single conductor,without sheath for general purpose | GB/T 5023-2008 GB/T5023.3-2008 |
| 60227IEC02(RV) | cable with soft single conductor,without sheath for general purpose | |
| 60227IEC05(BV) | cable with solid single conductor,without sheath at 70℃ of conductor temperature for interior wiring | |
| 60227IEC06(RV) | cable with soft single conductor ,without sheath at 70℃ of conductor temperature for interior wiring | |
| 60227IEC07(BV-90) | cable with solid single conductor ,without sheath at 90℃ of conductor temperature for interior wiring | |
| 60227IEC08(RV-90) | cable with soft single conductor ,without sheath at 90℃ of conductor temperature for interior wiring | |
| 60227IEC10(BVV) | light type with PVC sheath | GB/T 5023.4-2008 |
| 60227IEC52(RVV) | light type soft wire with PVC sheath | GB/T5023.5-2008 |
| common soft wire with PVC sheath | ||
| soft cable with oil-proof and shielding ,PVC sheath | GB/T5023.7-2008 | |
| 60227IEC75(RVVY) | soft cable with oil-proof and non-shielding ,PVC sheath | |
| BV | wire with copper core,PVC insulation | |
| BLV | wire with al core PVC sheath | |
| BVR | soft wire with cu core,PVC insulation | |
| BVV | round cable with al core,PVC insulation | |
| BLVV | round type cable with copper core,PVC insulation | JB/T8734.2-2016 |
| BVVB | flat type cable with cu core,PVC insulation | |
| BLVVB | flat type cable with al core,PVC insulation | |
| RVS | soft wire with cu core,PVC insulation,stranding and connection | JB/T8734.3-2016 |
| RVB | soft wire with PVC insulation,flat without sheath | |
| RVV | soft cable with PVC insulation and PVC sheath | |
| RVP | soft wire with cu core,PVC insulation and shielding | JB/T8734.5-2016 |
| RVP-90 | soft wire with cu core heating-resisting 90℃,PVC insulation and shielding | |
| RVVP | soft cable with cu core,PVC insulation and shielding,PVC sheath |
Note:1.we also produce the cables with ROHS standard,removal of lead,cadmium,mercury hexavalent chromium,
polybrominated biphenylpbdes substances may cause harm to human body health,to be no heavy metals,environmental friendly,non-toxic.
2.Prefix AZ-,ZB-,ZC- is added to the original type for indication of flame retardant cable,for example ZB-RVVP(Soft cable with cu core,
PVC insulation,PVC sheath,shielding and B-Class flame retardance.
3.Prefix NH- is added to the original type for for indication of fire resistant cable,for example NH-BV
(Wire with Cu core,PVC insulation and fire resistance),ABN-BVR(soft cable with cu core,PVC insulaiton,B-Class flame retardant and fire resistance)
Using features
1.Long-term Max. working temperature allowed by cable conductor
60227IEC(BV-90).................................................................90℃
60227IEC(RV-90).................................................................90℃
other type.............................................................................90℃
2.Enviroment temperature of laying should be not less than 0℃
Bending radius of cable D≤25mm ........................................≥4D
D>25mm ..............................................................................≥6D
(D is outer diameter of cable)
3.Rated voltage U0/U is 450/750V,300/300V,300/350V
Product structure figure:
Company Informations
Factory Shenzhou Special cable is a reputed manufacturer of military and consumer cables.Our main products: 1.High temperature wires cables,PTFE cable,FEP cable,Fluoroplastic wire 2.Rubber cable,welding cable,Mine cable,submersible cable 3.Hook up wire,electronic cable 4.Salor cable,control cable,power cable and so on | Team To meet customer's demand,we have: 1.Advanced R&D staff 2.Professional transport team 3.High-quality engineering installtion team 4.Professional talented technicians group 5.International sales department:6 person 6.Domestic sales:15 person 7.QC team |
Workshop 1.Production line:9 line 2.Month production capacity:90000m 3.Production workers:about 250 persons 3.Annual production capacity:RMB20million 4.Advanced electrical,chemical and mechanical properties test equipment
| Warehouse More than 600 square meters finished product warehouse.Xiangtan shenzhou special cable CO., ltd also engaged in 1.Low smoke zero halogen compounds 2.Xlpe compound 3.Soft PVC compound for cable insulation or sheath
|
Product test
We focus on quality, Over the past years, our company serously carries out its responsibility for product quality,guarantees repair,replacement and return for product that has quality problem during manufacture,and compensates for direct economic loss caused by quality problem.
Our Customer
In the past years,We participated in the Middle East Electricity Exhibition in Dubai,China-ASEAN Exposition,Power-Gen India....More than 20 years experience in cable production,hope that our profession and high quality service will bring you success and satisfied purchasing experience.
Why Choose us
Awards and Merits
We are a stable wire and cable supplier of China's aerospace and military,Customer satisfition is our primay aim.More details pls refer to below form:
No. | Item | Faulty Products | Our products |
1. | Length | Insufficient length | Sufficient |
2. | Wire drawing | thick at both ends and thin in the middle | Same from beginning to end |
3. | Conductor | copper clad aluminum ,Copper clad brass | 99.999% pure copper |
4. | Insulation | Recycled compound | Virgin compound |
If you want to know how to identify,welcome click here | |||
Our Service
1.Free technical consultation service before, during, and after sales,help customers to choose right product
2.Free sample and design services
3.Fee service for any special monitor and conduct detection during manufacture process
4.Provide 100% free insurance for internal transportation;
5.OEM & ODM is welcome
6.Small order can be supplied
Packing & Shipping

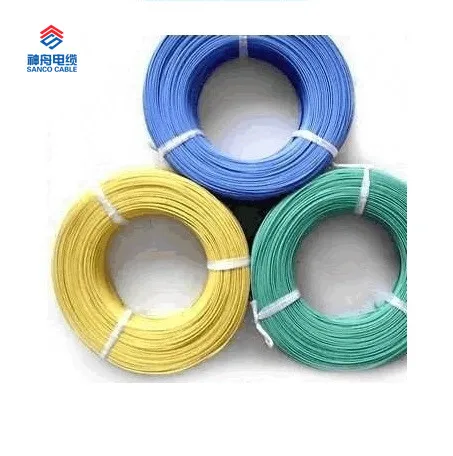

100m/coil with non-woven bag | 200m/Roll with film | 500m with wooden drum | 800m with wooden iron drum |
Packaging of wire
1• Plyethylene film winding in roll with non-woven bag or carton box for small diameter wires(100m/roll)
2• Packing in drum with plastic tray(300m/drum)
3• Wooden drums,fumigated wooden drums,Wooden iron drums for large diameter cable(500/drum)
• We can supply fumigation package and certificate.
• Shipping, train, express or upon clients' demands.
FAQ
1).Q:Are you a manufacturer or trading company?
A:We are a professional manufacturer,research,development and sales of military and consumer cable wire and cable compound.The company is located in Hunan Province,China
2).Q:What is your company's strengths?
A:We are a stable wire and cable supplier of China's aerospace and military,21 years experience,cable compounds produced by ourselves,This is how we keep superior quality and competitive offers for global valued customers.
3).Q:How do you guarantee your product quality?
A:Quality is our priority,we treat quality control as the first most important thing from the very beginning to the very end.In design,materials procurement,manufacturing semi-finished products testing,finished product inspection such as strick control to ensure product quality.
4).Q:What's the warranty of your products?
A:We provide 1 year complete warranty service,If the products have quality problems,We plant to replace or return unconditionally.
