Low Mast Forklift Electric with Counterbalanced Weight

Share on (60673298754):


Price:

Quantity:


Product Overview

Description


Product Description

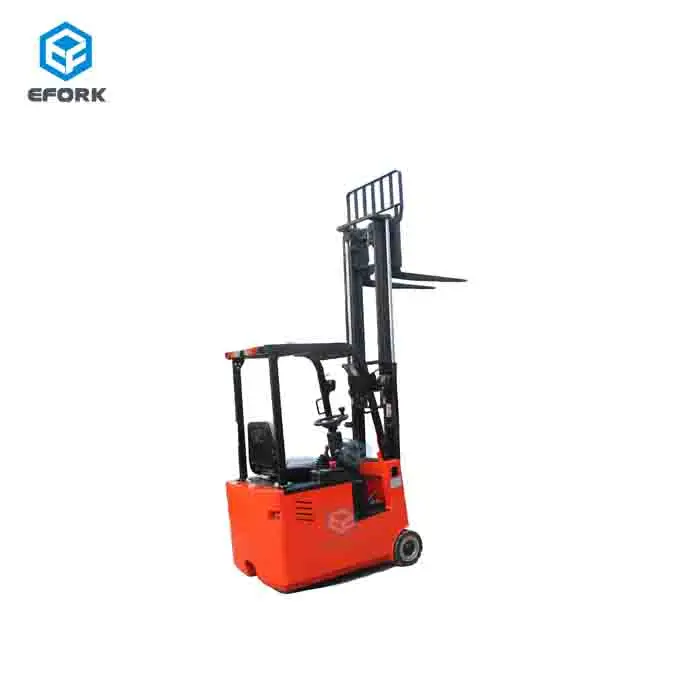

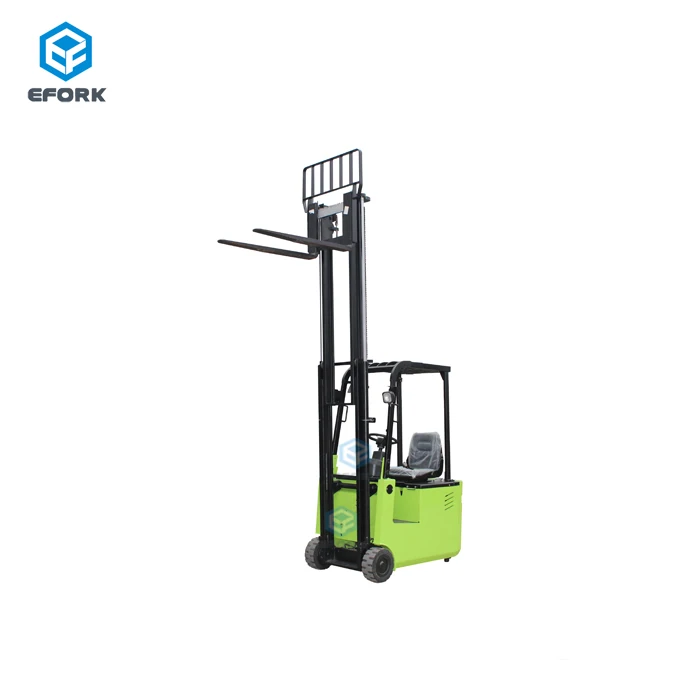

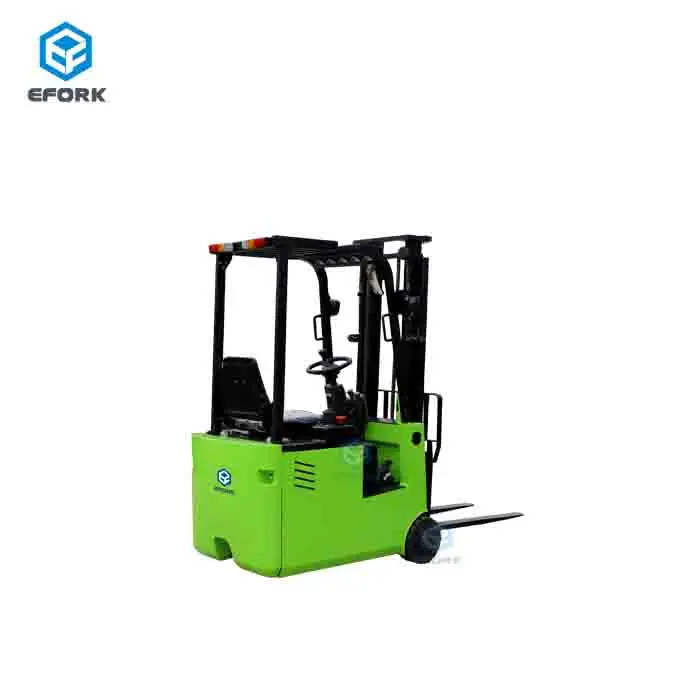

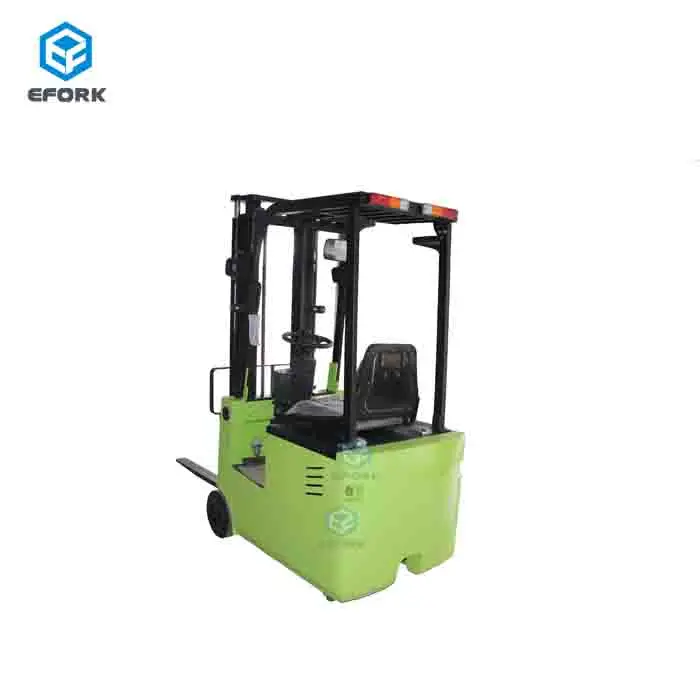

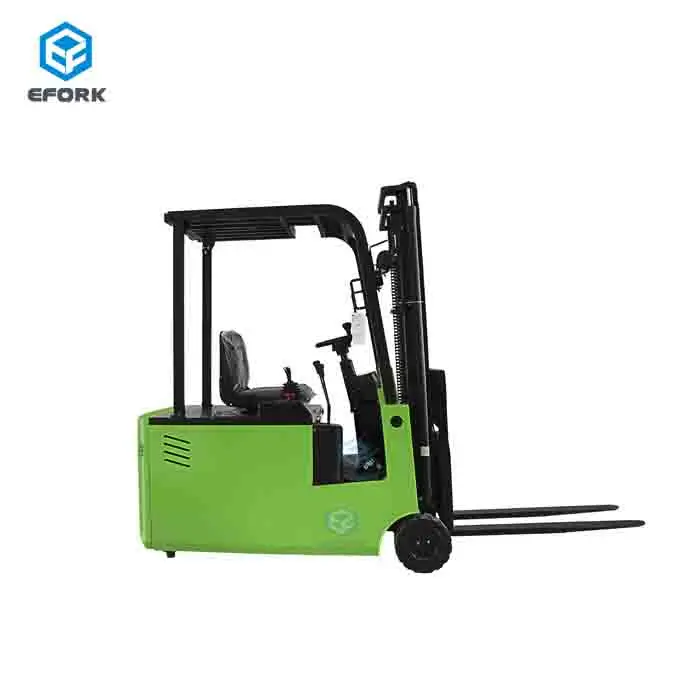

            Low Mast Forklift Electric with Counterbalanced Weight

Low Mast Forklift|Low Mast Forklift|Low Mast Forklift|Low Mast Forklift|Low Mast Forklift|Low Mast Forklift|Low Mast Forklift|Low Mast Forklift

1. With CURTIS electronic control,  multiple automatic protection system.

2. EPS swerve can reduce 20% of the energy consumption.

3. The minimum clearance t othe ground is 35 mm, so  the mast of the forklift is very low.



Operation type

Low Mast Forklift

Model No.

Unit

EFP10-30

Power type



Full-electric

Load Capacity

KG

1000

Max. lifting height

H(mm)

3000

Load center

C(mm)

500

Fork size

mm

1070*100*35

Free lifting height

mm

0

Fork spread

mm

210-566

Height--Mast Lowered

H1(mm)

2035

Maximum height when fork is lifting(Containing block shelves)

H2(mm)

3918

Mast tilt angle



2/4

The height of overhead guards

H3(mm)

1700

Turning radius

Wa(mm)

1315

Min. stacking aisle

mm

3095

Min ground clearance

mm

35

Max travel speed

Km/h

5.0/5.2

Drive wheel

mm

Ø230*75

Front wheel

mm

Ø305*127

Wheelbase, variable type

L1(mm)

1295(gantry vertical)

Battery capacity

V/Ah

24/300

Charger-Intelligent

V/Ah

24/30

Driving motor

Kw

2.5

Lifting motor

Kw

2.2

Walkie brake type

Pedal type/hydraulic

Parking brake type

 Electromagnetic braking



Packaging & Shipping

Packaging Details:

Film winded, then plywood crated according customers' requirements for Low Mast Forklift.
Delivery Detail:
 Whole machine by sea and spare parts by delivery or according to your demand,Shipped in 25 days after payment.

.JPG

.JPG

.JPG

.JPG



Company Information



About our company

1. Anhui Yufeng Equipment Co.,Ltd. is a high-tech enterprise professionally specialized in R&D, production, sales, service of electric storage and intelligent industrial system.

2. It is located in Feixi Huagang industrial park in Anhui, with advanced forklift manufactory technology, processing equipment and perfect product testing center. Our company is the China Automobile Industry Association member unit.

3. We won the honorary title such as “Outstanding Enterprise of Quality Management, Credibility and Service AAA level”, "National Enterprise of Good Creditworthiness", "National Quality Management Advanced Enterprise" and "Anhui Famous Brand" etc.

4. The company has already passed the safety production standardization and the quality authentication of ISO9001 and European Union CE certification, fit-out national patent certificate.

5. Our main storage equipment are electric truck, stacking car, reach forklift trucks, towing vehicle, order picker, AGV pilotless truck, counter balanced weight forklift and so on.They are widely used in various places of modern logistics.

.jpg



.JPG

.jpg



FAQ



1. How long it will take to deliver the products after I pay for it?

   Above delivery time is 26 days.

2. What is the payment term?

 Our Payment: T/T, L/C, etc.

3. How long is the warranty period any forklift, pallet truck, stacker, tow tractor, order picker etc?

  Our equipment quality warranty is 1 year or 1000 hours which comes first.

 4. What kinds of engine do you have and any gurantee?

  Electric motor, CURTIS controller. Absolutely high quality.

5. How many colors of forklift you can supply?

  Green, Orange, Yellow, Red. Or As Per Your Request.

6,What is the forklift standard configuration and spare parts?

 Wide vision mast,standard fork,standard seatdirection switch,backrest,reversing lights,reversing buzzer,back-up mirror,light switch,light armor rack,klaxon,two pieces of multi-way valve,electric control,rear combination lamp,overhead guard,rain cover,urable tyre,lasso-parking brake,lifting and tilt joystick,rate-limiting valve of lifting,draebar pin,lighting,adjustable steering wheel,lilt line self-lock valve,full hydraulic power steering,handle,tool box,combination instrument,hydraulic return filter,hydraulic oil suction filter,hydraulic vernier,switch,brake,turning indicator.
