blister plastic cutting machine hydraulic cutting machine made in shenzhen

Product Overview

Description



Brief introduction:

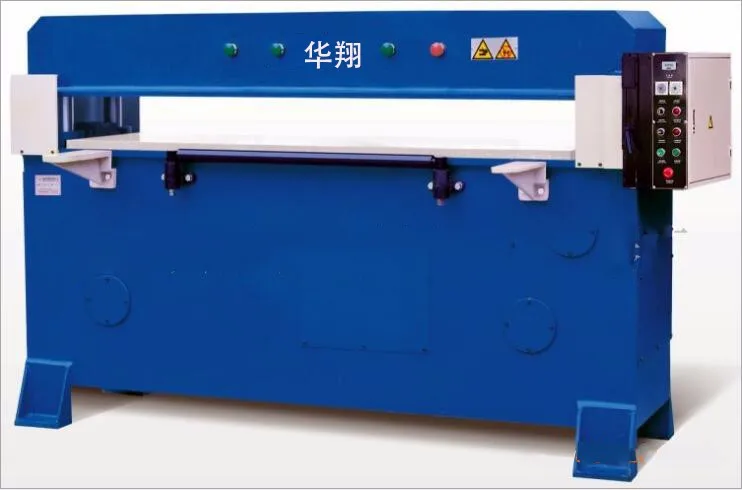

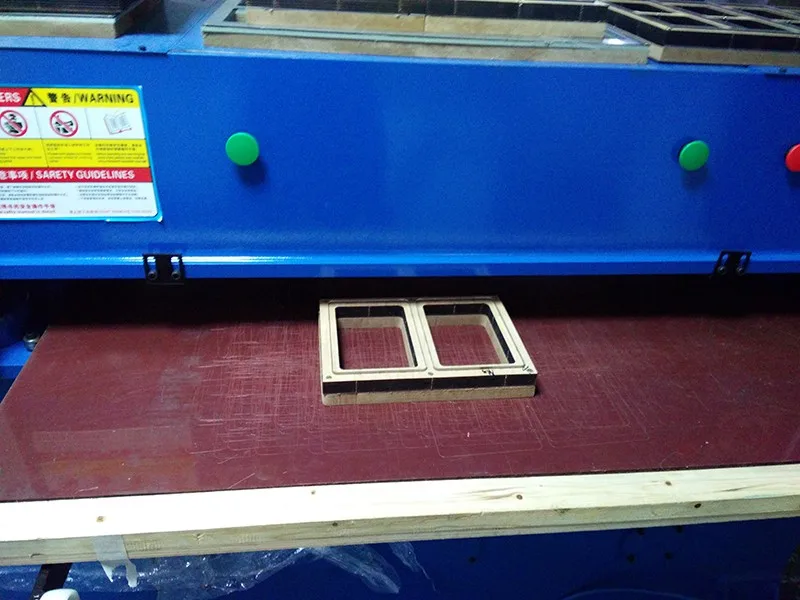

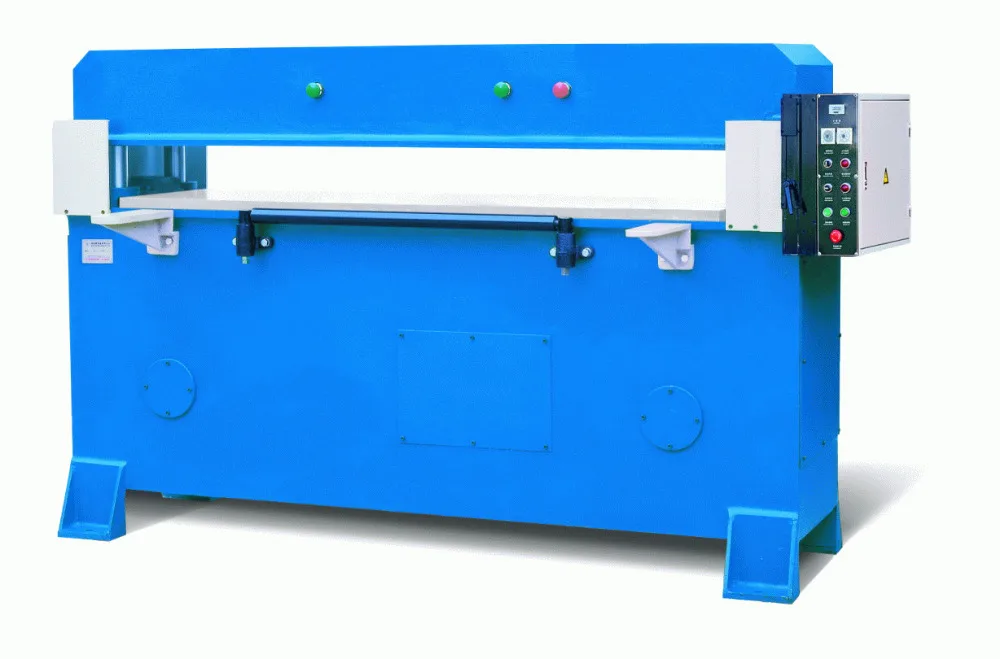

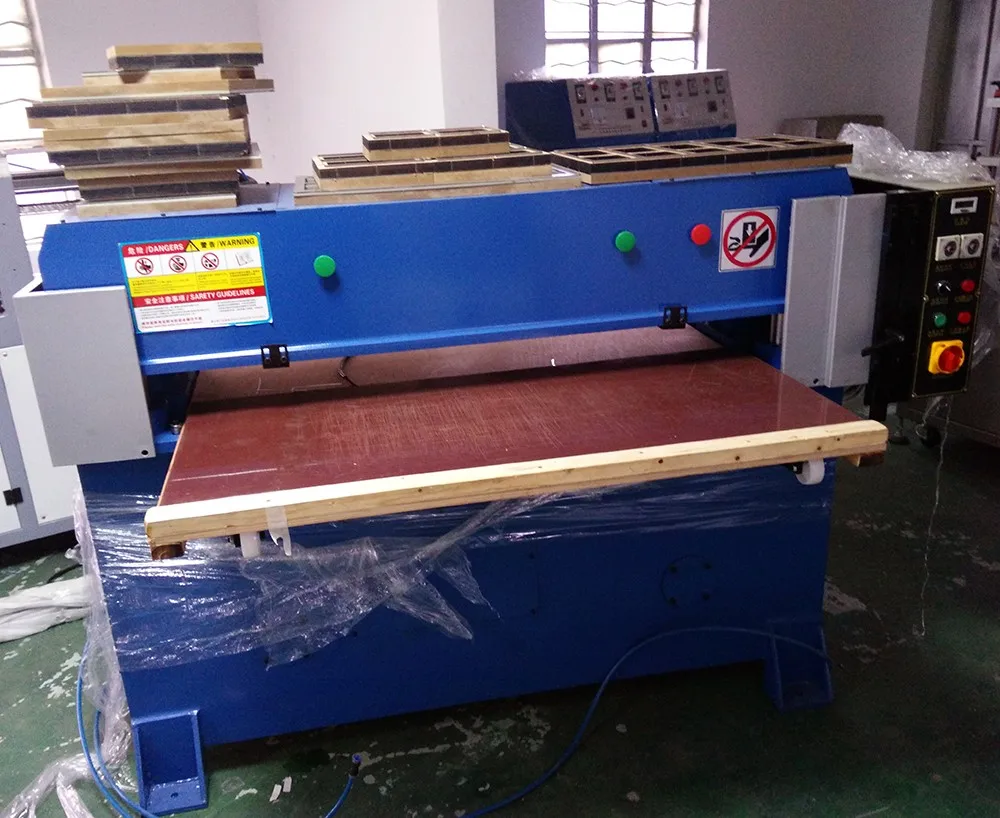

Precise four-column hydraulic cutting machine, can effectively ensure plane of the mechanical precision of the cutting surface any position, keep the stable cutting power output. Intermittent single stroke, both hands button to start the operation, the emergency stop device, to ensure safe operation. Die cutter set is simple, can quickly adjust the different height of stroke. Trimming device, cutting force can be quickly to acquire the best cutting pressure, and to protect the knife mould and prolong the service life of the cutting boar.



Application:

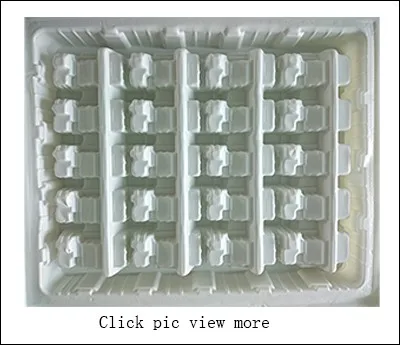

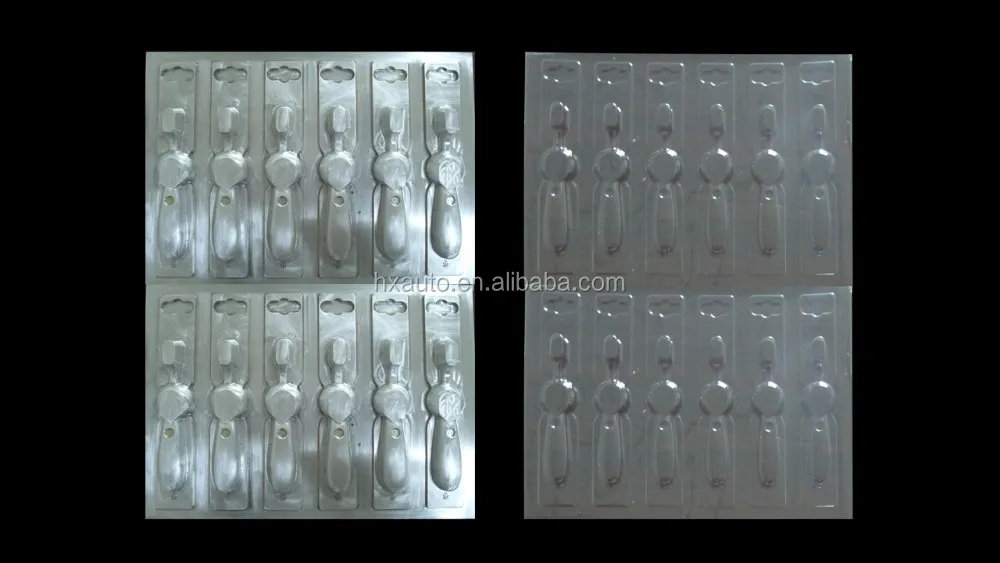

It is suitable for the single layer or layers of leather, plastic, artificial leather, textiles and other materials forming blanking, as long as the match to be on the molding box knife, can get various shapes of products, such as soles, shoes, handbags, gloves, toys, clothing, blister, plastic and craft products.



Features:



1. Double oil cylinder and precise four-column automatic balance connecting rod structure, which can guarantee the same cutting depth of each cutting position.



2. The cutting plate press contact automatic slow cutting when the cutting.



3. The specially set structure to fit the cutting knife and cutting height, contributing to simple and accurate adjustment of stroke.



4. The central automatic lubrication system can guarantee the machine precision and enhance machine durability



Parameters:



Model	HX-30T
Power supply	AC380 50HZ
Power	3000W
Punching force	30T
Punching size	610*1220mm
Stroke	55-245mm
Machine size	1950*1320*1260mm
Net weight	1700KG
