High Sensitive Amplified Ceramic UHF RFID Reader Antenna
- Category: >>>
- Supplier: Zhejiang Jiakang Electronics Co. Ltd.
Share on (60673499680):
Product Overview
Description
You are here:Home >>UHF RFID Antennas&Tags >>UHF RFID tags>>
High Sensitive Amplified Ceramic UHF RFID Reader Antenna
Electrical Characteristics
Antenna | ||
1 | Antenna model | 3540(35mm*35mm4mm) |
2 | Frequency Range | 868MHz±2MHz |
3 | V.S.W.R | <2.0 |
4 | Band With@10dB | ≥10MHz |
5 | Gain | 1.5dBi @40mm*40mm ground plane |
6 | Impedance | 50Ω |
7 | Polarization | RHCP |
Material
No | Part Name | SPEC |
1 | Antenna | Dielectric Ceramics |
2 | PCB | FR4 |
4 | RF Cable | RF1.13 |
L=105mm | ||
5 | RF Connector | IPEX Ⅰ |
Environment Condition
1 | Working Temp | -40℃~+85℃, 10%~95% RH |
2 | Storage Temp | -55℃~+100℃, 10%~95% RH |
3 | Vibration | Sine sweep @1.5mmAM 10~55Hz each Axis |

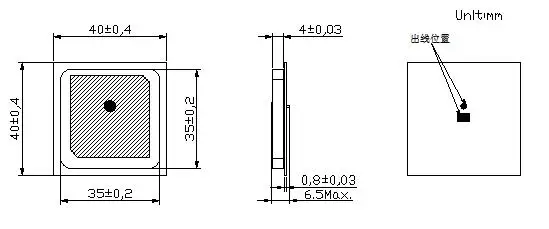

| Dimensions |
 |
 |

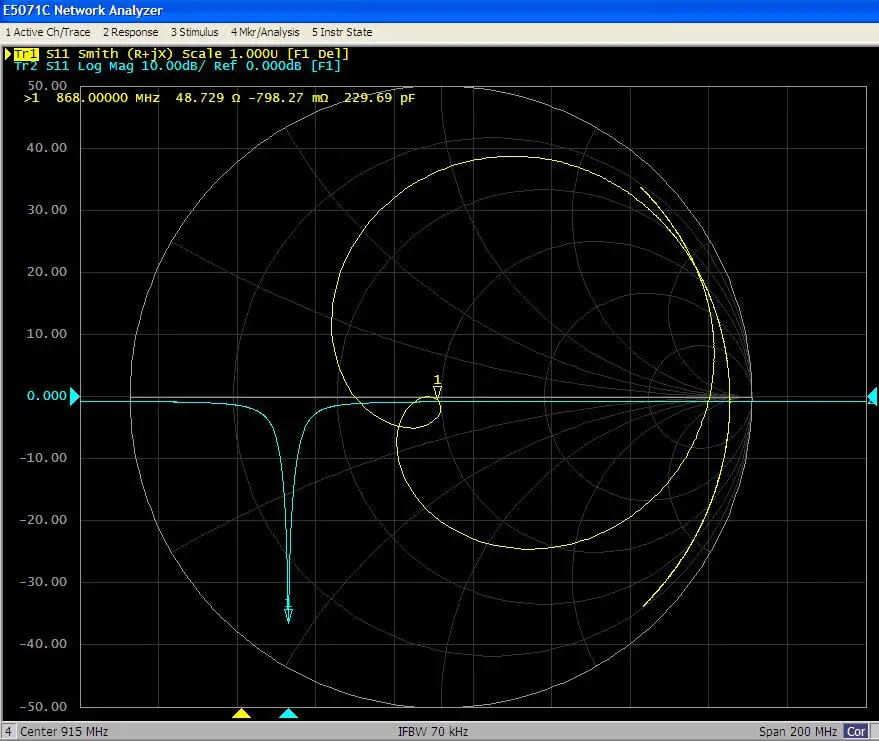

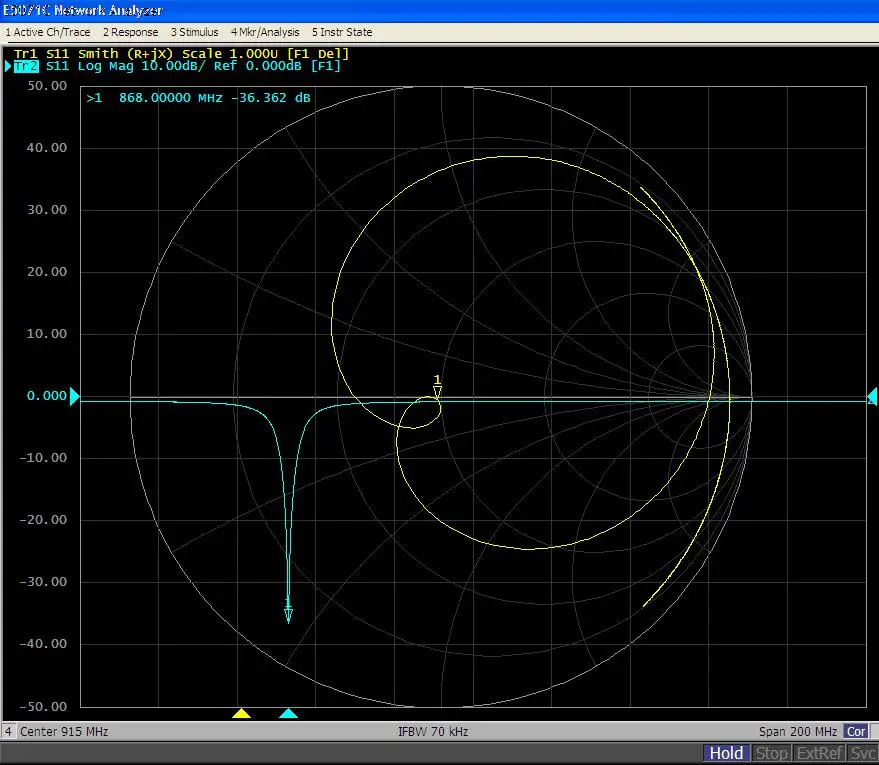

Testing Curve |
  |
| Brief Introduction of JIAKANG Microwave Products |
Our microwave dielectric products mainly include dielectric patch antennas, filters, duplexers and GPS modules, which are widely used for positioning, satelliate broadcasting receiver system,RFID,ETC and so on. We are dedicated in the development of core technologies and have achieved the leading position in the ceramic powder formula,manufacturing processes and test technologies. Some products and processes are authorized national patents.Customized products are available.
Memo: Above specification subject to change without further notice.Please contact us for more details. |
FAQ
Q1:Are you a manufacturer or a trading company?
A1: We have been specialized in the piezo ceramic related products manufacturing for 31 years.
Q2:Where is your factory located?
A2: Factory address: No.1188,Jiahang Road,Jiaxing City , Zhejiang Province,China.
Q3: What's your company MOQ?
A3: Small quantity also available.
Q4: What's the payment way?
A4: T/T, western union, credit card etc.
Q5: Can you send a sample for us to test ?
A5: Yes, most samples are available for free. For samples whose cost is very high, the sample fee will return back in future order.
Q6:What is your shipping way?
A6: We support DHL, UPS, FedEx, EMS.
