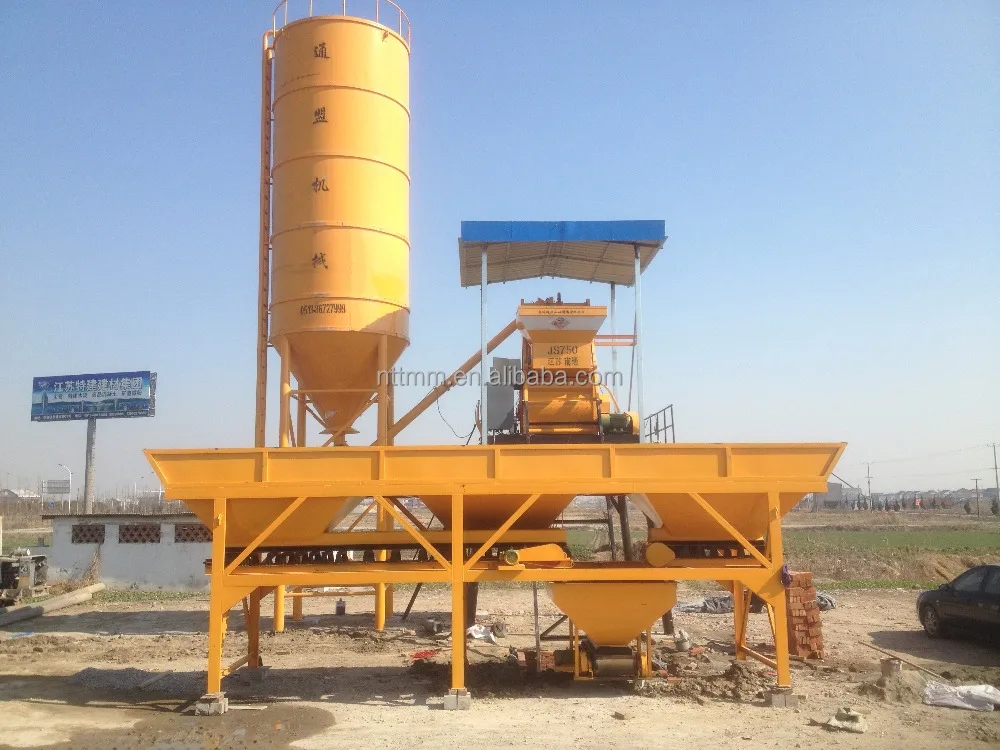

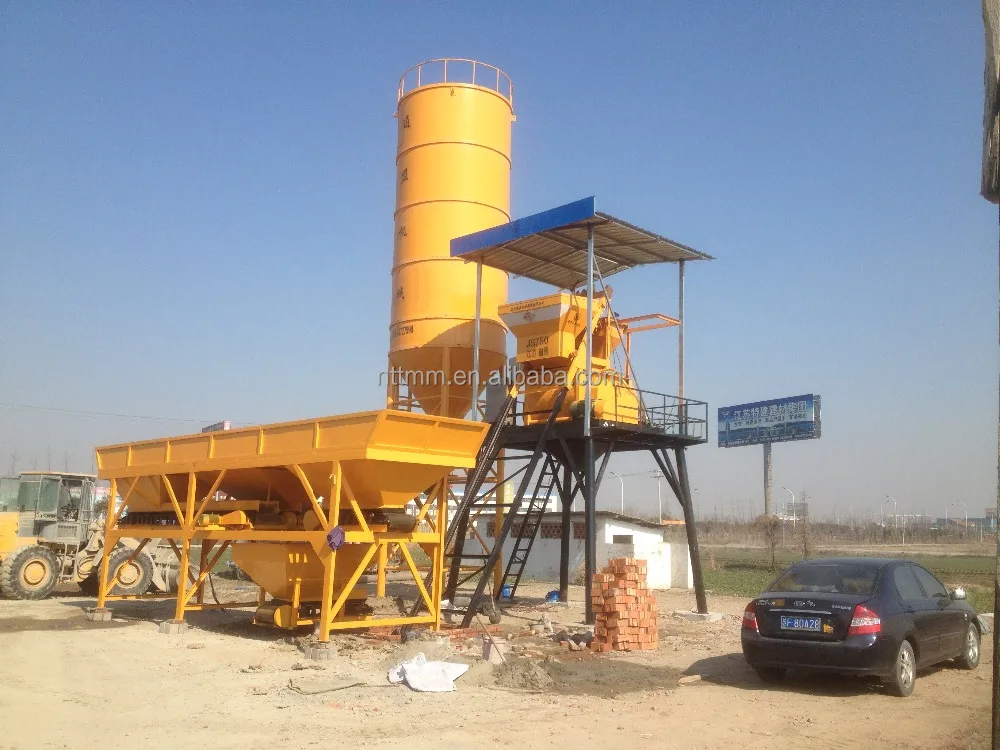

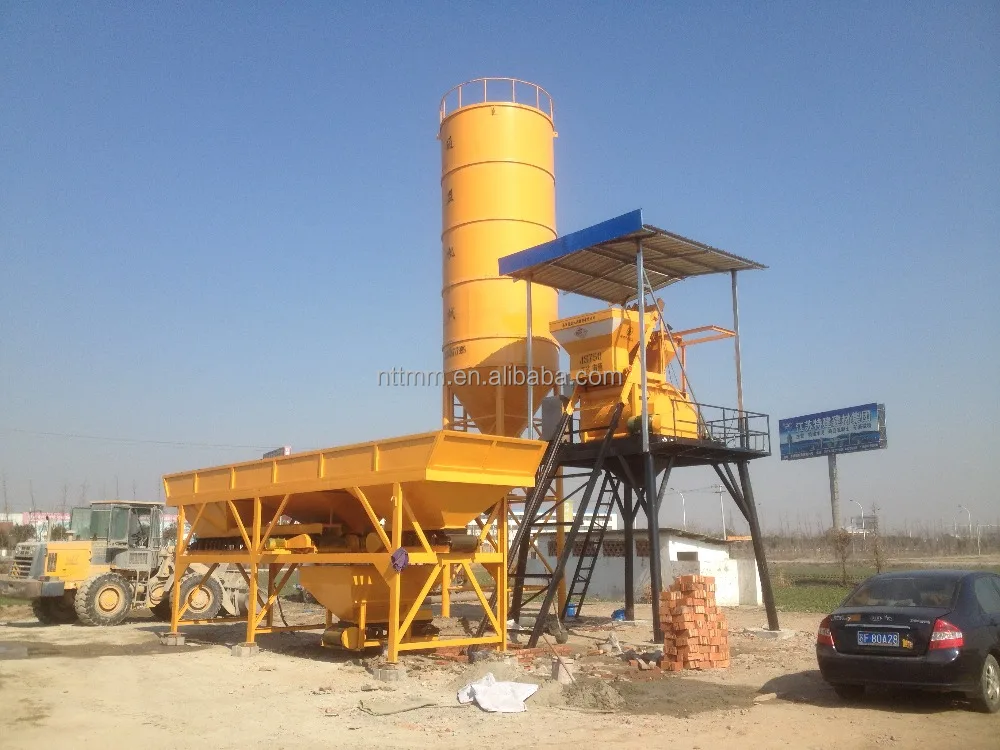

Precast Concrete Batching Plant HZS35

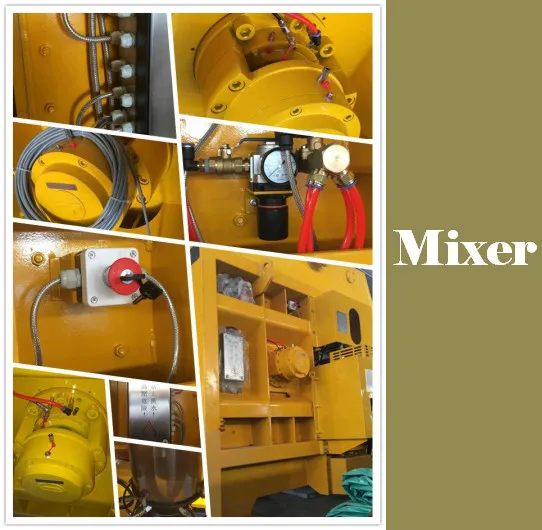

1. Horizontal twinshaft compulsory mixer has the strong mixing ability with uniform mixing and hig production output. The admixtures are widely mixed by the shafts.
2. The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts
3. Mixing paddles, arms and blades are made of special high chromium and high manganese alloy
materials. The wear resistance of the mixing paddles saves time and cost to replace. at the same time, improves the machines durability and reliability.
4. The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity;
5. Decelerating system uses high-speed, synchronized, and closed planetary decelerators.
6. The opening of discharge gate can be adjusted by hydraulic system as per specific requirements.
Main Technical Parameters of Precast Concrete Batching Plant HZS35
Model | HZS35 |
Rated Productivity | 35m3/h |
Main Mixer | JS750 |
Power of Main Mixer | 30KW |
Max. Aggregate Diameter | 80mm |
Delivery Capacity | 0.75m3 |
Feeding Mode | Lift Hopper |

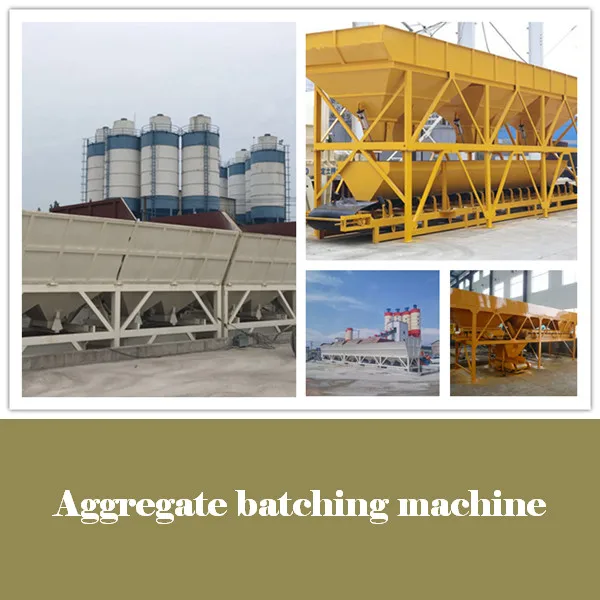

Batching Unit | PLD1200 |
Measuring Scope & Accuracy of Aggregate | 2200Kg±2% |
Measuring Scope & Accuracy of Cement | 450Kg±1% |
Measuring Scope & Accuracy of Water (by flow meter) | 200Kg±1% |
Additive Weighing Precision | 30Kg±1% |
Discharging Height | 3.8 m |
Outline Dimension(at work) (L X W X H) | 19.8m*8.2m*8.5m |
General Power | 60.0KW |
Total Weight | 15000Kg |
Control Mode | Full Automatic,Semi-automatic batching, manual operation |
Main technical parameters of Precast Concrete Batching Plant HZS35
Modular Concrete Batching Plant main technical parameters | |||||||
Models | HZS50(60) | HZS75(90) | HZS100(120) | HZS150(180) | HZS200(240) | ||
Production (m³/hr) | 50(60) | 75(90) | 100(120) | 150(180) | 200(240) | ||
| Models | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 | |
| Mixing Power (kw) | 2×22 | 2×30 | 2×37 | 2×55 | 2×75 | |
Mixer | Output (m³) | 1 | 1.5 | 2 | 3 | 4 | |
| Aggregate Size (mm) | ≤60 | ≤80 | ≤120 | ≤150 | ≤150 | |
| Hopper Capability(m³) | 13 | 15 | 18 | 25 | 30 | |
Hopper | Hopper Quantity | 3-4 | 3-4 | 3-4 | 3-4 | 3-4 | |
Mixing Cycle (s) | 72(60) | 72(60) | 72(60) | 72(60) | 72(60) | ||

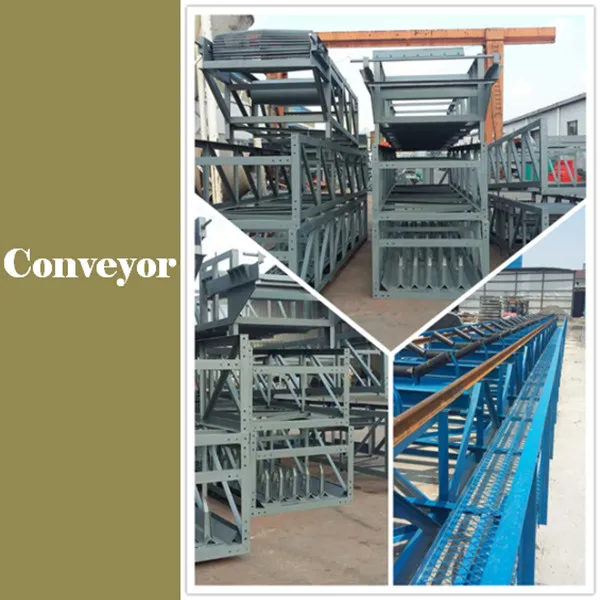

Conveyor Capability (t/hr) | 200 | 300 | 400 | 600 | 800 | ||
Scope and Precision of Weighing | Aggregate (kg) | 2500±2% | 3500±2% | 4500±2% | 7000±2% | 2×4500±2% | |
Cement (kg) | 600±1% | 900±1% | 1200±1% | 1800±1% | 2400±1% | ||
Fly ash (kg) | 200±1% | 300±1% | 400±1% | 600±1% | 800±1% | ||
Water (kg) | 300±1% | 500±1% | 600±1% | 800±1% | 1000±1% | ||
Additive(kg) | 20±1% | 20±1% | 30±1% | 30±1% | 100±1% | ||
Total Power (kw) (without screw conveyor) | ≈92 | ≈108 | ≈118 | ≈172 | ≈230 | ||
Discharge Height (m) | ≥3.9 | ≥3.9 | ≥3.9 | ≥3.9 | ≥3.9 | ||
