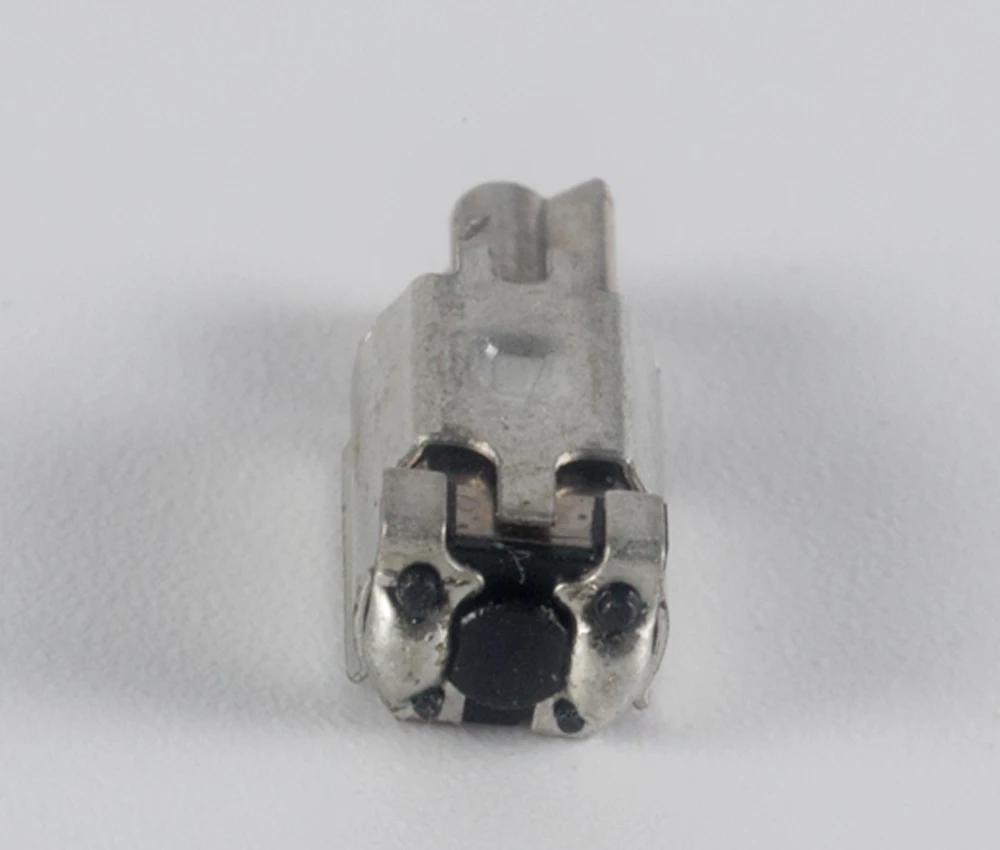

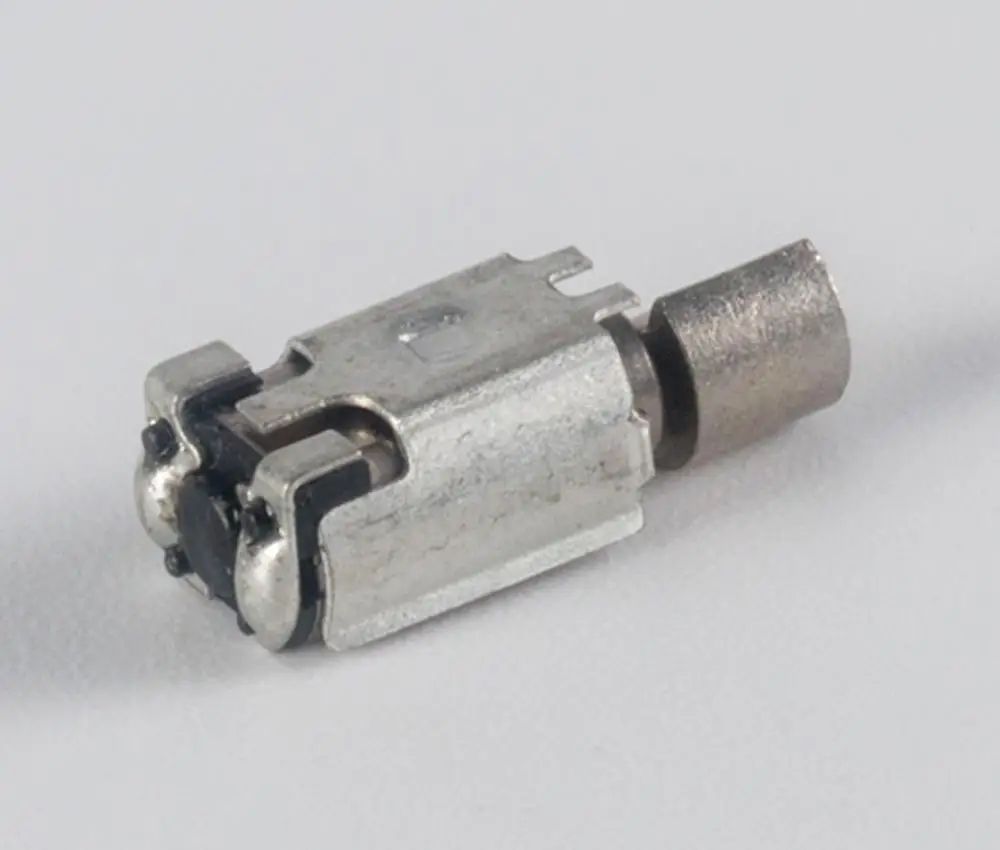

High Quality Super Small SMD Vibration Motors for watch and bracelet
Technical Data:
.Super small size
.High stability
.High Temperature Resistance
.Quick and easy to assemble
Motor model
motor size (mm)
Rated voltage
Rated speed
Rated current
Stall current
Starting voltage
Operating voltage
Height of motor body
Width of motor body
Overall length
V DC
rpm
mA
mA
V DC
V DC
IND-SMD-001
3.4
4.4
11.0 Max
2.7
14,000±2,500
≤85mA
≤90mA
≤2.3
2.3-3.2

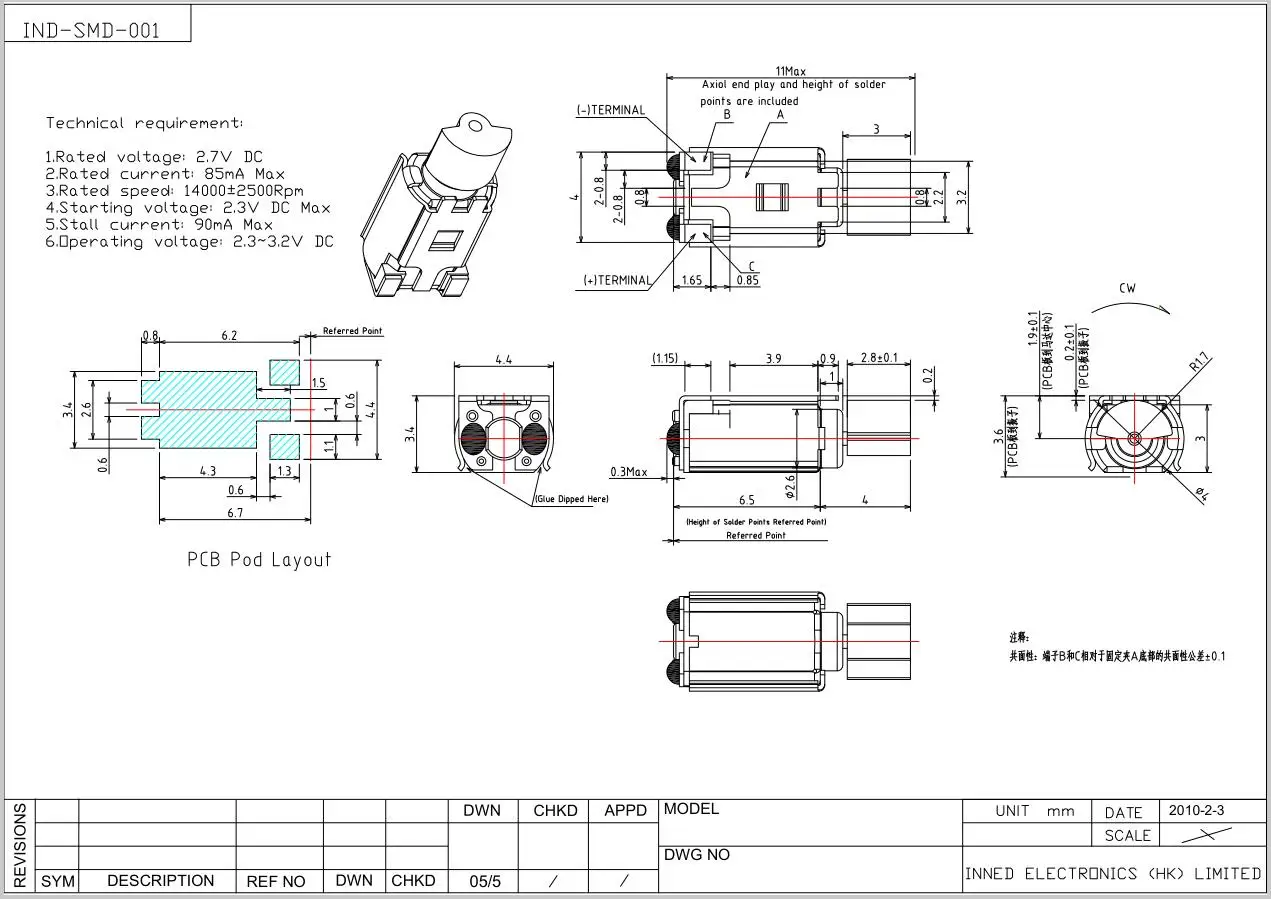

Product Drawing:
This vibration motor have the shortest body lengths, with SMD type reflow solderable contacts,widely used in assembly in the working environments as high as 250 ºC.
You could find the right haptic solution with our below various vibrators: 7-10mm diameter coin type brushed vibration motors. 3-4mm height reflow solderable SMD type vibration motors 4-7mm diameter cylinder type brushed vibration motors. 5-9 diameter coin type brushless vibration motors.These BLDC Motors have much longer lifetime than the normal brush type motors. At the test mode of 0.5s On 0.5s Off as one cycle, total lifetime can be 1 million cycles. 8-9 diameter coin type linear vibration motors. Vibrating in direction Z, vibration force at its peak acceleration value around 1.8G, much stronger than other normal brush type coin motors at 0.6-0.8G usually.
Company Information
Manufacturing all kinds of micro motor for over ten years.We have been making the best efforts tobecome one of the leading micro motor manufacturers in this industry. By investing ten percent of our annual revenue into R&D as well as advanced facilities, we continue to grow stably.Our mission is to produce cost effective products with good quality to satisfy ourcustomers worldwide. This is the target we aim at now and forever......
1) Competitive Advantages
Experienced Staff: average 7-year experience in R&D
Competitive Price
High Product Performance: Low noise, High efficiency, Long lifespan
Small Orders Accepted
Short Lead Time 2-3 Weeks
International Approvals: ROHS/ISO9001:2015, ISO14001:2015, OHSAS18001:2011
2) Production workshop (Part)
Worshop site 1 Worshop site 2
3) Testing equipments
4) Packing & Shipping
Packing Details
1000pcs per tray, 5 trays per carton, 5000 pcs per carton Carton size: 34cm*34cm*21cm Gross weight: 6.5kgs/ carton Inner box bubble, then carton. And then reinforced with plastic pallet for outer packing. Or according to client's requirement.
Shipping Details
Samples Can be shipped within 10 days.
Mass production order leading time according to the actual situation.
