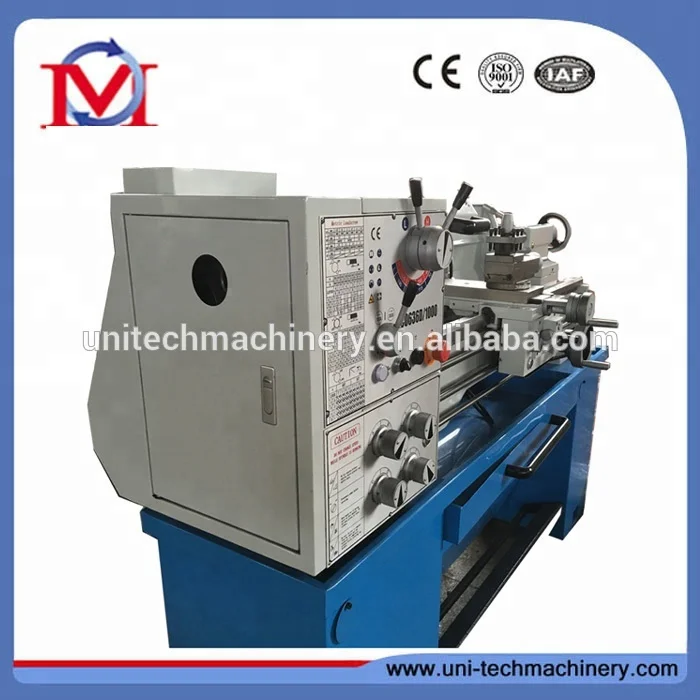

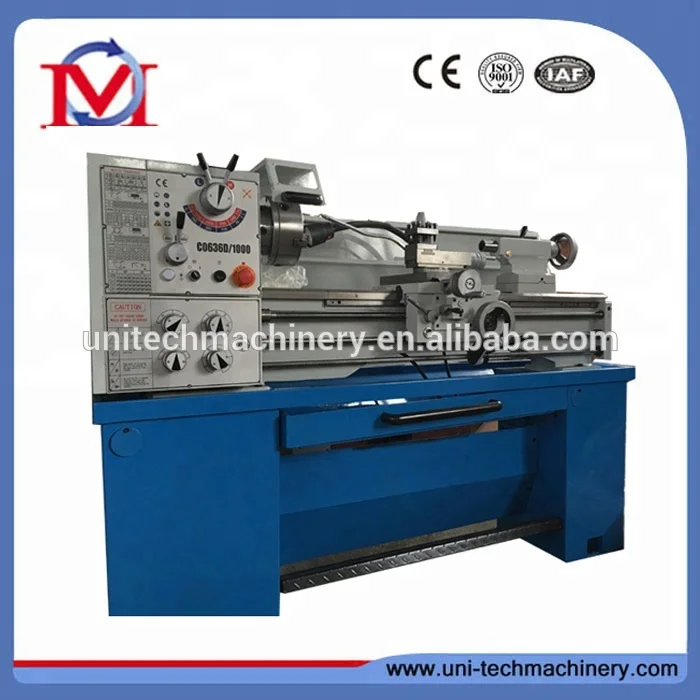

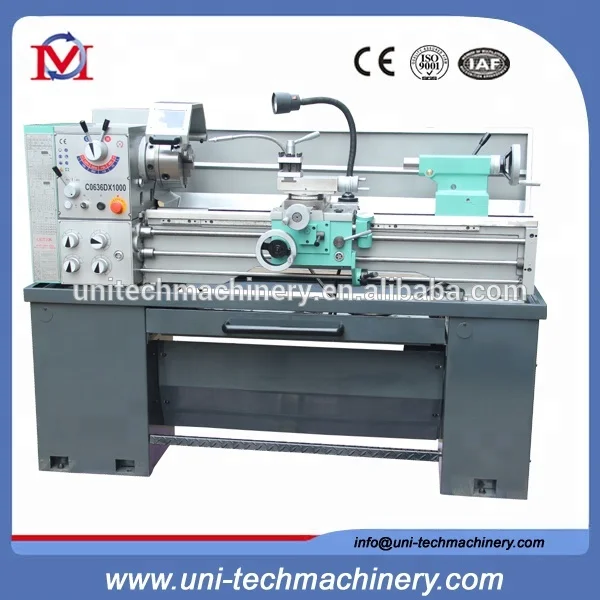

Mini Metal Lathe Machine with Variable Speed
Product Description
Mini metal lathe machine Features
1.Precision ground and supersonic frequency hardened bed ways
2.The spindle is supported with precision roller bearings
3.Headstock gears are made of high quality steel, ground and hardened
4.Spindle speed range 70-2000RPM
5.Sealed and easy operating feed box has various feeds and thread cutting functions
6. Coolant system
7.Apron-mounted spindle ON/OFF lever
8.Removable chip tray
| ITEMS | C0636D |
| Max. swing over bed | 360mm |
| Max. swing in gap | 19-3/4"(502mm) |
| Max. swing over slide | 8-13/16"(224mm) |
| Bed width | 7"(180mm) |
| spindle bore | 40''(1000mm) |
| Spindle nose | M.T5 |
| Spindle bore | 52mm |
| Taper of bore in spindle Morse | No.5 |
| Spindle speed steps | 8 |
| Spindle speed scope | 70~2000r/min |
| Inch thread | 4~56T.P.I/32 |
| Metric thread | 0.4~7M.P/32 |
| Diametral thread | 8~120D.P./33 |
| Module thread | 0.2~3.5MP/27 |
| Longitudinal feed range | 0.052~0.392MM/rev |
| Cross feed range | 0.014-0.38mm/rev |
| Max. travel of tailstock quill | 100mm |
| Taper hole of tailstock | MT4 |
| Electric motor | 2HP(1.5KW)110v or 220v(1ph)380v(3ph) |
| Net weight / Gross weight(1000mm) | 40/6455kg |
1.STANDARDACCESSORIES
---3Jaw chuck,4-jawchuck,
---Face plate,steadyrest
---Followingrest
---Coolant, worklight
---Wrenches.
2.OPTIONALACCESSORIES
---DRO
---Quick change tool post
---Chuck cover

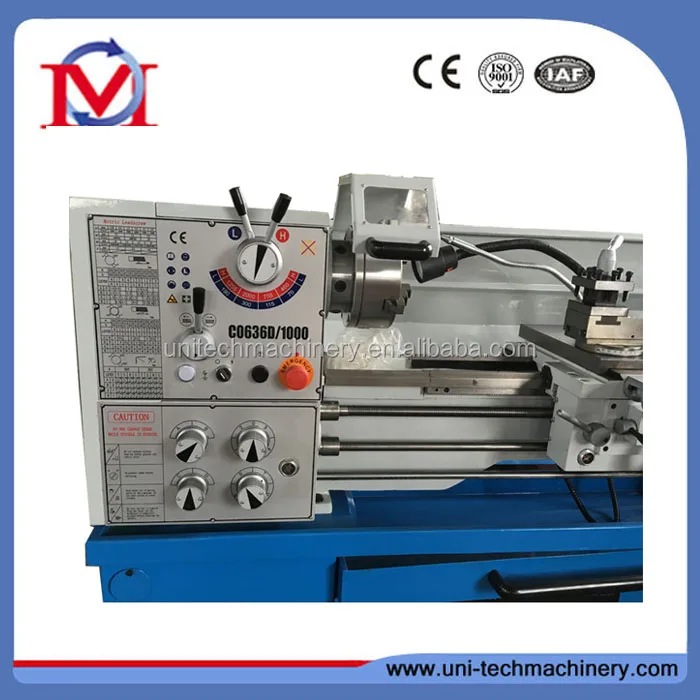

MACHINE DETAILS
