Dual Core Embedded Motherboard i.MX6DualLite with Android 4.4

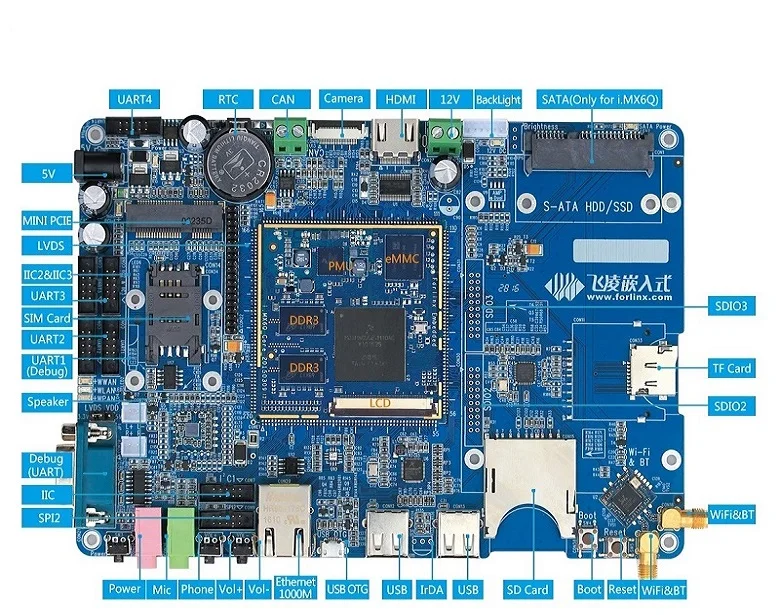

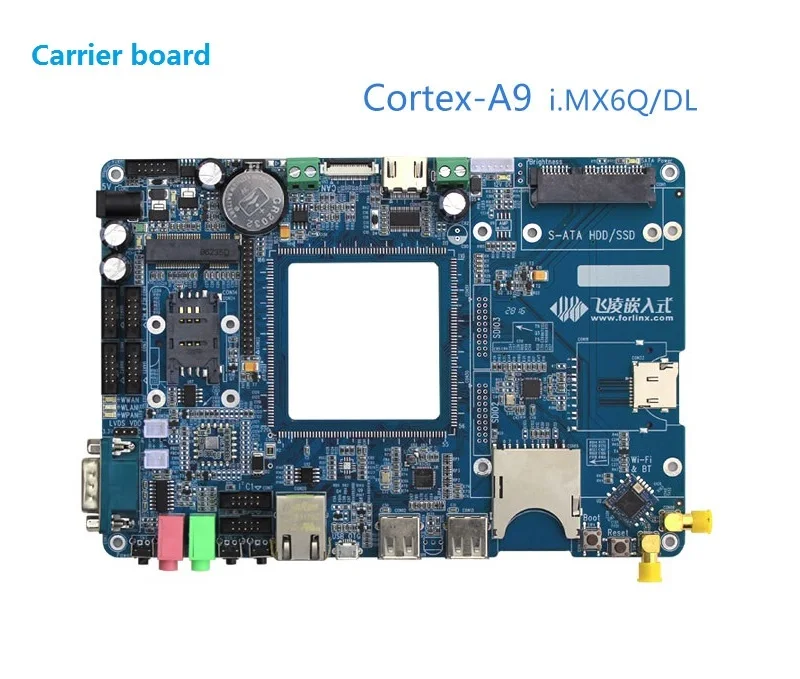

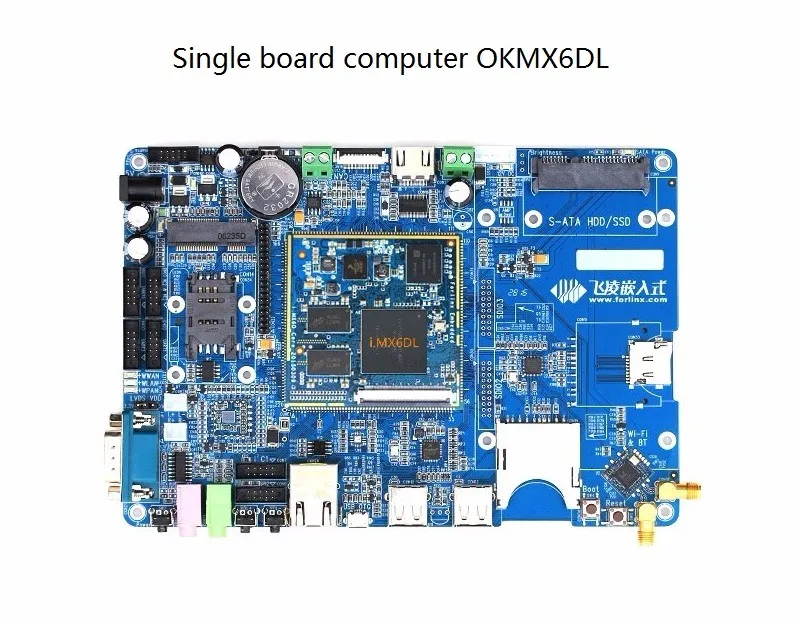

The OKMX6DL is a Cortex-A9 featuring dual core embedded motherboard designed based on Freescale i.MX6DualLite processor. It is with abundant hardware resources on its carrier board. Ready-to-use on-board interfaces, such as 5M digital camera, standard dual-channel 8-bit LVDS and HDMI-1.4 are preferable for media performace; the SDXC standard SD card interface ; RS232, CAN, RS485 interfaces are all designed with protection components to face with industrial environment; improved Li-barttery manage circuit, supporting of IrDA, stereo audio amplifier, on-board 3-axis acceleration sensor which are preferable for portable devices.

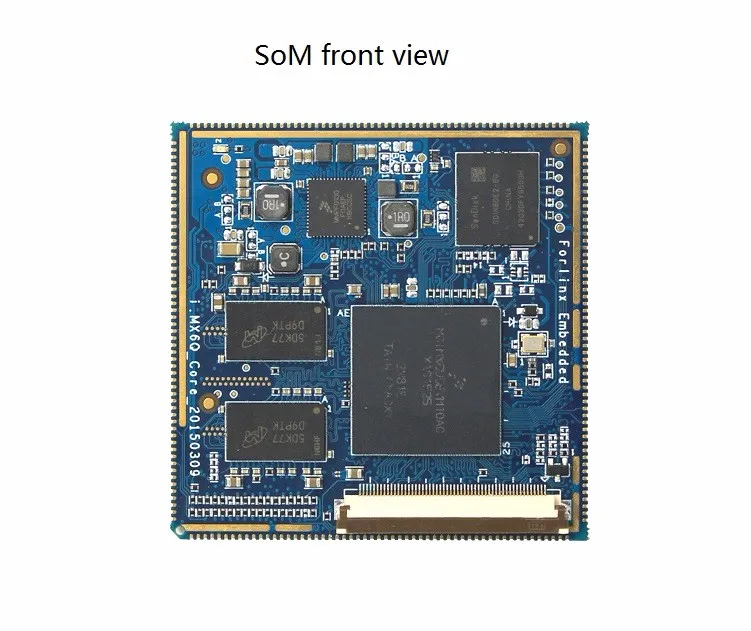

the CPU module FETMX6DL is integrated with minimum system
SoM with minimum system and with LCD interface, which is very convenient for usres to do incoming quality control and aging by running the system just with connection of a 4.2V power input but no need support of the carrier board.
Product Description
i.MX6DL CPU Module | ||||||
CPU | Freescal i.MX6DualLite | IIC | 3-ch | |||
Architecture | Cortex-A9 | SPI | 2-ch | |||
Main Frequency | 1GHz | CAN | 2-ch | |||
RAM | 1GB DDR3 (2G optional) | USB Host | 1-ch, USB2.0 | |||
Flash | 8GB eMMC, (4G optional) | USB Device | 1-ch, USB2.0 | |||
Input Voltage | 4.2V | SD/MMC/SDIO | 2-ch, SD/MMC | |||
2D/3D | supported | Ethernet | 1-ch, Gigabit Ethernet | |||
GPU | IIS interface | Mini-PCIE | 1-ch | |||
PMU | MMPF0100NPEP | UART/IrDA | 5-ch, (1 debug port) | |||
Dimensions | 60mm*60mm | EINT/GPIO | supported | |||
Connection Type | CPU module soldered on carrier board | Video Codec | hardware codec | |||
OS | Android4.4/Linux3.0.35/ LinuxQT4.8.5 | HDMI1.4 | 1-ch | |||
LCD | RGB888 (2-ch LVDS with 8-bit) | Camera | 1-ch, 5MP parallel camera | |||
Audio | IIS | SATA | 1-ch, SATA-II | |||
OKMX6DL Carrier Board | ||||||
Audio | 3-ch (1-ch phone, 1-ch MIC, 1-ch speaker) | IrDA | 1-ch, empty soldering | |||
IIC | 2-ch | User Key | 2-ch | |||
SPI | 1-ch | Boot | 1-ch | |||
CAN | 2-ch | Sleeping Awake | 1-ch | |||
Camera | 1-ch, 5MP parallel camera OV5640 | Reset | 1-ch | |||
SDIO | 2-ch | PWM | 2-ch | |||
SD/MMC | 2-ch | GPIO | supported | |||
USB Host | 2-ch, USB 2.0 | EINT | supported | |||
USB Device | 1-ch, USB 2.0 | LVDS | 2-ch | |||
Ethernet | 1-ch, 10M/100M/1000M adaptive | HDMI1.4 | 1-ch | |||
Power Jack | 1x mandatory power, 1x auxiliary power | SATA | 1-ch | |||
Mini-PCIE | 1-ch | WIFI&BT | 1-ch | |||
UART | 4-ch (1 debug port, 2-ch 3-wire serial port, 1-ch 5-wire serial port) | RTC | Supported | |||
The OKMX6DL motherboard has a very excellent performance of OS Android4.4, and Forlinx kindly provides all necessary driver and source code. Here below picture will show you main interface of OS Android 4.4, and also let's have a look at what source we can provide users for OS Android4.4
Android 4.4 | ||||
U-boot Version | U-boot 2009.08-dirty | |||
Kernel Version | Linux-3.0.35 | |||
Ethernet port driver (100M/1000M) | RTC driver | |||
LED driver | Audio (IIS interface) driver | |||
LCD driver | SPI driver | |||
USB interface driver | Serial port driver (3 serial ports) | |||
PWM driver (backlight) | User key driver | |||
SATA2 driver | Bluetooth driver | |||
eMMC driver | Watchdog driver | |||
Ext4 file system | WIFI driver | |||
SD card driver | RS485 driver | |||
LCD framebuffer | CAN driver | |||
Capacitive touch driver | ||||
Click here to link to details about is SoM (system on module) FETMX6Q
Application:
Automotive infotainment, digital signage, HMI, in-flight entertainment, intelligent industrial control system, IP phones, IPTV, portable medical, tablets.
Plenary product information for reference

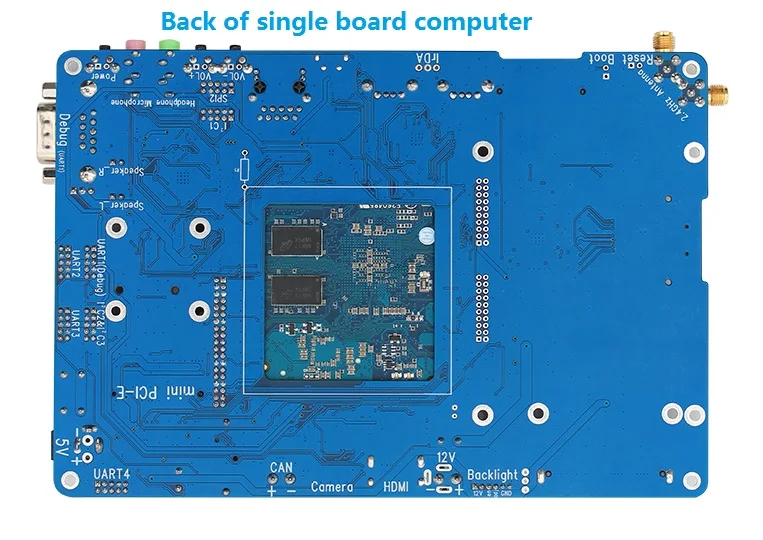

Detailed Images
Structure dimensions: 130mm x 190mm
SOM is with hole of 49mm x 51mm
Artcraft: thickness: 1.6mm, 4-layer PCB
Power input: DC 5V(mandatory)+DC12V(auxiliary, only for 3.5'' hard disk and LVDS display)
