Chinese factory hot sale optics erbium glass rod

Product Overview

Description

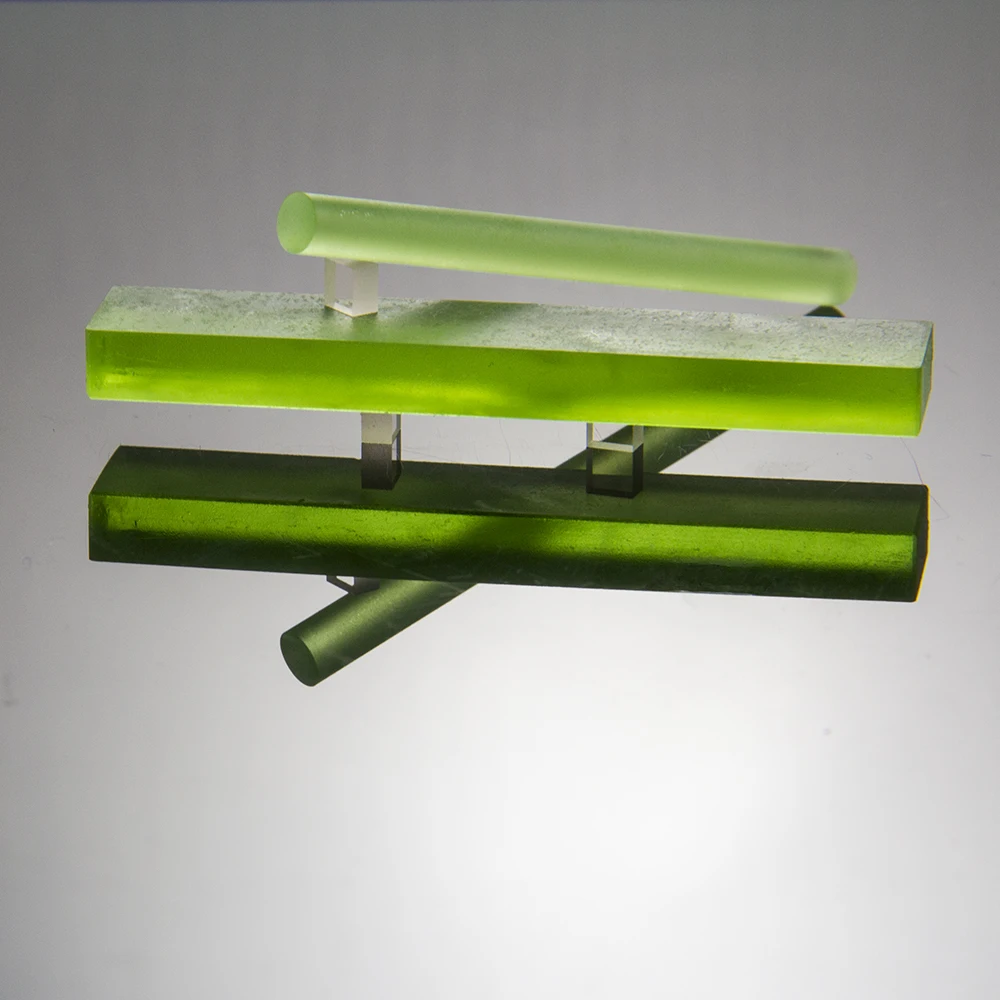

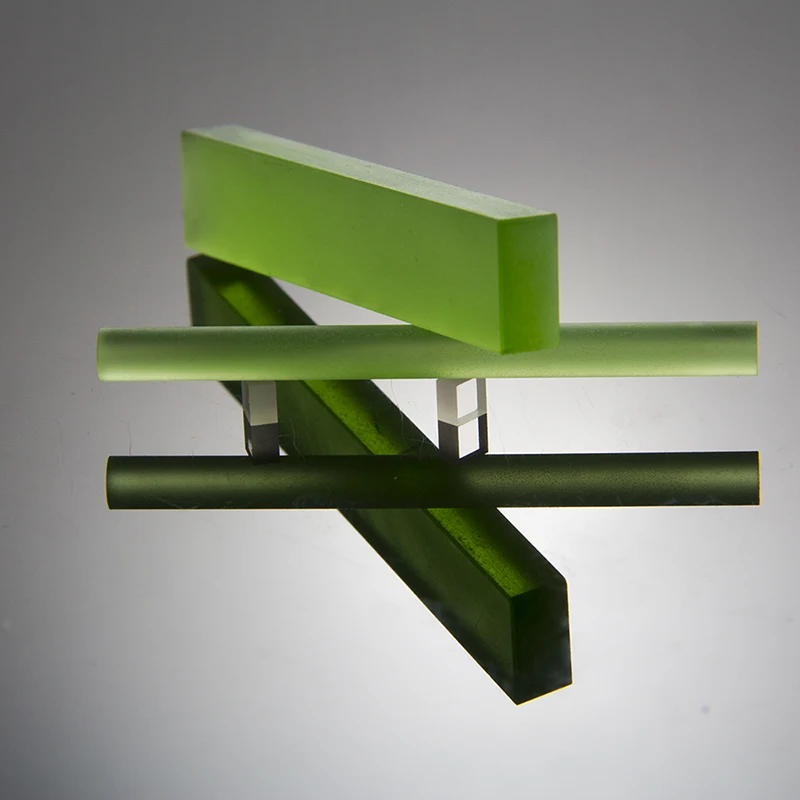

Chinese factory hot sale optics erbium glass rod

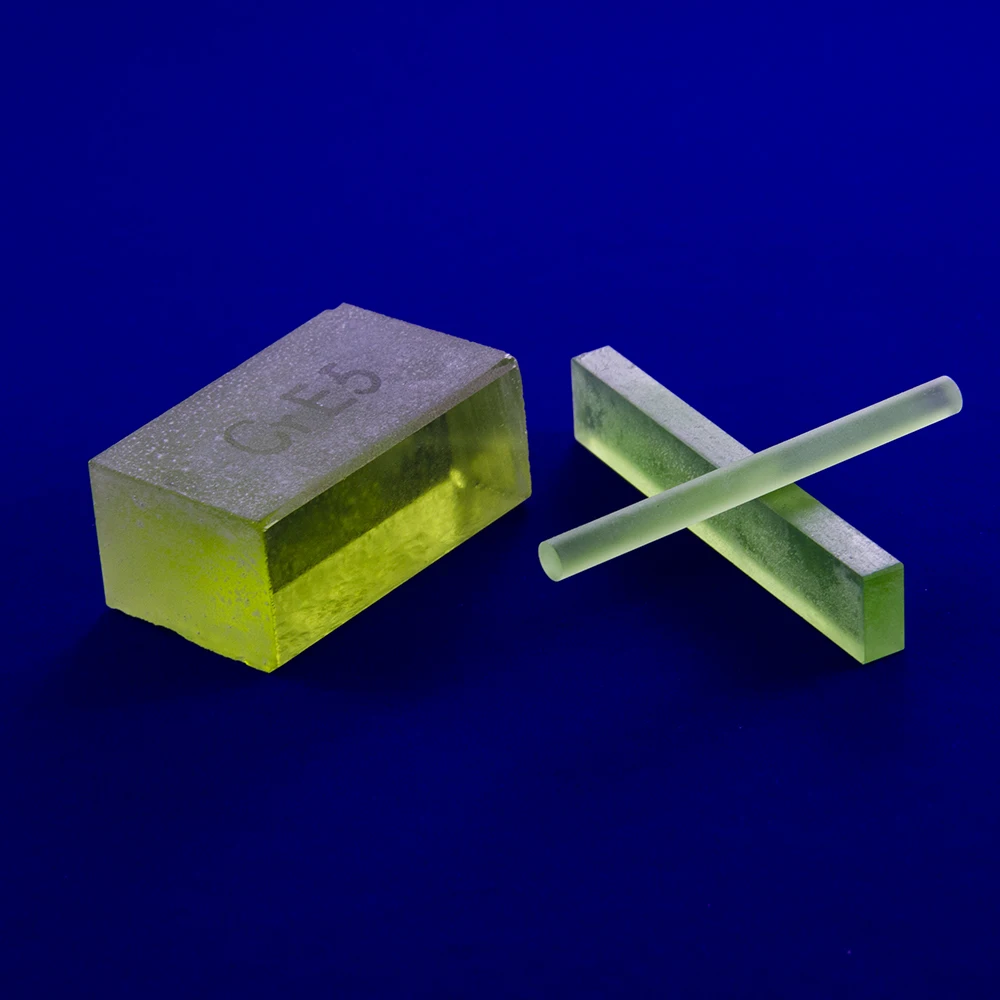

Erbium and ytterbium co-doped phosphate glass has a broad application because of the excellent properties. Mostly, it is the best glass material for 1535nm laser due to its eye-safe wavelength of 1535 nm and high transmission through atmosphere. It’s also suitable for medical applications where the need for eye protection may be difficult tomanage or diminish or hinder essential visual observation. We can also produce erbium laser glass with various ions doping according to your requirement. WM4: Erbium phosphate glass for ion-exchange purpose; Cr14: Erbium phosphate glass for xenon lamp pumping laser device and laser range-finder. EAT14: Yb³⁺ , Er³⁺ co-doped phosphate glass. CrE5 is for large energy output application. The glass rod of CrE5 can work safely at 1Hz repetition after surface strengthing treatment at over 10J output level.

Features

• Wide pump band

• High optical quality

• Operates in a long-wavelength, high water peak region

• Ideal for hard tissue removal

• Very high slope efficiency

• Operate in a relatively eye-safe wavelength range

Optical properties

Property	Value
Optical Density	0.1 to 0.8
Fluorescence   lifetime	7.7-8.2   ms
Concentrations	0.5   mol % ~ 3 mol %
Emission   wavelength	1540   nm
Absorption   Coefficient	1.0   cm-1 ~ 7 cm-1
Emission state absorption cross section:	0.75x10-20 cm2@1535nm
Transmission	10% to 90%
Coatings	AR≤   0.2% @1535nm
Damage Threshold:	> 500 MW / cm2



Polishing Specification

Property	Value
Orientation   Tolerence	<   0.5°
Thickness/Diameter   Tolerance	±0.05   mm
Surface   Flatness	<λ/8@632   nm
Wavefront   Distortion	<λ/4@632   nm
Surface   Quality	10/5
Parallel	10''
Perpendicular	15'
Clear   Aperture	>90%
Chamfer	<0.1×45°
Maximum   dimensions	dia (3-12.7)×(3-150)mm2



• Laser resurfacing



• Bone surgery



• Dental use
