ANRAN 5MP 20X PTZ POE camera dome security camera two way audio SD card recording waterproof long night vision
- Category: >>>
- Supplier: Shenzhen Anran Security Technology Co. Ltd.
Share on (60673779004):
Product Overview
Description
Product Description
* 4.5 Inch Mini Size, waterproof IP66;
* 5 MP, resolution 2560*1920@20pfs/1920*1080@30fps
* 1/3 CMOS;
* 20x optical zoom;
* 5 MP, resolution 2560*1920@20pfs/1920*1080@30fps
* 1/3 CMOS;
* 20x optical zoom;
* Two-way Audio,TF card recording,max up to 128GB;
* Support ONVIF, convenient to connect to third party;

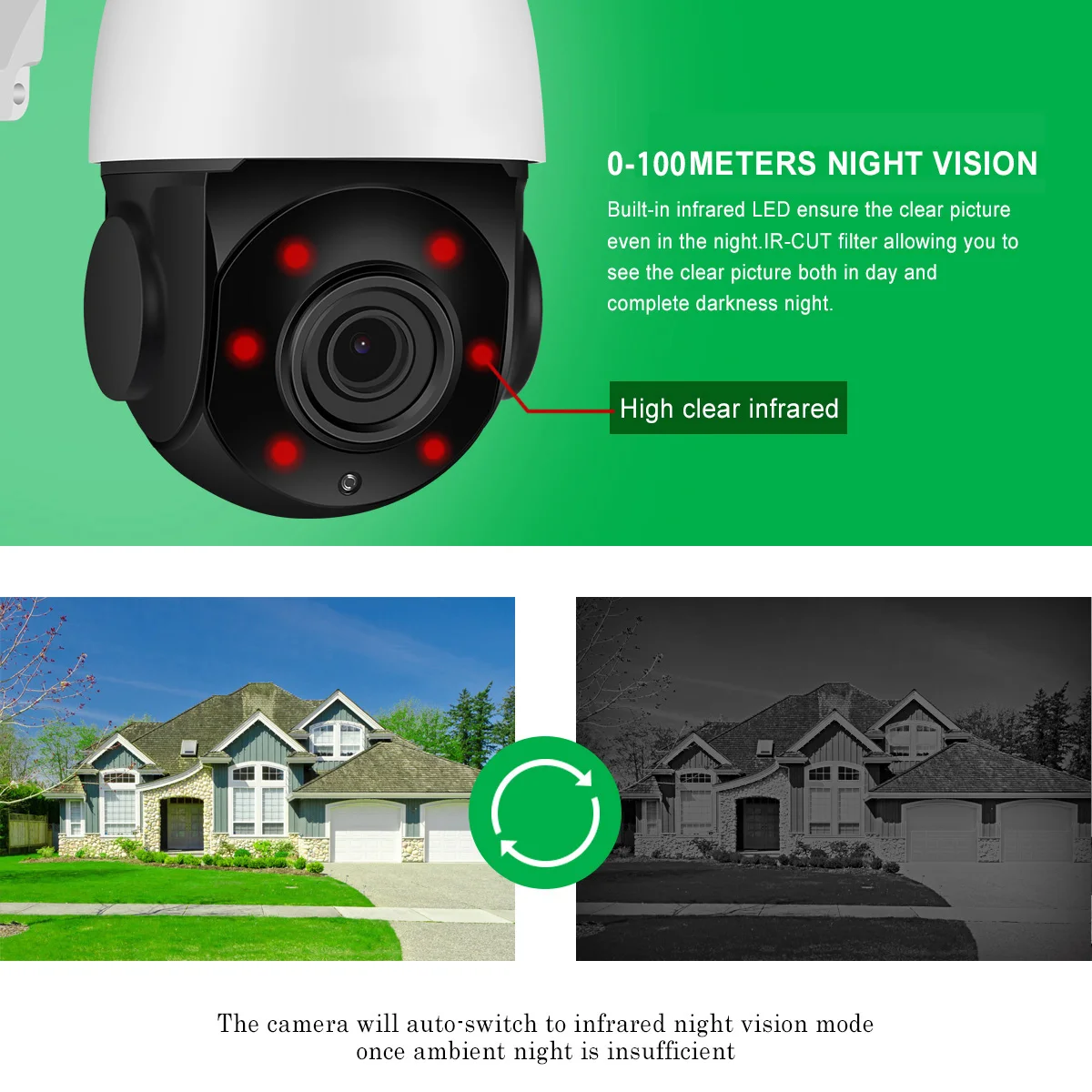

* IR distance 100M
* Supported Protocols: Pelco-D/P; Others on special request;
PTZ specifications:
Camera
Sensor 1/3” 5.0M CMOS
Total pixels 5.0 Megapixels
Lens: f=4.7-94mm
Zoom 20x Optical zoom
Iris F1.6~F2.8
Min. illumination 0 Lux (IR LED On)
D/N: IR-CUT
Digital noise reduction 3D Digital noise reduction
Compression Format H.264/ Mjpeg
Compression Rate 32 Kbps~16Mbps
Smart Alarm Motion detection, Occlusion & Memory error alarm
Support Protocols TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP
SNMP,FTP,802.1x,QoS,HTTPS (SIP,SRTP,IPv6)
ONVIF: Support
Interface 10M / 100M mbps Ethernet (RJ-45)
Management IE and CMS (supplied with the camera)

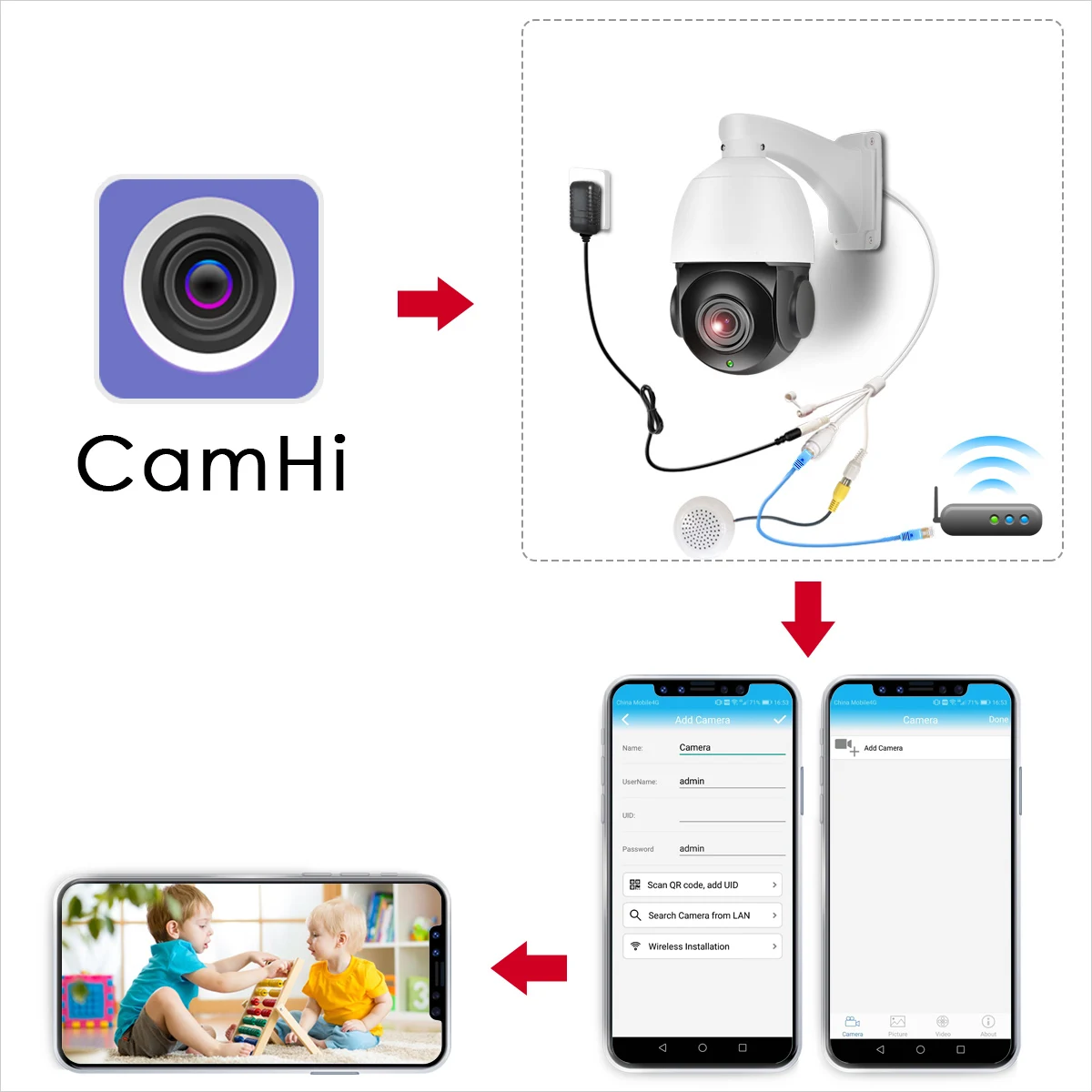

Mobile phone monitor P2P
Dome

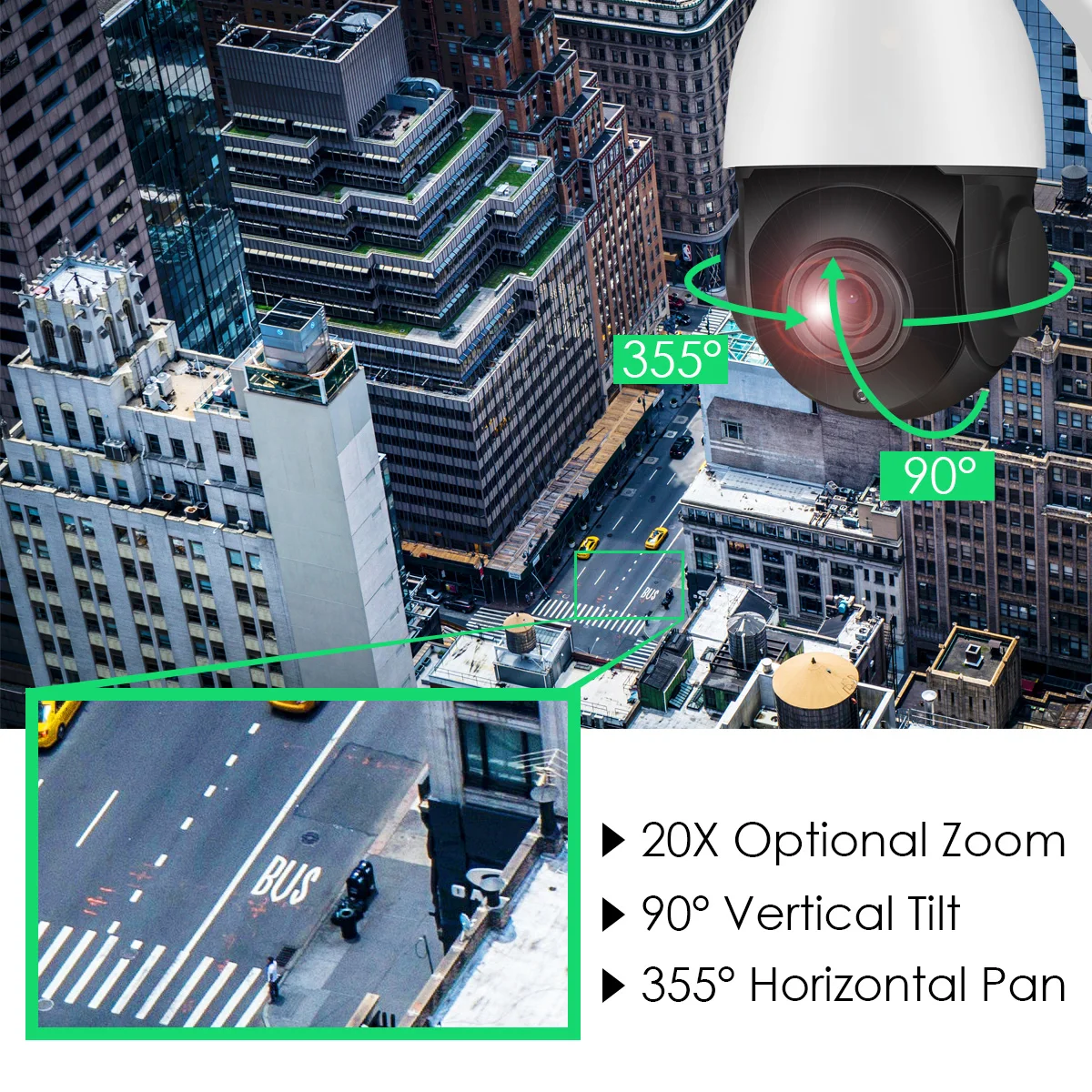

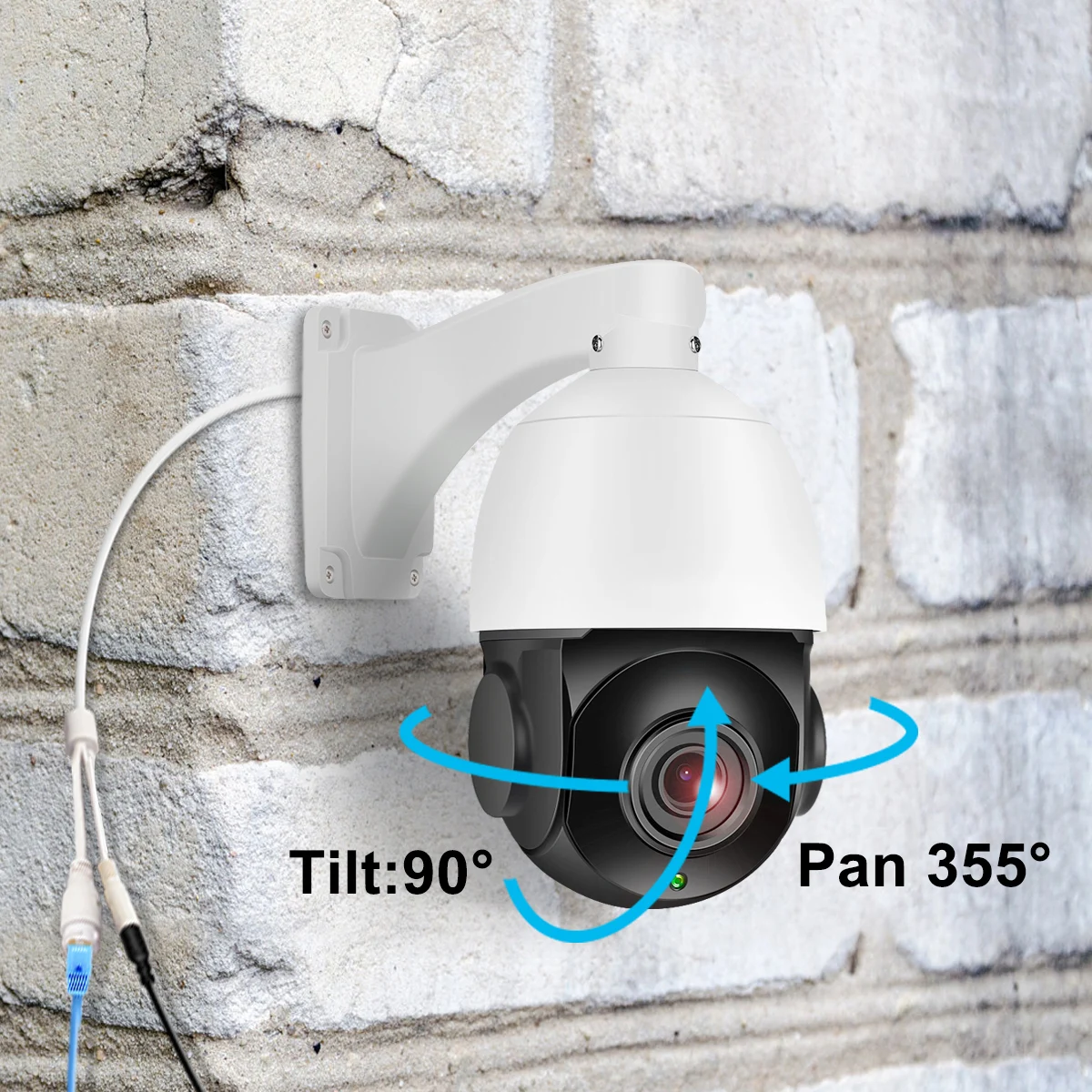

Pan Speed 0.02 - 50 degree/s
Tilt Speed 0.02 -50 degree/s
Pan Range 0-360 degree
Tilt Range 0-93 degree
Auto Flip Horizontal 180 degree, Vertical 93 degree
360 degree Scan 1-9 Grades setting available
A-B Scan User programmable
Preset Points 220
Go to Preset Speed 120 degree/s
Guard Tours 4 groups
Guard Points Max.16 points, dwell time user selectable
Communication Protocol Pelco-D, Pelco-P
Communication RJ45
Baud Rate 1200/2400/4800/9600bps
Privacy Mask Support
IR parameters
* Support ONVIF, convenient to connect to third party;
* IR distance 100M
* Supported Protocols: Pelco-D/P; Others on special request;
PTZ specifications:
Camera
Sensor 1/3” 5.0M CMOS
Total pixels 5.0 Megapixels
Lens: f=4.7-94mm
Zoom 20x Optical zoom
Iris F1.6~F2.8
Min. illumination 0 Lux (IR LED On)
D/N: IR-CUT
Digital noise reduction 3D Digital noise reduction
Compression Format H.264/ Mjpeg
Compression Rate 32 Kbps~16Mbps
Smart Alarm Motion detection, Occlusion & Memory error alarm
Support Protocols TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP
SNMP,FTP,802.1x,QoS,HTTPS (SIP,SRTP,IPv6)
ONVIF: Support
Interface 10M / 100M mbps Ethernet (RJ-45)
Management IE and CMS (supplied with the camera)
Mobile phone monitor P2P
Dome
Pan Speed 0.02 - 50 degree/s
Tilt Speed 0.02 -50 degree/s
Pan Range 0-360 degree
Tilt Range 0-93 degree
Auto Flip Horizontal 180 degree, Vertical 93 degree
360 degree Scan 1-9 Grades setting available
A-B Scan User programmable
Preset Points 220
Go to Preset Speed 120 degree/s
Guard Tours 4 groups
Guard Points Max.16 points, dwell time user selectable
Communication Protocol Pelco-D, Pelco-P
Communication RJ45
Baud Rate 1200/2400/4800/9600bps
Privacy Mask Support
IR parameters
Auto Control IR LED
PWM (Pulse Width Modulation) Support ambient light detection IR illumination on 1-15 grades selectable;
LEDs 6pcs
IR distance Up to 100m
General
PWM (Pulse Width Modulation) Support ambient light detection IR illumination on 1-15 grades selectable;
LEDs 6pcs
IR distance Up to 100m
General
Operating temperature -40°~ +60°
Heater and Blower Auto temperature control
Humidity ≤95% Non Condensing
Power DC12V ≤3A
Consumption < 25W
Lightning Protection Transient voltage 6000V
Weight 3 kgs ( N.W)

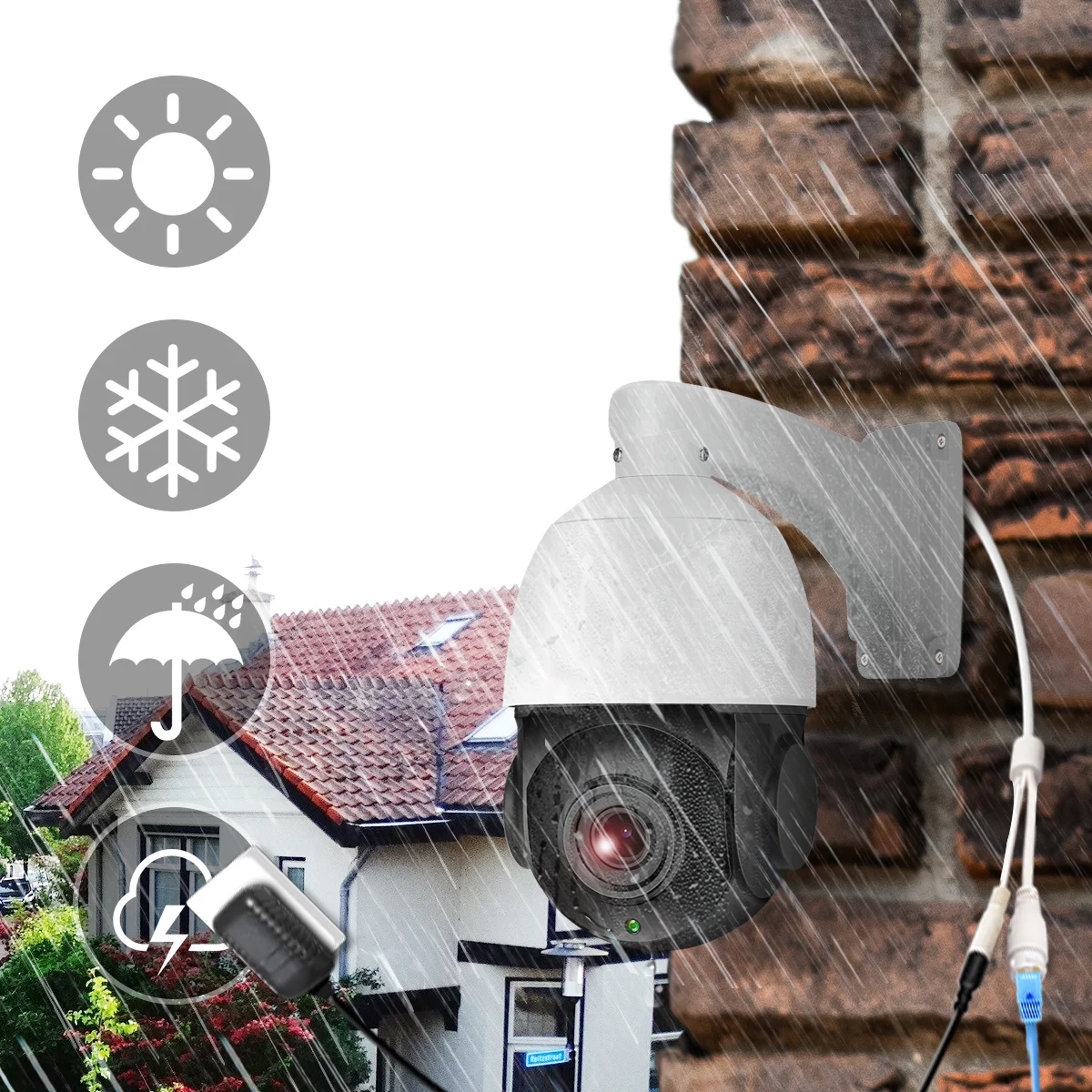

Waterproof IP66
Heater and Blower Auto temperature control
Humidity ≤95% Non Condensing
Power DC12V ≤3A
Consumption < 25W
Lightning Protection Transient voltage 6000V
Weight 3 kgs ( N.W)
Waterproof IP66
FAQ
FAQ
Q: How long is the warranty?
A: All goods have been checked before dispatch. Warranty for 1 year, lifetime technical service.
Q: How long is the delivery time?
A: Within 5 business days (0-100pcs), within 7 business days (100-300pcs), within 15 business days (300- 1000pcs), within 30 business days (1000-3000pcs)
Q: What are the delivery ways ?
A: By Air / Sea / Express / Air mail.
Q: What are the payment methods ?
A: T/T, L/C, Western Union and PayPal.
Q: After-sales services ?
A: 1.All goods will be inspected and tested before shipment.
2.Customer's satisfactory is most important to us. If you have any problem or questions regarding our transaction. Please contact us by Trade manager or Skype. It will be responded within 24 hours.
Q: About OEM: could we place order by OEM style to produce our own brand products in China?
A:Of course you can. Welcome to do OEM.
If any further problem, welcome to contact us.Thanks for your interest.
