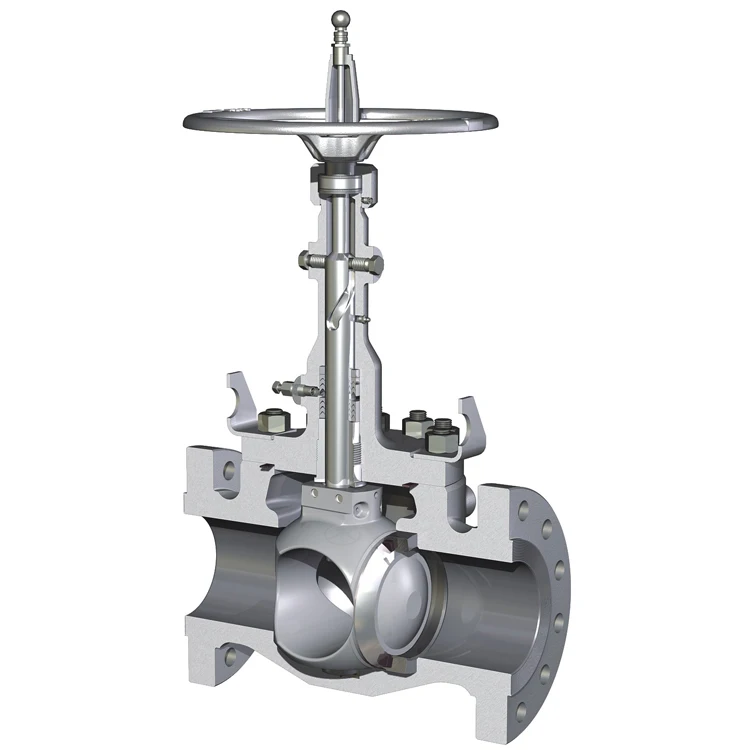

Top Entry Metal Seat Electric Operated 8 inch 150LB Orbit Ball valve
Top Entry Metal Seat Electric Operated 8 inch 150LB Orbit Ball valve
Top Entry Metal Seat Electric Operated 8 inch 150LB Orbit Ball valve

Top Entry Metal Seat Electric Operated 8 inch 150LB Orbit Ball valve

Share on (60673810195):


Price:

Quantity:


Product Overview

Description




ORBIT BA 1.jpgORBIT BA 2.jpg


























































SPECIFICATIONS FOR ORBIT BALL VALVES










Pressure rating and size:



PN16 to PN250,ANSI Class150 to Class1500


DN25 to DN600


1"~24"


25A~600A



Material:



Body : WCB, CF8, CF8M, LCB, LCC


Bonnet : WCB, CF8, CF8M, LCB, LCC


Ball : A105, SS304, SS316


Stem : F6a, CR12


Seat : 2CR13, STL


Special material on request.


Operated type


Lever, Pneumatic, Gear, Electric, Bare shaft, etc.


Structure:


Top entry, orbit


Flange connection:


EN1092 & ANSI B16.5 & JIS



Type



Flange RF, RTJ
