Cross linked Polyethylene XLPE Insulated Power Cable
- Category: >>>
- Supplier: Henan Guowang Cable Co. Ltd.
Share on (60673868202):
Product Overview
Description
Cross-linked Polyethylene XLPE Insulated Power Cable
Product Description
Application
Used for power transmission and distribution line with voltage rated at 35kV and below.
High and Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.
High and Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.
Standard
International: IEC 60502, IEC 60228
China: GB/T 12706
Other standards such as BS, DIN and ICEA upon request
Construction
AL/XLPE/STA/PVC Armoured Electrical Cable
- Round bare aluminum core stranded according to IEC 60228
- Inner semi-conductive layer
- Core insulation XLPE
- Color code according to HD 308 S2
- Outer semi-conductive layer
- Semi-conductive tape
- Copper tape screen
- Filler
- PVC inner sheath
- Galvanized steel tape armour (STA)
- PVC outer sheath (red or black)
Code name
YJ: XLPE insulation
L: Aluminum conductor
V: PVC sheath
32:Steel wire armoring—3 cores
22:Steel tape armoring—3 cores
72: Aluminum wire armoring—1 core
62: Stainless steel tape armoring—1 core
ZR: Flame resistant
| MV(11kv 15kv 33kv) Power Cable | ||
| Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV | No.of Core | Conductor cross-section area(mm2) |
| xlpe insulation | 1 core 3 core | 10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm |
| Cu core | ||
| YJV, N2XSY;PVC sheathed power cable | ||
| YJV22;steel tape armoured,PVC sheathed power cable | ||
| YJV32,YJV42;steel wire armoured ,PVC sheathed power cable | ||
| Al Core | ||
| YJLV, NA2XSY; PVC sheathed power cable | ||
| YJLV22;steel tape armoured,PVC sheathed power cable | ||
| YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable | ||
Technical data
Maximum Conductor Temperature: under normal (90℃ ), emergency (130℃ or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 15 x cable O.D for single core
12 x cable O.D for multi core
Detailed Picture

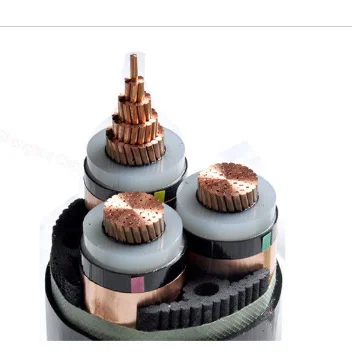

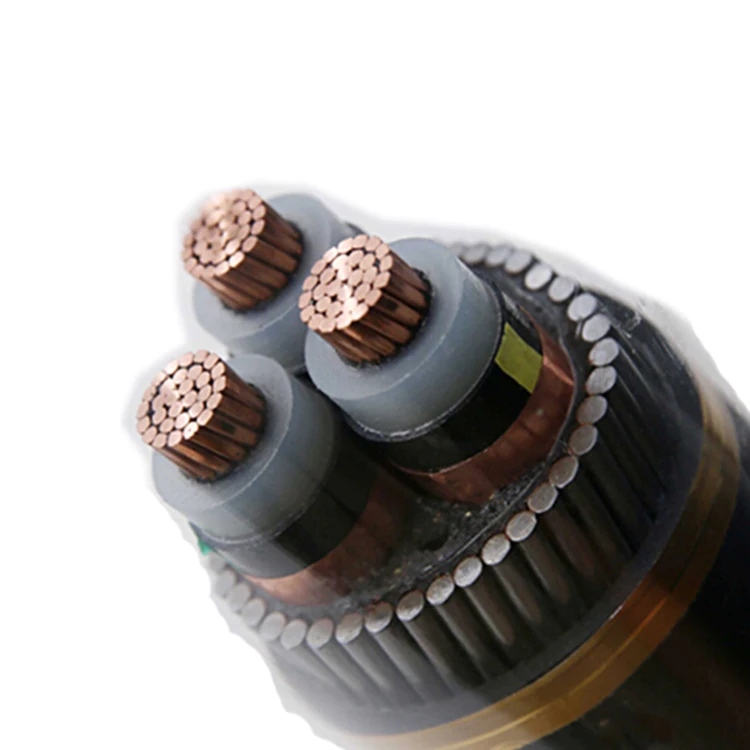

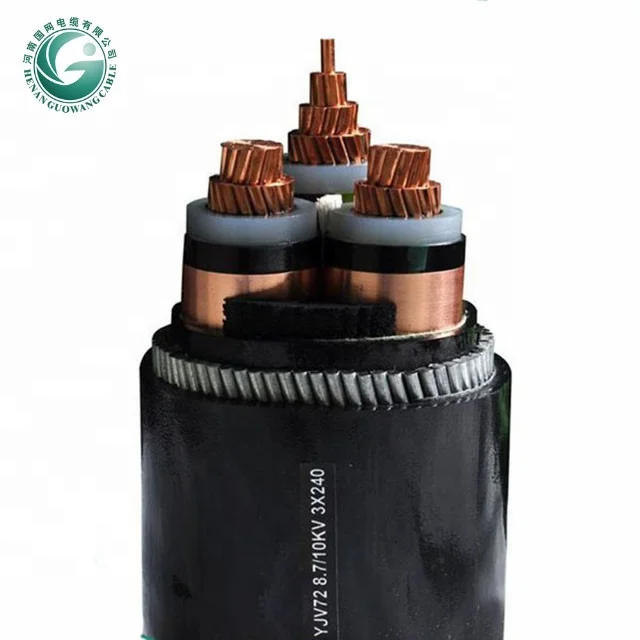

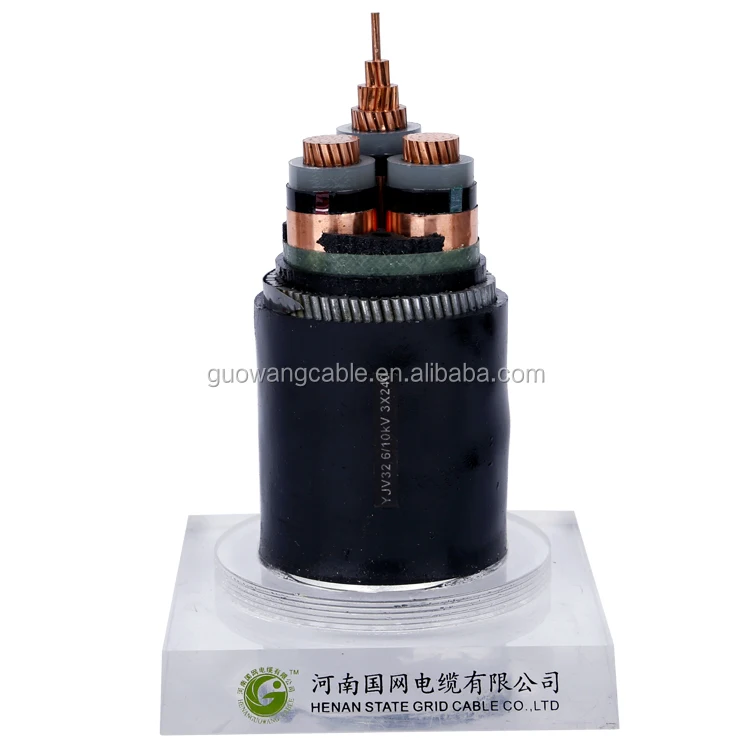

Cross-linked Polyethylene XLPE Insulated Power Cable

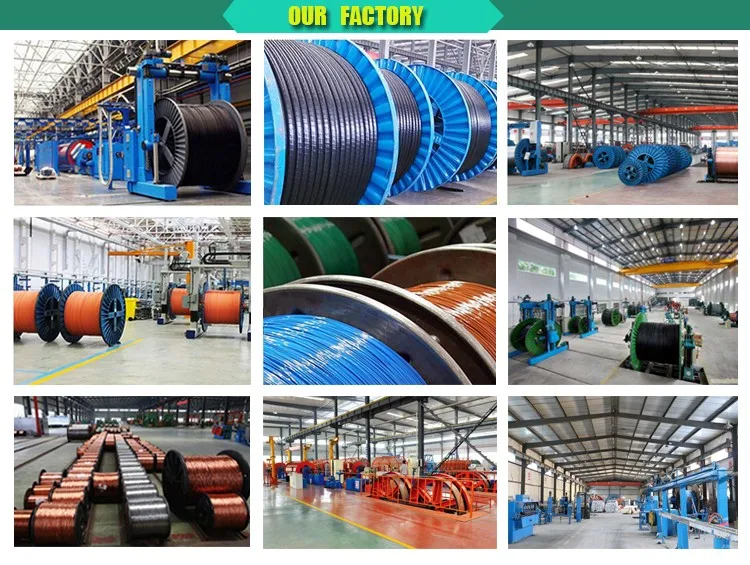

Factory View
Our Services
- Online consultation.
- Detailed quotation and catalog.
- Perfect service teams ensure the communication and purchase experience.
- Professional engineers team provide technical guidance.
- Complete QA system ensures both quality and safety of produced cable.
- 12 months of warranty.
- Professional after-sale service team provide guidance of installation and other solutions.
Other product
Packaging & Shipping
FAQ
1. What is the difference between XLPE cable and PVC cable?
PVC - Poly Vinyl chloride ; XLPE - Cross linked Poly Ethylene
PVC : thermo plastic ; XLPE: thermosetting plastic.
PVC can withstand temperatures up to 70°C ; XLPE can do 90°C.
PVC costs lower with large market, XLPE costs higher with smaller market.
2. Can I get a sample to check your quality?
Of course. Sample is free, but you need to cover the freight charges.
3. How long can I get the sample?
Samples will be ready for delivery in 3-5 days, and it will arrive within 7 days. We can help you get the procedure going if you do not have an account.
4. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The best record we kept is
delivering 10 kilometers cable within a week. Generally, we suggest inquiry two months earlier before your project.
