M7 Mount F2.0 Wide Angle Lens 2mm for VR camera Oculus
US $2.50-$3.00

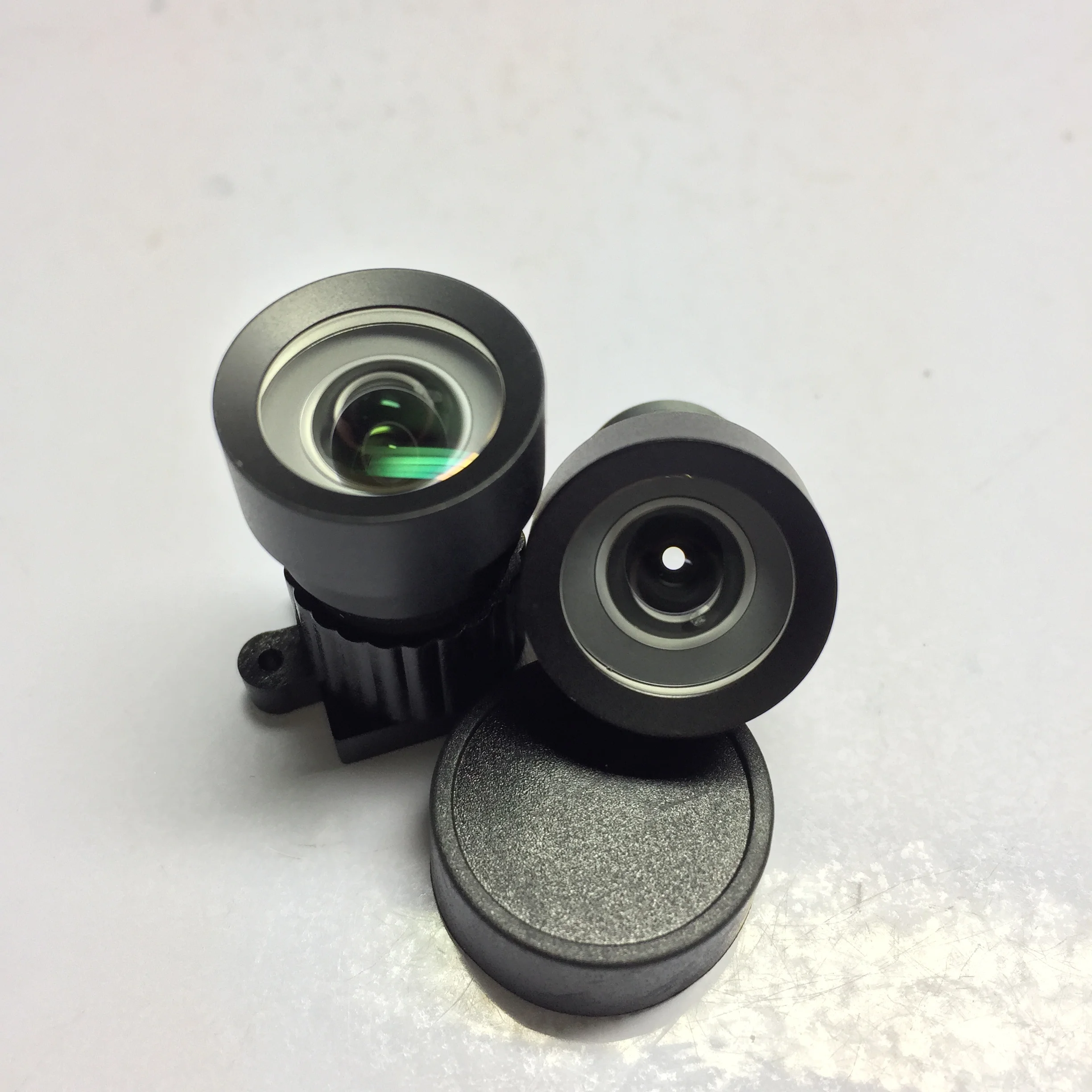

1/2.3 sensor 12mp resolution 100 degree low distortion m12 board lens for drone 4k hd camera lens
- Category: CCTV Lenses >>>
- Supplier: Shenzhen JSD Optoelectronics Co. Ltd.
Share on (60673874841):
Product Overview
Description
Lens Description
HFOV 112 degree no distortion 4k 10mp lens for conference camera
Lens Specification | ||
Model | JSD3528 | |
Optical format | 1/2.3" IMX317 | |
Focal length (EFL) | 3.14mm | |
F/NO | F2.4 | |
Back focal length | 4.36mm | |
Field of view (FOV) | 100*89*57 | |
Distortion | 4% | |
TTL | 24mm | |
Mount | M12x0.5 | |
Diameter | 14mm | |
Contact
You may also like
Click below pic to view more
Lens Spec | ||
Model | JSD5019 | |
Sensor | 1/2.8" IMX179 | |
EFL | 5.0mm | |
FOV | 65*52*39 | |
TTL | 14mm | |
Lens Spec | ||
Model | JSD3922 | |
Sensor | 1/2.7" or 1/3" | |
EFL | 3.0mm | |
FOV | 100*85*66 | |
Distortion | <-1% | |
TTL | 17.5mm | |
Lens Spec | ||
Model | JSD1225 | |
Sensor | 1/4" OV5640 | |
ELF | 2.07mm | |
FOV | DFOV=110 HFOV=92 VFOV=71 | |
TTL | 10.7mm | |
Lens Spec | ||
Model | JSD0125 | |
Sensor | 1/3" 5MP | |
EFL | 2.1mm | |
FOV | 142*122*78 | |
TTL | 15mm | |
Distortion | 15% | |
Lens Spec | ||
Model | JSD2624 | |
Sensor | 1/4" | |
EFL | 2.6mm | |
FOV | 83*75*50 | |
Distortion | 1.5% | |
Lens Spec | ||
Model | JSD6010 | |
Sensor | 1/1.8" | |
EFL | 6.0mm | |
FOV | 78*60*40 | |
Distortion | 0.5% | |
Contact
Free samples for testing
Any questions please contact me by TM, 24 hours online.
We also support OEM and ODM.
