Agriculture Hose Pe Row Material Drip Irrigation Micro Double Wing Rain Spray Tape

No.5  Micro Spraying Pipe

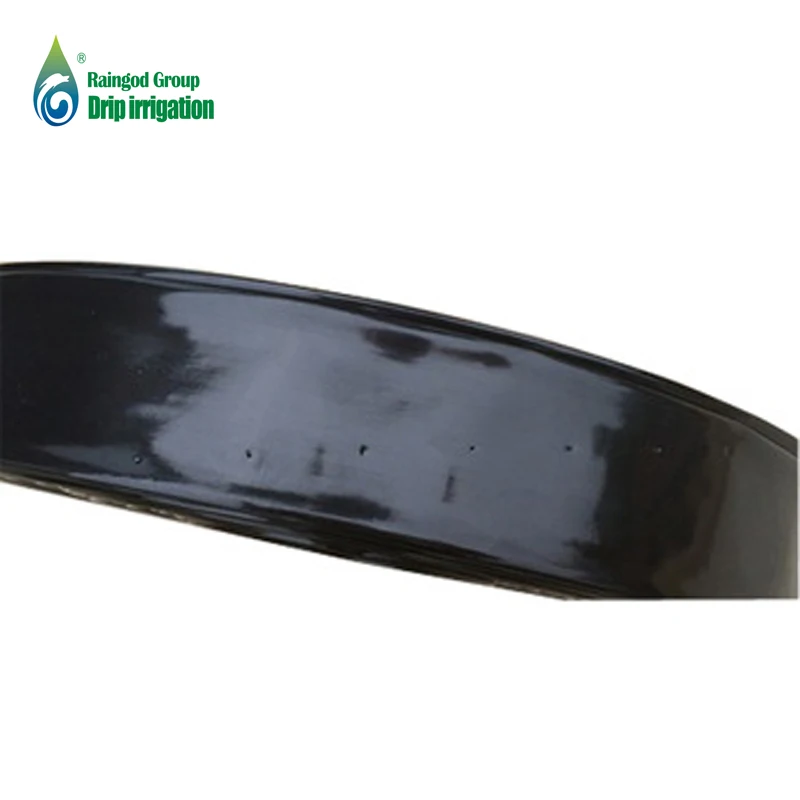

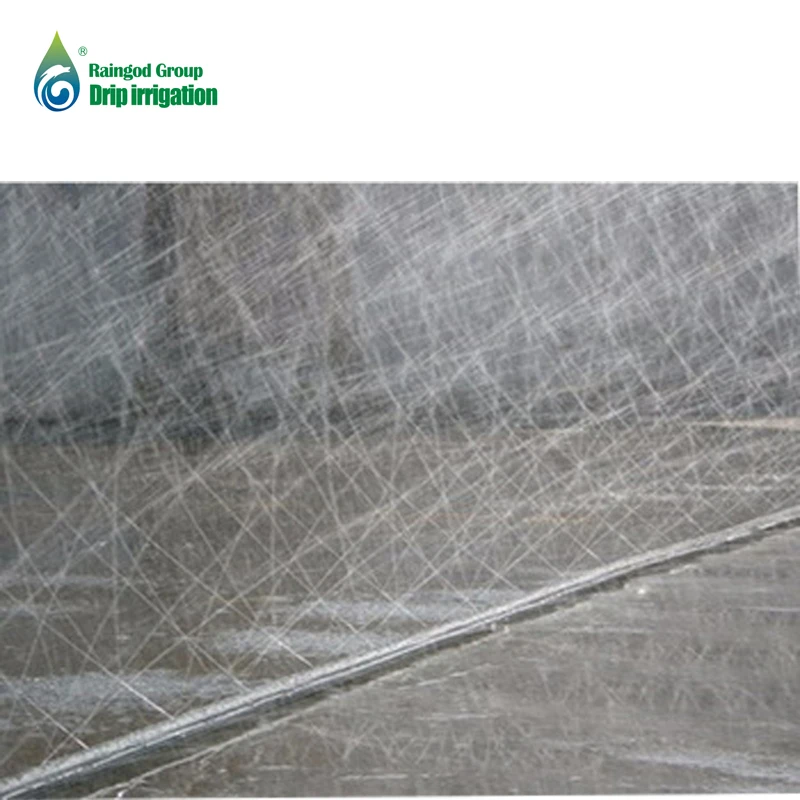

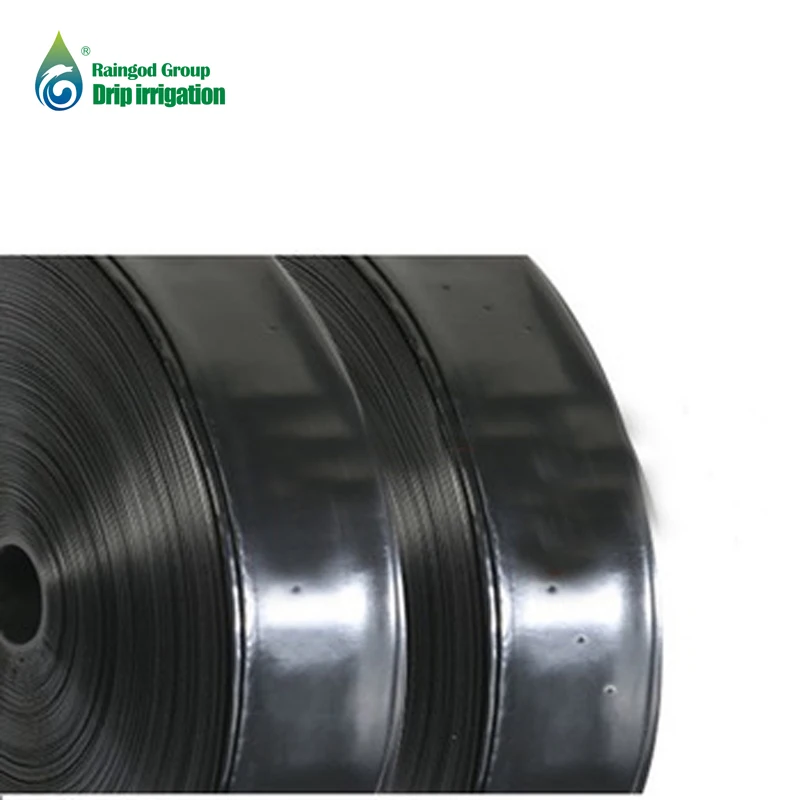

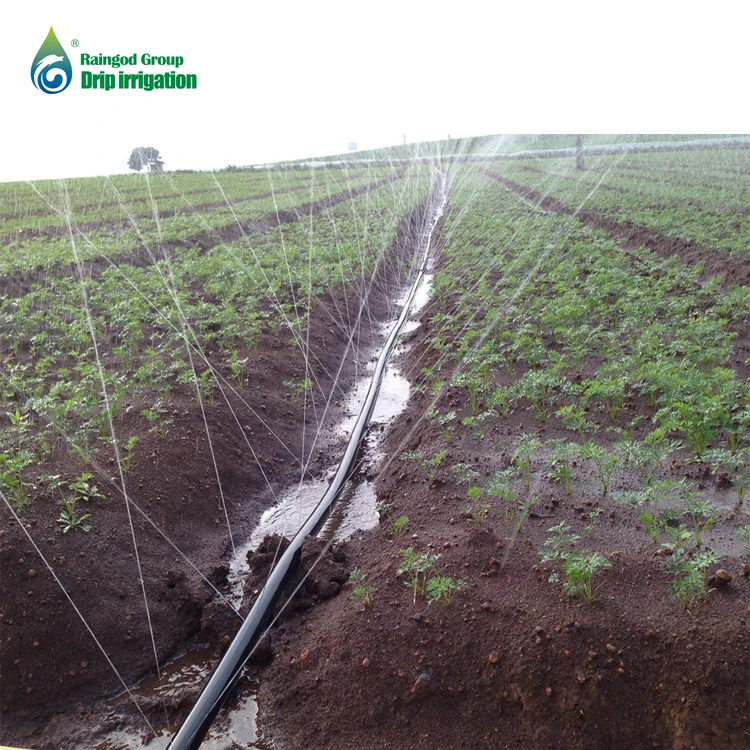

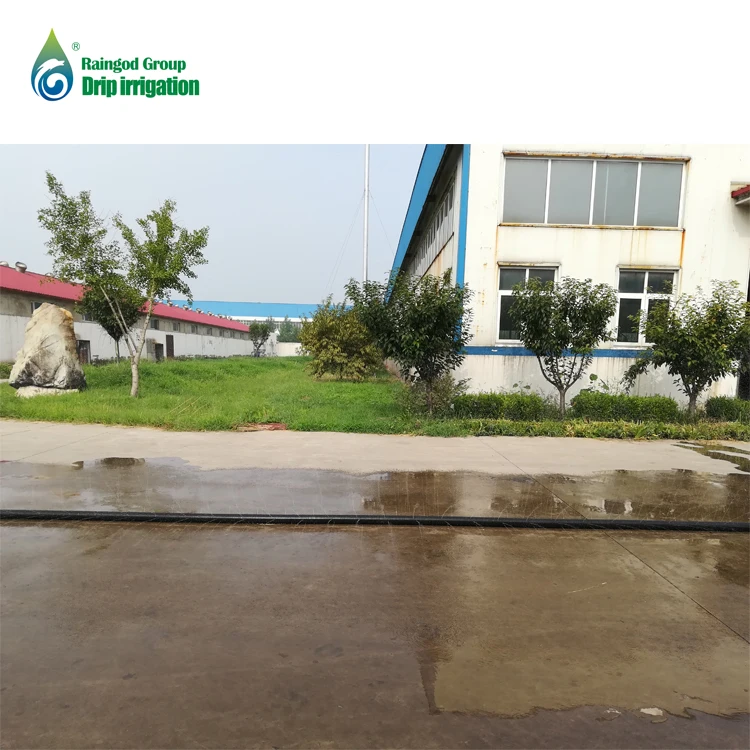

Brief introduction		The micro spraying hose is also called many holes tape,spraying tape,microspraying irrigation tape. We make many small holes on the pressed flat tape mechanically or by laze.The tape with three, five or more holes for each group is paved on the ground and the water will go up and then  down like micro rain because the pressure.The tape with one or two holes is paved under the film. And the water can come into drip due to the film clogging. The micro spraying tape is also one of the water saving irrigation product. Due to different size and pressure,the spraying width range canbe 2m to 8m.

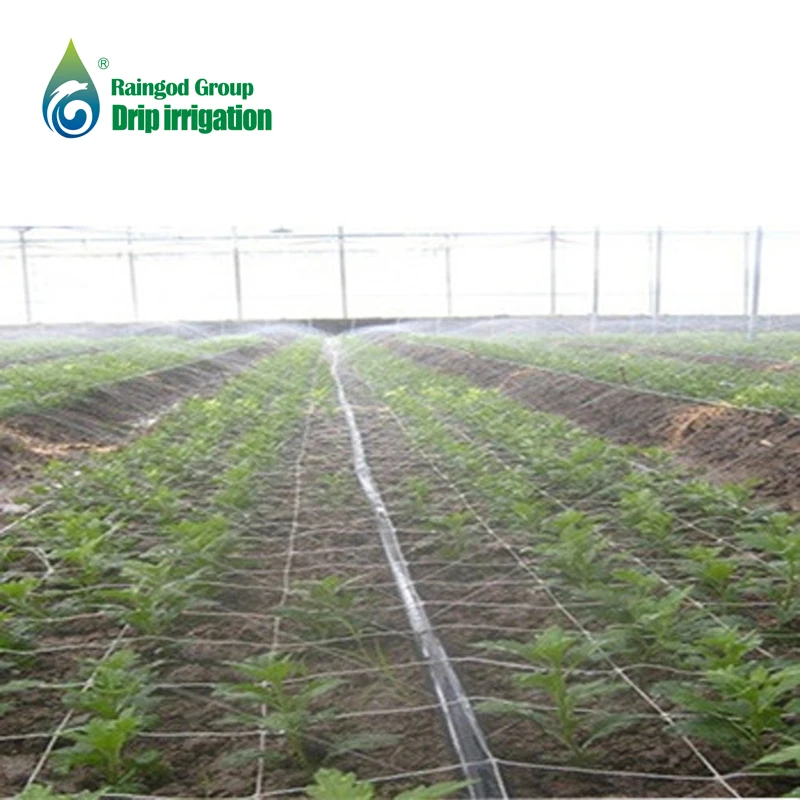

Application		It is widely used in lawn, trees, greenhouse,etc.
Diameter	Thickness	Holes space	Holes type	Rated working  pressure	Paving width (m)	Spraying width (m)	Each roll length  (m)
(mm)	(mm)	(mm)
25	0.2-0.4	≥150	Two holes	0.1Mpa	50	2	200
32	0.2-0.4	≥150	Sloping 3 holes	0.1Mpa	50	3	200
40	0.2-0.4	≥150	Sloping 3 holes	0.1Mpa	80	3	200
50	0.2-0.4	≥200	Sloping 5 holes	0.1Mpa	80	4	150
63	0.2-0.4	≥250	Sloping 5 holes	0.1Mpa	80	4	150
75	0.2-0.4	≥250	Sloping 5 holes	0.1Mpa	80	6	150
Meterial: PE
MOQ: 2000 meters
Payment terms: T/T
Delivery date: 5 working days
Application:water-saving farmland, greenhouse and garden.

drip irrigation tape micro water irrigation.

Micro irrigation

1. Thin wall type drip irrigation tape, the labyrinth flow passage, dripping outlet and pipeline can be formed once, which performance is good.
2. The labyrinth  water  flow passage is much wider, the water flow state is turbulent and it has many water entrances which can prevent tape from clogging strongly
3.  Adopting PE material and the tensile property is excellent, which is convenient for mechanized paving work.
4. The weight is light, the operation and carrying is easy.
5. The Max. paving length can reach 150 meters.
6.  Erosion resistance is good.
7. It can be widely applied to greenhouse and farm land paved along crops, the dripping volume and space of water dripping outlet can be supplied according to actual needs.

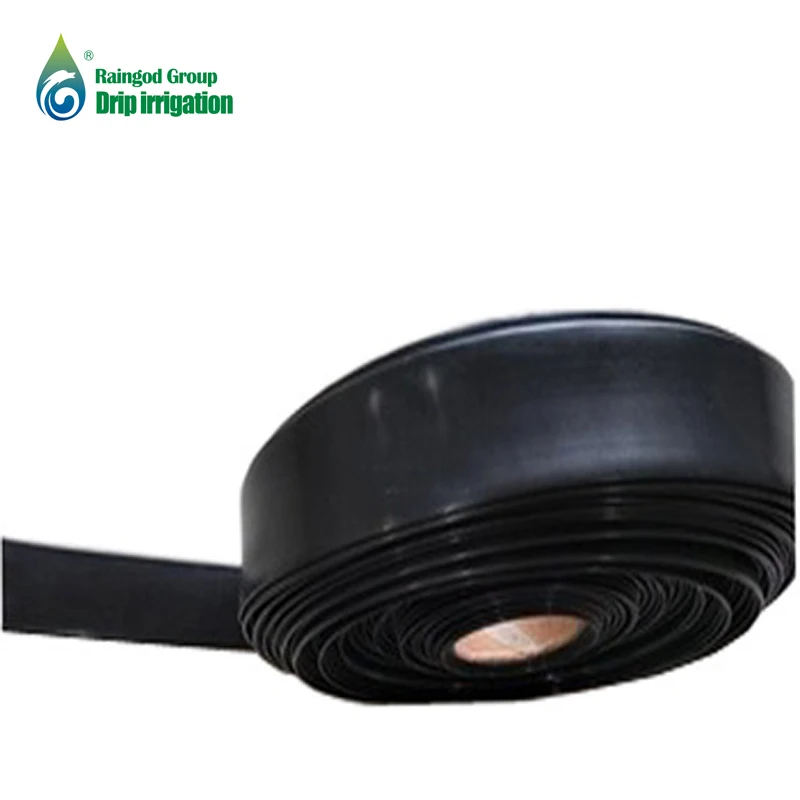

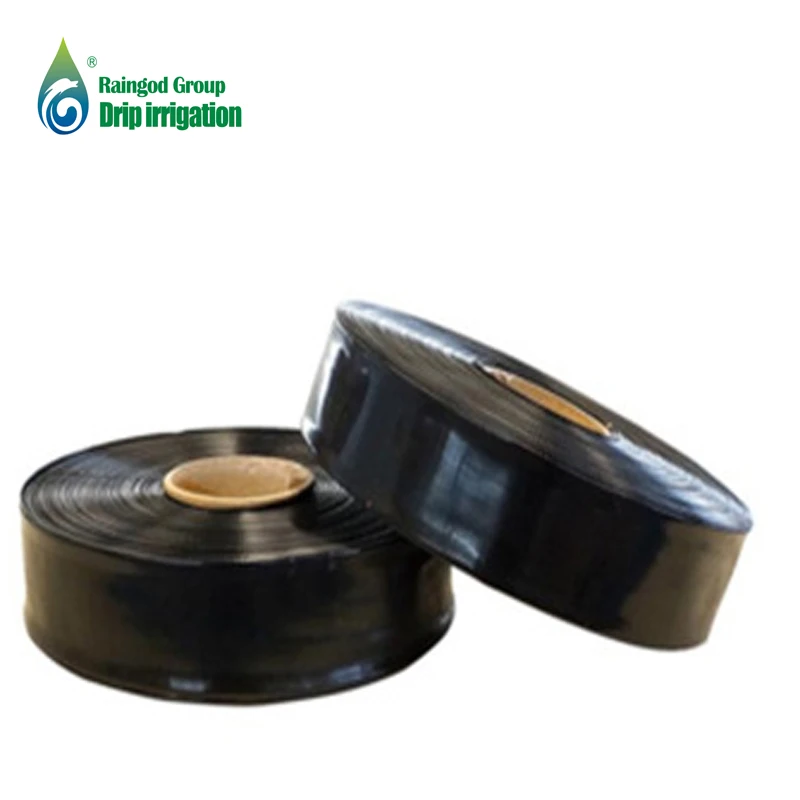

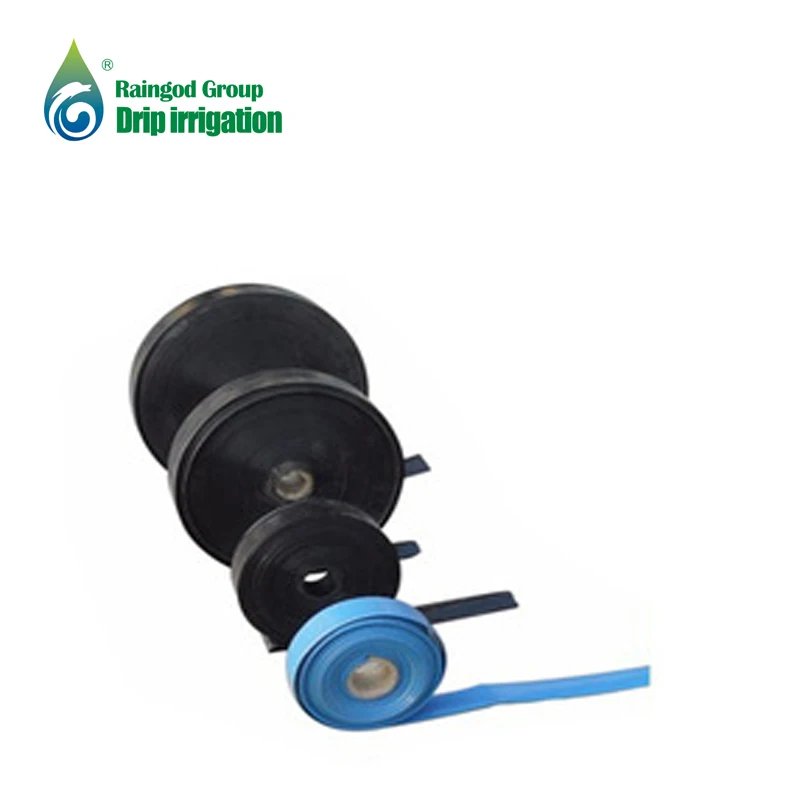

Package: 100-150-200 meters one roll.

The size can be made on customer demand.

(Click the picture to get more drip irrigation products)

1.Q: Are you manufacture or trade company?

A:We are manufacture specialized in drip irrigation more than 20 years; Our produces have CE and ISO certification.

 2.Q: How can I get the samples?
A:If you need some samples to test, we can make as per your request .You should pay for the transportation freight of samples and our samples cost, while the samples cost can be refundable after you place the order if the amount meets our requirement.

 3.Q:How much the transportation freight of samples?
A:The freight depends on the weight and packing size and your area.

 4.Q:How long can I expect to get the sample?
A:The samples will be ready for delivery within one week. The samples will be sent via express and arrive in 4-7 days.

 5.Q:Can we have our Logo or company name to be printed on your products or package?
A:Sure.Your Logo can be put on your products by Hot Stamping,Printing,Embossing,UV Coating,Silk-screen Printing or Sticker.

 6.Q:How to order?
A: Please send us your purchase order by Email or you can ask us to send you a proforma invoice for your order. We need to know the following information for your order.
   1) Product information-Quantity, Specification (Size, Material, Technological and Packing requirements etc.)
   2) Delivery time required.
   3) Shipping information-Company name, Street address, Phone &Fax number, Destination sea port.
   4) Forwarder's contact details if there's any in China.
