NG LPG patio heater with thermostat controlling system

Product Overview

Description

LPG NG patio heater with thermostat controlling

1.Specifications

Now based on IR catalytic techlonogy,we manufacture gas heaters for poultry house,greenhouse,workshop,warehouse,garage,exhibition hall and others

Model	N.W	Dimension	Gas Consumption			Heat Output
	kg	mm	NG	LPG	Biogas	kw/h	kcal/h
Automatic Electric Ignition Type Heater
THD6808	3.7	out cover 675*235*95 ceramic plate 500*68	0.39 m3/h	0.27 kg/h		3.9	3400

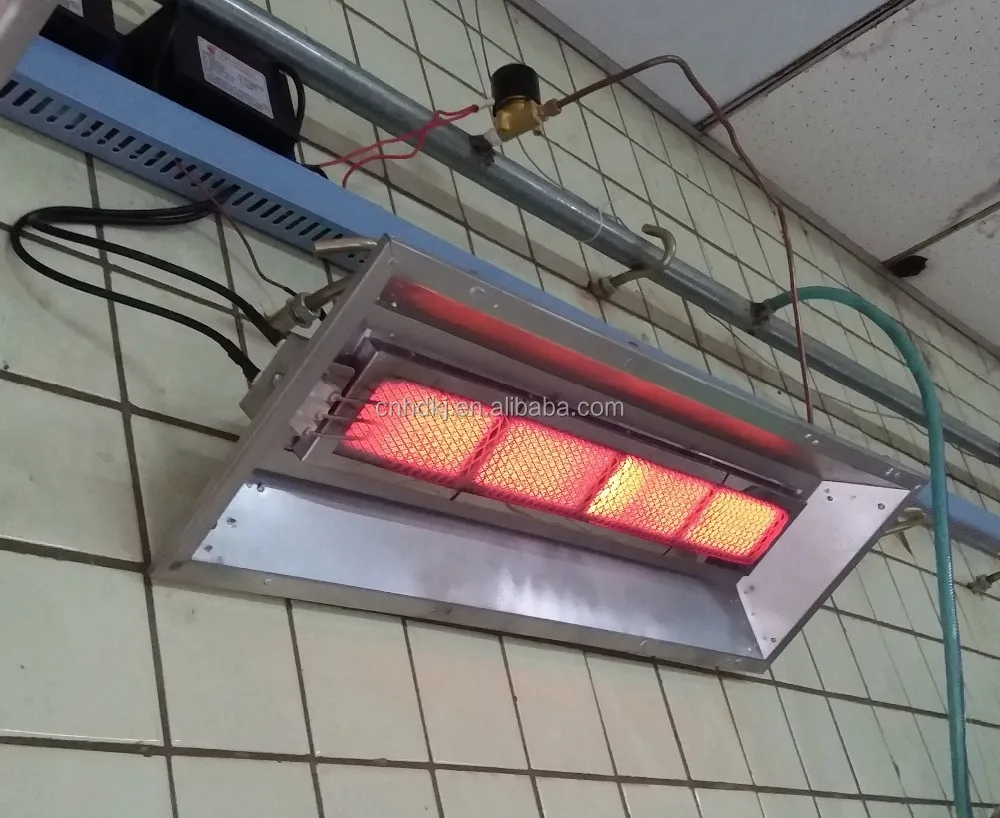

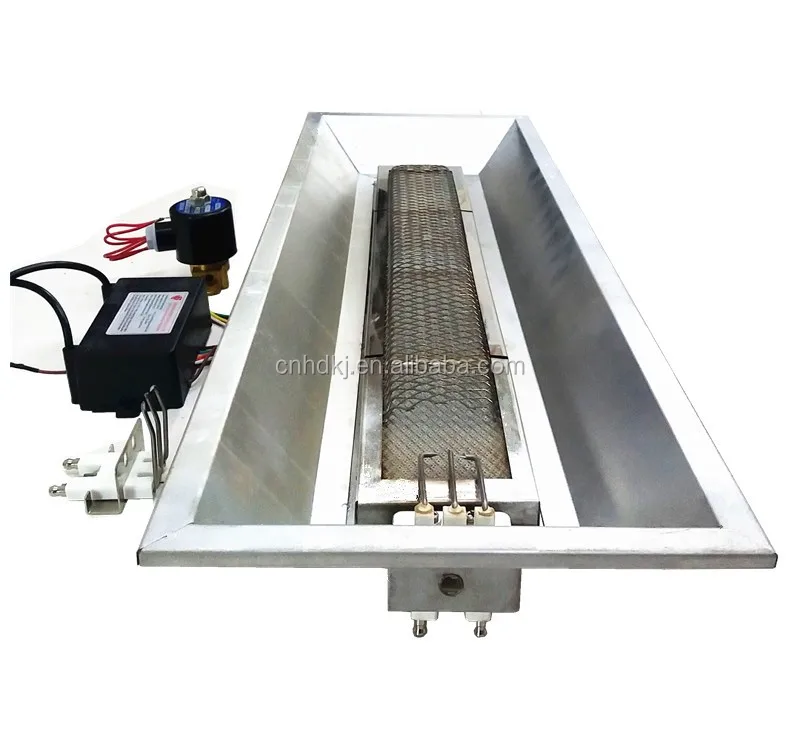

4).Detail photos:THD6808 automiatic electric ignition type.

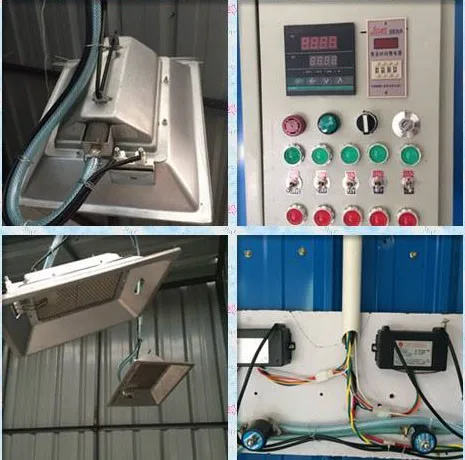

These Accessories fit for thermostat,to make it automatic woking.





2.Material

Shell:Heat resisting aluminized steel imported from Korea.

Inner ceramic plates:Cordierite honeycomb plate with catalytic coating(gray color).

Safe switch:automatic ignition stystem for HD6808.



3.Advantages

.Energy saving can be as high as 20% per year.

.Environment protection:CO≤80ppm,NOx≤10ppm,CHx≤50ppm.

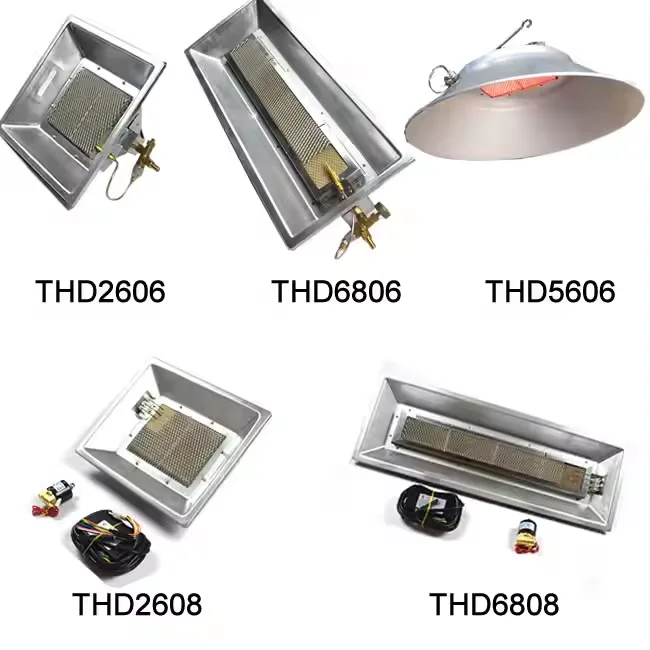

.THD2608/THD6808 could keep the room constant temperature automatically when use thermostat.

.It can cut off the gas automatic and protect the burner when the flameout.

.Easy to be clean and  fixed.

.long usefull time:≥11000 hours.

.Silent,light and compact when it is working.



4.Application

1).Commercial heating of sports hall,church,terrace,garage,exhibition hall,public building.

2).Industrial heating:industrial building,workshop,vehicle repair,warehouse.

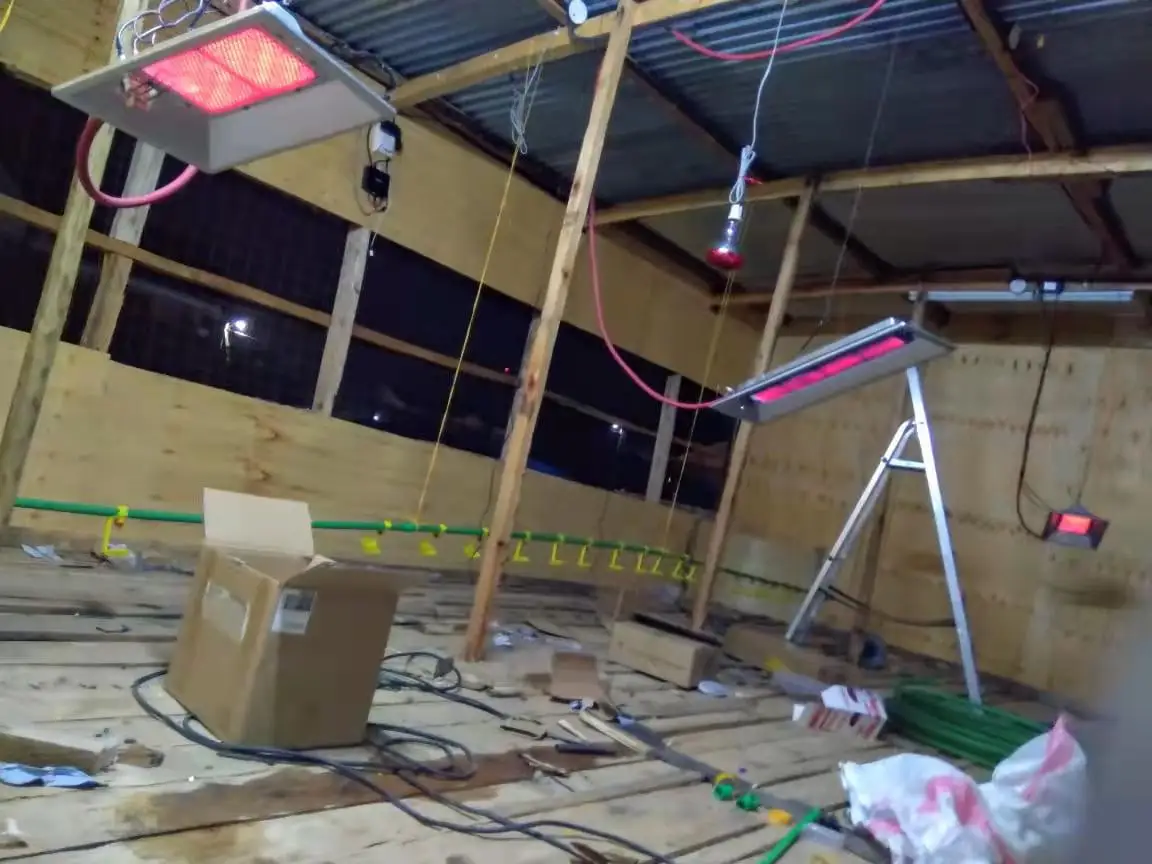

3).Poultry livestock heating:widely used in poultry heating,farrowing,nursery,grower-finisher,wean-to-finish,greenhouse etc.

5.Packing and delivery



 Please send us inquiry for more info and better price
