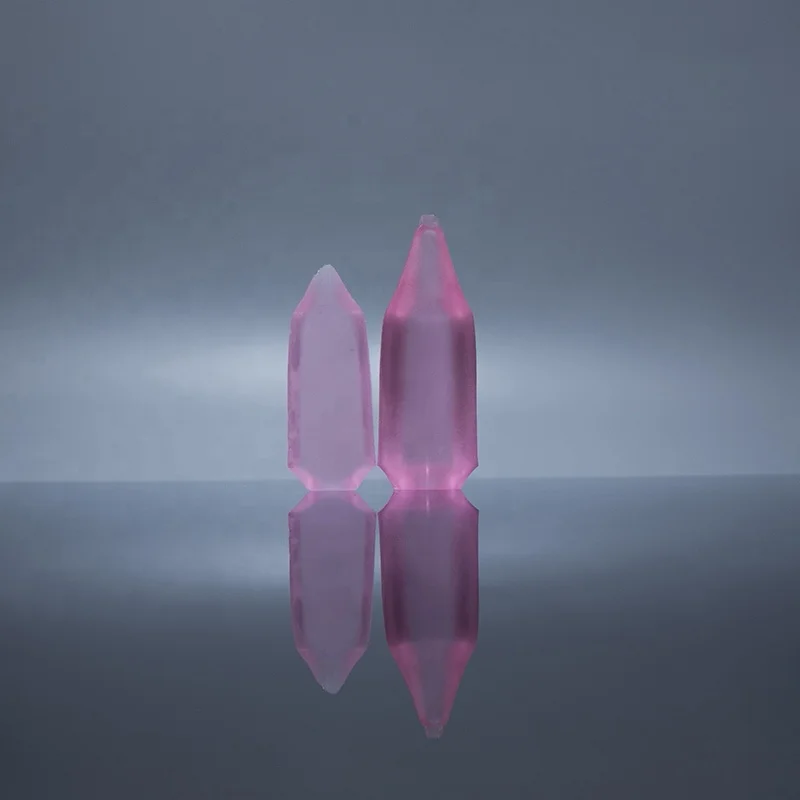

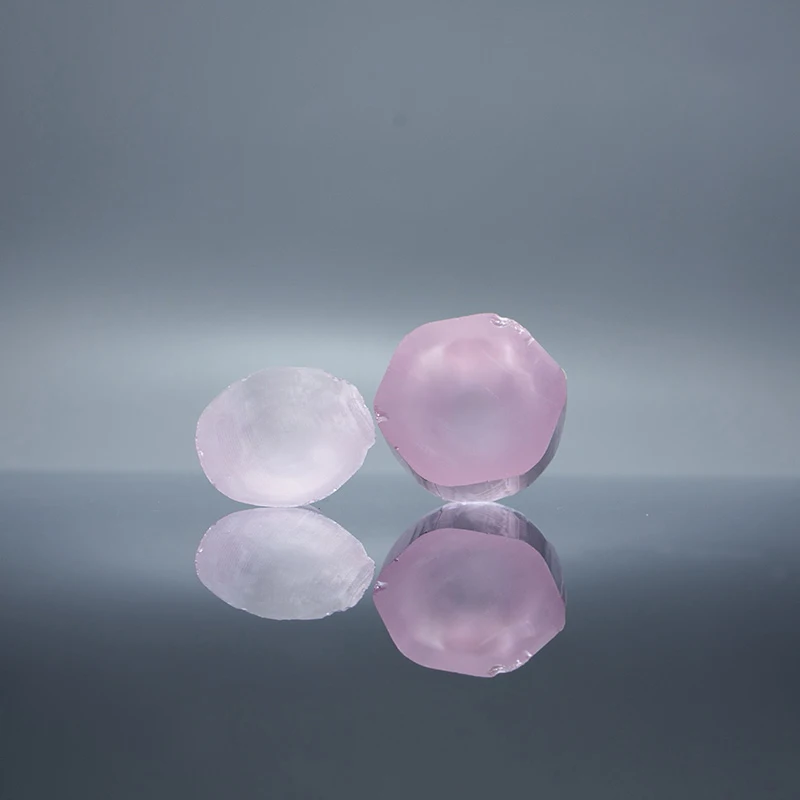

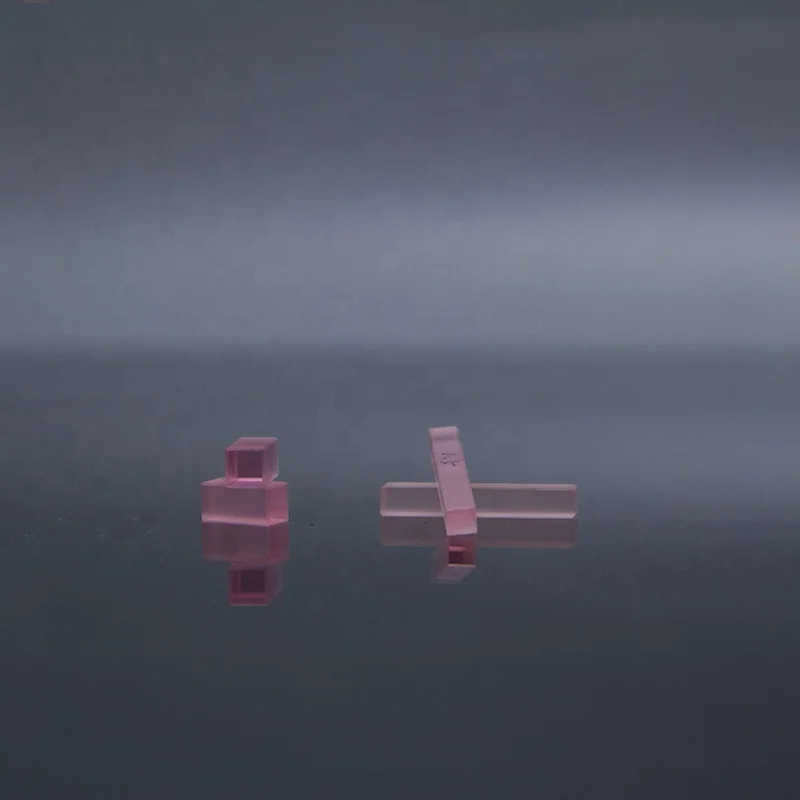

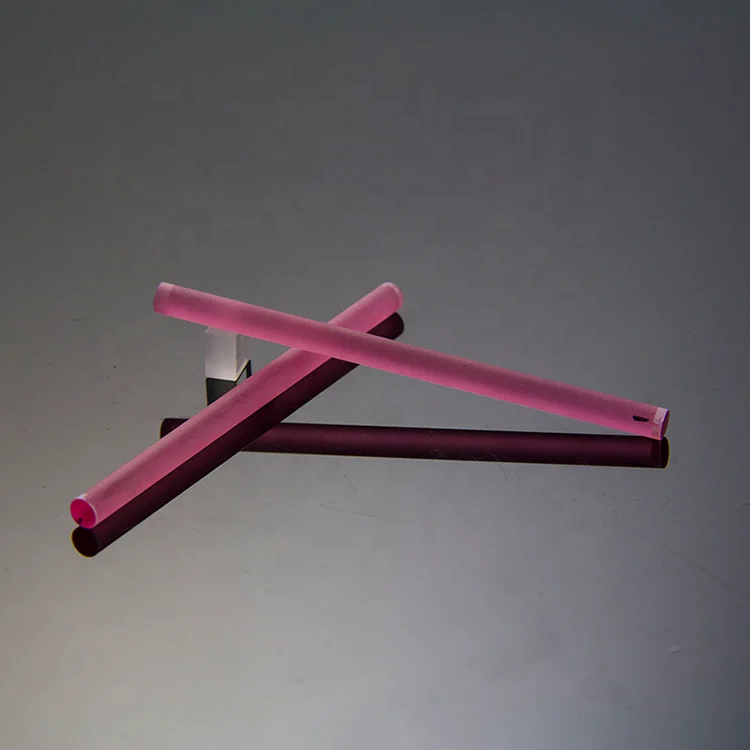

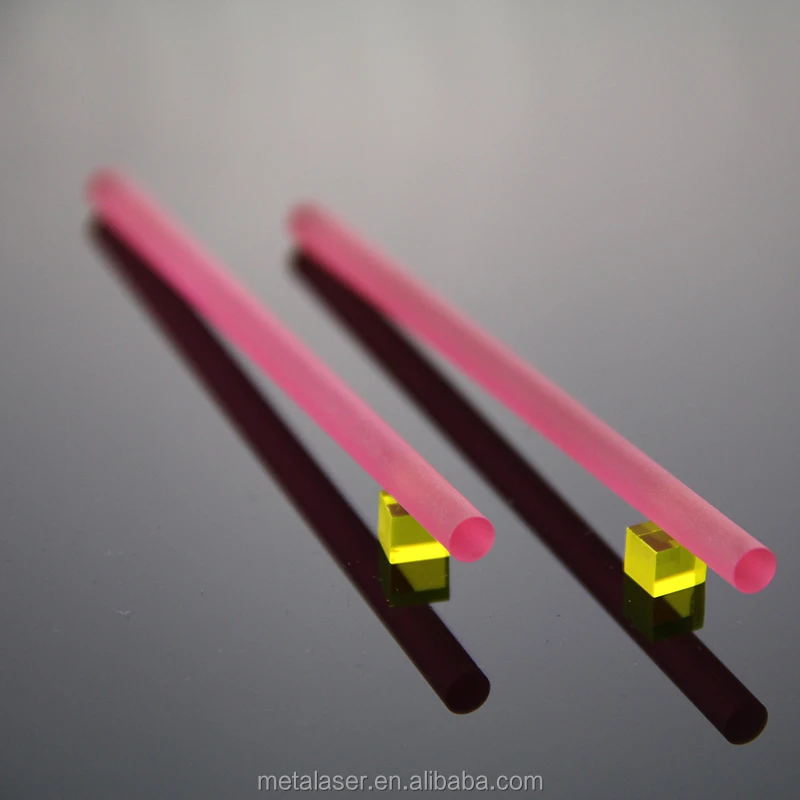

Chinese manufacture cheap price yag laser for spider veins Yttrium Aluminum Garnet rod

Product Overview

Description

Product Description

1. Various output wavelength


2. Highly doped Er:YAG(50%): used as laser medium for 2940 nm wavelength. Due to the strong water and human body fluid absorption at this wavelength, Er:YAG laser has a wide dental and medical applications.


3. Low doped Er:YAG(<1%): applied to 1600nm ‘eye-safe’ laser.


4. Excellent optical and mechanical properties


5. An ideal laser crystal with wide pump band of 600~800nm.

Features

1. Works in a relatively eye-safe wavelength region


2. Strongly absorbed by water, hydroxyapatite and human body fluid


3. Works well under room temperature


4. High slope efficiency


5. Good optical quality

Applicications

1. Medical laser systems


2. Skin disorder therapy, skin resurfacing


3. Hard tissue removal,


4. Blood sugar monitoring,


5. Orthopedics


6. Dental laser systems


7. Tooth enamel, Cosmetic surgery


8. Cutting bone and soft tissue, bone surgery


9. Cataract surgery

Chemical and physical properties

Property	Value
Chemical Formula	Er3+:Y3Al5O12
Crystal Structure	Cubic - la3d
Lattice Parameters	12.01Å
Density	4.56-5.11 g/cm3
Melting Point	1950°C
Refractive Index	1.7838@2940 nm
Thermal Conductivity /(W·cm-1·K-1@25°C)	0.14
Specific Heat/ (J·g-1·K-1)	0.59
Thermal Expansion /(10-6 /°C@25°C )	7.8
Hardness (Mohs)	8.5
Young`s Modulus /GPa	317
Shear Modulus / GPa	54.66
Extinction Ratio / dB	30
Orientation	[100] or [111] < ±0.5°
Poisson Ratio	0.25



Polishing Specification





Property	Value
Orientation Tolerance	< 0.5°
Thickness/Diameter Tolerance	±0.05 mm
Surface Flatness	<λ/8@632 nm
Wavefront Distortion	<λ/4@632 nm
Surface Quality	10/5
Parallel	30sec
Perpendicular	10min
Clear Aperture	>90%
Chamfer	<0.1×45°
