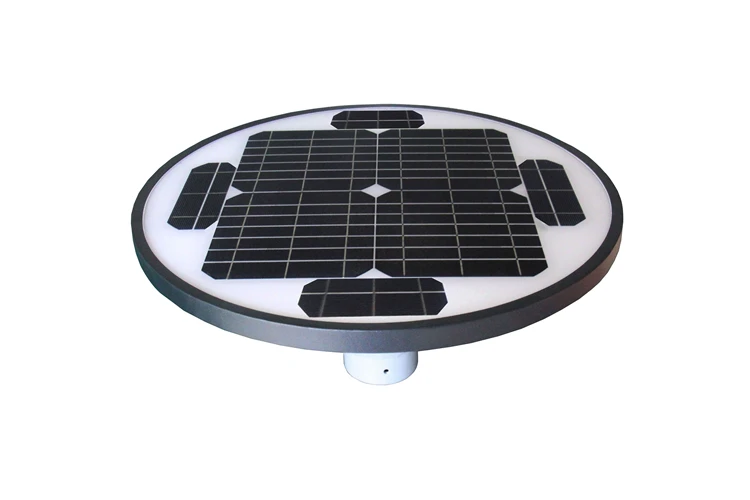

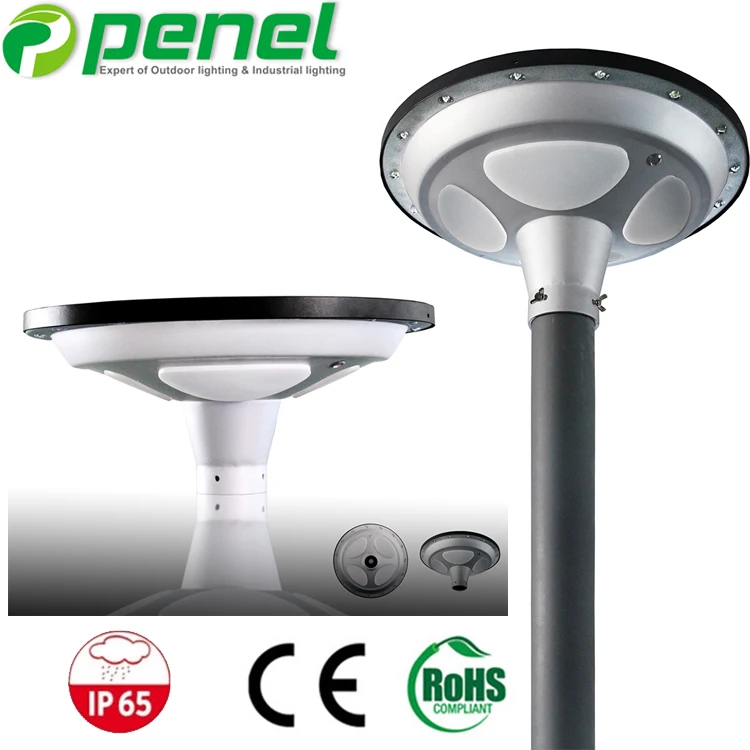

15W UFO All In One Integrated Solar Led Street Light Time Control 1500LM CE RoHS Certificate For Garden Courtyards

Product Overview

Description

Features

1. Wireless and Integrated Design, no cable, easy installation and maintenance;
2. Multi installation way, lamp pole can be lodal materials, leke wall, iron column, tree trunk, bamboo, etc
3. Used of long life and high capacity lithium iron phosphate battery with theoretical service life 5-8 years, working well in 70℃ environment, long service life, ensure the service life od the entire product.
4. Only use A battery core for all of our products. Battery is the key material for solar street lights.
5. Our standard configration design can make sure lamps working normally during 3 continous raining days. Normal working time: 10-12 hours each night.
6. All models are with light-sensor: Lamp turn ON automatically in night, and turn OFF automatically in daylight.

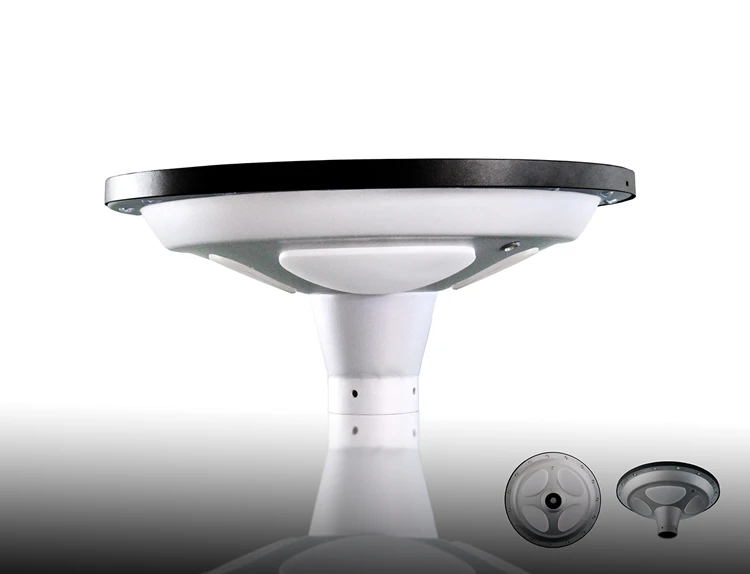

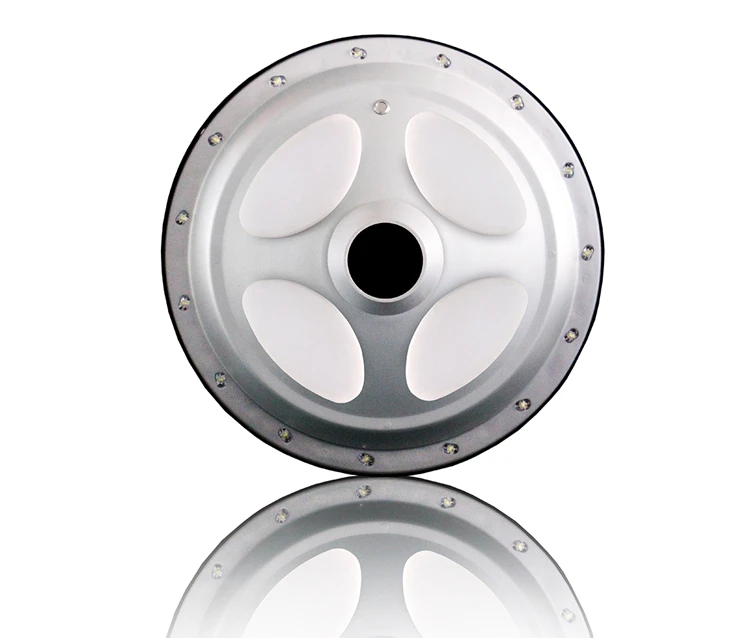

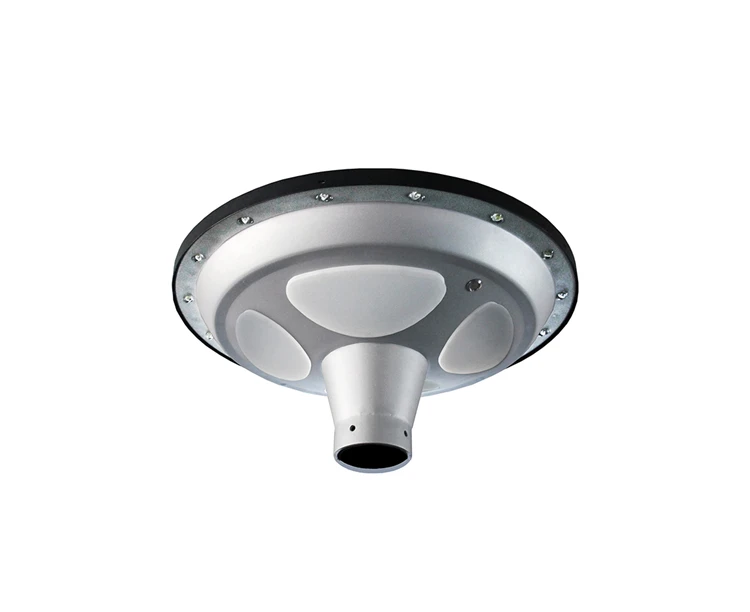

Product Image





Specification

LED (Light source): 9V 15W
Chips Brand: From USA
Solar Panel: 18V 25W, conversion efficiency 17%
Cell Brand: From Germany,
Battery Type: Lithium iron phosphate battery 12V 9AH

Color Temperature: usually 6000-6500K (Can do 3000K/4000K)
Luminous Flux :1500-1650LM

With Photoswitch: Lamp turn ON automatically in night, and turn OFF automatically in daylight
With Time Control Function:Our default setting : In night ,since starting work,30% brightness in the 1st hr, 100% brightness in the next 3 hrs, then 70% brightness in the next 2 hrs,  then 30% brightness in the rest hrs.(Customer can customize the setting)

Install Height: 4-5M
Material: Aluminum
IP Rating : IP65

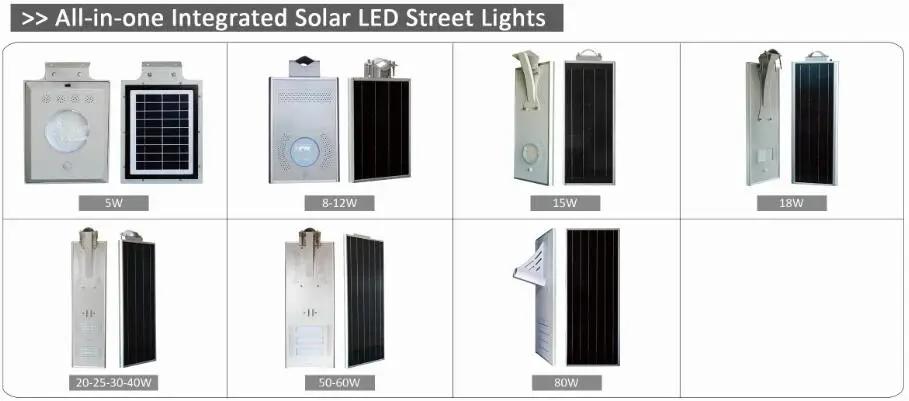

More Models

Model No.	Light Source	Colar Temperature	Lumen Efficiency	Solar Panel	Battery Capacity	Install Height	Product Size(mm)
STT-03-5W	7V 5W	3000K 4000K 6000K	About 100LM/W	9V 6W	12.8V 4.4AH	2-3m	330*243*35
STT-03-8W	12V 8W			18V 18W	12.8V 6AH	3-4m	505*325*70
STT-03-12W	12V 12W			18V 20W	12.8V 6AH	3-4m	505*325*70
STT-03-15W	12V 15W			18V 30W	12.8V 10AH	4-5m	730*325*44
STT-03-18W	12V 18W			18V 40W	12.8V 15AH	5-6m	920*295*44
STT-03-20W	12V 20W			18V 50W	12.8V 18AH	5-6m	1136*295*44
STT-03-25W	12V 25W			18V 50W	12.8V 21AH	6-7m	1136*295*44
STT-03-30W	12V 30W			18V 60W	12.8V 21AH	6-7m	1136*295*44
STT-03-40W	12V 40W			18V 60W	12.8V 24AH	6-7m	1136*295*44
STT-03-50W	12V 50W			18V 80W	12.8V 36AH	7-8m	1136*420*44
STT-03-60W	12V 60W			18V 90W	12.8V 42AH	7-8m	1136*420*44
STT-03-80W	12V 80W			18V 110W	12.8V 48AH	10m	1469*420*395



Package

Application

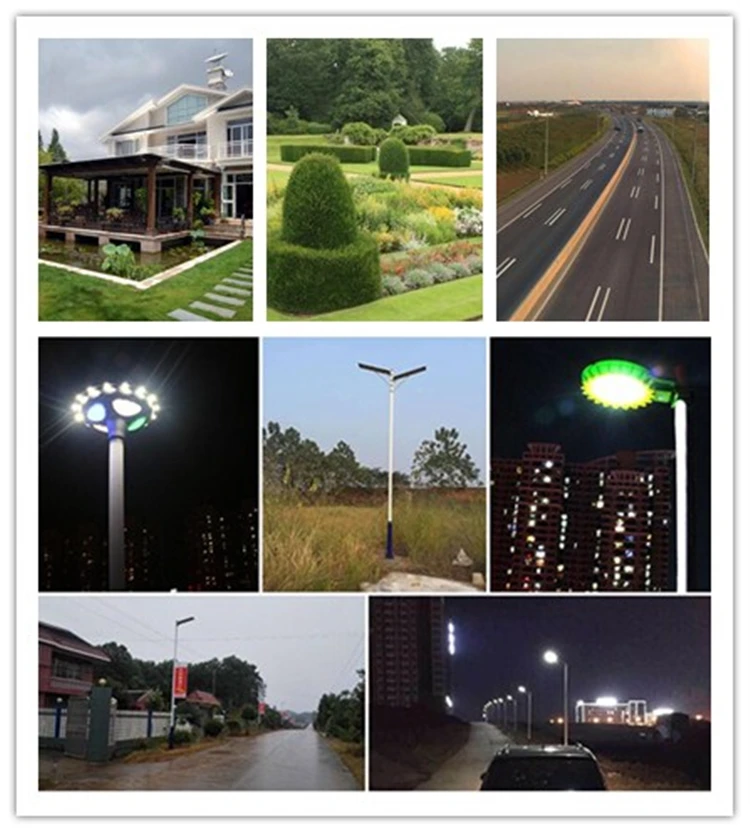

Solar led street lights are widely used around the world of highways, streets, courtyards, parks, scenic spots, outdoor parking lot, etc.

Payment Terms

1. Payment term: T/T 30% deposit after order confirmed, the balance after goods ready before shipping . or L/C , or Western Union for small amount .
2. Lead time : normally in 5~10 days after deposit received
3. Sample policy : Samples are always availble for each model . Samples can be ready in 3days once payment received .
4. Shipping port: Shenzhen , China
5. Discounts : We offer discount for big quantity .

Shipping

We ship led driver by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive , or by sea which takes about one month to arrive , depending on your actual requirements.
