Product Overview
Description

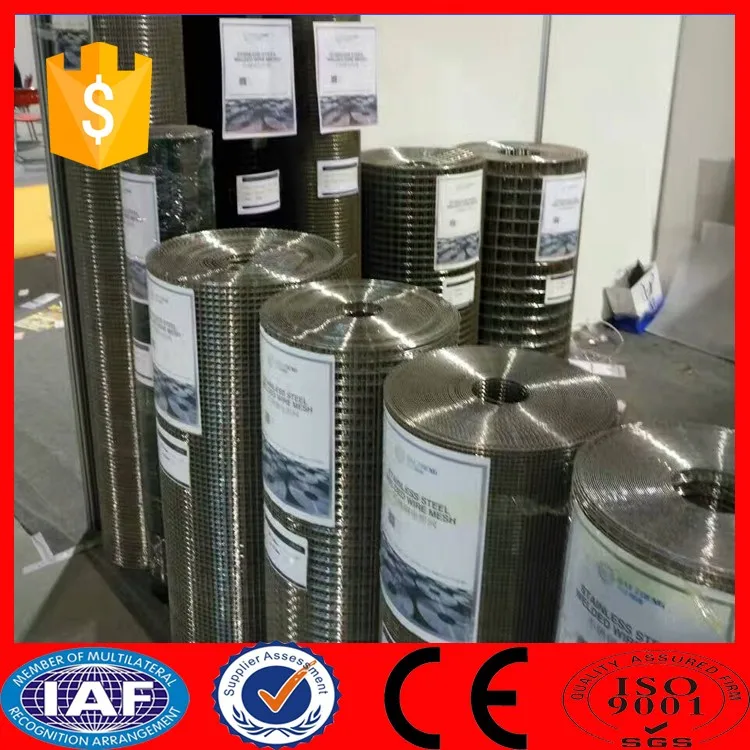

Different types of wire mesh 10 gauge galvanized welded wire mesh from real factory
Product Description

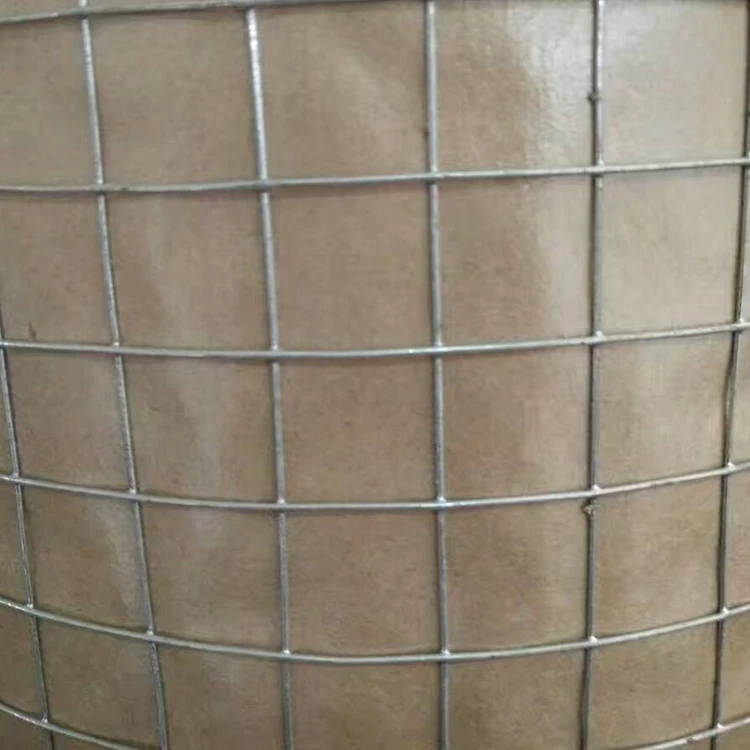

1) Material about welded wire mesh
Electro galvanized wire, hot-dipped galvanized.
We choose the best low carbon wire or stainless steel wire material available in China.
The high quality & reasonable price product is from the right material.
[Electro galvanized]
Electro galvanizing, uniform coating and thin thickness. Coating are usually only 3-15 microns with bright appearance. Common electro galvanized wire on zinc amount is 8-13 g/m².
[Hot-dipped galvanized]
Hot-dipped galvanized, coated thickness and nonuniform coating. Coating are usually 45-300 microns with darker color and good corrosion resistance. Hot-dip galvanized wire amout of zinc: 30-60 g/m²
2) Welding Type
Electro galvanized before welded wire mesh
Electro galvanized after welded wire mesh
Hot-dipped galvanized before welded wire mesh
Hot-dipped galvanized after welded wire mesh
Iron/galvanized wire+pvc coated
Stainless steel 304,316 wire

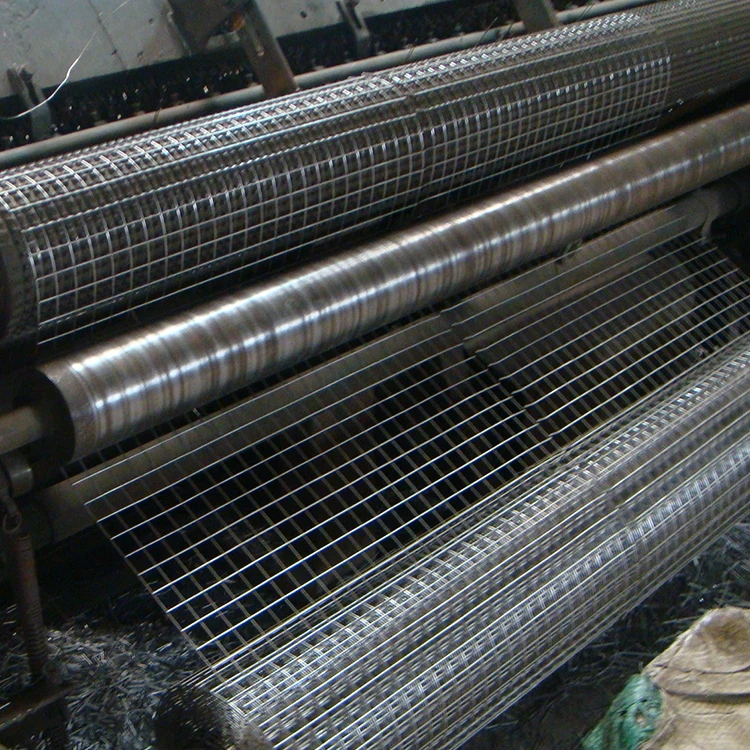

3) production
Our automatic welding machines can set up any mesh sizes in the market, no matter it's standard type or special requirement;
The fully digital controlled techniques and well-trained staff can ensure the even mesh size and the accurate dimensions of panels.
4) specification

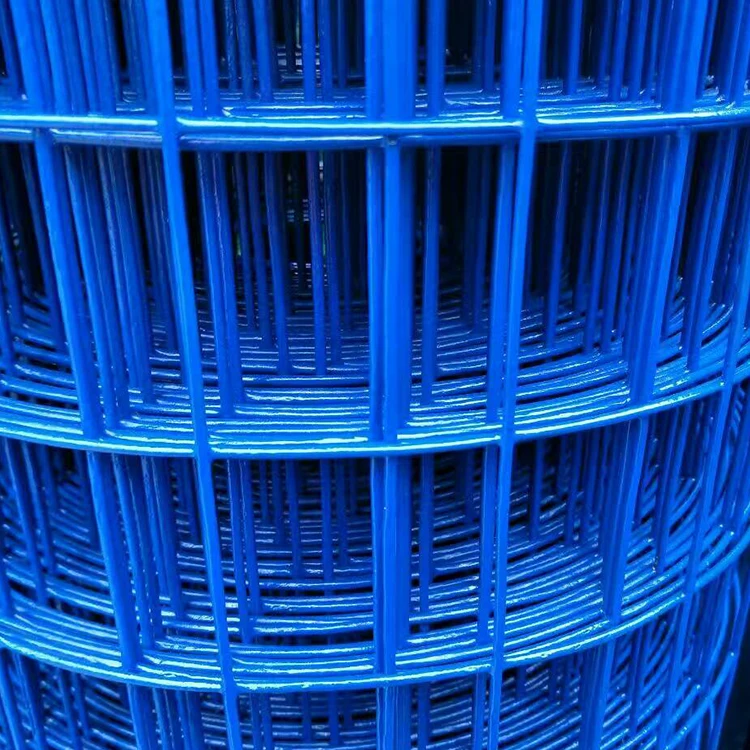

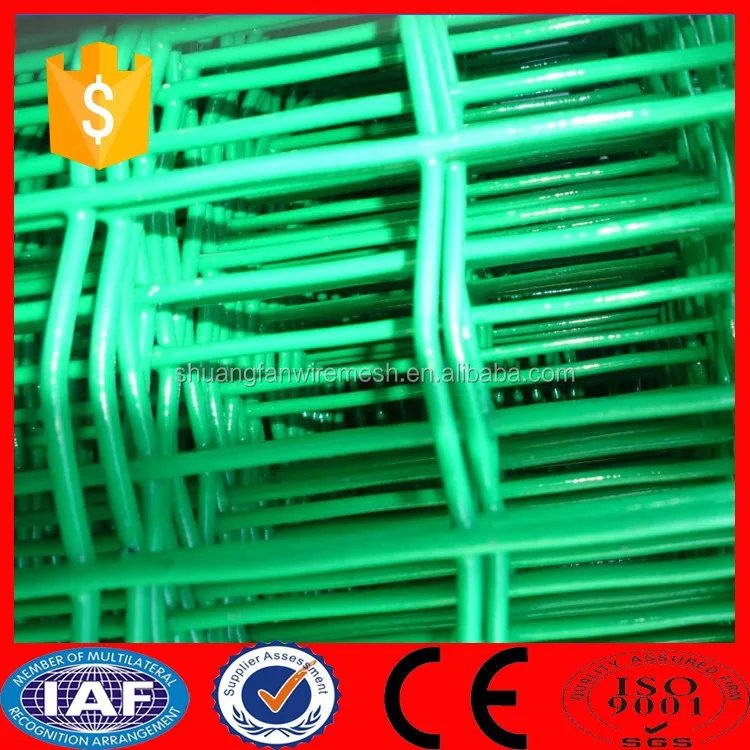

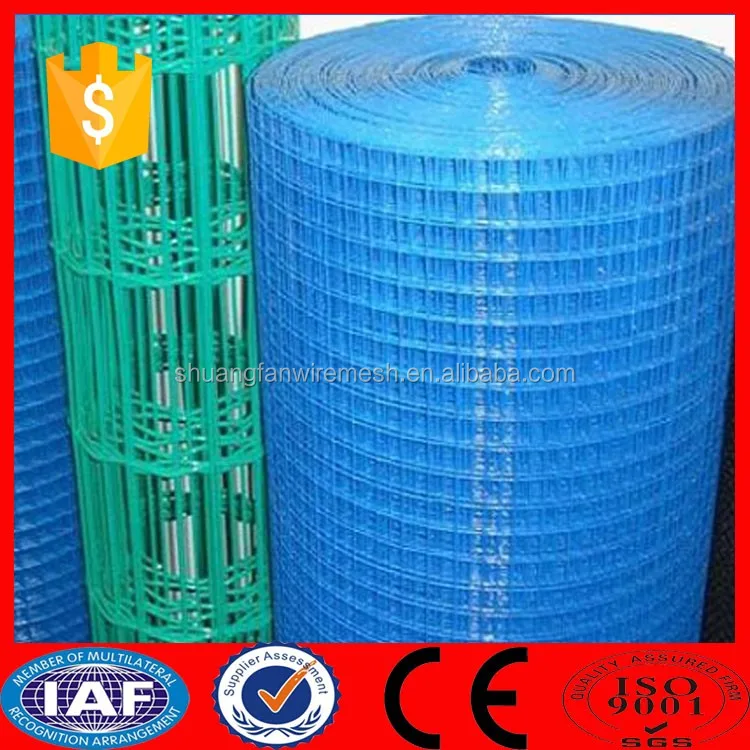

| PVC Coated Welded Mesh | ||
| Opening | Wire Diameter | |
| In inch | In metric unit(mm) | |
| 1/2'' × 1/2'' | 12.7mm ×12.7mm | 16,17,18,19,20,21 |
| 3/4'' × 3/4'' | 19mm × 19mm | 16,17,18,19,20,21 |
| 1'' × 1'' | 25.4mm × 25.4mm | 15,16,17,18,19,20 |
Technical Note: 1.Standard roll length: 30m, width:0.5m to 1.2m 2.Special sizes availabe at request 3.Packing:In waterproot paper in rolls. Custom packing available at request. | ||
| Specification List of Welded Wire Mesh | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
| Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. | ||

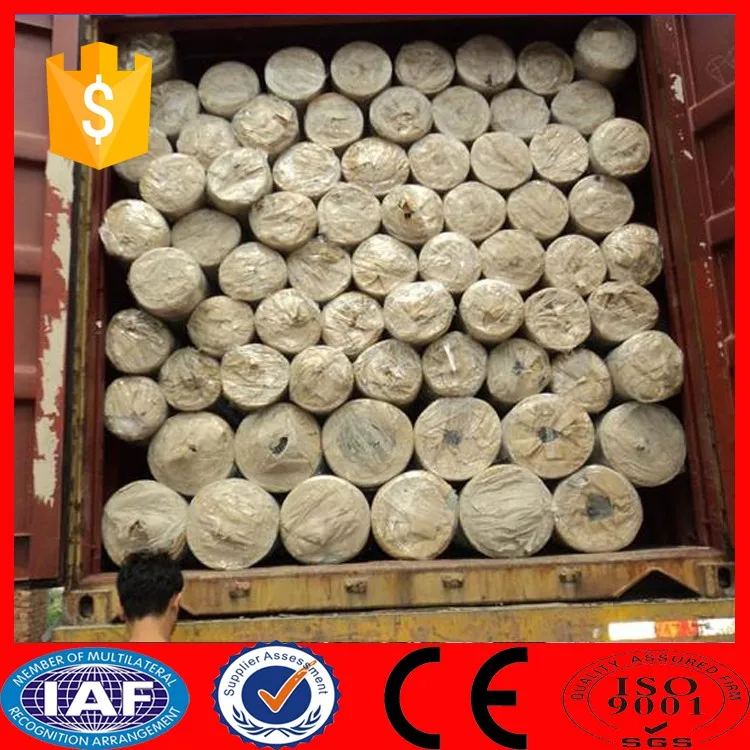

5)Package
In waterproof paper in rolls,custom packing available at request.

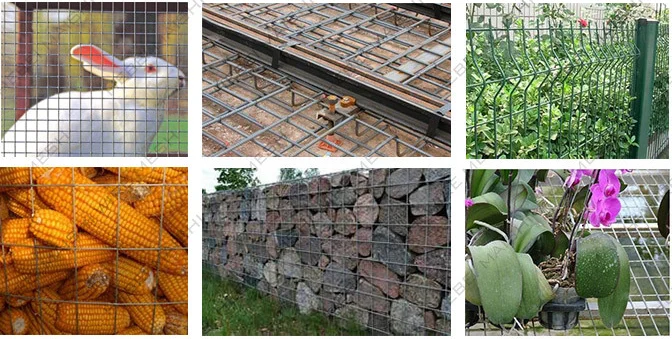

Application
1.Guarding
2.Railings
3.Architectural
4. Ceiling Tiles
5.Partition Systems
6. Farm
6 x 6mm hole - Mouse protection
13 x 13mm hole - Fruit cages, bird protection, engineering uses
13 x 25mm hole - Bird protection, enclosures for small animals
20 x 20mm hole - Rat and squirrel protection
25 x 25mm hole - Fox protection, cat and dog enclosures
50 x 50mm hole - Fox protection, dog enclosures
