Product Overview
Description

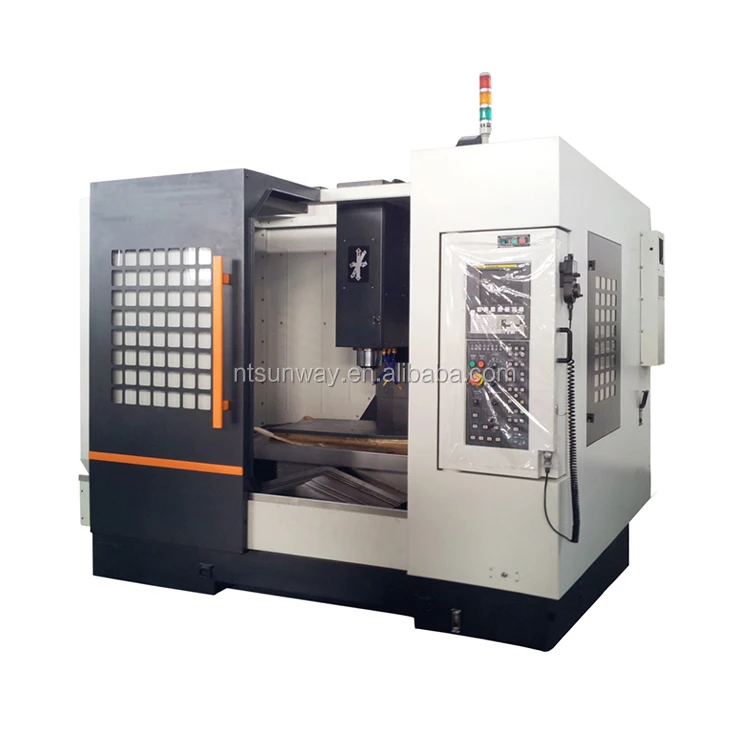

VMC-850 Cheap China factory price directly sale cnc vertical machining center
Machine Description
|
Unit |
VMC850(line rail) |
|
|
Worktable |
||
|
Worktable(length×width) |
mm |
1050×500 |
|
Maximum load of table |
kg |
650 |
|
T-slot(number of slot × slot width × pitch) |
mm |
5-18×80 |
|
Triaxial itinerary |
||
|
Travel for X/Y/Z axes |
mm |
800/500/600 |
|
Distance from spindle nose to table surface |
mm |
150-750 |
|
Distance from spindle center to column guide surface |
mm |
620 |
|
Feed system |
||
|
CNC system |
|
FANUC-Oi MD |
|
Rapid shift of axes of X/Y/Z |
m/min |
30/30/20 |
|
Maximum cutting feed speed |
m/min |
12 |
|
Automatic tool transform system(CNC milling without) |
||
|
Standard tool quantity |
bundle |
Disc type 24 |
|
The largest diameter cutter knife/length |
mm |
Φ80 Tool/300 |
|
Tool exchanging manner |
|
Air-operated |
|
Average tool exchanging time |
sec |
Disc type: 2.5s |
|
Precision |
||
|
Positioning accuracy |
mm |
0.008 |
|
Accuracy of repeated positioning |
Mm |
0.005 |
|
Spindle system |
||
|
Spindle speed |
r.p.m |
8000 |
|
Spindle specifications(model/installation diameter) |
|
BT40/150 |
|
Drive manner of spindle |
|
Belt drive |
|
Motor power of spindle |
kw |
11/15 |
|
Air pressure |
||
|
Requirements for air compressing |
Kg/cm² |
≥6 |
|
Air pressure flux |
m³/min |
≥0.3 |
|
Machine specifications |
||
|
Integrated weight(kg) |
kg |
5000 |
|
Overall dimension(weight×width×height) |
mm |
2700×2300×2600 |
Machine Introduction

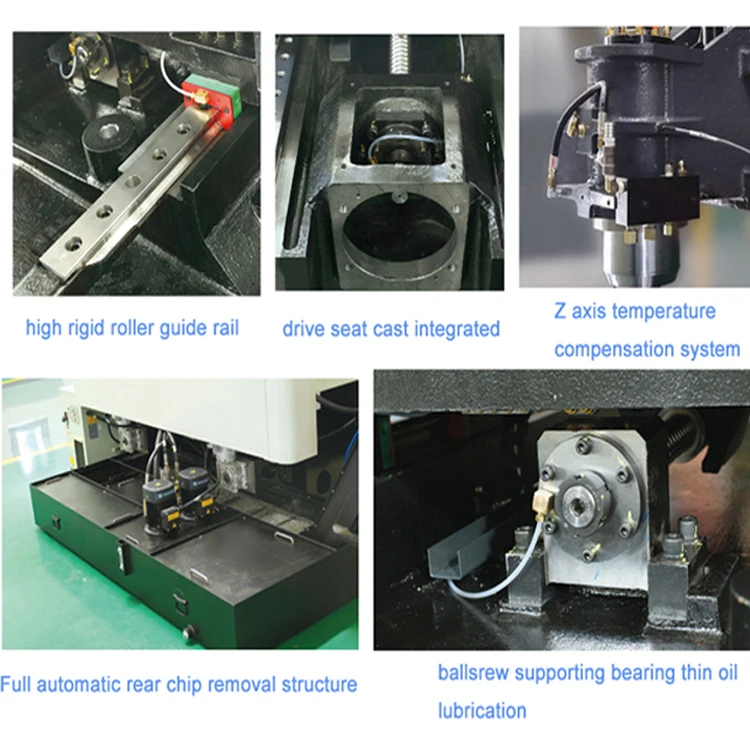

1. For line rail type vertical machining center,the guide rails of machine tool are from HIWIN or PMI. Machine base is box type design, coordinate with large span stand column, it is more wider 40% than other same type machine tool, the design is conform to mechanics principle.
2. Use C3 grade high precision ball screw and pre-pull treatment bearing to ensured the rigidity and precision.
3. The casting of machine tool which exported to DMG is high-grade, high quality gray casting iron with aging treatment, ensure the precision and lengthen the working life of machine tool.
* Use Japan Mitsubishi,Fanuc or other international brand control system
* Use Taiwan Royal or Puson Spindle
* Use Taiwan Hiwin or PMI guide rail and ballscrew, Japan NSK or NARCH bearing to ensure the precision of machine tool
* Use Taiwan Deta 24 arm type tool changer
The forth axis and Chip conveyor, Renishaw tool guage are optional
Company Information
Our company is established in 2000year,located in Zhaxi Industry Park,Nantong,Jiangsu.We are the professional manufacturer of vertical machining center,cnc gantry milling machine,cnc engraving and milling,electrical discharge machine and so on.Our machines have been exported to Europe,America,Southeast Asia,Korea and many foreign countries.We also supply our machines to famous companies in our country such as Haier,Midea group(Handan,Wuhan the major industry group and others,all use our machines,and our machine is one of reserved brand in tender,another brand is JDPaint).we also are the OEM manufacturer of some companies in Hongkong,Taiwan and other famous companies in our country.
Our Services
Custom first,Quality first is our company development direction. We make use of our powerful research and development ability to help customers to design special purpose machine tool in low price,englarge range of products,and improve the use efficiency of customers.
