1400 degree box type muffle kiln, sintering ceramic kiln, heat treatment sintering pottery kiln
- Category: >>>
- Supplier: Nanyang Dadi Electric Equipment Co. Ltd.
Share on (60674274705):
Product Overview
Description
1400 degree box type muffle kiln, sintering ceramic kiln, heat treatment sintering pottery kiln
High purity fibrous alumina insulation for maximum energy saving 60-80% less power consumption than other old style.
Heavy duty double layer structure with cooling fan to keep furnace exteriors safe to touch.
Double temperature controller to ensure furnace never over-shoot in any accident.
Product Description
Muffle furnace Structure:
High purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency.
Doble layer sreel case with forced air cooling to ensure lower saferface temperature.
One optional venting port is built on the top of furnace,need at extra cost.
1400 degree Muffle furnace Selection table:
Model No. | Door open | Max. Temp (.C) | Internal size (mm) | Volume (L) | Max. Power (kw) | Power supply | Thermocouple | Heat-up time(mins) | ||
| D | W | H | ||||||||
| SX2-2-14TP | Side | 1400 | 100 | 100 | 100 | 1 | 2 | 220v | S type | 50 |
| SX2-4-14TP | Side | 1400 | 200 | 150 | 150 | 4.5 | 4 | 220V | S type | 50 |
| SX2-9-14TP | Side | 1400 | 300 | 200 | 200 | 12 | 9 | 380V | S type | 50 |
| SX2-16-14TP | Side | 1400 | 400 | 300 | 300 | 36 | 16 | 380V | S type | 50 |
Continuous operation temperature is 100.C below Max. temperature. Get One Offer (Click here) | ||||||||||

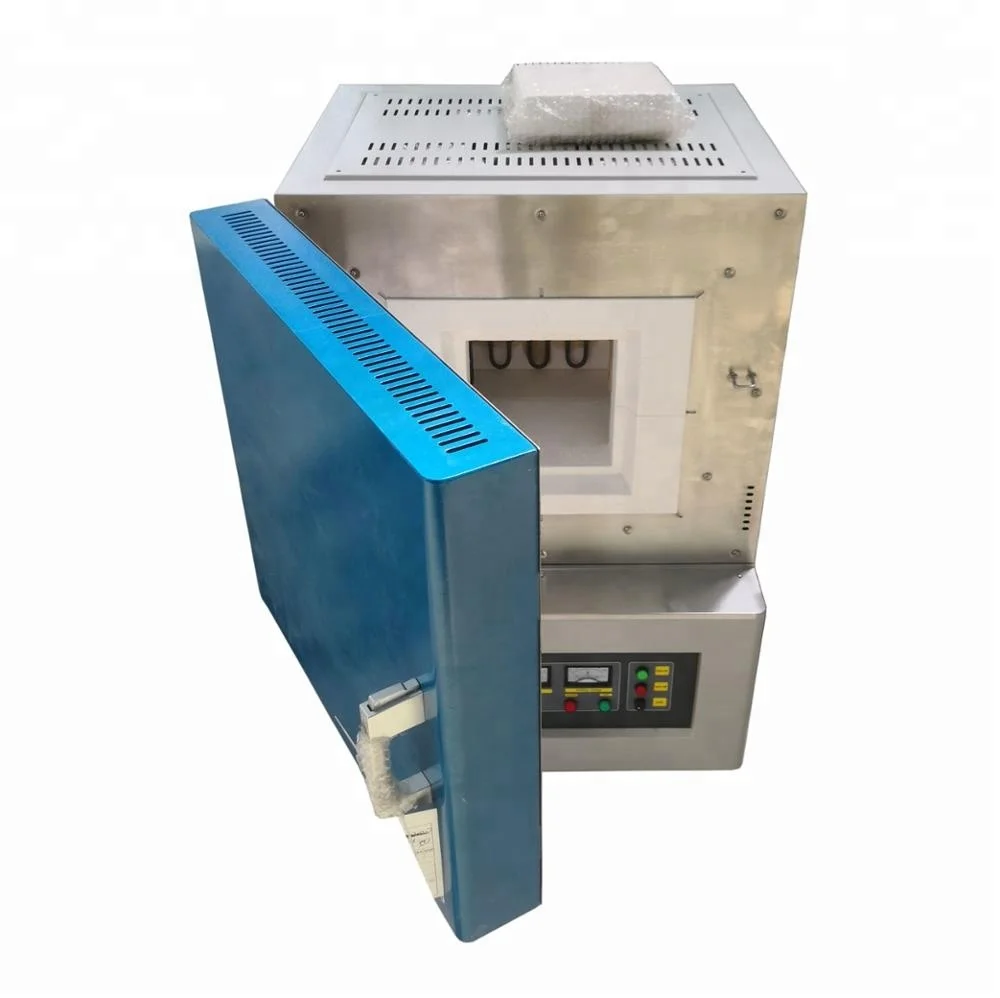

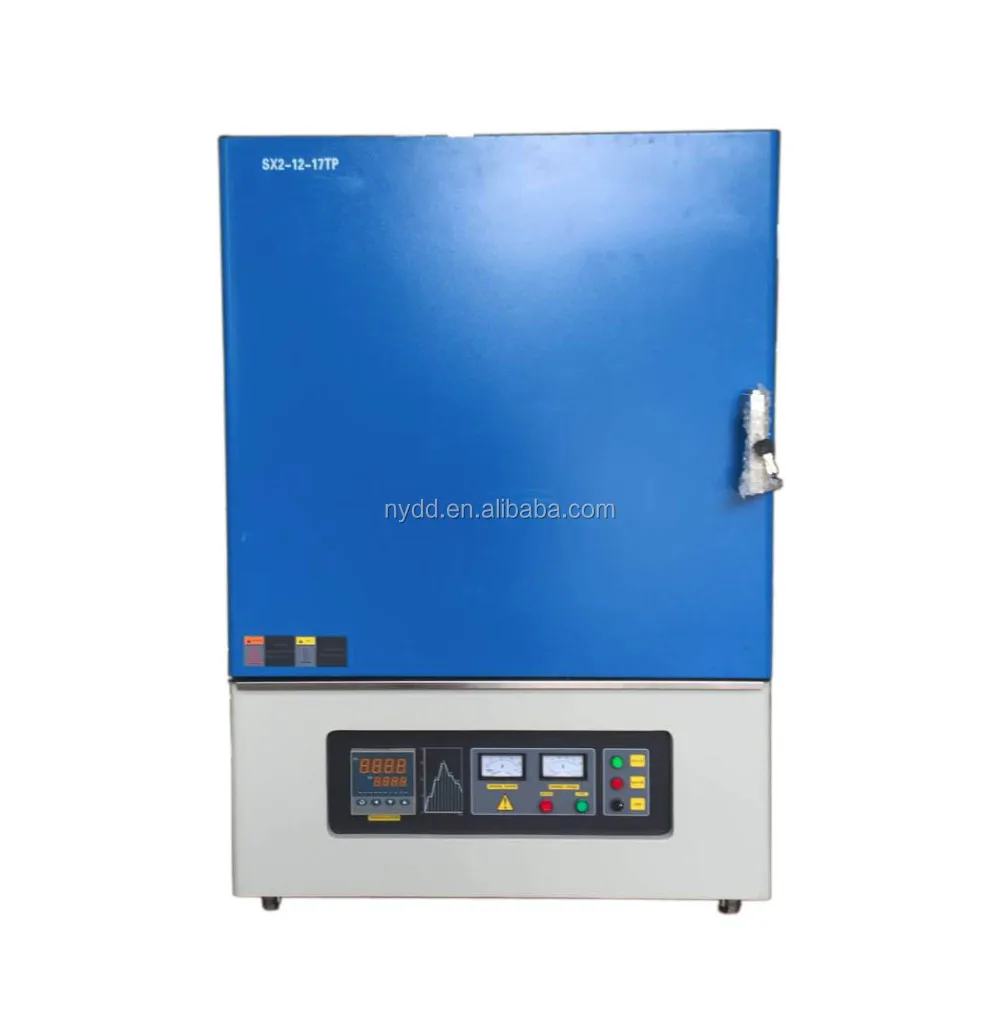

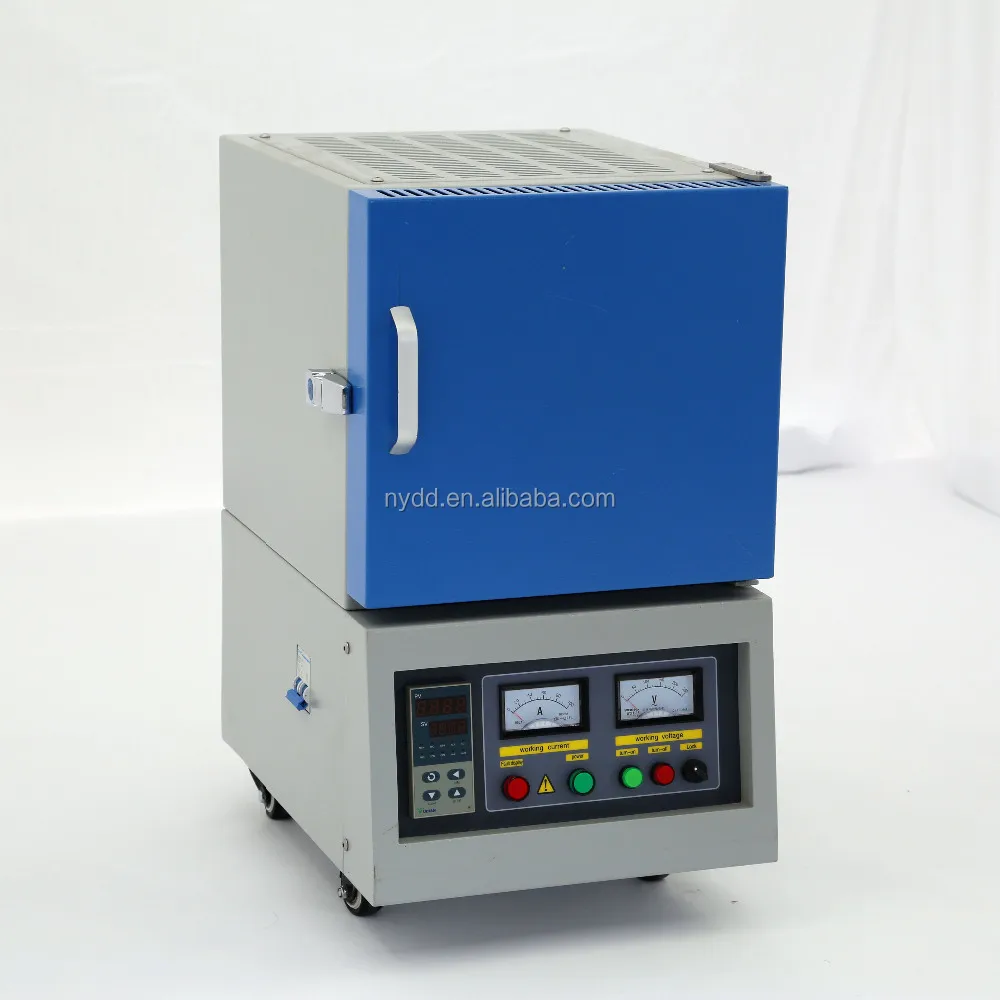

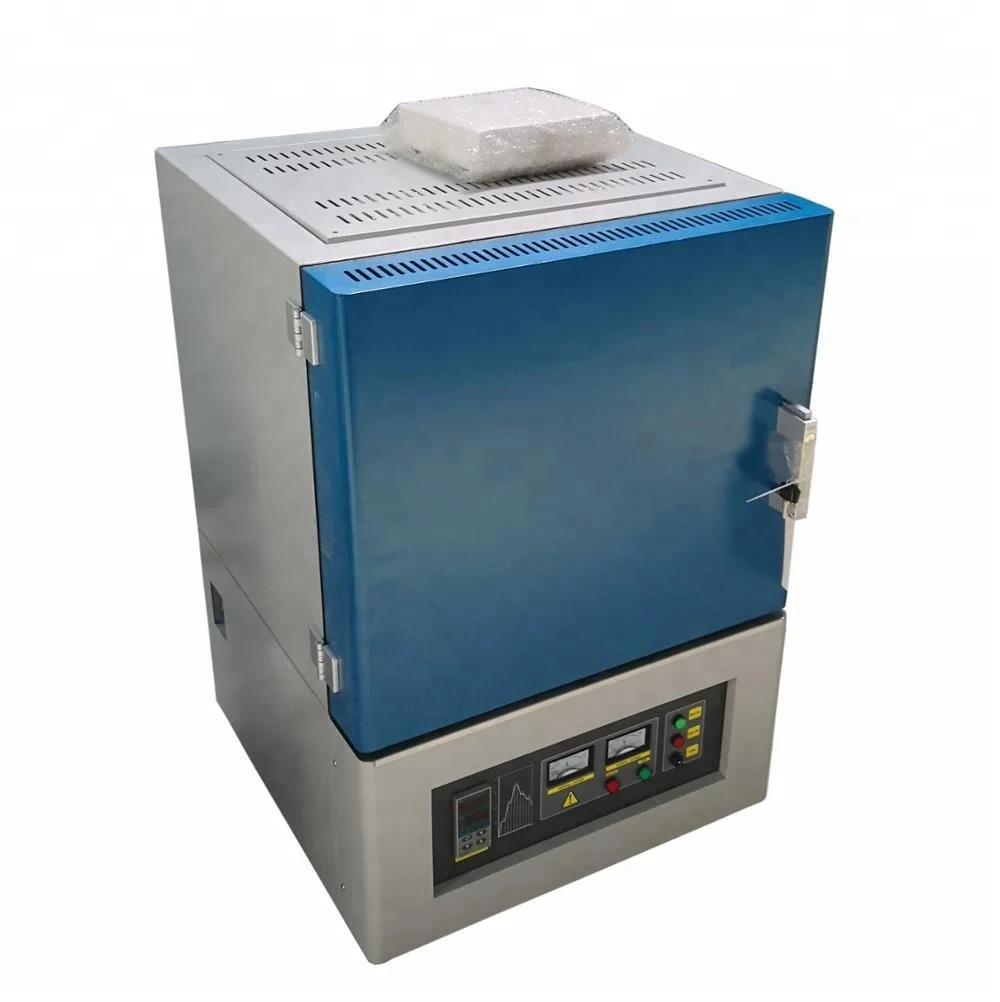

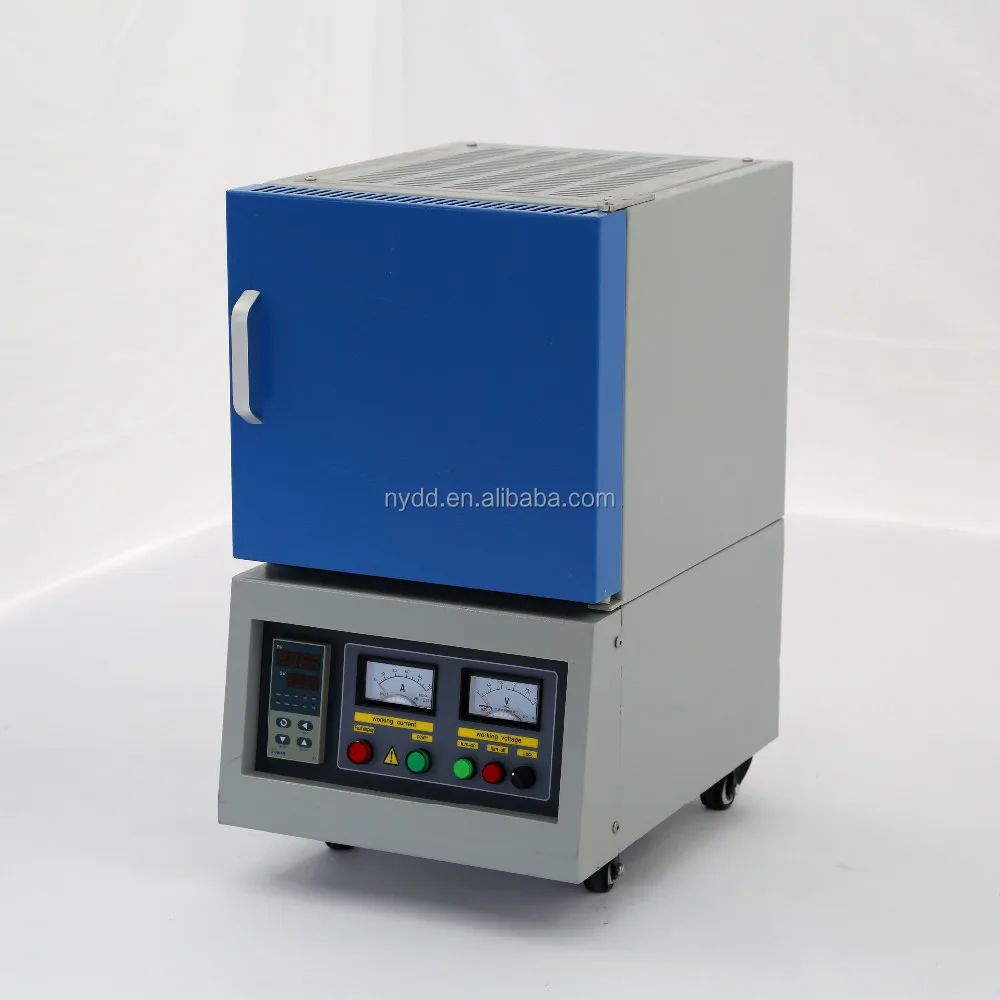

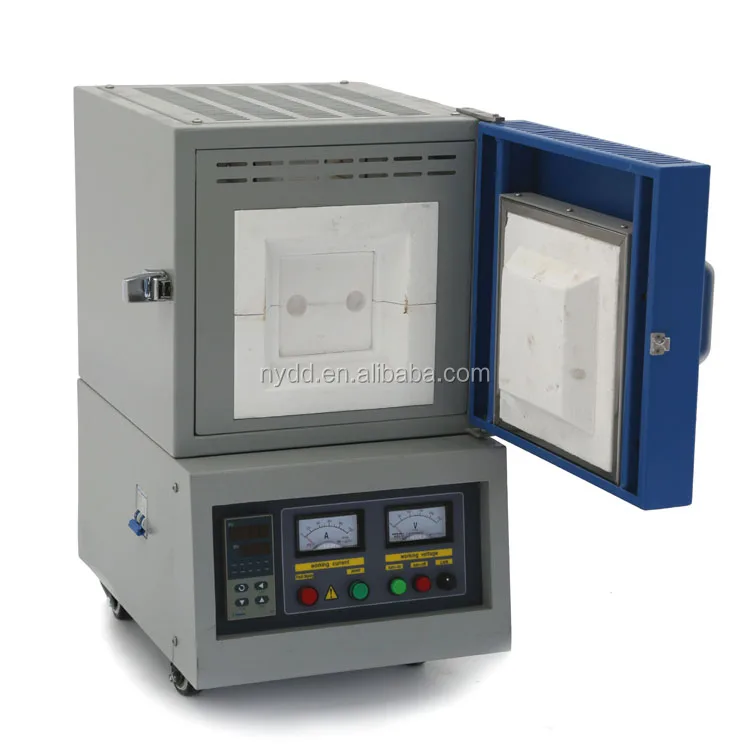

Muffle furnace details picture:
 | Continuous Working Temperature: | 1400 °C Max. ; |
| Max. Heating Rate: | 0-30 °C /min,Suggest to be 20.C/min. | |
Temperature Controller: | 30 programmable segments PID automatic control and auto-tune function. | |
| Temperature Accuracy: | +/- 1 °C | |
| Heating Elements : | SIC heate | |
| Thermocouple: | S type |
Standard parts:crucible tongs 1pc,high temperature gloves 1 pair,one user manual.
Optional parts:PLC touch screen controller, paperless recorder,Remote communication control system, observation window, Gas inlet and venting port are installed for using at oxygen or inert gas atmospheres.
You may like following similar furnace:
| Continuous Working Temperature: | 1100 °C Max. ; |
| Max. Heating Rate: | 0-30 °C /min,Suggest to be 20.C/min. | |
Temperature Controller: | 30 programmable segments PID automatic control and auto-tune function. | |
| Temperature Accuracy: | +/- 1 °C | |
| Heating Elements : | Fe-Cr-Al Alloy doped by Mo. | |
| Thermocouple: | K type |
Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
Related Products
| 1200.C muffle furnace | 1400.C muffle furnace | 1700.C muffle furnace | 1800.C muffle furance |
 |  |  |  |
Packaging & Shipping
Shipping way : By Courier / By sea / By Air /By Train Optional, depend on clients' demad of time and cost.
Shipping terms: Support EXW /FOB/C&F /CIF/ CPT/CIP /DDU /DDP terms...
Even for some countires with high taxes and some Remote areas, we can ship goods to your Door address and including taxes.
How to make an order
Buyer Feedback
Company Information
Nanyang Dadi Electric Equipment Co., Ltd is a professional Heat treatment furnace manufacturer with more than 10 years experiences.
Mainly Electric furnaces including :
Etc. |
FAQ
1. Q: Are you electric furnace manufacturer?
A: Yes, we are professional electric furnace manufacturer in China more than 10 years.
2. Q:What kind terms of payment can be accepted?
A: L/C, T/T, Western Union, Paypal, Trade Assurance, etc
3. Q: Can I ask for customized furnace?
A: Yes, customized furnace is accepted.
4. Q: What about the delivery time?
A: Within 15 days after receiving your payment or based on order quantity and production schedule.
5. Q: What about the guarantee period?
A: The guarantee period is 12 months.
6. Q: What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
