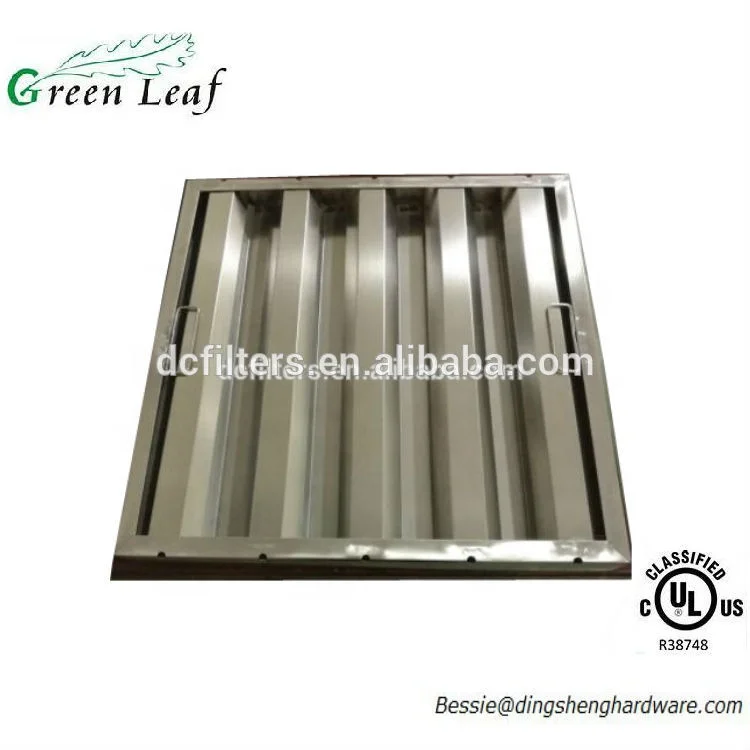

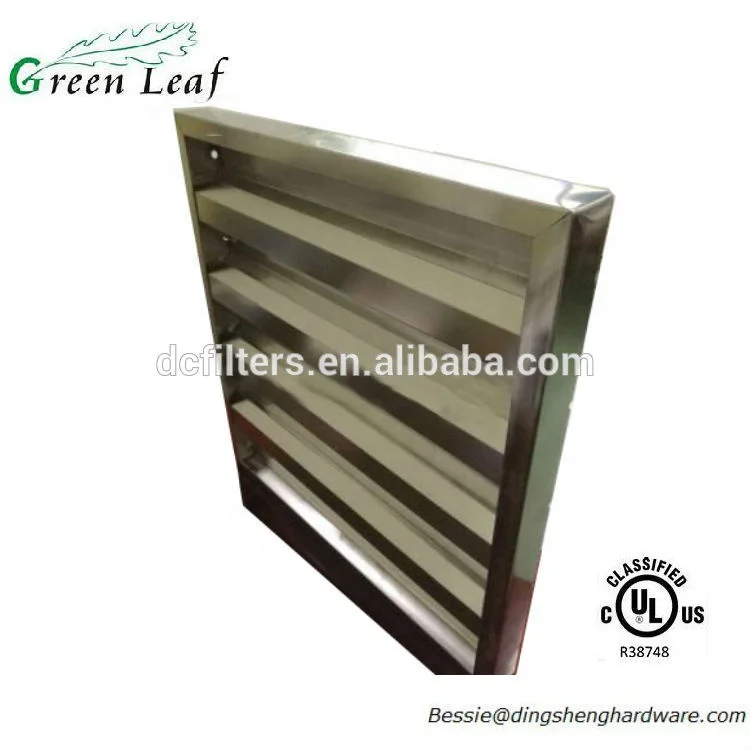

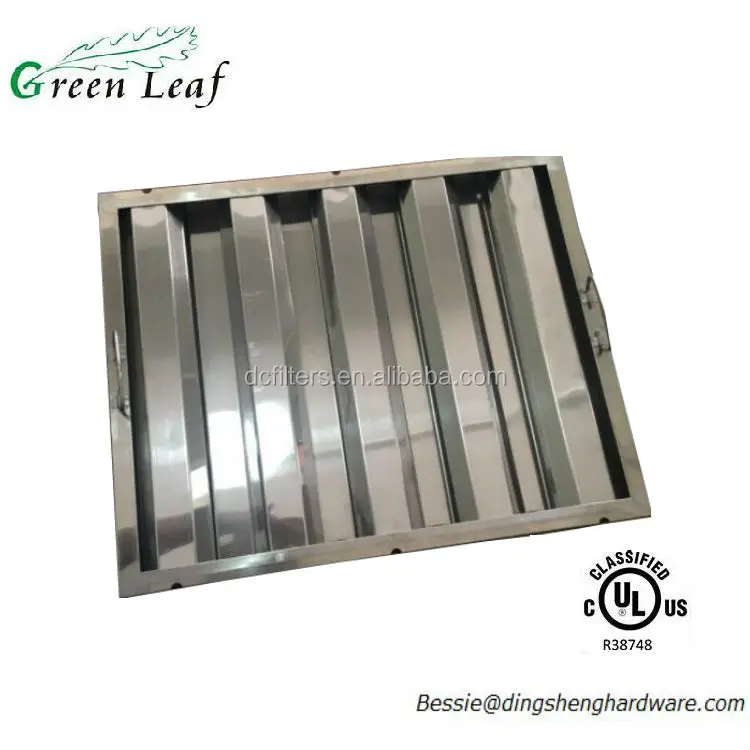

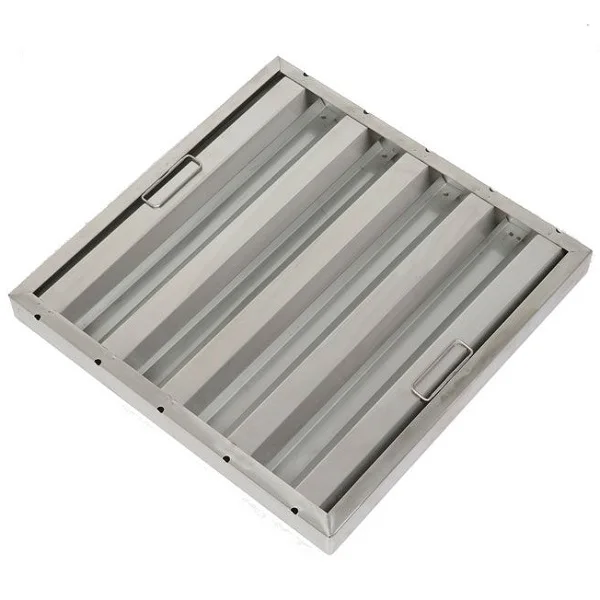

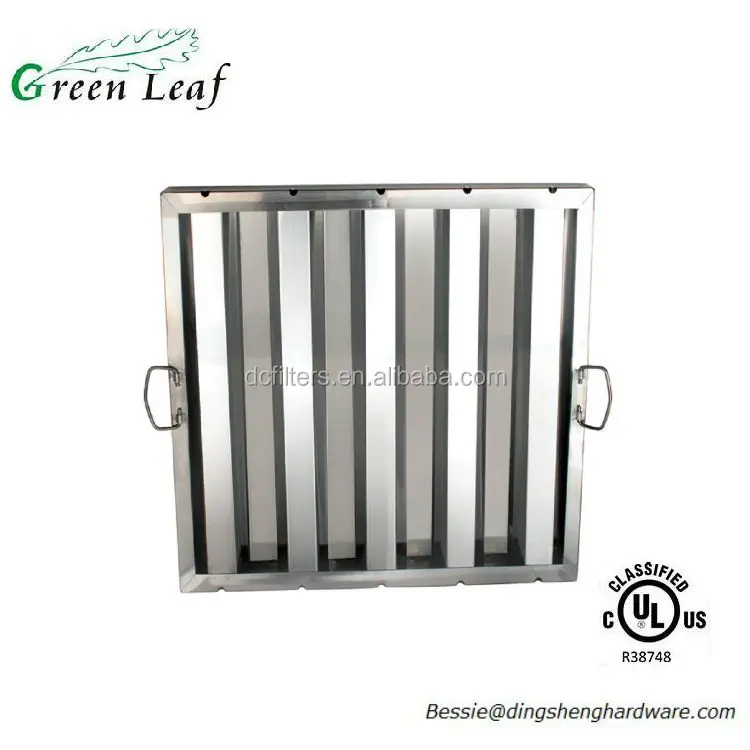

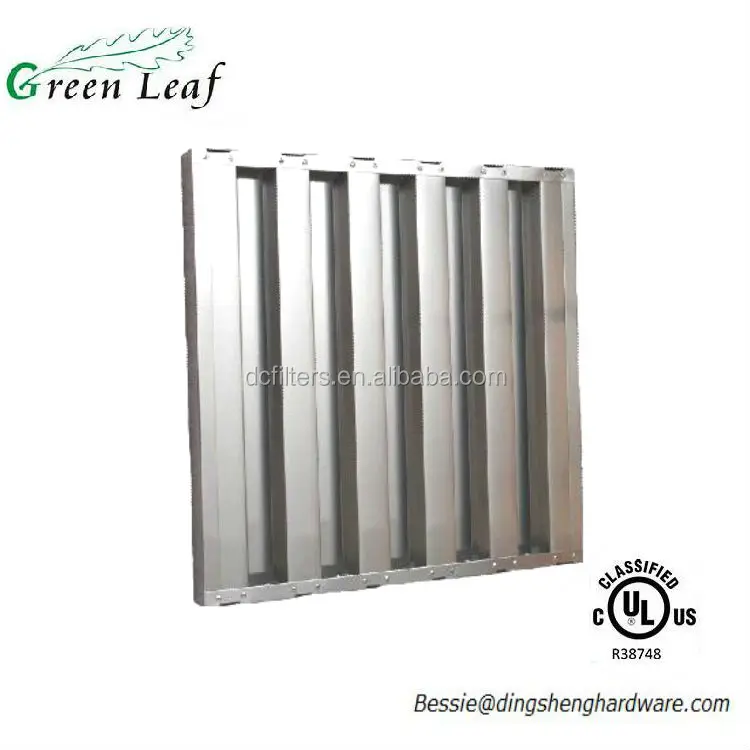

Stainless Steel T type Baffle Grease Filter

Technology: Our Baffle Grease Filter is made by Stainless Steel Sheet,Aluminum Sheet,Metal Sheet,etc.

Finish: Electrolytic polishing, anodic oxidation or galvanization.

Specification: According to the customer’s drawing and requirement.

Characteristic: Durable and practical; good aeration and reducing the damage degree of the blower.

Purpose: It used as commercial kitchen cooker hood baffle grease filters to filter grease and make the air clean.

T-1016    Baffle Filter, Type T,   Stainless Steel,   10" x 16" (254mm x 406mm)     9-5/8X15-3/4X1-3/4

T-1020    Baffle Filter, Type T,   Stainless Steel,   10" x 20" (254mm x 508mm)     9-5/8X19-5/8X1-3/4

T-1216    Baffle Filter, Type T,   Stainless Steel,   12" x 16" (305mm x 406mm)     11-5/8X15-3/4X1-3/4

T-1220    Baffle Filter, Type T,   Stainless Steel,   12" x 20" (305mm x 508mm)     11-5/8X19-5/8X1-3/4

T-1616    Baffle Filter, Type T,   Stainless Steel,   16" x 16" (406mm x 406mm)     15-3/4X15-3/4X1-3/4

T-1620    Baffle Filter, Type T,   Stainless Steel,   16" x 20" (406mm x 508mm)     15-3/4X19-5/8X1-3/4

T-1625    Baffle Filter, Type T,   Stainless Steel,   16" x 25" (406mm x 635mm)     15-3/4X24-5/8X1-3/4

T-2016    Baffle Filter, Type T,   Stainless Steel,   20" x 16" (508mm x 406mm)     19-5/8X15-3/4X1-3/4

T-2020    Baffle Filter, Type T,   Stainless Steel,  20" x 20" (508mm x 508mm      19-5/8X19-5/8X1-3/4

T-2025    Baffle Filter, Type T,   Stainless Steel,  20" x 25" (508mm x 635mm)     19-5/8X24-5/8X1-3/4

T-2516    Baffle Filter, Type T,   Stainless Steel,   25" x 16" (635mm x 406mm      24-5/8X15-3/4X1-3/4

T-2520    Baffle Filter, Type T,   Stainless Steel,   25" x 20" (635mm x 508mm)     24-5/8X19-5/8X1-3/4
