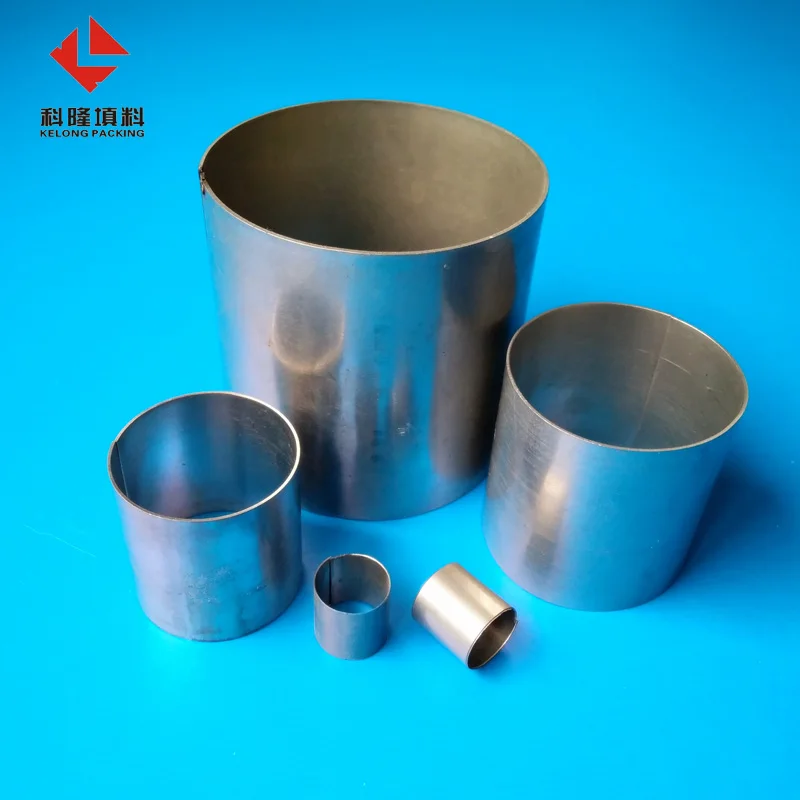

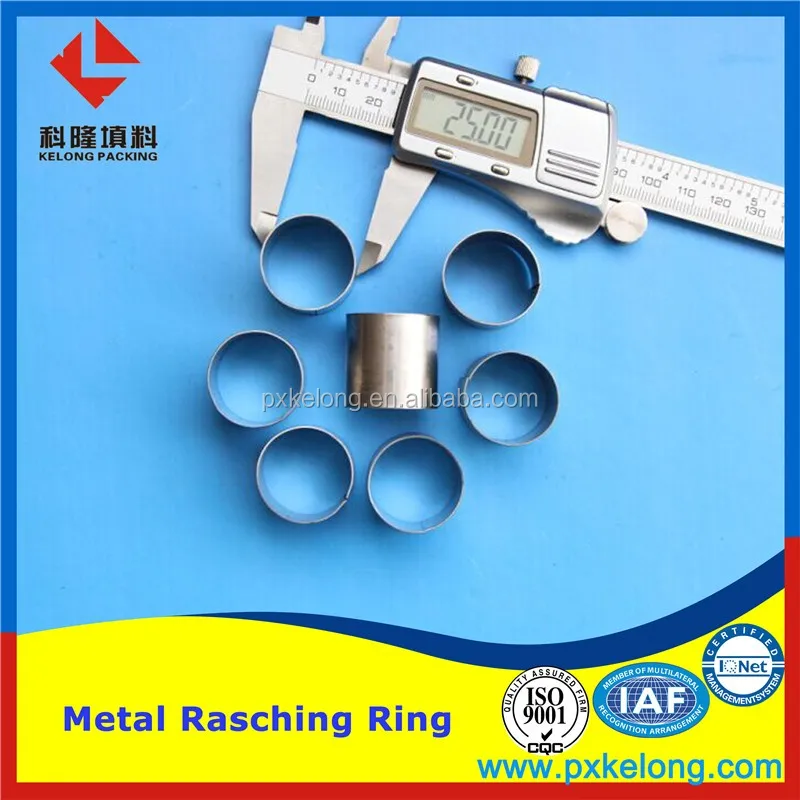

Pingxiang Kelong Stainless Steel Raschig Ring

Stainless steel raschig ring can be  made of stainless steel such as 304,304L,316,316L,321,220,410 etc. The product has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.

Technical Date

The specification is based on SS304 material:

Material	Model	Size	Number per volume	Surface area	Void Volume	Dry Packing Factor
		D*H*δ mm	n/m3	m2/m3	%	m-1
SS304	Dg16	16×16×0.3	180000	350	92	460
	Dg25	25×25×0.4	51900	220	92	290
	Dg35	38×38×0.5	13800	150	93	430
	Dg50	50×50×0.8	6500	68	95	130
	Dg76	76×76×1.0	1830	68	95	80

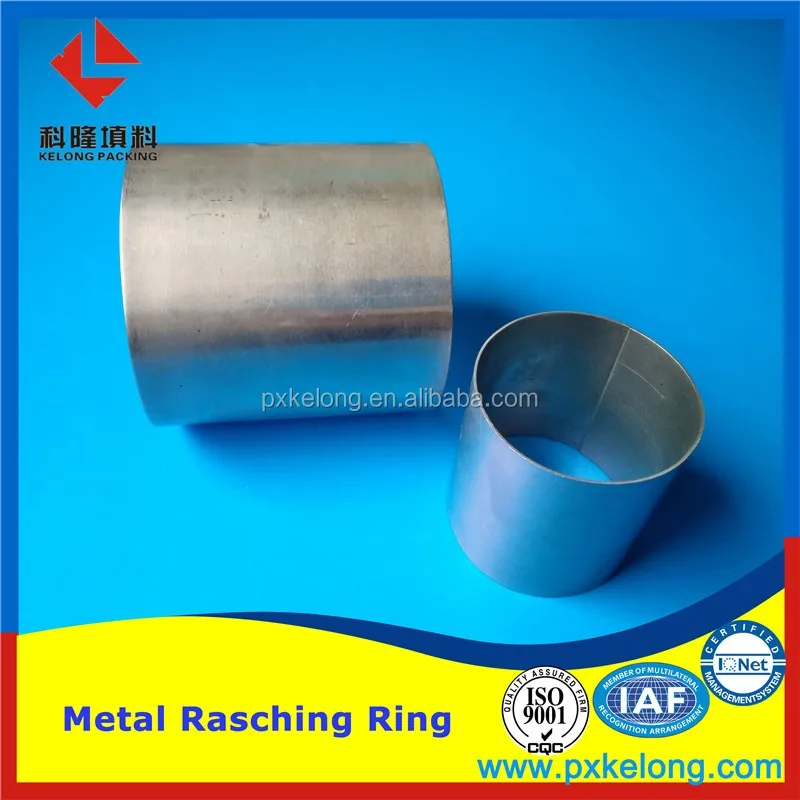

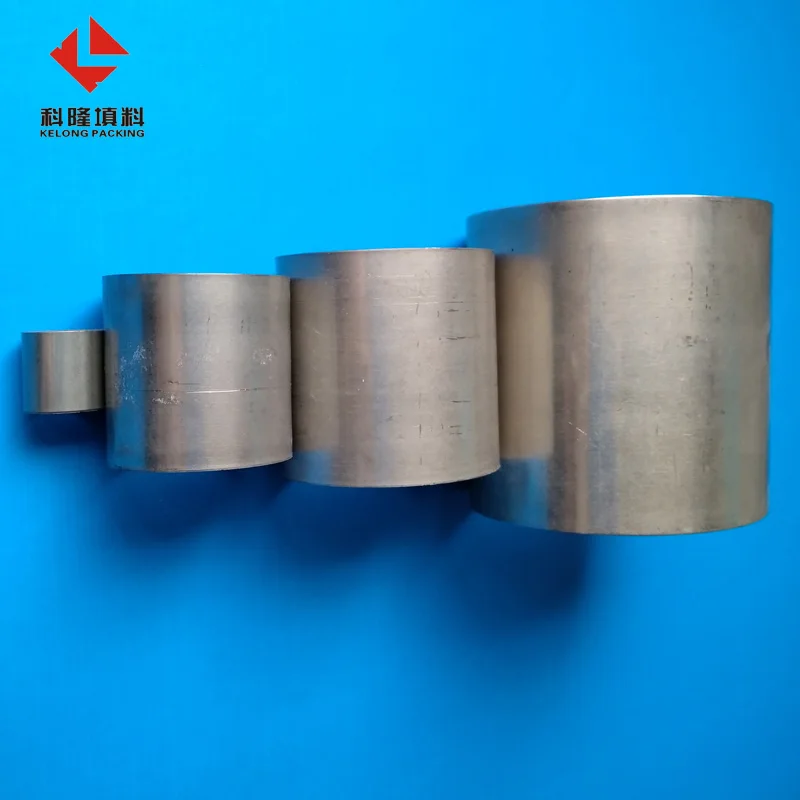

Detailed Images

Packing

Certifications

Our Company

Our Service

1.OEM Service: All details can be designed or changed according to buyer's requirements. The material and size can be customized.

2.Competitive Price: Direct factory price

3.Team Support: Professional sales and technology team provide service.

4.Good Quality: 10 years production experiences in tower packing and have strict quality control system.

5.Sample is free

6.If you have any question or advice, please feel free to contact us. We will do our best to meet your requirement.
