Stainless Steel Gasket Plate Heat Exchanger Cooling Chiller for Beer Plant
- Category: >>>
- Supplier: Guangzhou Qingli Thermal Energy Machinery Equipment Co. Ltd.
Share on (60674454885):
Product Overview
Description

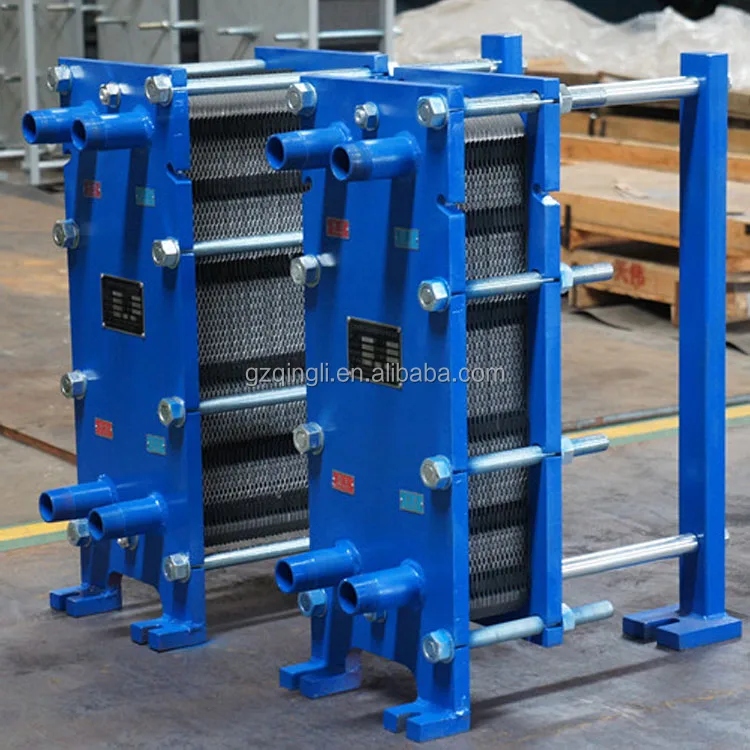

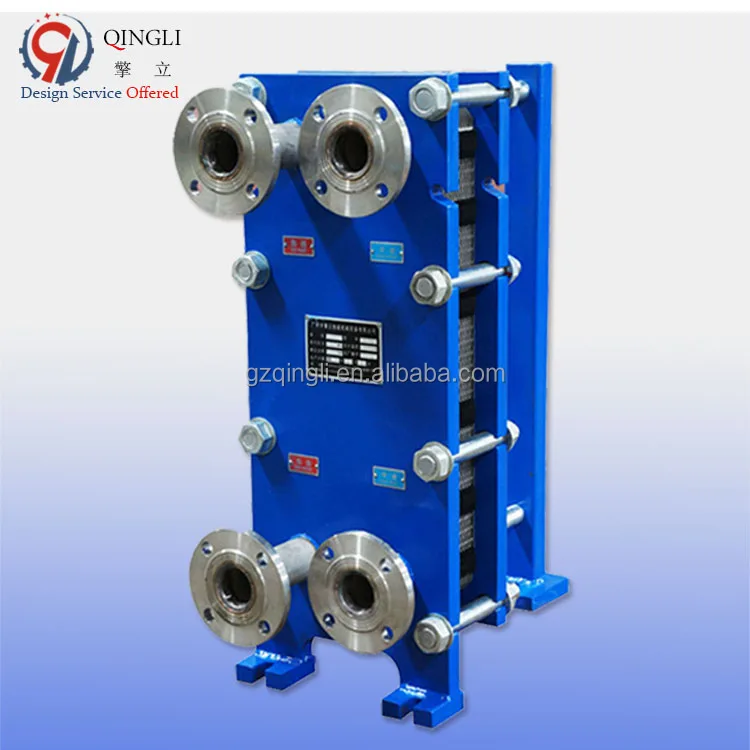

Stainless steel gasket plate heat exchanger cooling chiller for beer plant
The gasket plate heat exchanger consists of a pack of corrugated metal plates with portholes for the passage of the two fluids between which heat transfer will take place. The plate pack is assembled between a fix frame plate and a movable pressure plate and compressed by tightening bolts. The plates are fitted with a gasket which seals the inter plate channel and directs the fluids into alternate channels.The plate corrugations promote fluid turbulence , support the plates against differential pressure.
The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature program.
Product Description
| Material Sheet of PHL Plate | |
| 304 Stainless Steel | This is the lowest cost heat transfer plate material.It has a low corrosion resistance and is usually only available in a thickness of 0.4mm.This type of heat transfer plate is typically used on HVAC applications. |
| 316 Stainless Steel | This is the most common heat transfer plate material and is used in many applications. 316 stainless steel has a high conosion resistance and is typically available in thickness from o.4mm up to 0.8mm. |
| Titanium | This has a very high resistance to chemical attack including most acids,chlorides,sea water,and chlorine chemicals.Titanium is usually available in thicknesses from 0.5mm up to 0.6mm. |
| Material Sheet Of PHE Frame | |
| Frame | Stainless Steel Covered |
| Carton Steel |
Related Products
Company Information
10
YEARS Experience in manufacturer

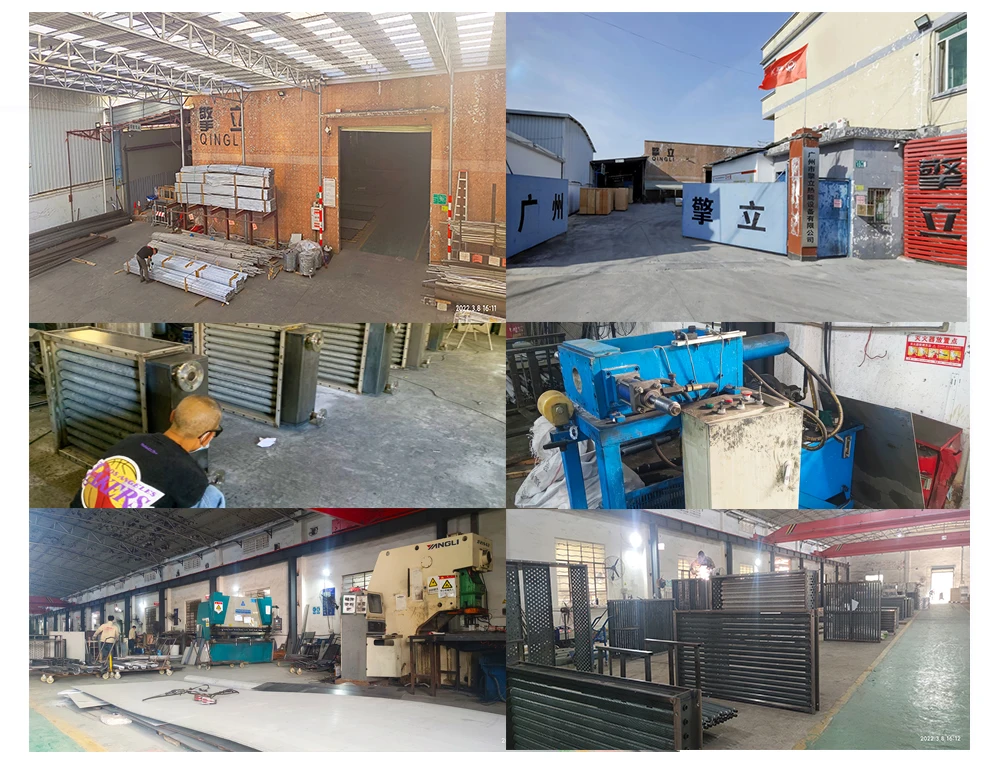

Guangzhou QingLi thermal Energy equipment Co.,Ltd.
Establish
Qingli Group has 5 company, of which Guangzhou Qingli Thermal Machinery Equipment Co., Ltd. was first established in 2008.
Scale
Now it has two production bases, both located in Liantang Industrial Zone, Huadu, Guangzhou, covering an area of 15,000+ square meters.
Main Products
Specializing in the R&D, production and sales of heat exchangers, the main products are air radiators, boiler economizers, surface coolers, evaporators, condensers, finned tubes of various specifications and other heat exchange equipment. All products have undergone strict pressure leak testing and quality inspection before leaving the factory.
Advantage
Our company has passed ISO, CE and SGS certification, has environmental pollution discharge license, and many products have practical patents. We have independently developed professional selection software and OA production management system, which can tailor more scientific, more perfect and more economical equipment solutions for each customer according to the actual situation.
ONE-STOP SERVICE
you do more,we do best
FAQ
Q:Worry about your money?
A: Trade Assurance can protect your money. (more information, pls contact me)
Q: Are you trading company or manufacturer ?
A: We are factory.specilizing in heat exchanger for over 10 years.
Q:Are your products customized?
A:Yes,the products in the website are only the common type or the previous types from other customers,we can supply the new products according to your requirements or drawings.
Q: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T&L/C in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
