Chinese Advanced Snow Making Machine
Chinese Advanced Snow Making Machine
- Category: >>>
- Supplier: Henan ManLin Sports Product Co. Ltd.
Share on (60674490539):
Product Overview
Description

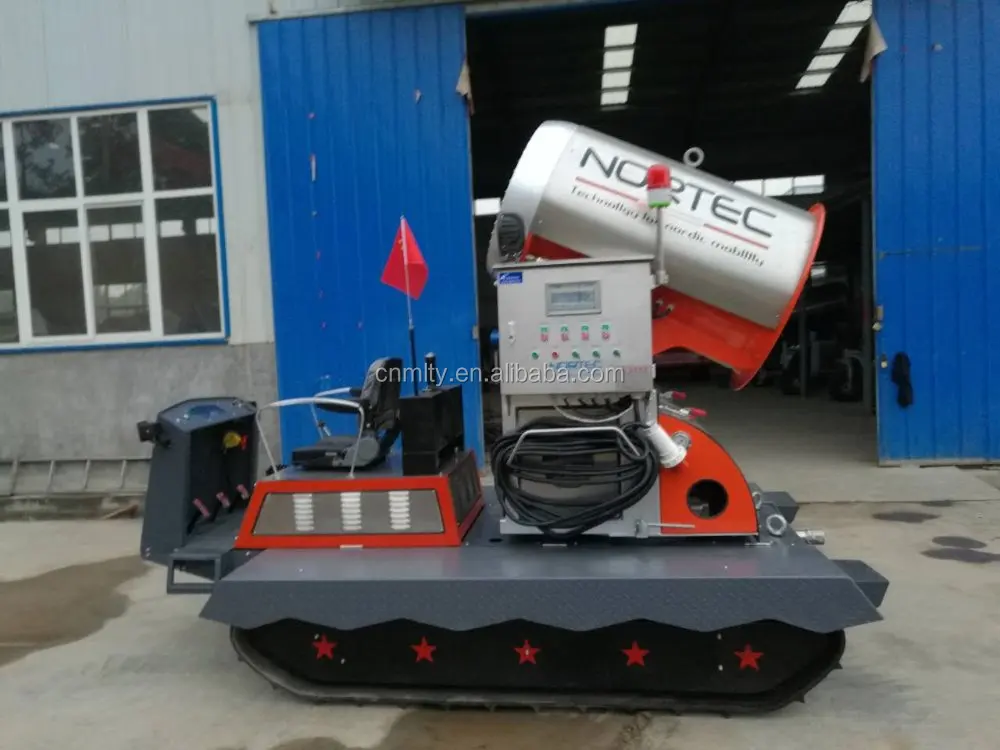

Chinese Advanced Snow Making Machine
How snow making machine works:
Machine made snow is made up of exactly the same stuff as natural snow - frozen water. When the weather provides cold temperatures, but no moisture, our snowmaking team simply adds just the right amount of moisture to the atmosphere to produce excellent snow. It may sound easy, but making great snow requires millions of dollars in specialized equipment and an experienced team of snowmakers.
You may have heard people say that machine made snow is more durable than natural snow. Believe it or not, it's true! here's why:

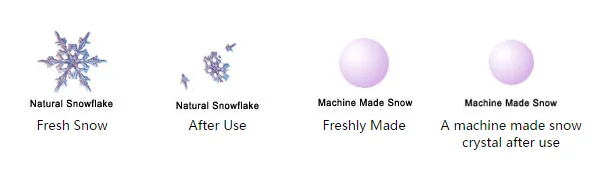

The classic six sided natural snowflake is soft and fluffy when it falls from the sky. That's why natural snow can be so fluffy at first - it is mostly air. However, over time the little branches break off and because of the greater surface area the crystal melts faster too. The properties of the snow change dramatically.
Machine made snow looks more like little round balls. As time goes by, the machine made crystal may shrink, but the basic shape stays the same longer. Since it is a ball, it has a smaller surface area so it melts slower too. Therefore, you can groom and ski on machine made snow and it will retain it's original properties longer.
Specifications
THE FIRST SNOWMAKING MACHINE
Wayne Pierce was in the ski manufacturing business in the 1940s, along with two partners, Art Hunt and Dave Richey. Together, they formed the Tey Manufacturing Company of Milford, Connecticut in 1947 and sold a new ski design. The ALU-60 was an aluminum ski with a hollow interior and three layers of metal bonded together. Two years later, in 1949, Mother Nature got stingy, and the company was hit hard by a slump in ski sales due to a dry, snowless winter.
Wayne Pierce came up with a solution on March 14, 1950. "I know how to make snow!" he announced when he arrived at work on that March morning. He had the idea that if you could blow droplets of water through freezing air, the water would turn into frozen hexagonal crystals -- aka snowflakes. Using a paint spray compressor, a nozzle and some garden hose, Pierce and his partners created a machine that made snow.
The company was granted a basic-process patent in 1954 and installed a few of their snowmaking machines, but they didn’t take their snowmaking business far. Maybe they were more interested in skis than in something to ski on. The three partners sold their company and the snowmaking machine's patent rights to the Emhart Corporation in 1956.
The snow-making machine is for anyone who is interested in home snow making for any reason. People have done extensive research on making man made snow and designing home snow machines that can produce a blizzard of snow just like the snow makers at ski resorts.
It is tons of fun to have the ability to make snow in your own yard for skiing, sledding, snowboarding, or any snow related activity.
Features:
High snow making ratio;
Spare parts are wearable and with long service life;
Energy-saving and environmental friendly
Advanced processing technic, the core components, such as eccentric shaft and spare parts are durable.
Adopted some technologies to ensure the machine reliable.
More rational design and more stable performance.
Simple installation and easy operation.
Flexible application.
High efficiency and fine cubic shape
Overload protection and easy maintenance
Items | Date | Items | Date |
Fan motor | 11kw/18.5kw | Length*width*height | 2.8*2.6*2.1m |
Compressor | 4kw/5.5kw | Weight | 680kg |
Heating device | 4kw | Water flow | 40-417L/min |
Other device | 0/5kw | Making snow flow | 45-100m³/h |
Total Power | 19.6kw/28.5kw | Voltage | 380V |
The angle of rotation | 360° | Making snow water pressure | 8-40bar |
Air tube elevation angle | 0-45° | Rows of nozzles | 4 nozzles |
Water temperature | -30℃—+2℃ | Total number of nozzles | 310 pcs |
making snow temperature | Lower then +5℃ | Snow making range | 20-70m |
Fan speed | 2900r/min | Wind pressure | 1120ps |

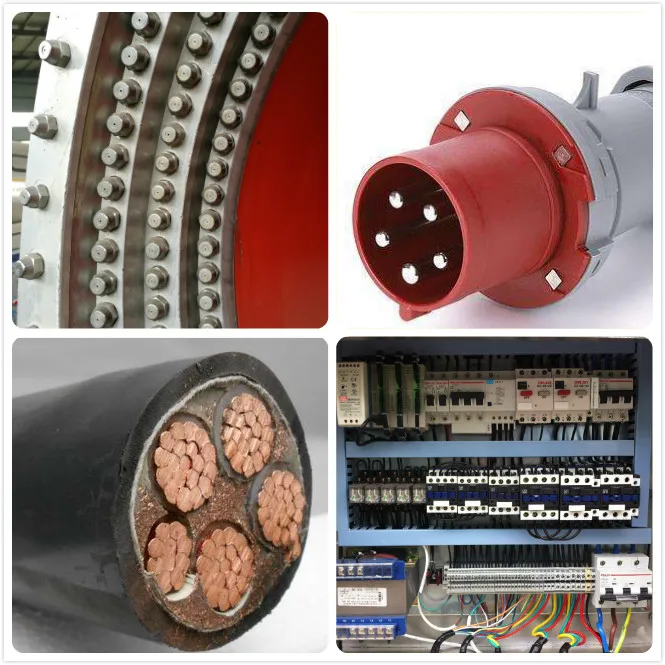

| 1. nucleator | 6. industrial plug | 11.traction frame |
| 2. spray nozzles | 7. moveable struts | 12. hairdryer |
| 3. alarm lamp | 8. tires | 13. axial flow fun |
| 4. spotlight | 9. compressor | 14. fun hub |
| 5. distribution cabinet | 10.manifolds | 15. lifting arm |
NORTEC-7 series snow making machine is the modern high efficiency production combining the absorption of advanced technology at home and abroad with customers’ specific demands, which is created based on the principle of more snow making. It has been found that the NORTEC-7 series snow making machine wins the reliance of all customers by its superior performance, reliable quality and high cost performance and it is the ideal substitute of traditional snow making machine.
Company Information
We are a global supplier of cutting-edge snow making machines and resort master planning construction and engineering services. We have served many resorts around the world, from simple to very complex snow making system designs. Henan Manlin Sports Product Co., Ltd. is a service-oriented firm, dedicated to creating and delivering energy-efficient, quality snowmaking equipment and solutions to our customers. Our customer-focused commitment to snow making innovation and technology, as well as our extensive history and range of experience, has made our company a great company in snowmaking systems and services.
Working:
Our Services
Pre-Sales Service
1. Inquiry and consulting support. Sample testing support.
2. Sample testing support.
3. View our company
-Sale service
1. Instance guidance is available on the phone or email any time.
2. we will send technician to the mine site to guide the installation, trial run test, and training operators until the plant works normally.
After-Sales Service
1. Training how to instal the machine, training how to use the machine.
2. Engineers available to service machinery overseas.
3. Equipment warranty is 12 months, Equipment spares will be offered with manufacturing cost in at least 10 years since the order is placed.
FAQ
1.How is the quality of your products?
Snow making machine are manufactured strictly according to national and international standard, and we take a test on every equipment before delivery.
2.Guaranteed:
Our products are distributed throughout the world, being involved in more than Asia, Africa and South America countries and regions. And our products win the good reputation of our foreign customers.
3.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
4.Service and Payment Terms?
A. We usually accept T/T, L/C;
B. T/T: 30% in advance as down payment, the balance before delivery;
C. We take pictures of finished products before delivery.
5. What’s the additional features of your company?
A: We have our own laboratory in the company, so the clients can take some samples to perform experiments on the spot. And our engineers will provide the best advice and choice for our clients.
