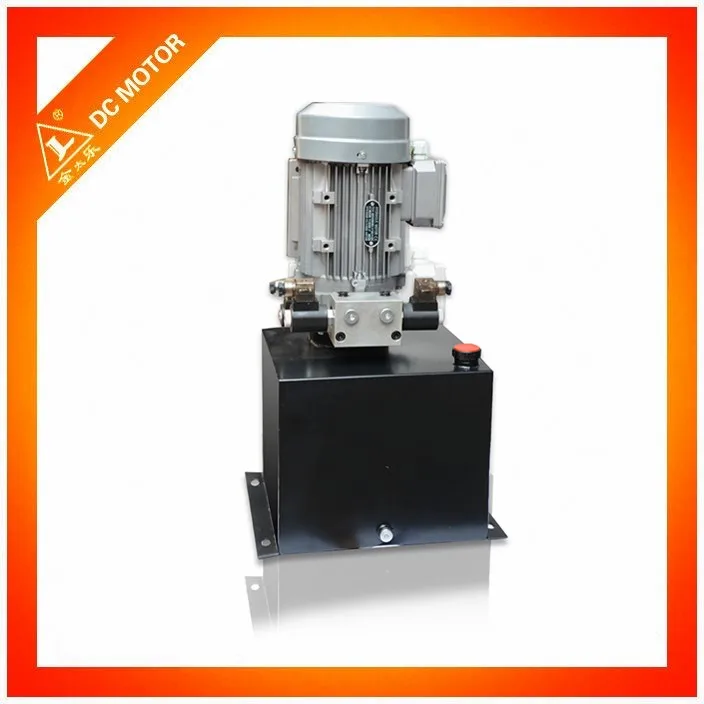

220V AC Hydraulic Power Units For Double-scissors Lift
Product Description
General Description of 220V AC hydraulic power units
Equiped with a zero leakage double-check solenoid valves, this power unit fulfils the complete separation of the two independent circuits, which are respectively for the main platform and subordinate platform of the double scissors lift. By increasing the number of the solenoid valve, it is easy to get more independent circuits which are used to control the corresponding cylinders.
Equiped with a zero leakage double-check solenoid valves, this power unit fulfils the complete separation of the two independent circuits, which are respectively for the main platform and subordinate platform of the double scissors lift. By increasing the number of the solenoid valve, it is easy to get more independent circuits which are used to control the corresponding cylinders.
Model Specifications Hydraulic Power Pack Unit :
Model | Motor Info | Pump Displacement | Tank Capacity | Pressure | Mounting | Oil Port |
HPU-29GOEMEVDFOA | 220V 2.2kW 2850rpm 50Hz | 2.1cc/r
| 20L | 20MPa | Vertical | G1/4'' |
HPU-29GPEMEVDGOA | 220V 3.0KW 2850rpm 50Hz | 26MPa | ||||
HPU-29HOEMEVDFOA | 380V 2.2KW 2850rpm 50Hz | 22MPa | ||||
HPU-29HPEMEVDHOA | 380V 3.0KW 2850rpm 50Hz | 28MPa |
Special Notes of hydraulic power units :
1. The duty of this power unit is S3. ie: 30 seconds on and 270s off.
2. Clean all the hydraulic parts concemed before mounting the power unit.
3. Viscosity of the hydraulic oil should be 15-68 cst, which should also be clean and free of ompurities. N46 hydraulic oil is recommended.
4. This 220v ac hydraulic power unit should be mounted horizontal.
5. Check the oil level in the tank after the first start of the 220v hydraulic power unit.
6. Oil changing is required after the initial 100 operation hours afterwards once every 3000 hours.
Packaging & Shipping
Our Services
1,sample service: samples can be provided.
2,customized services: a variety of motors can be customized according to customer demand.
3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
FAQ
1. Business Type
a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops
2. Certificates
CE, ISO9001 etc
3. How long could we get the goods?
a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders
4. Quality Control
a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment
