Yushi IIW2 / V2 Ultrasonic Flaw Detector Standard Test Blocks for Metal Weld Ultrasonic Testing 1018 Steel / Carbon Steel
- Category: >>>
- Supplier: YUSHI INSTRUMENTS
Share on (60674582471):
Product Overview
Description
Product Description

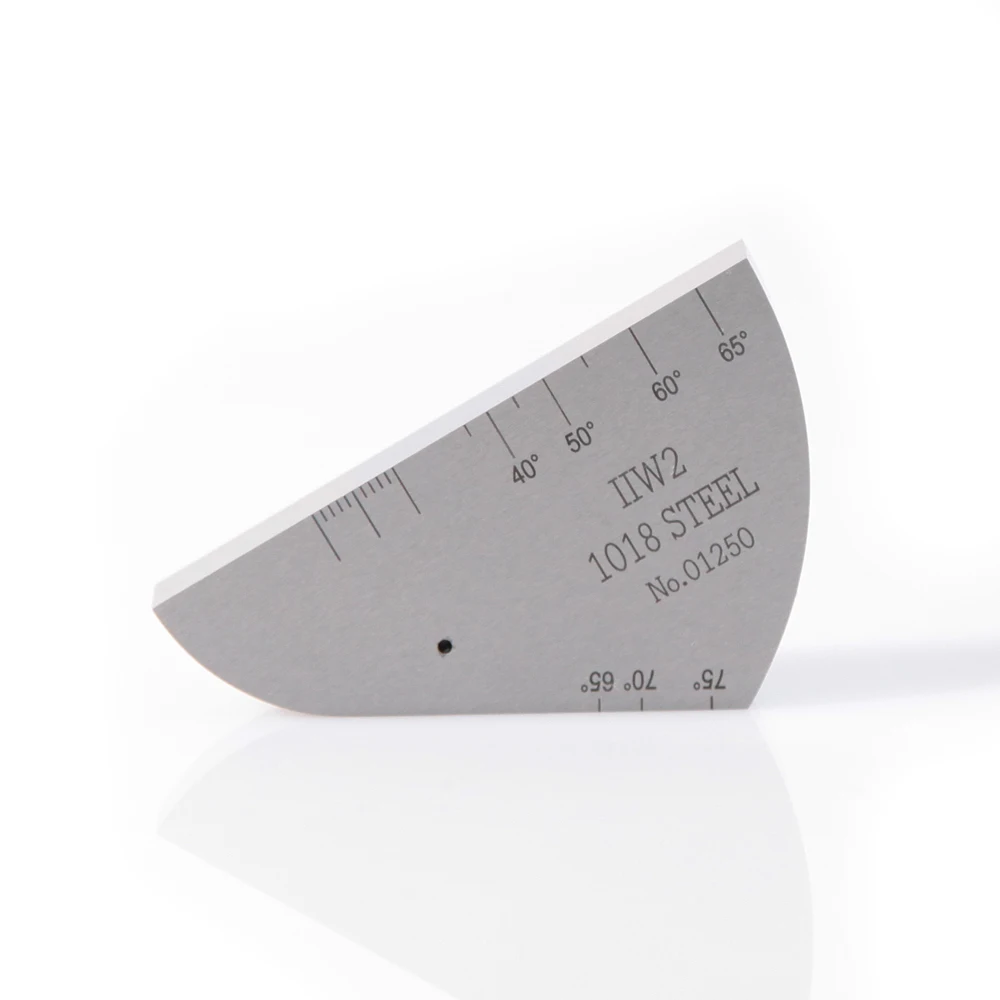

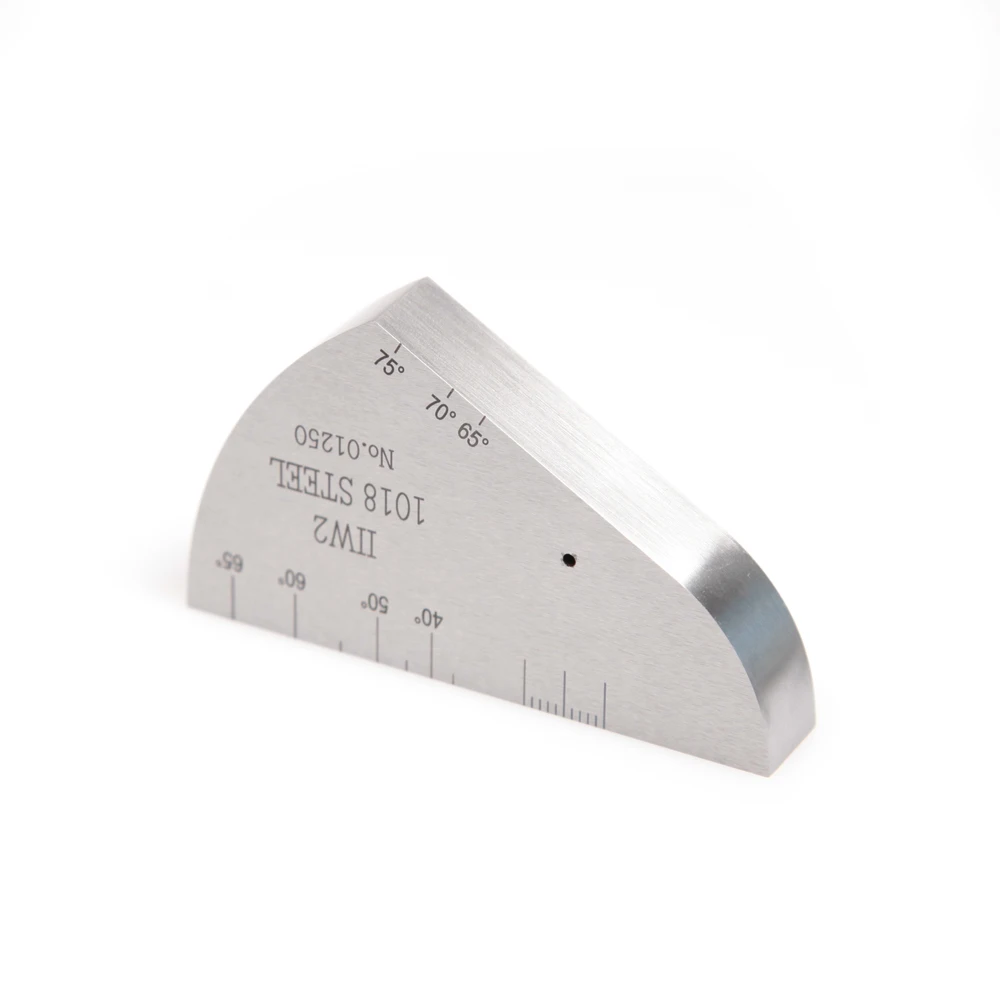

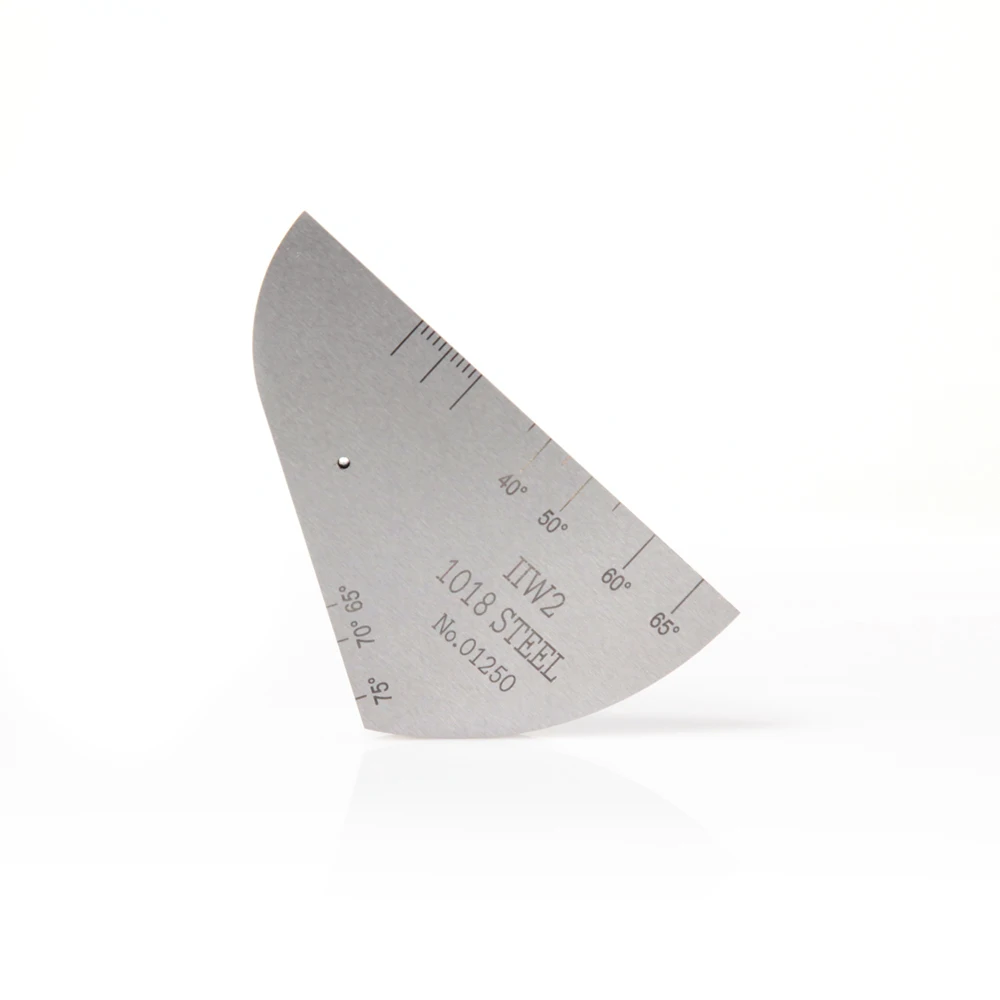

IIW2 / V2 Ultrasonic Calibration Block
Ultrasonic flaw detector calibration block
12.5 mm thick small calibration block for on-site checking of miniature shear wave probe index, time base, beam angle and gain. Includes a 25 mm and 50 mm radius, 5.0 mm hole, engraved reference mark scales from 35 to 75 degrees. In accordance with EN 27963, DIN 54-120, and ISO 7963. Dimensions: 75 mm x 43 mm x 12.5 mm
Material: Carbon Steel
Calibration Testing Block Used For Ultrasonic Flaw Detector
Material: Carbon Steel
Calibration Testing Block Used For Ultrasonic Flaw Detector
Model: IIW2 (V2)
IIW2 Calibration Block
1018 Steel, Stainless Steel and Aluminium Available.
12.5 mm thick small calibration block for on-site checking of miniature shear wave probe index, time base, beam angle and gain. Includes a 25mm and 50mm radius, 5.0mm hole, engraved reference mark scales from 35 to 75 degrees. In accordance with EN 27963, DIN 54-120, and ISO 7963. Dimensions: 75mm×43mm×12.5mm
About Us
Title goes here.

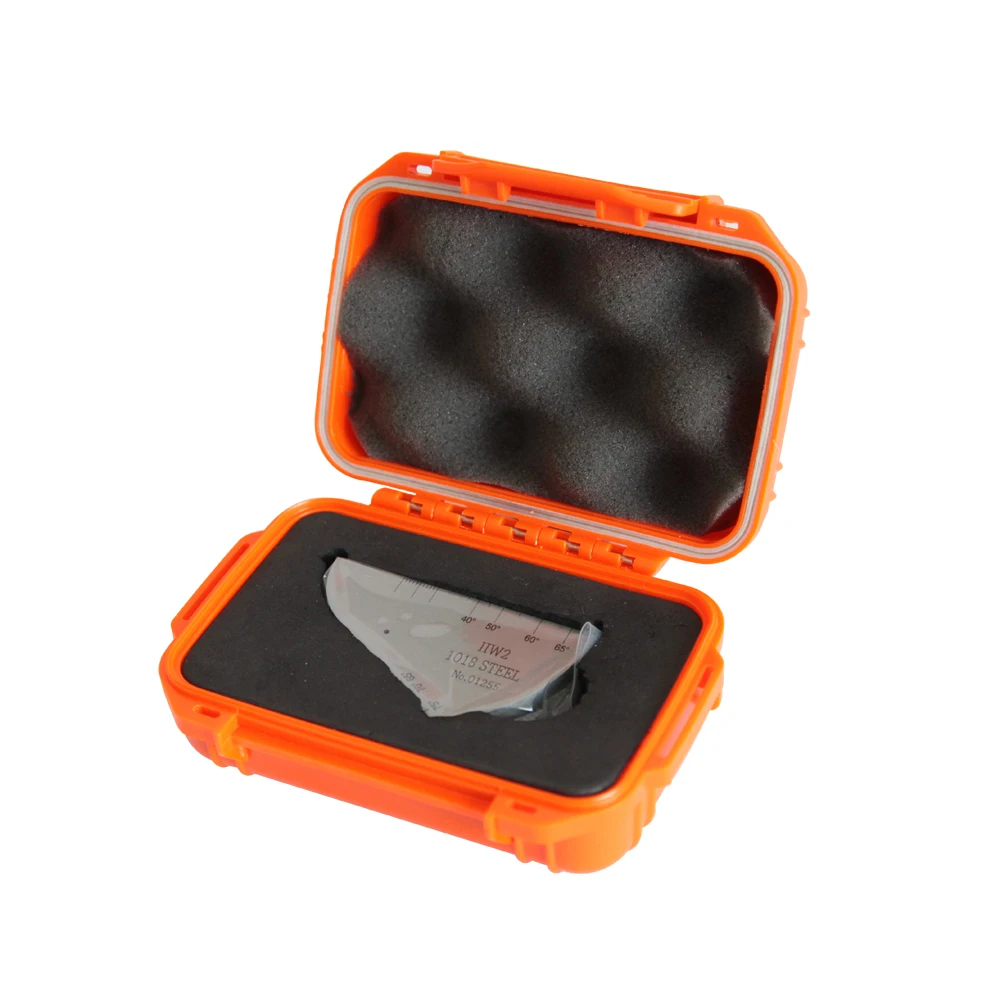

Packing with ABS Case.
Yushi Instruments
Yushi Instruments is a professional Nondestructive Testing instruments manufacturer operating in industrial and other relevant fields. Yushi products many gauges and accessories to measure the thickness or detect the flaw ranging from aerospace, power generation, petrochemical, civil infrastructure and automotive to consumer products.
The Ultrasonic Step Wedge Blocks and Ultrasonic Flaw Detection Calibrate Blocks of various kind of materials like Carbon Steel,1018 Steel Nickel-plated, 304 Stainless Steel, 6063 Aluminum, 7075 Aluminum, 6AL4V Titanium Alloy.
Custom-made is also possible for special requirements.
The Ultrasonic Step Wedge Blocks and Ultrasonic Flaw Detection Calibrate Blocks of various kind of materials like Carbon Steel,1018 Steel Nickel-plated, 304 Stainless Steel, 6063 Aluminum, 7075 Aluminum, 6AL4V Titanium Alloy.
Custom-made is also possible for special requirements.
