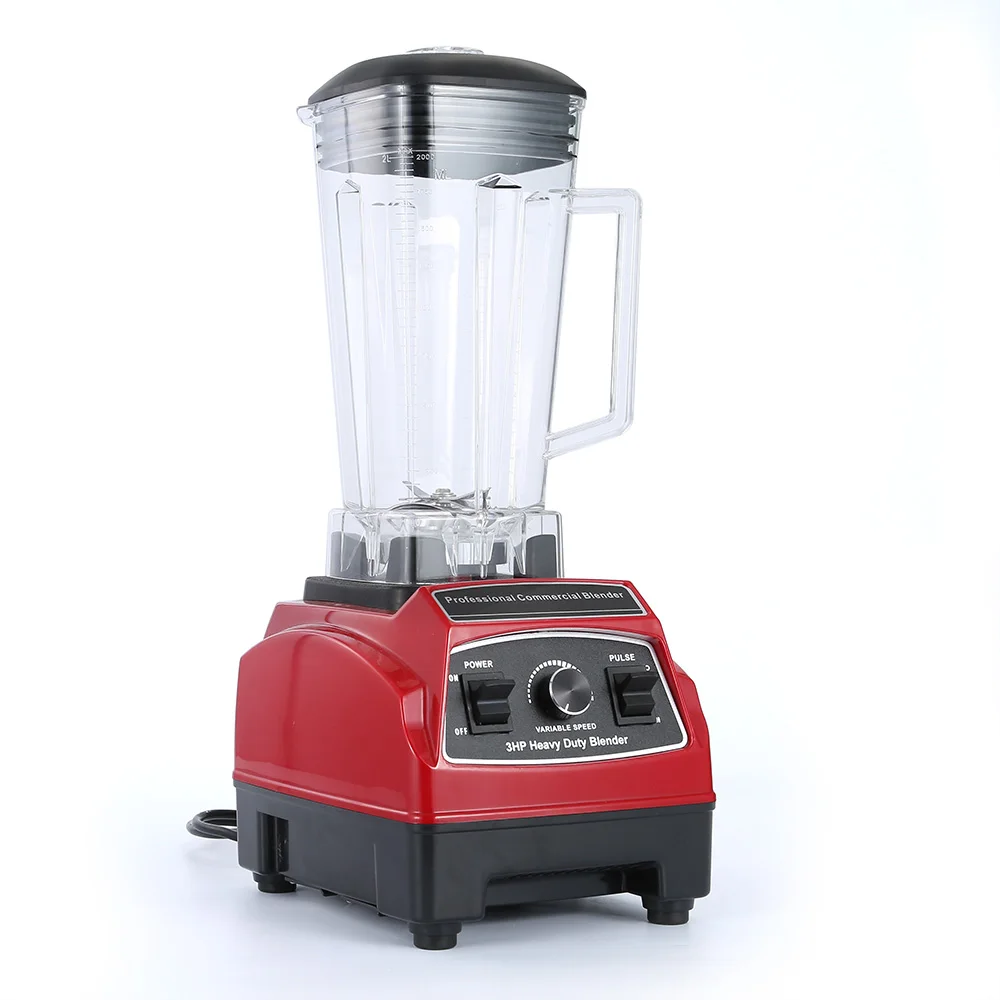

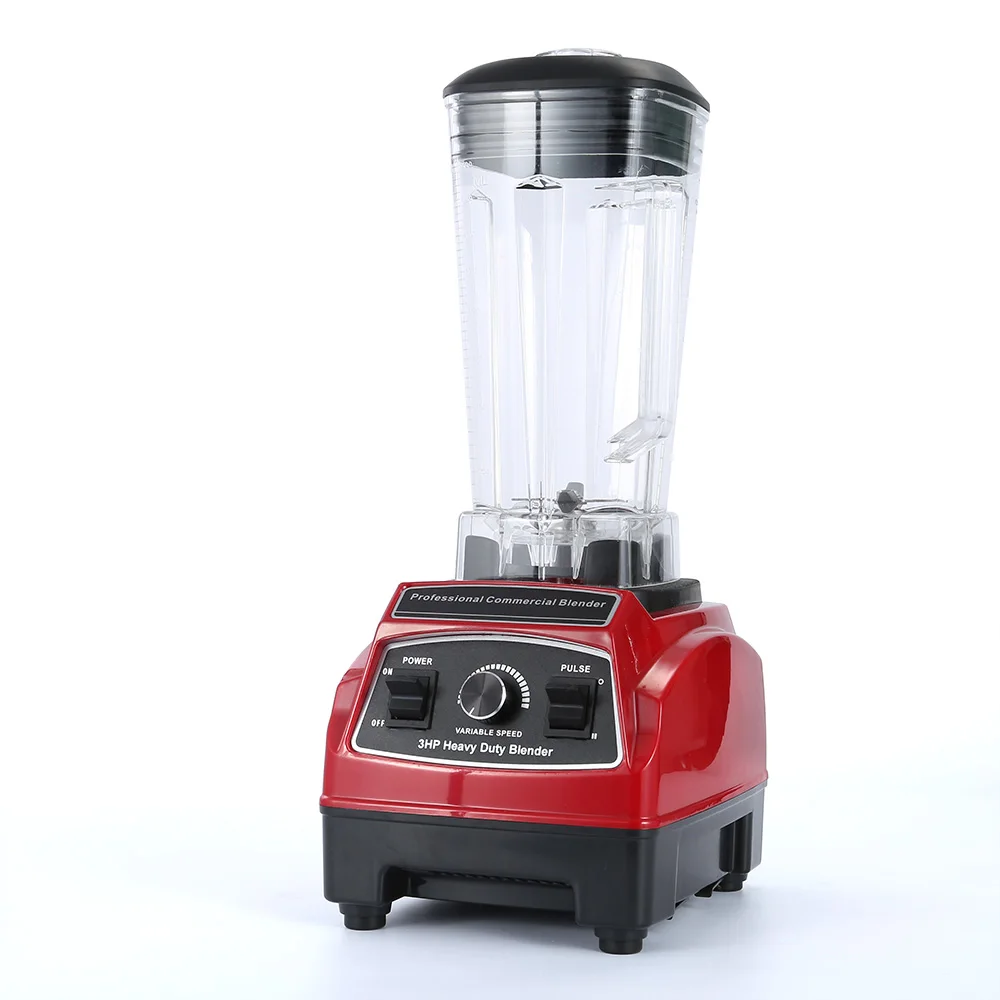

Ideamay 3HP 9525 Motor ABS Housing Sauce Industrial Blender Machine with Stirring Rod
- Category: >>>
- Supplier: Zhongshan Ideamay Electrical Appliance Co. Ltd.
Share on (60674725465):
Product Overview
Description
Ideamay 1.5HP 9525 Motor ABS Housing Sauce Industrial Blender Machine with Stirring Rod
Product Description
| Parameter |
-
| Model | IDM-013 |
| Lock Power | 1200w(1.5hp) |
| Motor Model | #9525 (Optional #9525/9530/9535) |
| Motor Material | 100% pure copper |
| Capatcity | 1.8/2.0 |
| Container Material | PC-BPA Free (Optional Tritan) |
| Blade Material | Stainless Steel 304 |
| Housing | ABS |
| Speed(RPM) | 38000 |
| Speed controller | Stepless Speed |
| Motor Heat Dissipation Design | Yes, Separation of cold and hot air design |
| Motor Temperature Protect | Yes |
| Color | Black, Red, White (More than 1000pcs can custom any color) |
| OEM/ODM logo | Print or Laser |
| ODM Package | Yes, we have designer for one to one service |
| Packing | Color gift box, Surround Foam, PP bags; 8pcs/ctn, 5 layers ctn |
| Loading | 20" 750pcs, 40" 1500pcs, 40"HQ 1800pcs |
-
| Product Pictures |
-
| Technical Parameter |
| Motor Technical Parameters |
 | Model | #9525 (Optional #9525/9530/9540) |
| V/F | 220v/50Hz | |
| Rated Power/Lock Power | 1200w | |
| Temperature protection | Yes, when more than 105 Centigrade | |
| Coil | 100% pure copper | |
| Carbon Brush | 2 years service life (Optional Brushless motor) | |
| Phase | Single | |
| Anti-interference | No, (Optional Anti-interference capacitance) |

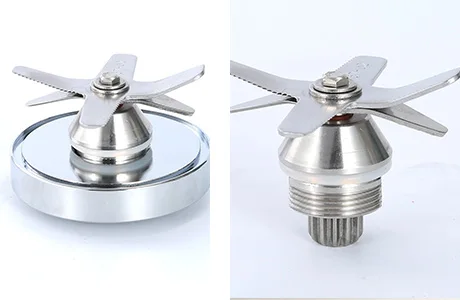

| Blade Set Parameters |
 | Material | 304 Stainless Steel |
| Driver | Stainless Steel | |
| Oil seal | Double oil seal | |
| Blade Design | Single Sawtooth shape | |
| Feature | Strong for ice smoothie |
| Circuit board |
 | Standard | Passed CE/CB approved |
| Anti-interference | No | |
| Stable voltage | Yes | |
| Overload prevention | Yes | |
| Leakage protection | Yes | |
| Continuous work | 2 hours | |
| IC controller | No | |
| High intensity work | Output steady |
| Container |
 | Material | 304 Stainless Steel(Optional Glass) |
| Capacity | 1.8/2.0L (Optional tritan) | |
Thickness of cup | 2mm, Make sure the water not leakage or crack | |
| Accessory | Bar | |
| Feature | Heavy fixed ring for reducing noise and shake |

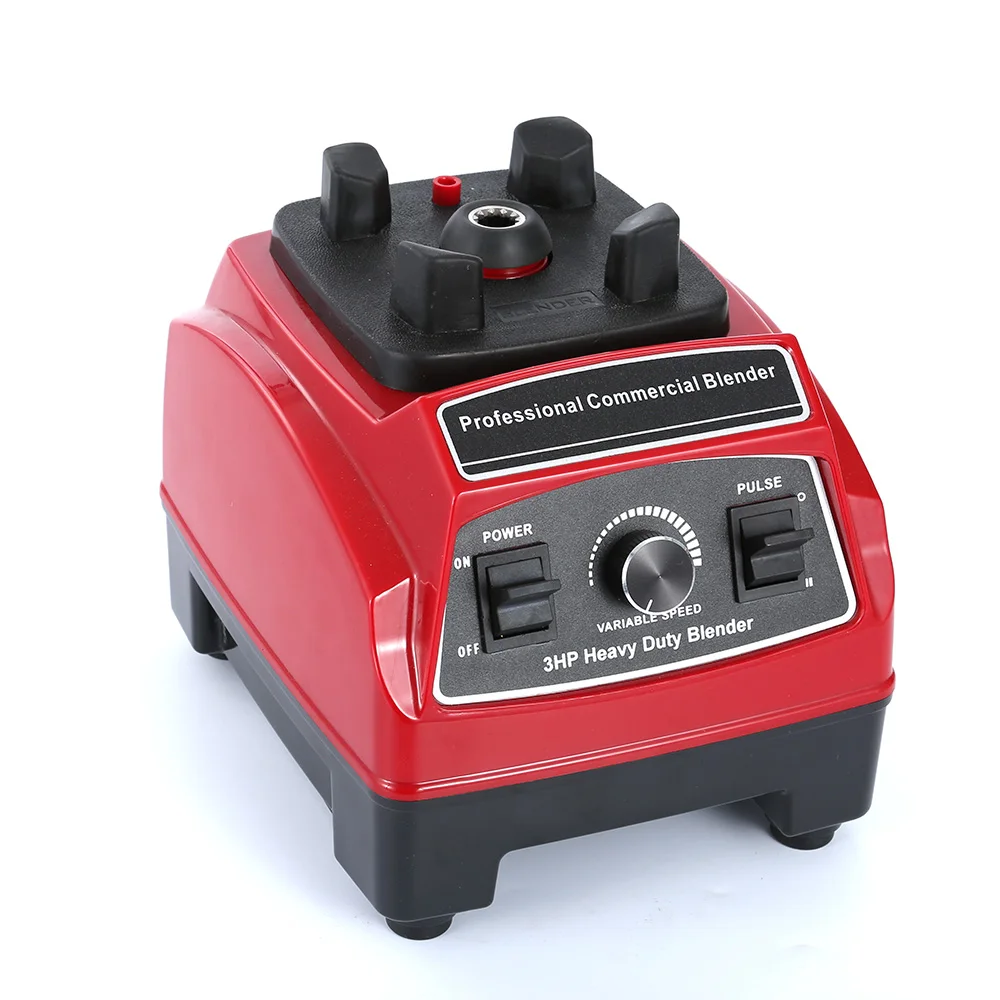

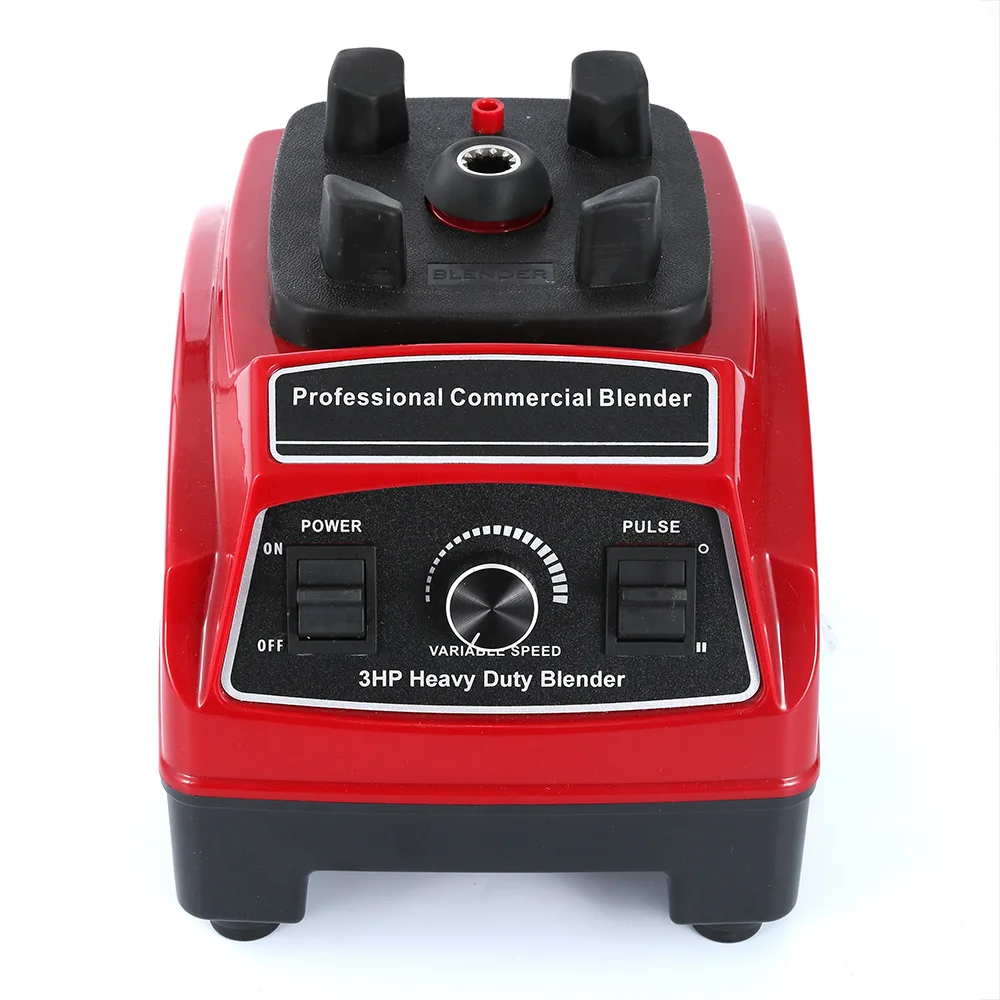

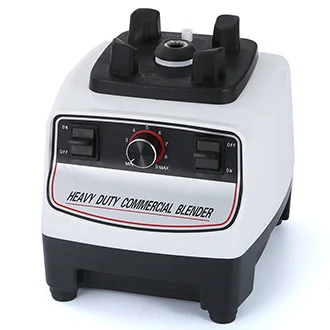

| Body |
 | Material | ABS |
| Motor Heat Dissipation Design | Yes, Separation of cold and hot air design | |
| Coasters | Prefect match cup of blender | |
| Micro Switch | Yes | |
| Color | Black, Red, White (More than 1000pcs can custom any color) | |
| OEM Logo | Print or Laser |
| Heat Dissipation Design |

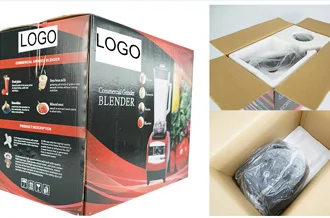

| Package |
 | Material | Color gift box(Optional 5 layers Kraft paper) |
| Size | 480x330x300mm (4pcs/ctn) | |
| Drop Testing | Export standard with 55cm testing | |
| Color | Any color | |
| Design | Free Pakcage Design |
| Reference Comparison |
| H9550 | JB08 | H767 | 767 | 013 | 010 | |
| Motor | ||||||
| 9550-2500w | √ | |||||
| 9545-2200w | √ | √ | ||||
| 9540-1800w | √ | √ | √ | |||
| 9535-1500w | √ | √ | √ | √ | √ | |
| 9530-1200w | √ | √ | √ | |||
| 9525-1000w | √ | √ | √ | |||
| Container | ||||||
| 3.6L | √ | |||||
| 3.0L | √ | |||||
| 2.8L | √ | √ | ||||
| 2.0L | √ | √ | √ | √ | √ | |
| 1.8L | √ | √ | √ | √ | √ | √ |
| 1.2L | √ | √ | √ | √ | ||
| Heat Dissipation Design | ||||||
| Ordinary | √ | √ | √ | √ | √ | |
| Hot and cold separation | √ | |||||
| Application | ||||||
| Commercial | √ | √ | √ | √ | √ | |
| Home | √ | √ | √ | √ | √ | √ |
