Product Overview

Description

current sensor for education electrical lab equipment as teaching resources

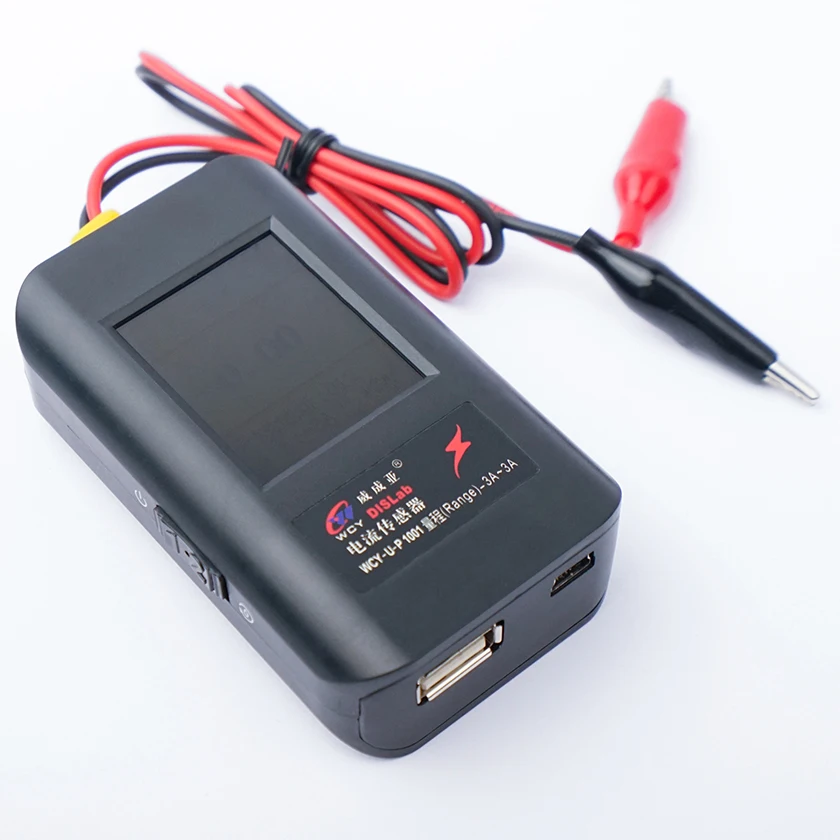

Product Picture

 WCY-U-P 1001(1)(2).jpg

Product Description



Measure Range:

-3A~3A

Accuracy:

0.001A

Resolution:

0.001A

Input Resistance:

0.1Ω

Maximum Input Current:

±3A



Instructions:

Press and hold the ‘1’ button for three to five seconds to turn it on.

After powering on, press the ‘1’ button to zero.

The built-in battery can display data independently after full charge, and use the data cable to connect to      the intelligent collection terminal.

The current sensor is used to measure the magnitude and direction of the current.

The red and black wires with the alligator clip are extended from the sensor.

When used, the current sensor is connected in series in the circuit, the red line is connected to the current inflow end, and the black line is connected to the current outflow end. If reversed, the display data is negative.

 Note: The current to be measured must not exceed the maximum range of the sensor (±3A).

Application / Experiment Examples:



Application



1. Capacitor charge and discharge and series and parallel.
2. Depicting the volt-ampere characteristic curve of the small bulb.
3. Voltammetry measures the electromotive force and internal resistance of the battery.
4. Verify Ohm's law and current-related measurement experiments.
