ПЛК управляемая PP ПЭТ обвязочная лента намотка

I. Working Principle

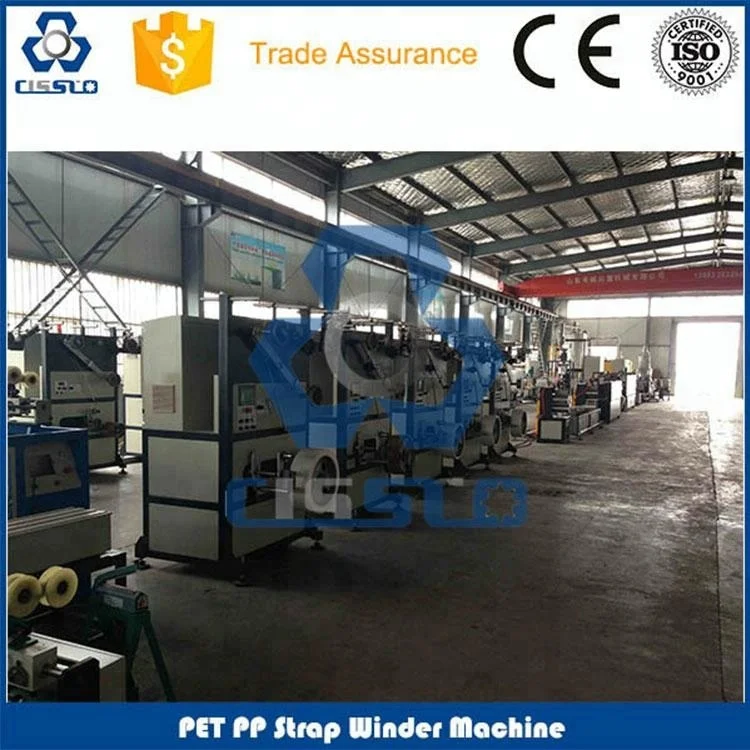

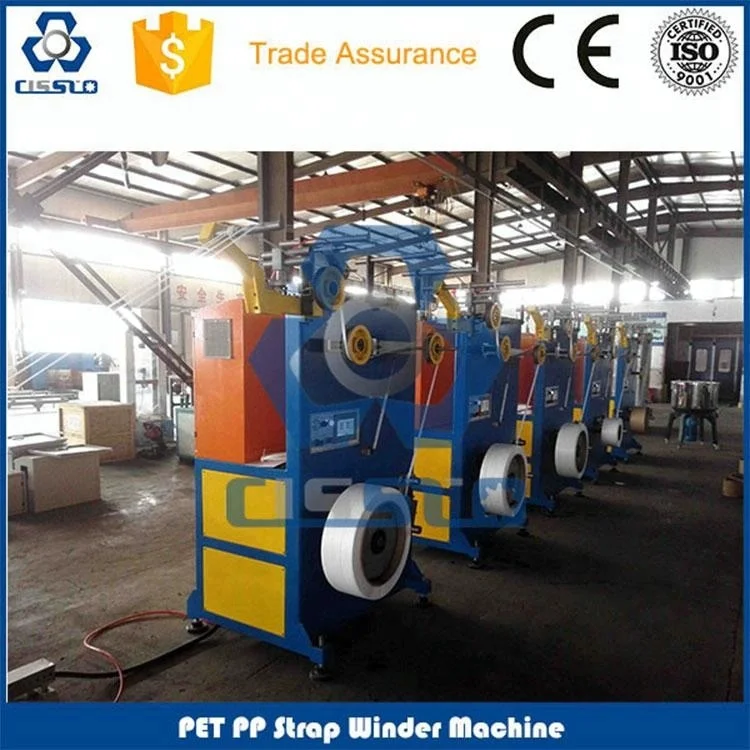

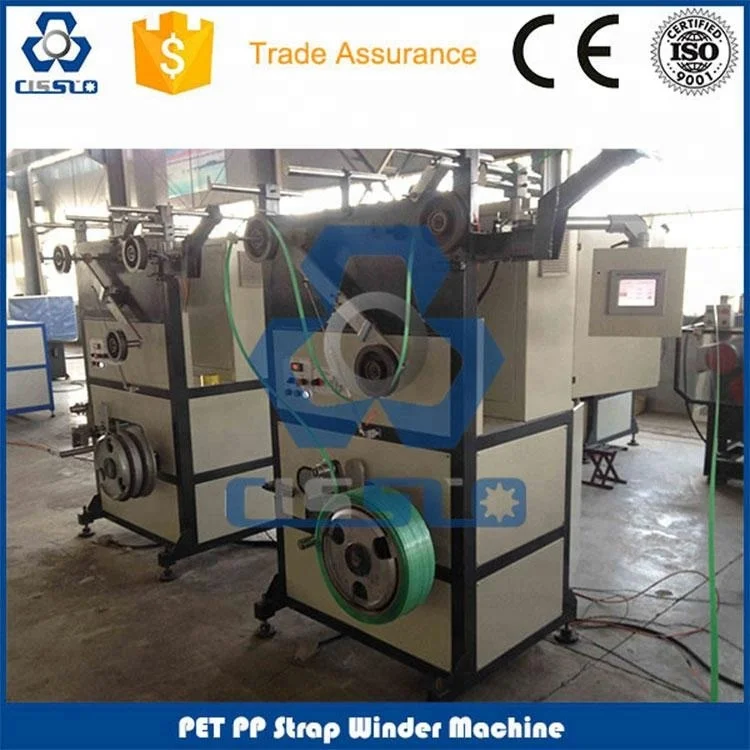

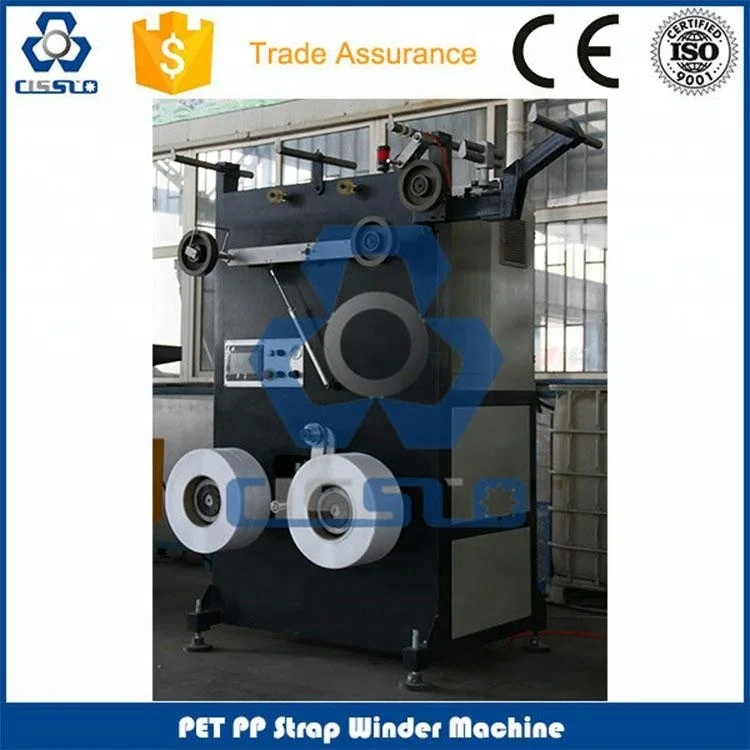

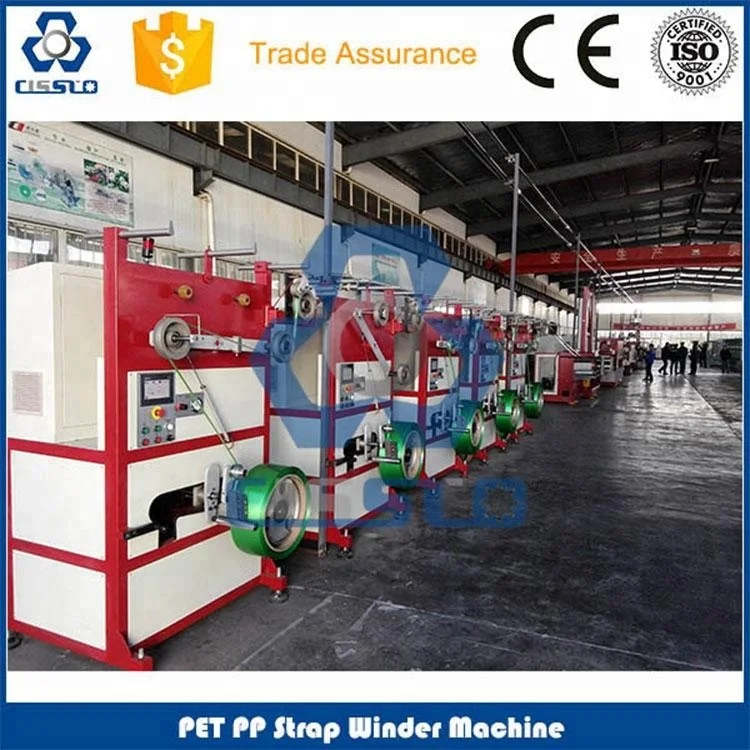

1. The series of strap winder for extrusion speeds up to 180m/min (590.55fpm) have one spindle per machine. The machines have reinforced dancer arms for winding tensions. The inclinometer fixed to reinforced dancer arm transforms the physical location signals of the dancer arm into electric signals and sends to the programmable logic controller (PLC). After data operation, PLC controls the running speed of the winding motor, driving the paper drum fixed around the winding axis to wind the straps evenly with constant tension.

2. The straps thread through the traversing unit. Traversing motor runs proportionally to the winding motor. So the straps are evenly wound around the cylindrical tubes.

3. A meter recording encoder is connected to the traction motor. It reports the linear speed and the length which has been wound already to PLC, and the PLC will display the linear speed and the length on the screen. Users can know well about the equipment operation condition currently.

II. Technical Specifications

1. The machine of strap winders is used for winding PET/PP straps up to 31.75 mm (1 1/4") width in parallel winding directly from extruder line.

2. Strap feed from left to right (from operator’s side)

3. Each machine mounted on a frame

4. Machine specification Each winder is equipped with:

4.1 For the PET strap packing into a roll. The center automatically arranged winding. Consists of: closing reel, core, transmission unit, winding displacement unit, rack, electrical control parts, etc.

4.2 Automatic computer control winding disk diameter and length of the winding.

4.3 Winding parameters, cable parameters can be set according to the product specifications by computer.

4.4 Servo motors are used to control the width and spacing of winding displacement.

4.5 Straps entrance with protection device.

4.6 Torque arm directly separately checks the location and pneumatic plug to maintain the tension of straps.

III.Technical Parameters

CissCo Machinery is a fast forward professional supplier of complete plastic extrusion equipments and systems.

At CissCo, we design, engineer and manufacture customized PLASTIC EXTRUSION LINES. There is a proven CissCo technology for virtually every extrusion line application. Our extensive knowledge of the industry - its raw materials, processes and finished products - provides reliability, cost optimization and on-time delivery, the same benefits that you would expect from proven pre-engineered components, all in a system designed and tailored to your unique requirements.

To ensure the efficiency, productivity and safety of our systems, we offer extensive start-up assistance, comprehensive training and operator manuals. When you have service needs, you can count on an immediate response from your nearest CissCo facility, one of many we have located strategically throughout the world.

we are using the high technology from European. From the pictures, you can find the similarity between our machine and theirs. Our technical advantages are as follows,

1. European pipe extrusion technology;

2. 20 years plastic extrusion experiences;

3. Easy to operate, Stable production performance, Low production cost, Good quality pipes;

4. Quicker production speed, bigger output;

5. Good steel material and well-known brand electrical parts;

6. Good appearance of machine, beautiful;

7. Free training for technical process, formula and know-how;

8. Full time and high level after-sale services.

CissCo Machinery has been trying to enable customers to maximize the benefits with professional serivces such as:

• 24 hours services;


• Overseas installation;


• Free operation training and technology formula transfer;


• Old machine update;


• Spare parts and maintenance with reasonable cost price.
