MOTORISED TRAILER JOCKEY WHEEL 12V MOVER ELECTRIC CARAVAN BOAT DOLLY
Product Description

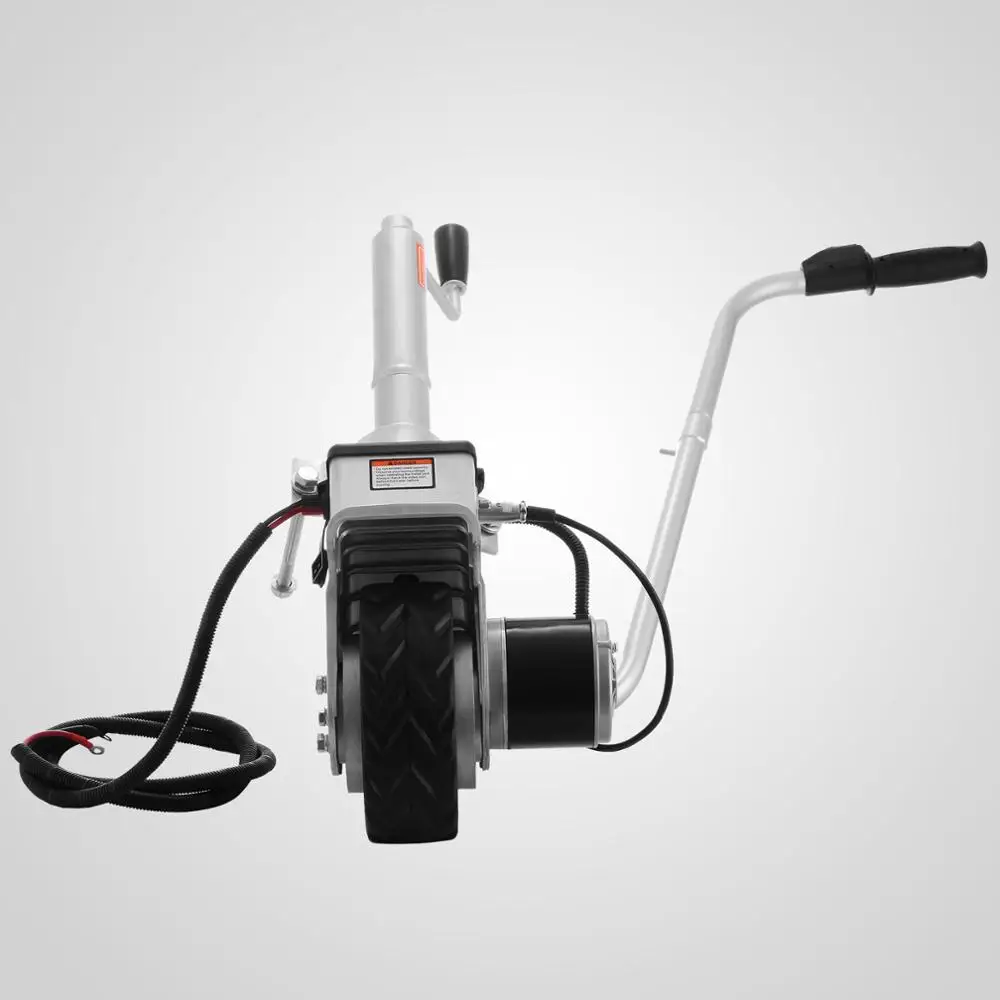

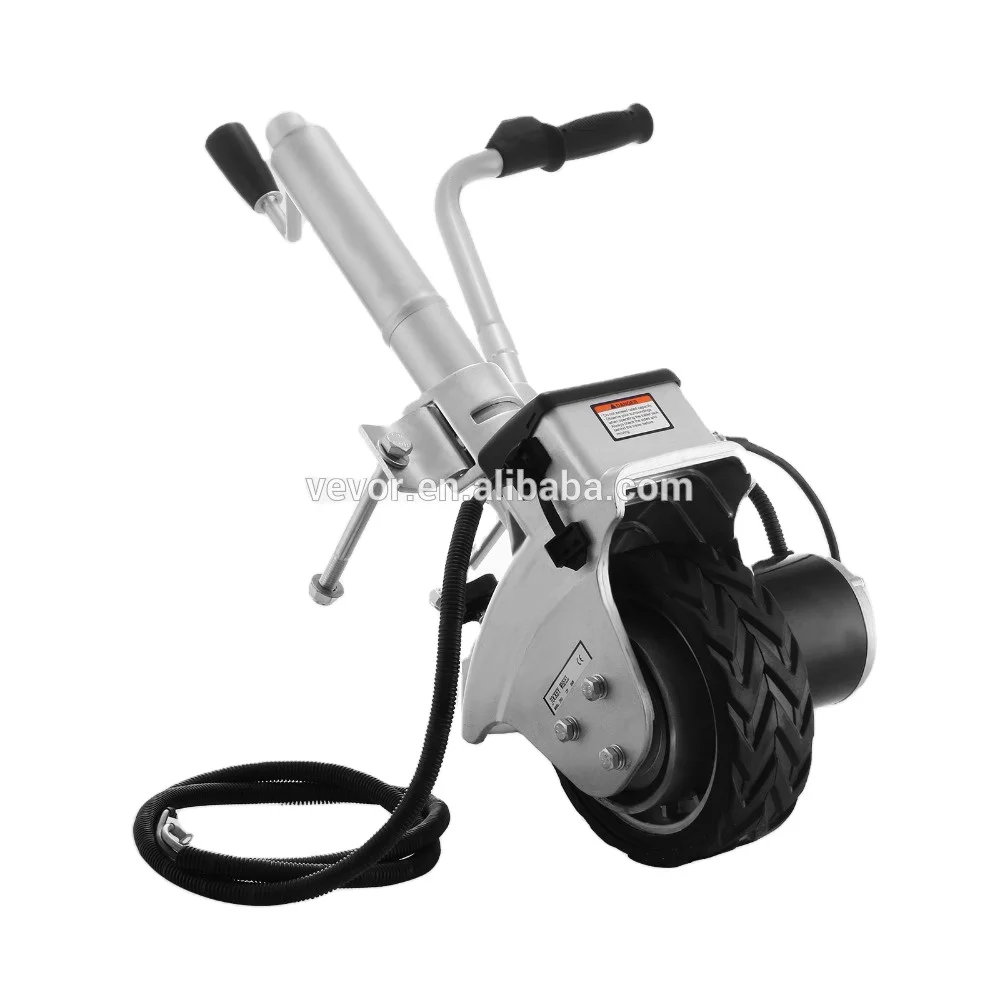

Applications: 12V Motorised Jockey Wheels, making you easy to maneuver your caravan, trailer, boat or horse float. The Striker Power Jockey wheel boasts forward and reverse motion, as well as automatic brake function. It also has an oversized anti-slip wheel and the ability to be used on slight inclines, which makes it ideal for shifting your prized possessions into awkward positions. The Striker has a class-leading vehicle load of 2270KG and can also run off a 24Ah battery (not included). Brief description:
Motor & Gear system: DC motor provides power to the gear mechanism, and reduction gears converts motor power into moving force.
Control box: Include the electric components, and protect motor from over heat damage.

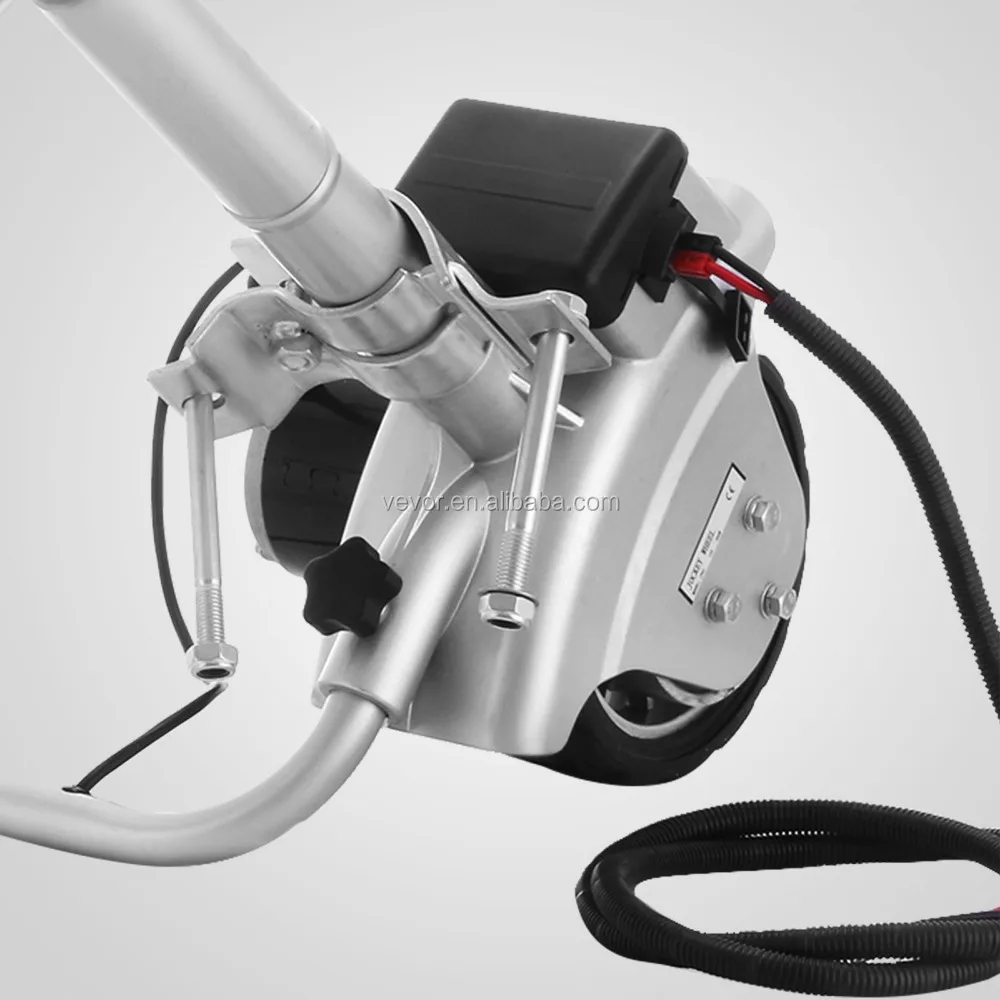

Clamp: It is same as normal jockey wheel clamp for fix Trail Jack to vehicle Chassis.

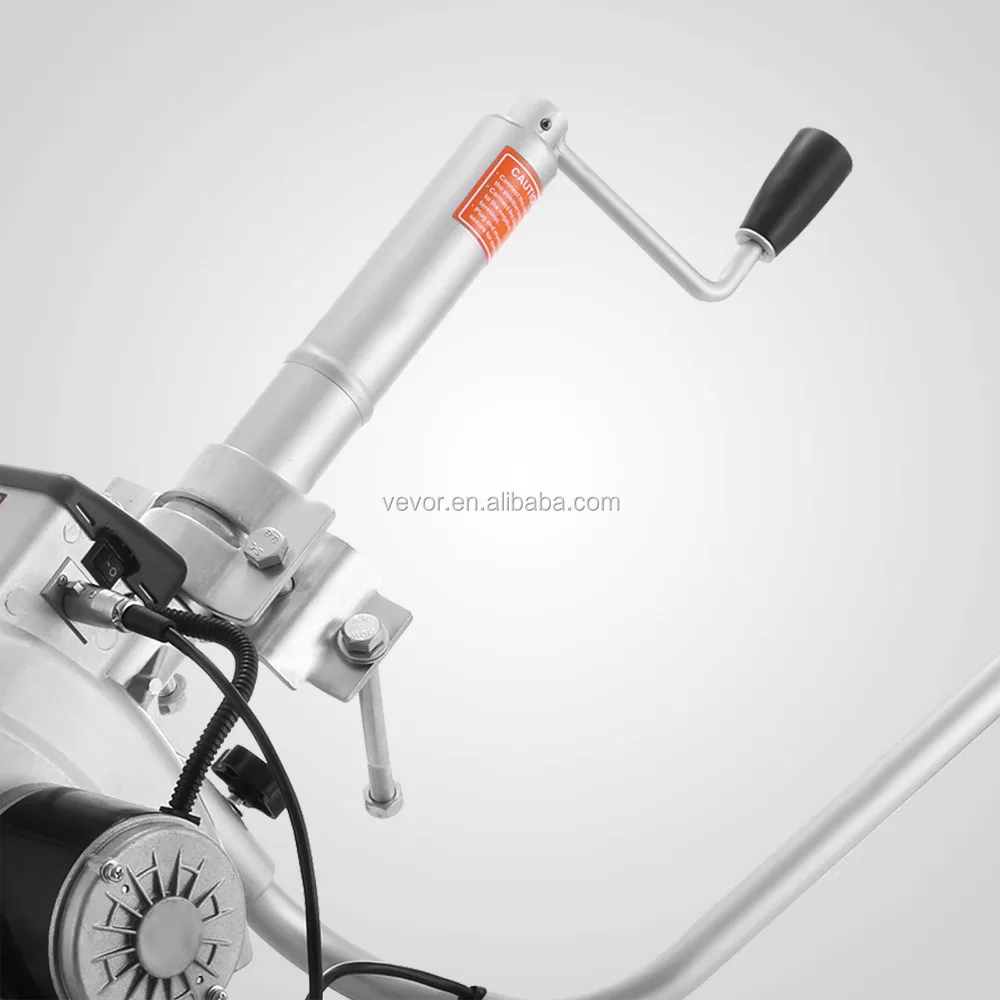

Lift Handle: Adjust the height of Trailer Jack.
Locking & Cover: The locking pin and cover prevent your Mini Mover from stolen.
Control Handle: It allows operator turning handle to right or left.
General tips for safe operation 1. Jack is rated at 2270kg pulling weight and 272kg jockey wheel load. Overloads can damage the Mini Mover, motor, tire etc. 2. Check if the handle positioning key totally screwed with Mini Mover before you start operation. 3. Check if battery leads correctly connect to battery terminals. 4.Don’t use leads that being shatered, squashed or any damage. 5.Avoid rainy day when use the machine under the condition of open-air.
FEARTURES
Serious pulling power - 350W Motor
Forward and reverse control
Automatic brake
Heavy-duty solid rubber wheel
Oversized anti-slip wheel adapted to be used on slight inclines
Two years Free warranty
TECHNICALS
Model: Striker
Max Incline: 5 Degrees
Max Vehicle Load: 2270kg
Max Jockey Wheel Load: 2270kg
Adjusted Clamper Height: 32cm/42cm
Motor: 12V/350W
Minimum Operating Battery Power: 12V / 18A
Tire Diameter: 19cm
Gear Ratio: 326:1
Max Speed: 6-7 meters per minute
Brake: Automatic brake
Warranty: 2 years
PACKAGE INFORMATION
1 x 350W Motorized Jockey Wheel
1 x Mounting bracket
