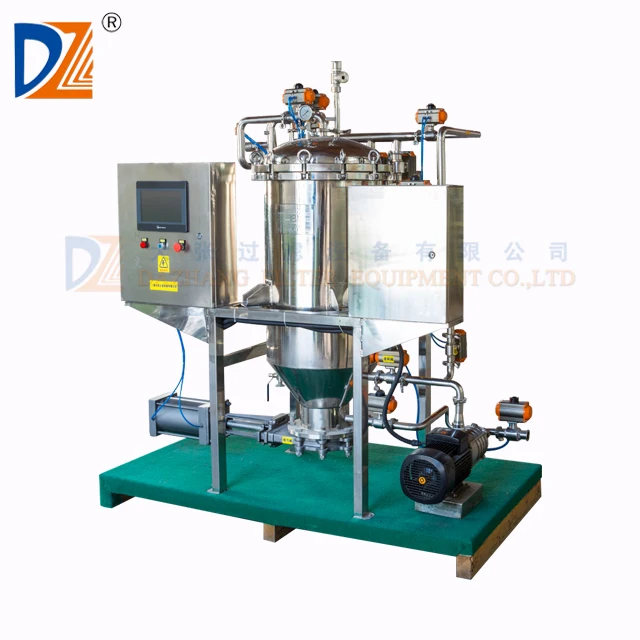

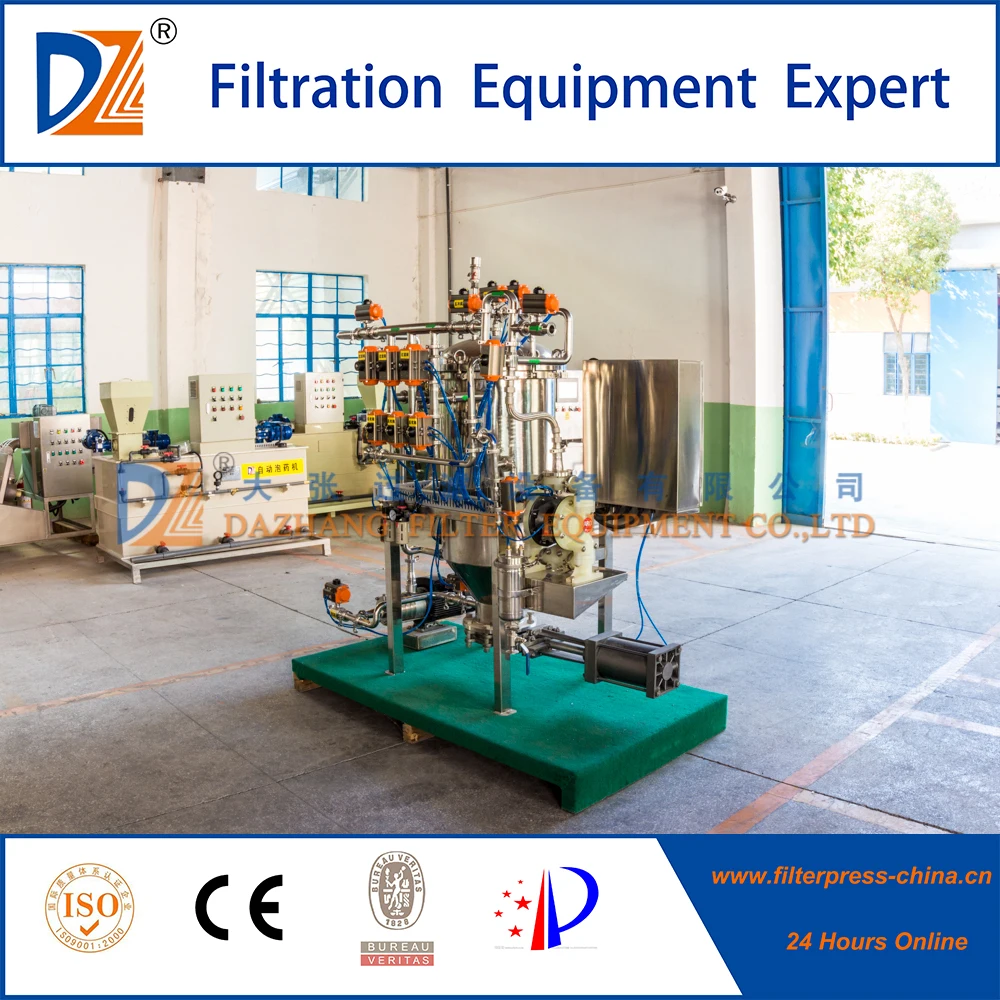

DZ Stainless steel filter press candle filter machine for oil food industrial
Candle filter is also called filter cake layer filter, it is composed of the vertical vessel and vertically installed filter units. The filter units consist of poriferous petaloid filter cartridge and filter cloth. The real filter medium are the filter cloth and filter cake layers that covering the filter cartridge. Filter cloth is fixed on the surface of filter cartridge to make it fully sealed by using special clamps. The entire filter process is totally sealed without any spillage or environment pollution. It can realize automatic filtration, feeding washing& air back blowing to discharge residuals at one time. The filter process is in high speed and zero pollution, it brings largest economic benefit.

Working Principle of Candle filter
Candle filter is a fully closed filter system, it's main parts are the material tank, air storage tank, feeding pump, candle filter, pipes, valves, PLC electric control system.

While filtering, filter material will be sent into the filtering housing by feed pump first; when it pases through filter clothm solid particles will be stopped on the filter cloth. And as the solid particles growing, they will become filter cakes. The holes between solid particles are very small, so they can keep more solid particlesm thus get clear liquid. Before solid particles becoming cakes, the filtration will be send back to filter material tank and resend to vessel again. When filter cakes are formed, PLC will send a signal to stop the circulation, and the clear liquid will pass the filter valve and go to next process to start the normal filtering process.

Remark:

1. Max capacity is the reference value base on water test; the actual value can be different because of liquid viscosity, solid content and pressure difference

2. The material can be carbon steel, SUS304 and SUS316L

3. According to the nature and temperature of the material filtered, the O-Ring's smaterial can be customized to meet your needs.

 Packaging Detail: Seaworthy packing

 Delivery Detail: 25 days after prepayment

    1.Dazhang Filter Equipment is the biggest factory in north-central of China, and we have the biggest injection molding machine with 4000 tons.

    2.The oil cylinder seat, pressing plate and thrust plate are formed by carbon dioxide prodection welding.

    3.Dazhang self-developed filter press with the biggest filter area of 1000m2 goes well in Vietnam.

    4.The main beam of Dazhang filter press is designed by adopting welded box contruction, and manufactured by making use of submerged arc auto welding technology.

    5.The chain cover which is independently developed by Dazhang has the characteristic of high hardness and anti-corrosion.

    6.All the spare parts that need painted are dealed with high speed centrifugal ball blast descaling and iron scale. After painting MIO epoxy build primer, paint acrylic polyurethane coating directly to make it have the best adhestion. It can save hundreds tons of putty every year, thus not only reduce the cost, but also protect the enviroment. More important, it improves the adhesion of the paint and antisepsis class of the filter press.

    Henan Dazhang Filter Equipment Co., Ltd. is a professional filter press manufactures. It has three subsidiary corporations in Shanghai and Yuzhou. Now Henan Dazhang is the biggest filter press base in the center of China. We are specialized in designing, producing and selling filter presses and other related equipment. Our products mainly include more than 6series related hundreds of good sellers, such as Automatic Membrane Filter Presses, Automatic Chamber/Racessed Filter Presses, Hydraulic/Mechanical/Manual Filter Presses, Special Filter Presses, Filter Plates(including CGR Gasketed Filte Plates),Belt Filter Presses, Bag Filters ect. In order to meet different filtration needs of customers, we have been constantly developing and improving our prduct technology, quality, process automation and after-sales services. Our unremitting efforts for years have bought us great trust from customers and our products enjoy fast sales abroad.

    Our products find their extensive applications in the fields of petroleum, chemical, pharmacy, sugar refinery, food stuff, coal washing, oiling, printing and dyeing, ceramaic, mining and metallurgy, sewage disposal and so on. With good quality, our products are not only widely welcome in China, but also successfully exported to many countries,such as America, the EU, Russia, Australia etc. Many of our customers are lieted on Fortune Global 500 Companies.
