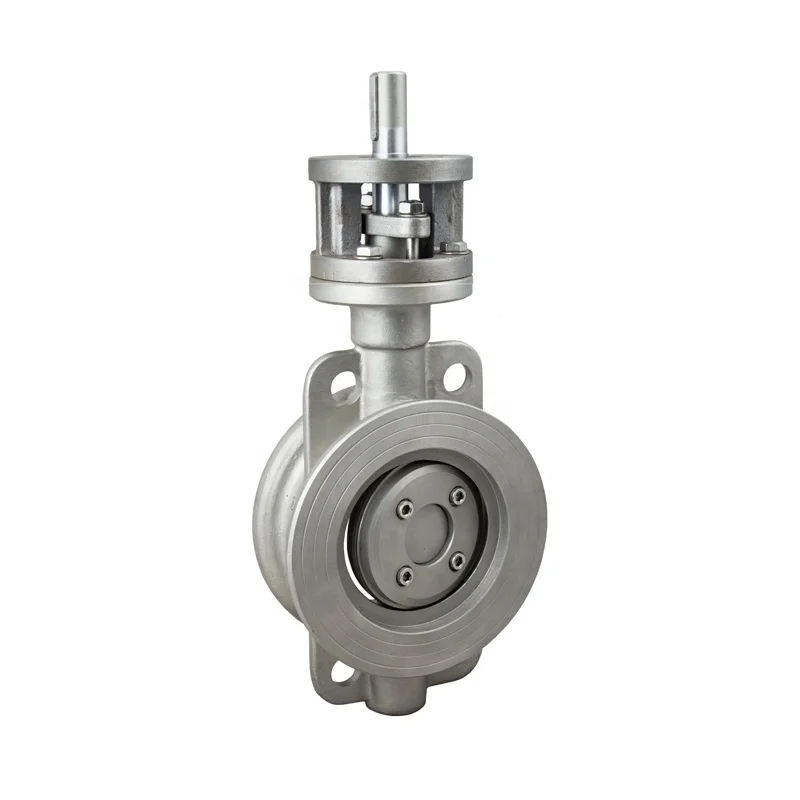

Carbon Steel 6 Inch DN200 Sandwich Wafer Butterfly Valve DN150

Product Overview

Description



SPECIFICATIONS FOR STEEL BUTTERFLY VALVES
Pressure rating and size:	PN10 to PN64, Class 150 to Class 600
	DN50 to DN2000
	2"~80"
Material:	Body : WCB,WC6,WC9,CF8,CF8M,CF3,CF3M,C95800
	Disc  : WCB,WC6,WC9,CF8,CF8M,CF3,CF3M,C95800
	Stem : 2Cr13, SS304, SS316, 304L, 316L, 17-4PH
	Seal : SS+Graphite, PTFE, RPTFE, EPDM, NBR
	Packing : PTFE, RPTFE, Graphite
Operated type	Lever, Worm Gear, Pneumatic, Electric, Bare shaft,etc.
Structure:	Double eccentric/offset, Triple eccentric
Connection Standard:	EN1092, ANSI B16.5, JIS B2212, GB/T9113
Connection Type:	Flange, wafer, lug
Medium:	Water, oil, gas, steam and acid
Temperature:	425°C or above
